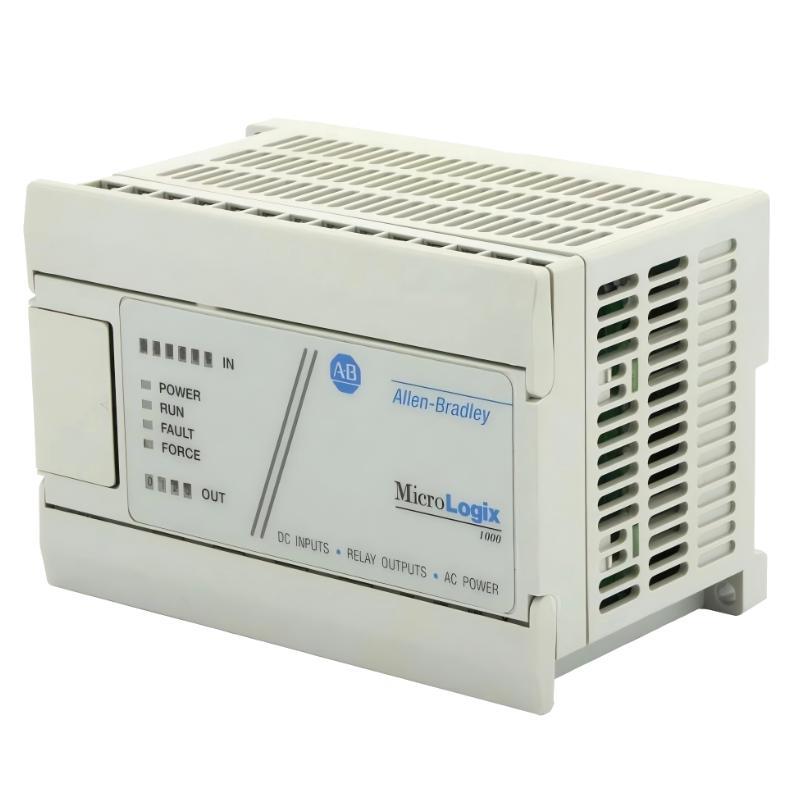

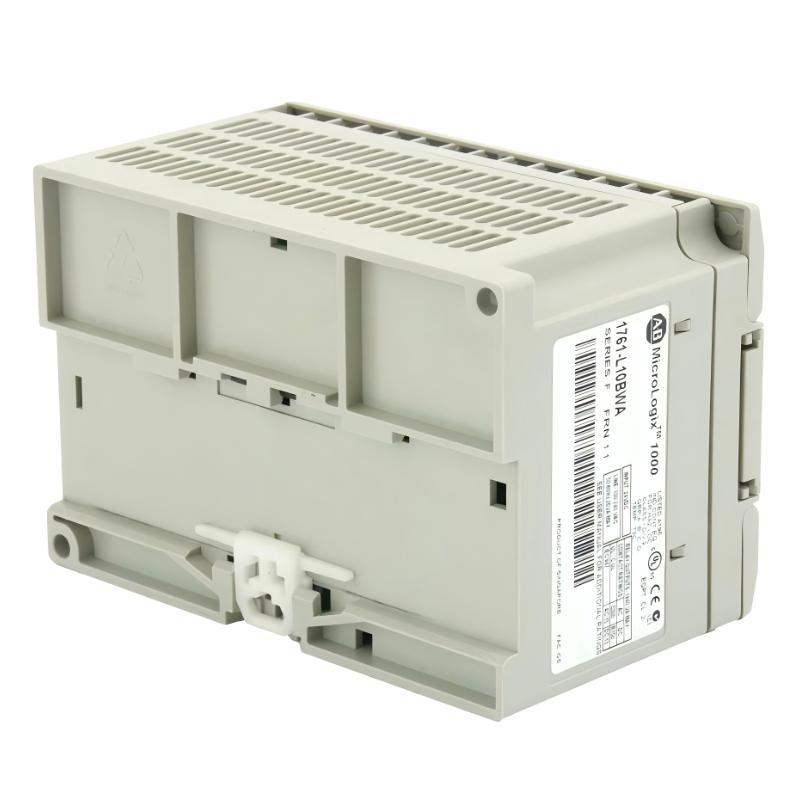

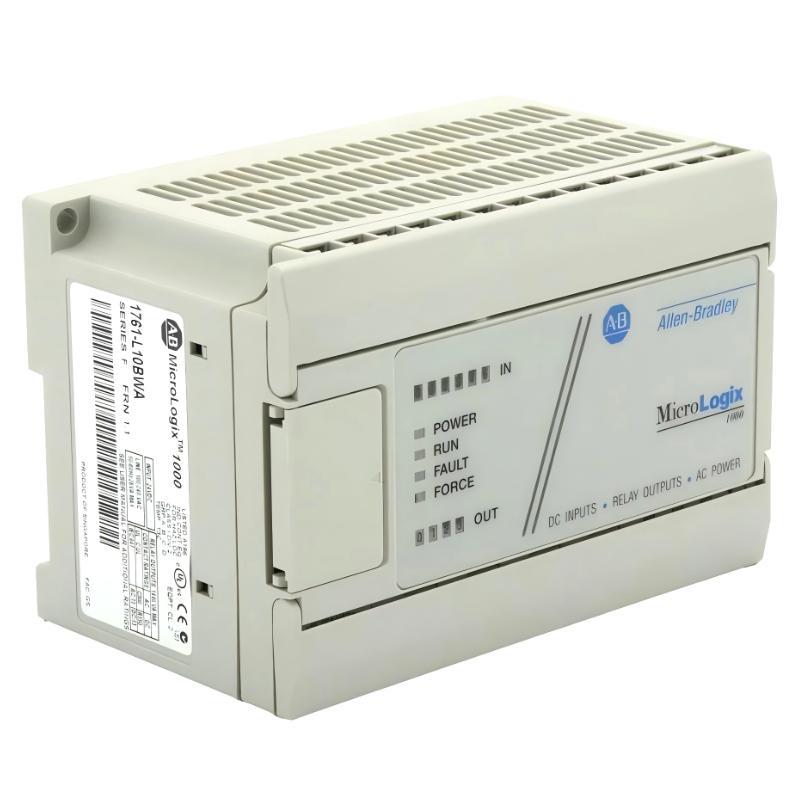

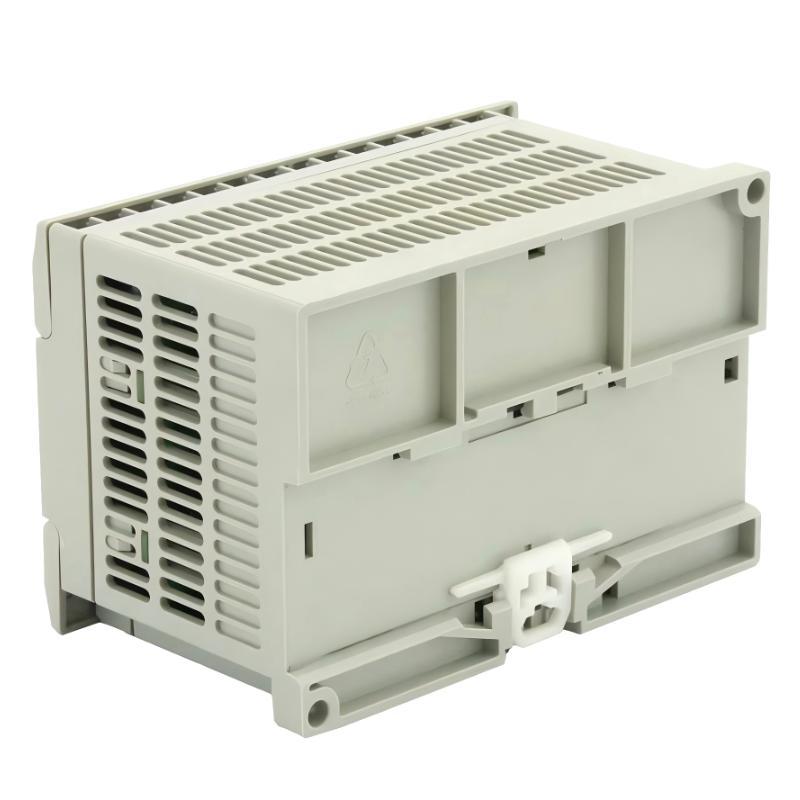

Allen Bradley 1761-L10BWA MicroLogix 1000 Programmable Controller

Overview

The Allen-Bradley 1761-L10BWA is a compact MicroLogix 1000 programmable controller designed for small-scale industrial automation applications. It integrates logic control, I/O handling, and basic communication functions in a space-efficient form factor suitable for machine-level control tasks.

General Information

Part Number: 1761-L10BWA

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: MicroLogix 1000

Type: Programmable Logic Controller (PLC)

Application: Small machine control, automation logic processing

Function: Executes control programs and manages input/output operations

Mounting: Panel or DIN-rail installation

Power Specifications

Supply Voltage: 120–240 V AC

Power Consumption: Low power consumption (compact PLC design)

Input Power: Direct AC mains supply

Protection: Built-in surge and electrical noise protection

Backup: Non-volatile memory support for program retention

Communication & Interface

Communication Ports: Built-in serial communication interface

Programming Interface: RS-232 compatible connection

I/O Capability: Integrated digital and analog I/O support (model dependent)

Functionality: Program upload/download, monitoring, and diagnostics

Diagnostics: Status LEDs for CPU, run, and fault conditions

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial control cabinet or machine-mounted installation

Resistance: High resistance to electrical noise and vibration

Dimensions & Weight

Dimensions (L × W × H): 120 × 73 × 80 mm

Weight: 0.34 kg

Compact Control, Reliable Performance!
