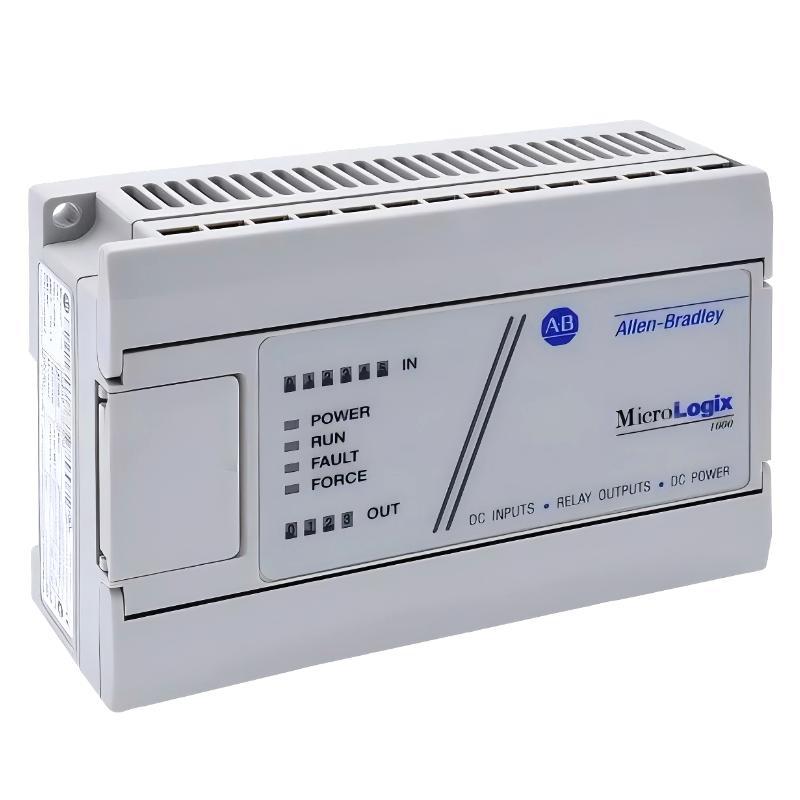

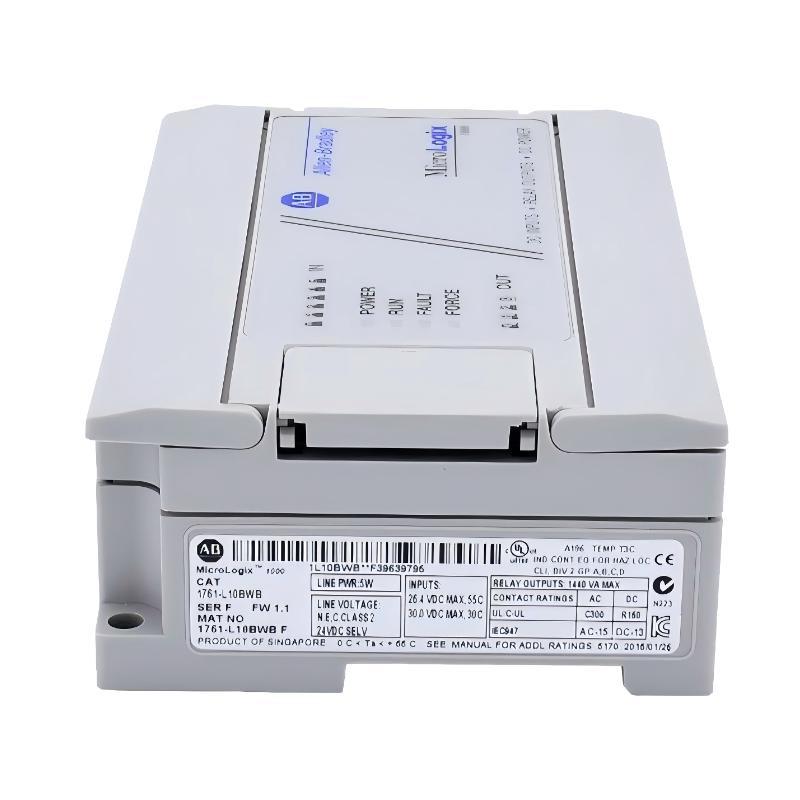

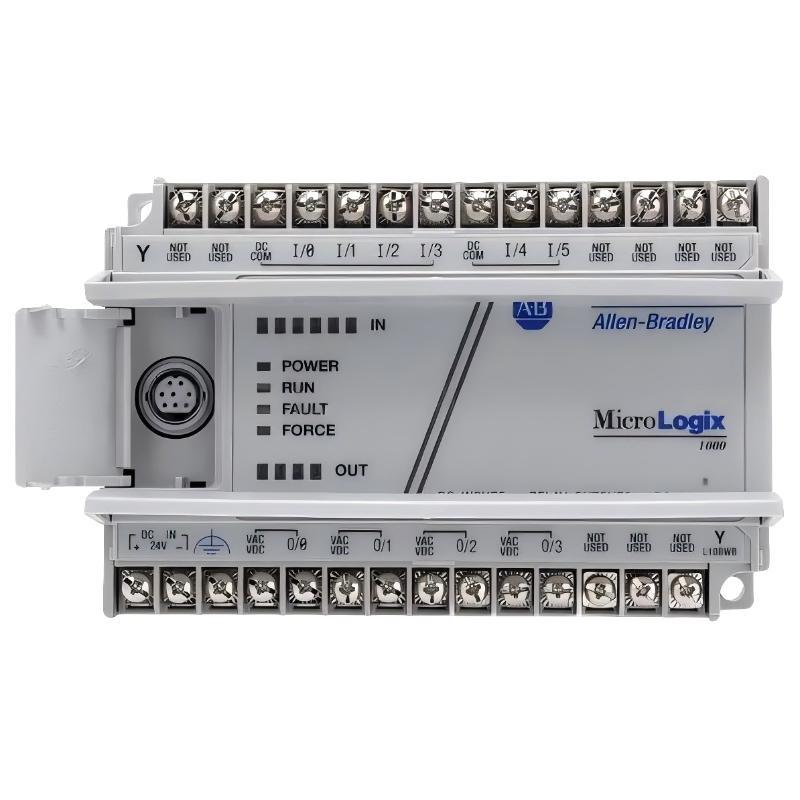

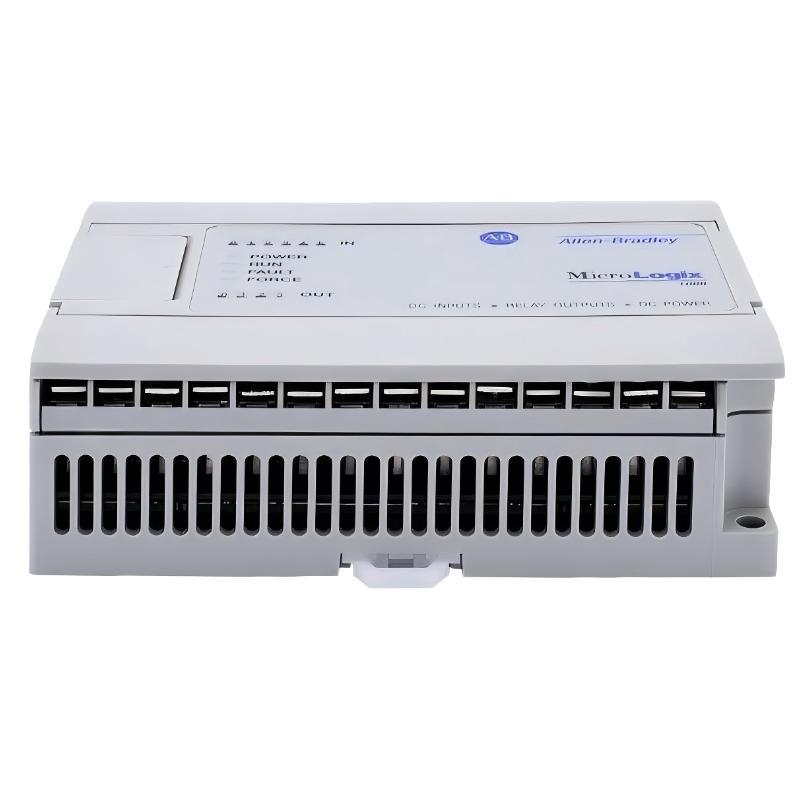

Allen Bradley 1761-L10BWB MicroLogix 1000 Programmable Controller

Overview

The Allen-Bradley 1761-L10BWB is a compact MicroLogix 1000 programmable controller designed for basic industrial automation and machine control. It delivers reliable logic execution and I/O handling in a space-saving form, suitable for small applications requiring stable and efficient control.

General Information

Part Number: 1761-L10BWB

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: MicroLogix 1000

Type: Programmable Logic Controller (PLC)

Application: Small machine automation and control systems

Function: Executes control logic and manages input/output operations

Mounting: Panel or DIN-rail installation

Power Specifications

Supply Voltage: 120–240 V AC

Power Consumption: Low power consumption (compact PLC design)

Input Power: Direct AC mains supply

Protection: Built-in surge and electrical noise protection

Memory: Non-volatile memory for program retention

Communication & Interface

Communication Ports: Built-in serial communication interface

Programming Interface: RS-232 compatible programming port

I/O Capability: Integrated digital I/O (model dependent)

Functionality: Programming, monitoring, and diagnostics

Diagnostics: LED indicators for run, fault, and status monitoring

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial machine or control cabinet installation

Resistance: High immunity to electrical noise and vibration

Dimensions & Weight

Dimensions (L × W × H): 120 × 40 × 80 mm

Weight: 0.2 kg
