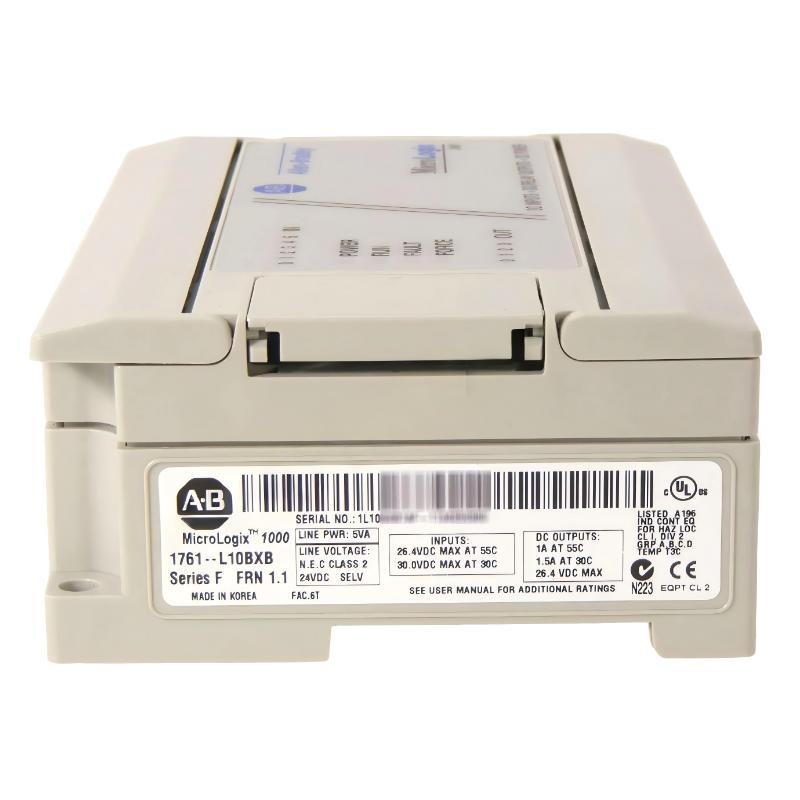

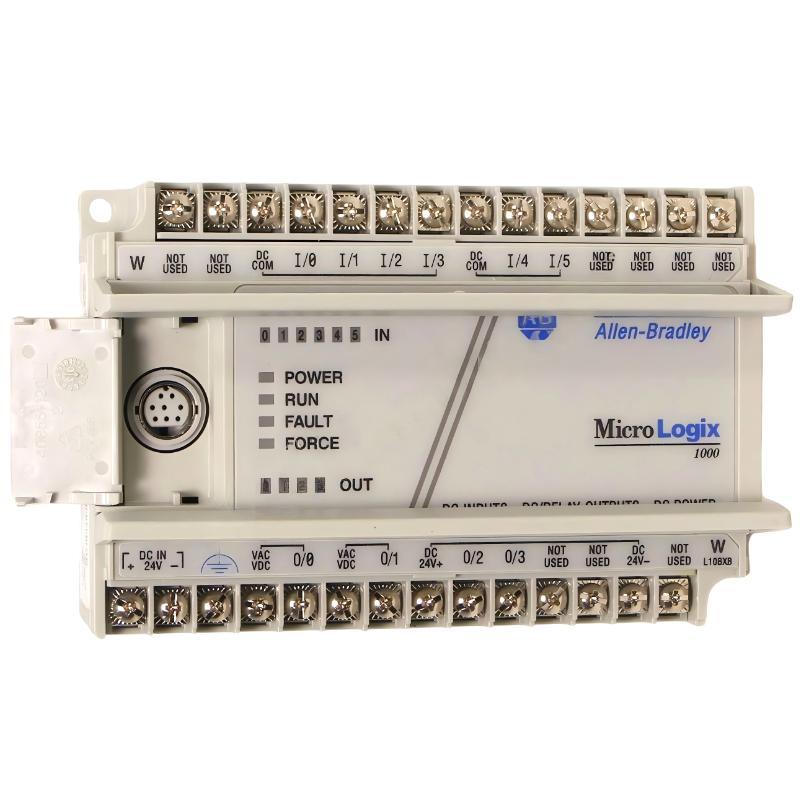

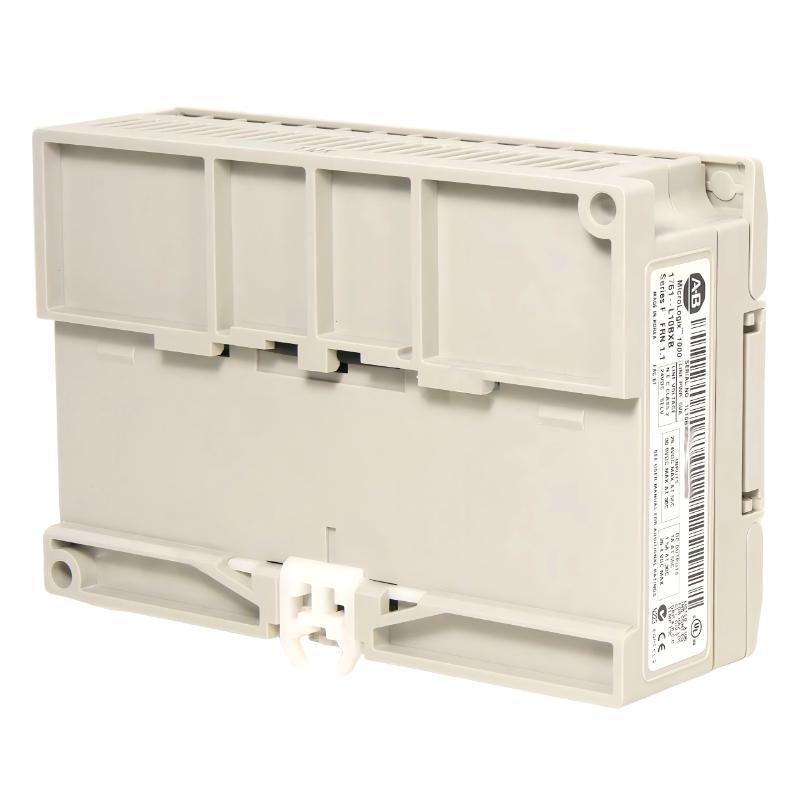

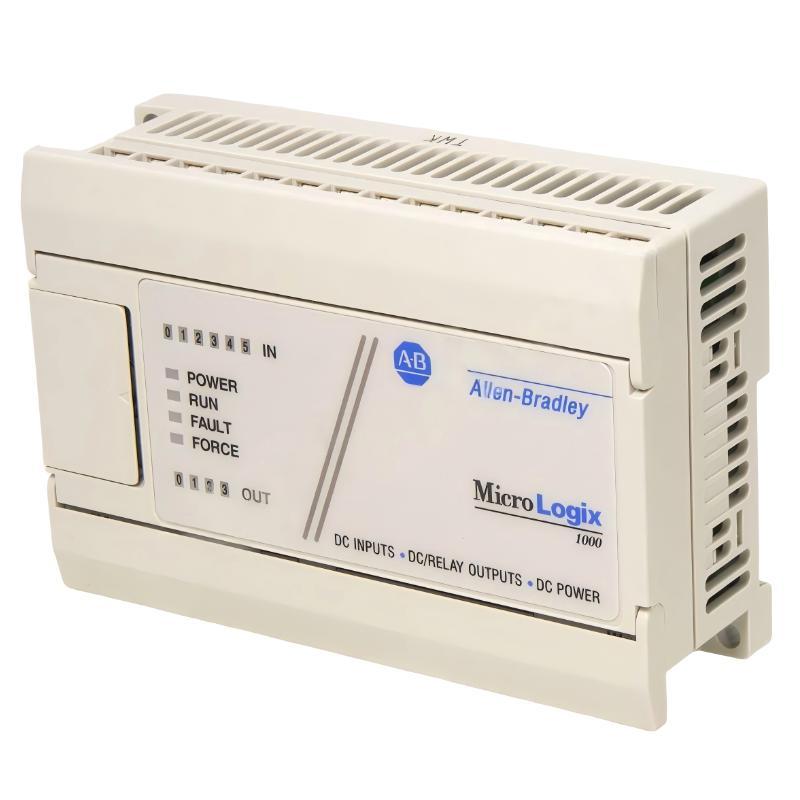

Allen Bradley 1761-L10BXB MicroLogix 1000 Programmable Controller

Overview

The Allen-Bradley 1761-L10BXB is a compact MicroLogix 1000 programmable controller designed for small-scale industrial automation. It provides reliable logic control, I/O management, and stable operation for basic machine and process control applications.

General Information

Part Number: 1761-L10BXB

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: MicroLogix 1000

Type: Programmable Logic Controller (PLC)

Application: Small machine automation and control systems

Function: Executes control logic and manages input/output operations

Mounting: Panel or DIN-rail installation

Power Specifications

Supply Voltage: 120–240 V AC

Power Consumption: Low power consumption (compact PLC design)

Input Power: Direct AC mains supply

Protection: Built-in surge and electrical noise protection

Memory: Non-volatile memory for program retention

Communication & Interface

Communication Ports: Built-in serial communication interface

Programming Interface: RS-232 compatible programming port

I/O Capability: Integrated digital input/output support (model dependent)

Functionality: Program upload/download, monitoring, and diagnostics

Diagnostics: LED indicators for run, fault, and system status

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial control cabinet or machine-mounted installation

Resistance: High immunity to electrical noise and vibration

Dimensions & Weight

Dimensions (L × W × H): 120 × 40 × 80 mm

Weight: 0.272 kg
