Allen Bradley 1761-L16AWA MicroLogix 1000 Programmable Controller

Overview

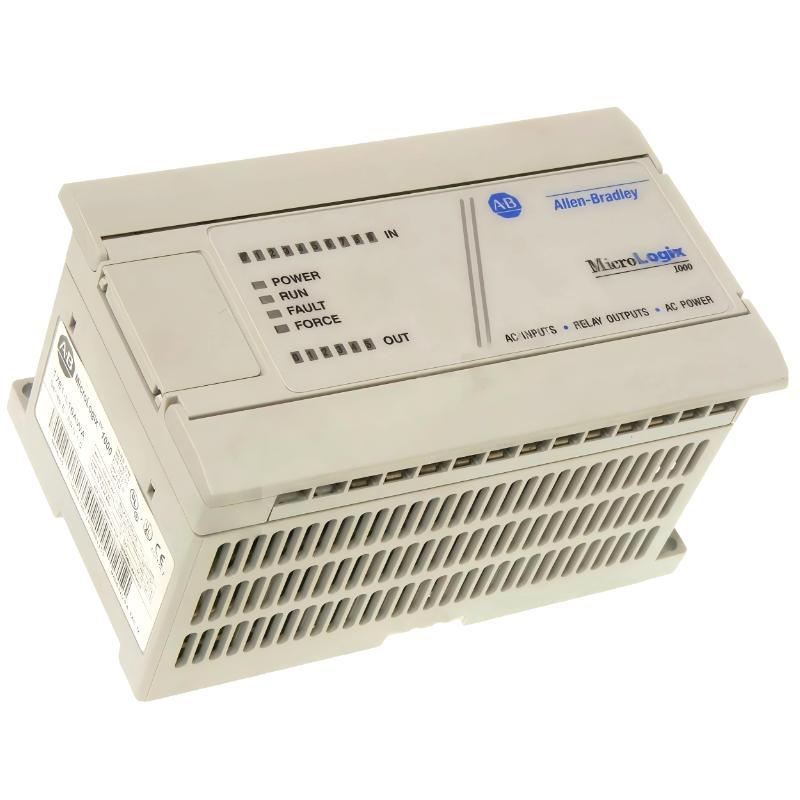

The Allen-Bradley 1761-L16AWA is a MicroLogix 1000 programmable logic controller designed for small to mid-level industrial automation tasks. It delivers dependable control performance with integrated I/O and simple programming capability for machine-level applications.

General Information

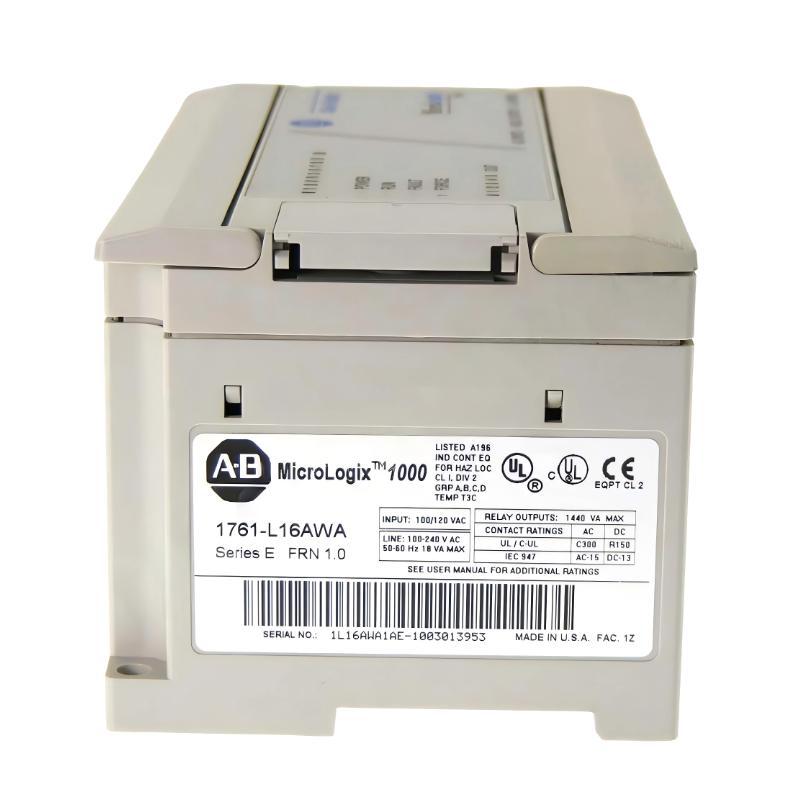

Part Number: 1761-L16AWA

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: MicroLogix 1000

Type: Programmable Logic Controller (PLC)

Application: Machine control and small automation systems

Function: Executes control logic and manages input/output operations

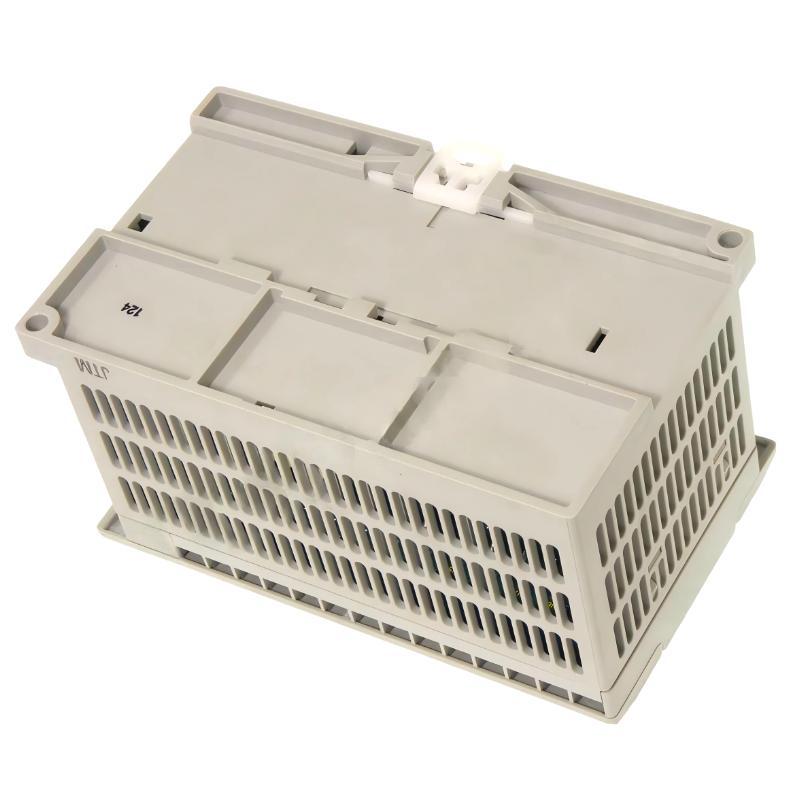

Mounting: Panel or DIN-rail installation

Power Specifications

Supply Voltage: 120–240 V AC

Power Consumption: Low power consumption

Input Power: Direct AC mains supply

Protection: Built-in surge and electrical noise protection

Memory: Non-volatile program retention

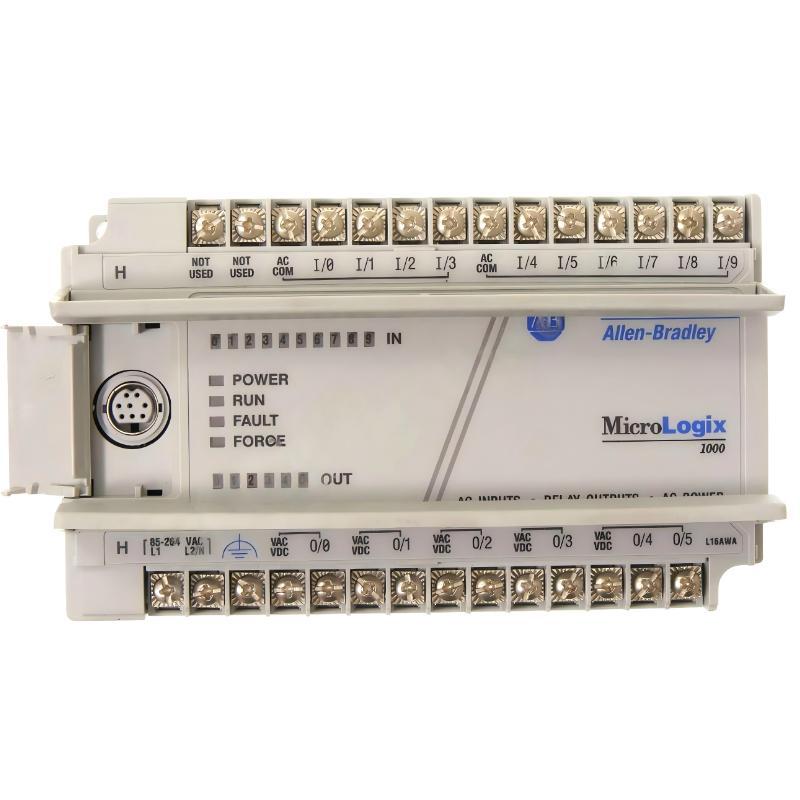

Communication & Interface

Communication Ports: Built-in serial communication interface

Programming Interface: RS-232 compatible port

I/O Capability: Integrated digital and analog I/O support (model dependent)

Functionality: Program upload/download, monitoring, and diagnostics

Diagnostics: LED indicators for CPU status, run, and fault conditions

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial control cabinet or machine-mounted installation

Resistance: High resistance to electrical noise and vibration

Dimensions & Weight

Dimensions (L × W × H): 133 × 73 × 80 mm

Weight: 0.386 kg

Reliable Control for Compact Industrial Systems!
