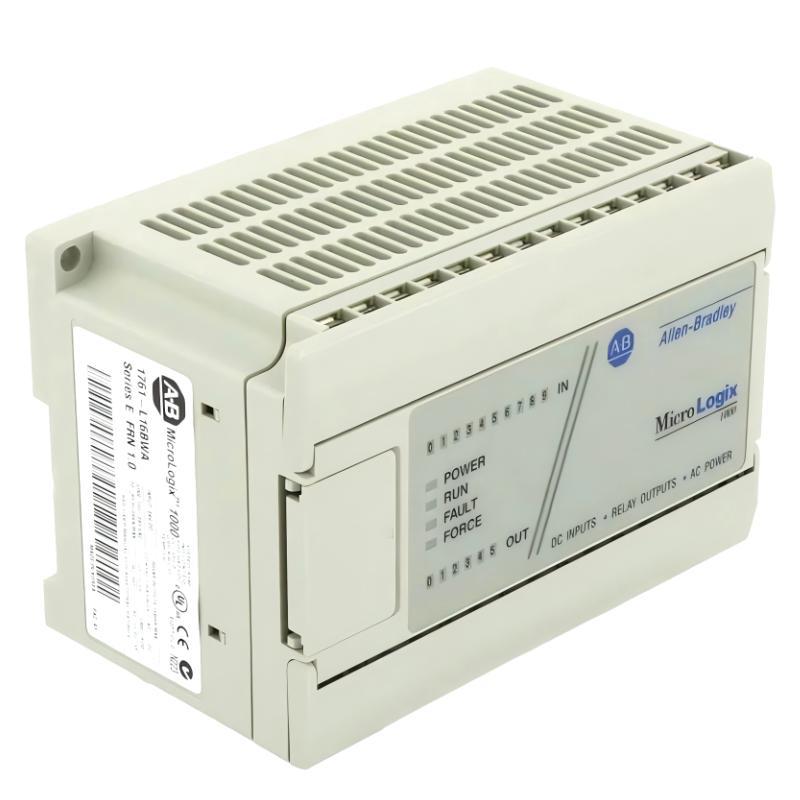

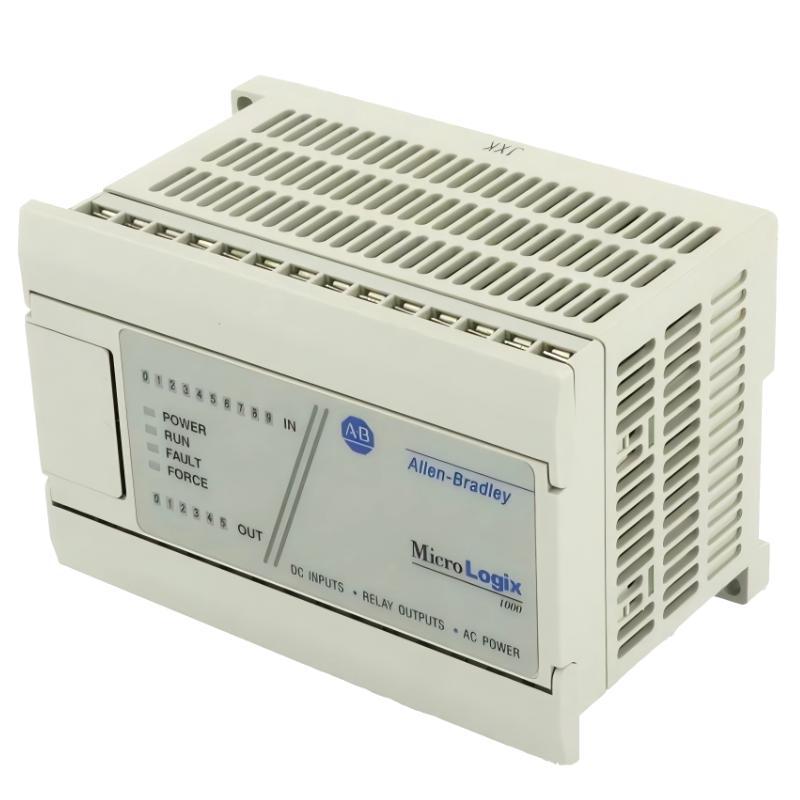

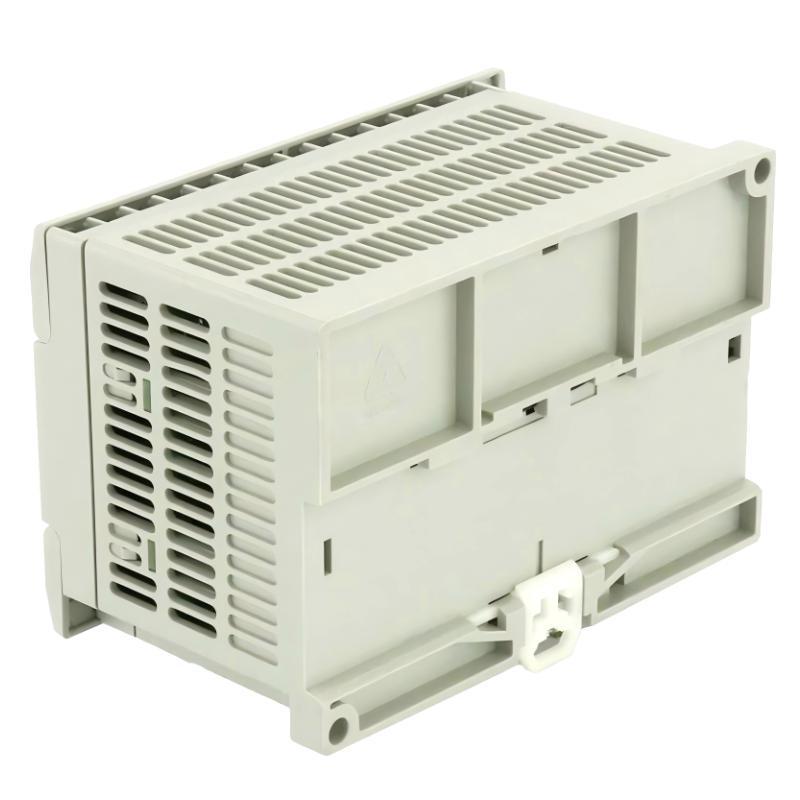

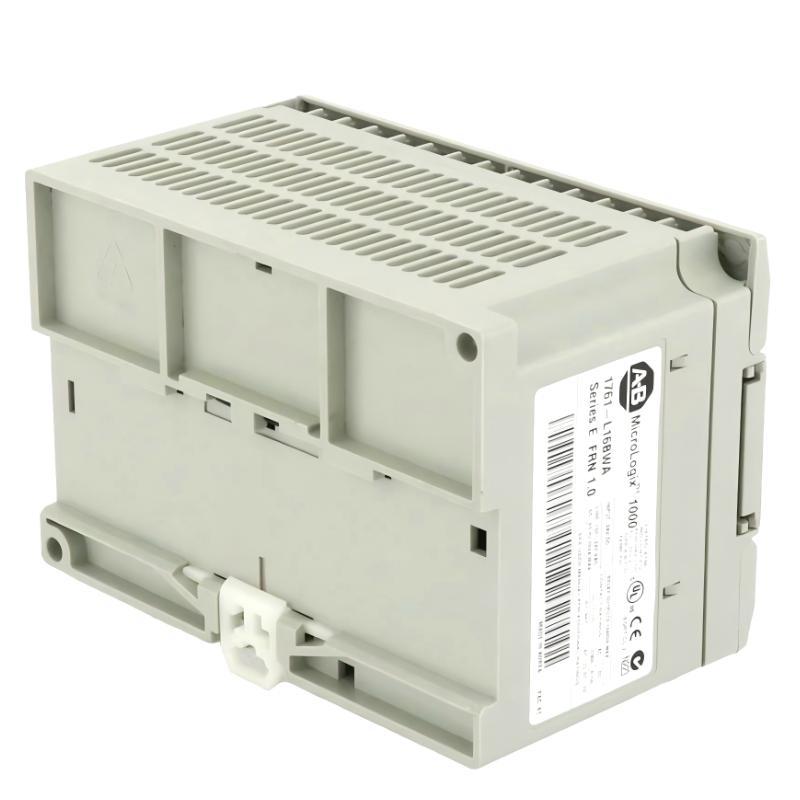

Allen Bradley 1761-L16BWA MicroLogix 1000 Programmable Controller

Overview
The Allen Bradley 1761-L16BWA is a compact MicroLogix 1000 programmable logic controller designed for small industrial automation systems. It provides stable and efficient control for basic machine and process applications, combining built-in I/O functionality with reliable logic execution. Its compact structure makes it suitable for space-limited control panels.

General Information
Part Number: 1761-L16BWA

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: United States

Series: MicroLogix 1000

Product Type: Programmable Logic Controller (PLC)

I/O Configuration: Integrated digital inputs and relay outputs

Mounting Type: DIN rail or panel installation

Programming Software: RSLogix 500 compatible

Controller Type: Fixed I/O compact PLC

Power Specifications
Input Voltage: 120/240 V AC (depending on configuration)

Power Consumption: ~20–30 W typical operation

Internal Power Supply: Built-in AC power module

Protection: Over-voltage and short-circuit protection

Inrush Current: Low inrush design for industrial control panels

Communication & Interface
Communication Port: RS-232 serial interface

Protocol: DF1 communication protocol

Programming Interface: Serial programming connection

Status Indicators: LED indicators for run, fault, and communication status

Expansion Support: Limited modular expansion compatibility

Environmental
Operating Temperature: 0 to 55 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Suitable for industrial environments

Installation Environment: Control cabinet required

Dimensions & Weight
Dimensions (H × W × D): 133 × 73 × 80 mm

Weight: 0.45 kg
