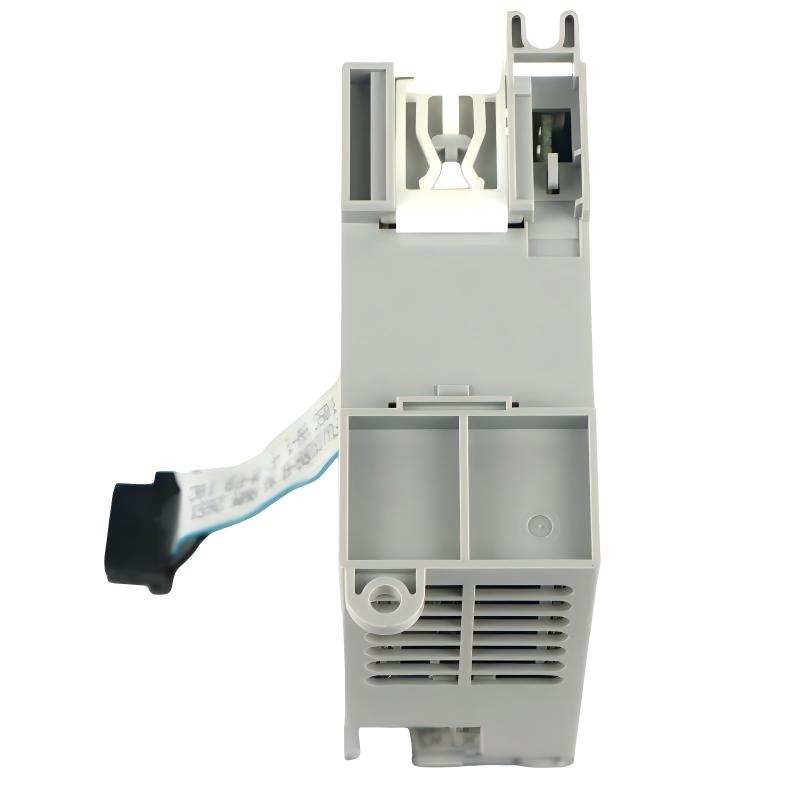

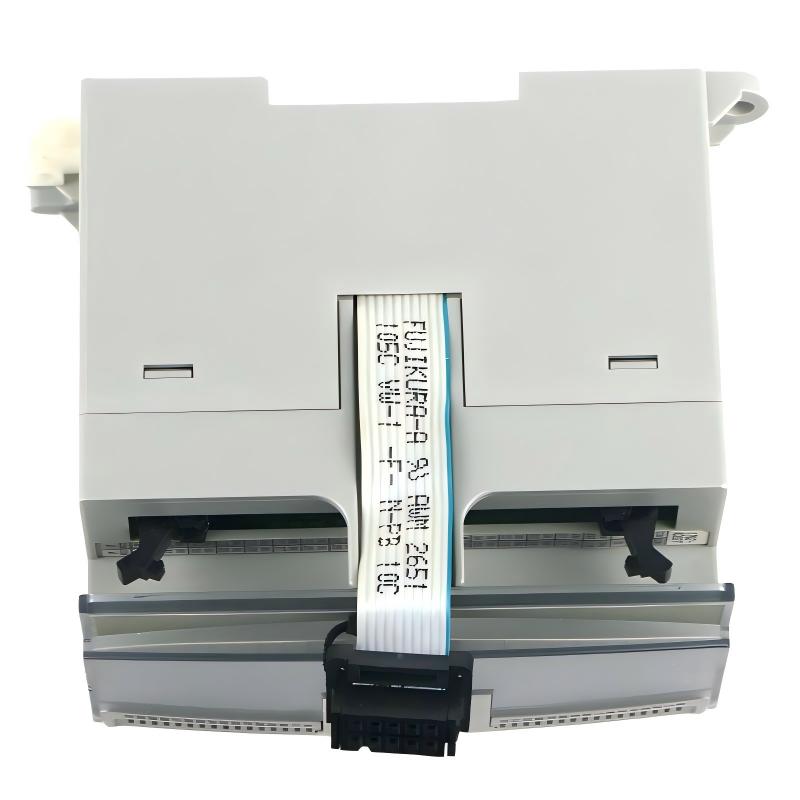

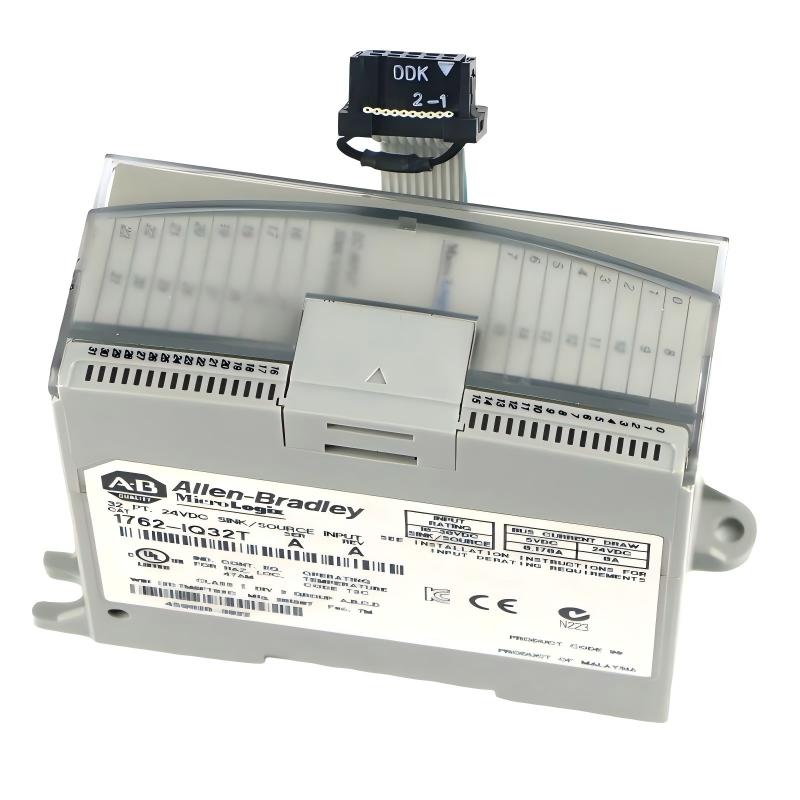

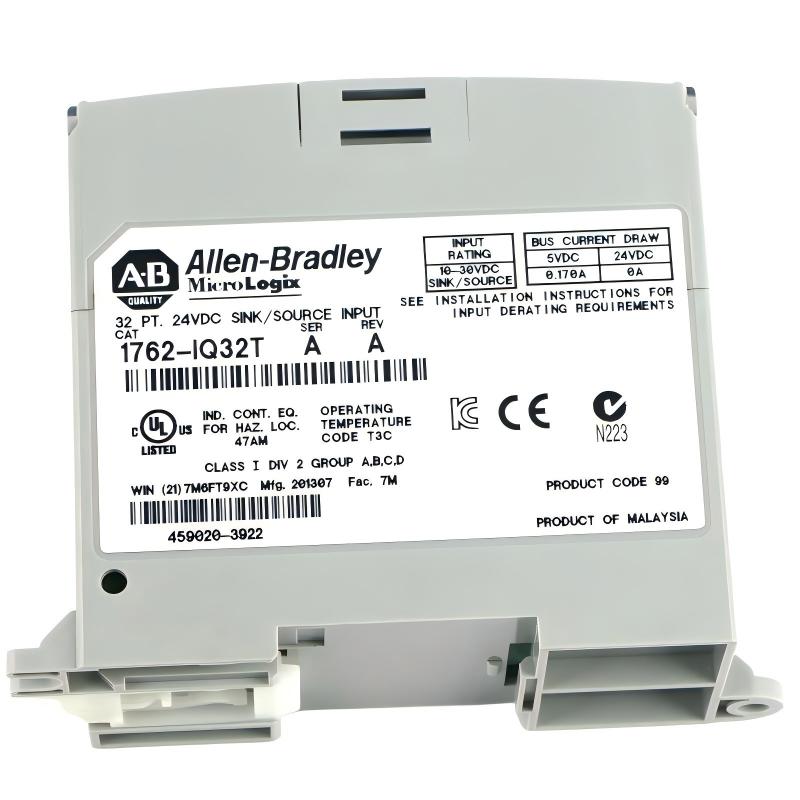

Allen Bradley 1762-IQ32T MicroLogix DC Input Module

Overview
The Allen Bradley 1762-IQ32T is a high-density MicroLogix DC input expansion module designed to increase digital input capacity for MicroLogix PLC systems. It provides reliable signal acquisition from DC field devices such as sensors, switches, and control contacts, supporting fast and stable response in industrial automation environments. Its compact form allows efficient use of panel space.

General Information
Part Number: 1762-IQ32T

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: United States

Series: MicroLogix Expansion I/O Modules

Product Type: DC Input Module

Input Type: Digital DC inputs

Mounting Type: DIN rail mounting

Application: High-density digital input expansion for PLC systems

Power Specifications
Input Voltage: 24 V DC (field input level)

Power Consumption: Low power operation (~3–5 W typical)

Internal Power: Supplied via MicroLogix backplane

Protection: Over-voltage and noise suppression built in

Isolation: Channel-to-system optical isolation

Communication & Interface
Interface Type: Backplane connection to MicroLogix controller

Input Channels: 32-point DC digital inputs

Signal Response: Fast response for industrial switching applications

Diagnostics: LED indicators for channel and module status

Compatibility: Designed for MicroLogix 1100/1200/1400 series PLCs

Environmental
Operating Temperature: 0 to 55 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control environment suitable

Installation Requirement: Control cabinet DIN rail mounting

Dimensions & Weight
Dimensions (H × W × D): 90 × 40.4 × 87 mm

Weight: 0.2 kg

High-density input expansion for streamlined control systems.
