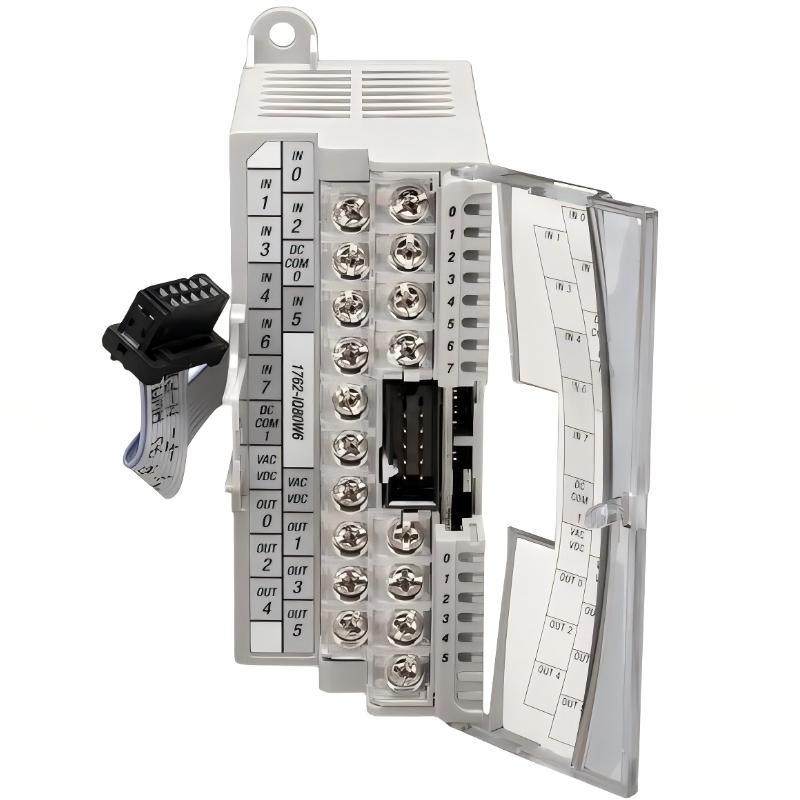

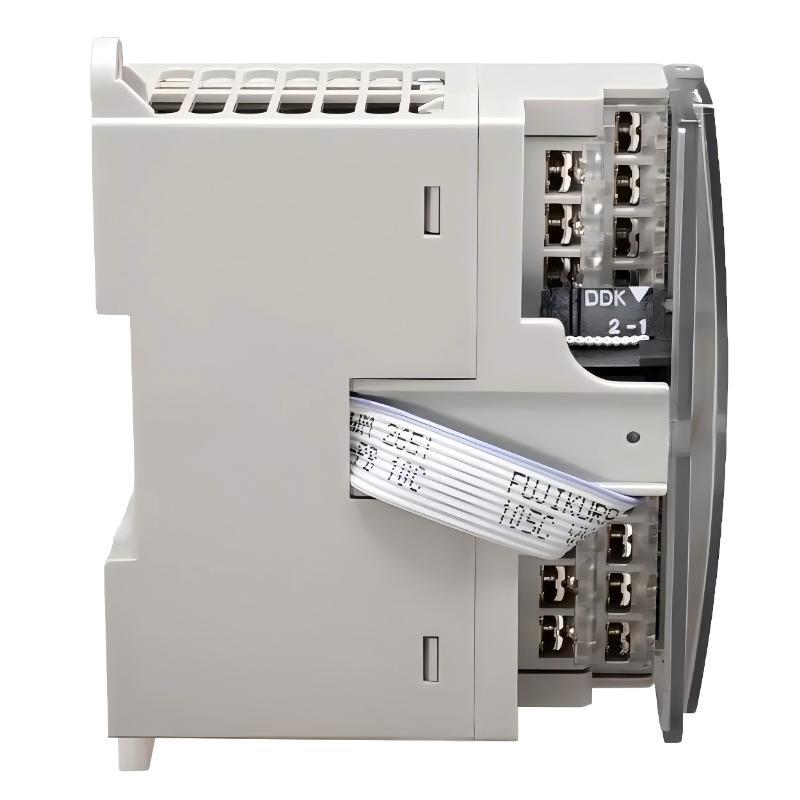

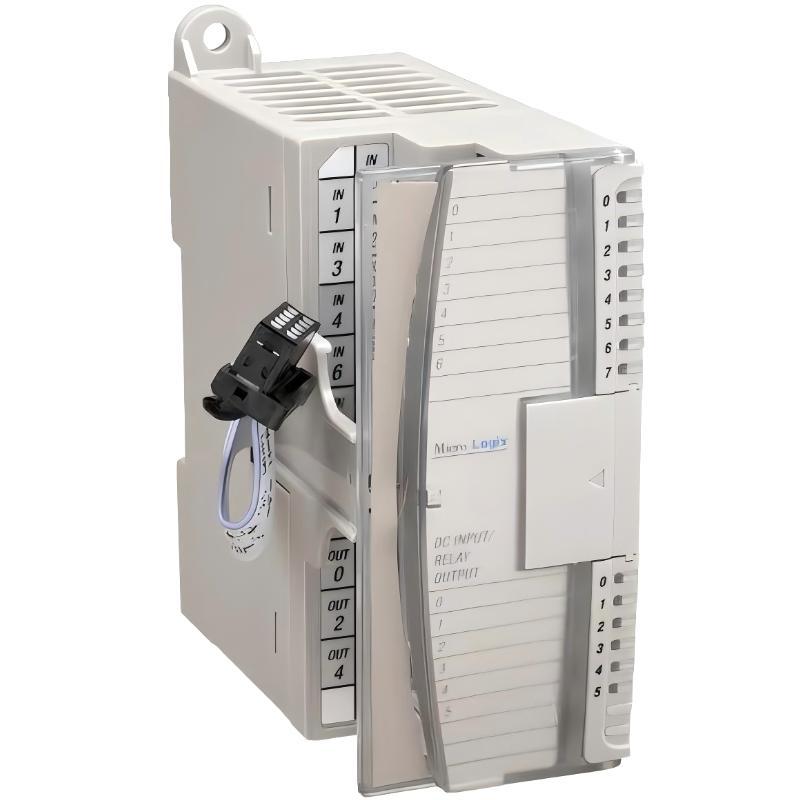

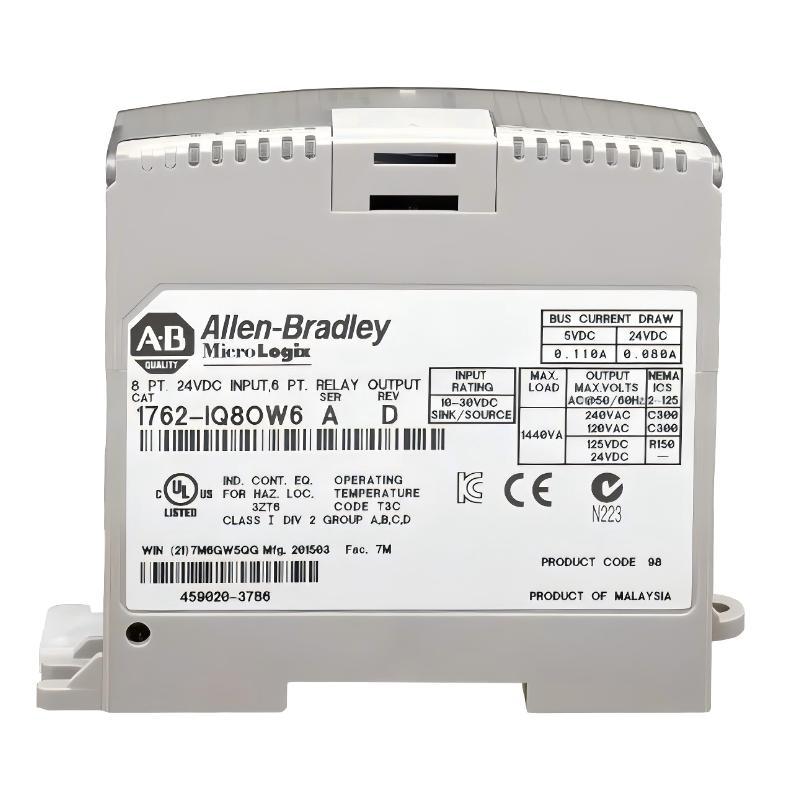

Allen Bradley 1762-IQ8OW6 MicroLogix 1200 DC Input/Relay Output Combination Module

Overview
The Allen Bradley 1762-IQ8OW6 is a MicroLogix 1200 combination I/O module that integrates DC digital inputs with relay outputs in a single compact unit. It is designed to simplify wiring and expand control capability for small to mid-size automation systems, providing flexible interfacing for sensors, switches, and output devices.

General Information
Part Number: 1762-IQ8OW6

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: United States

Series: MicroLogix 1200 Expansion I/O Modules

Product Type: DC Input / Relay Output Combination Module

Input Type: Digital DC inputs

Output Type: Relay outputs

Mounting Type: DIN rail mounting

Application: Mixed I/O expansion for PLC systems

Power Specifications
Input Voltage: 24 V DC (input side) / relay switching supports external loads

Power Consumption: Low power operation (~3–5 W typical)

Internal Power: Supplied via MicroLogix backplane

Protection: Surge protection and electrical isolation included

Isolation: Optical isolation between input/output and system

Communication & Interface
Interface Type: Backplane connection to MicroLogix controller

Input Channels: 8 DC digital inputs

Output Channels: 6 relay outputs

Signal Response: Fast input response with reliable relay switching

Diagnostics: LED indicators for channel and module status

Compatibility: Designed for MicroLogix 1200 series controllers

Environmental
Operating Temperature: 0 to 55 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control environment suitable

Installation Requirement: DIN rail mounting in control cabinet

Dimensions & Weight
Dimensions (H × W × D): 90 × 40.4 × 87 mm

Weight: 0.28 kg

Flexible I/O integration for smarter automation systems.
