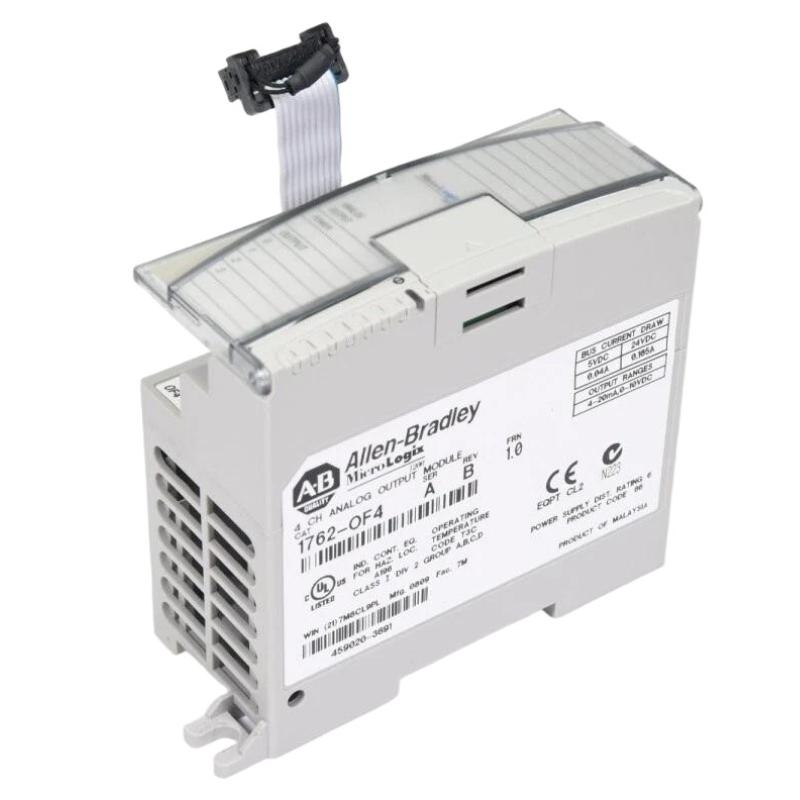

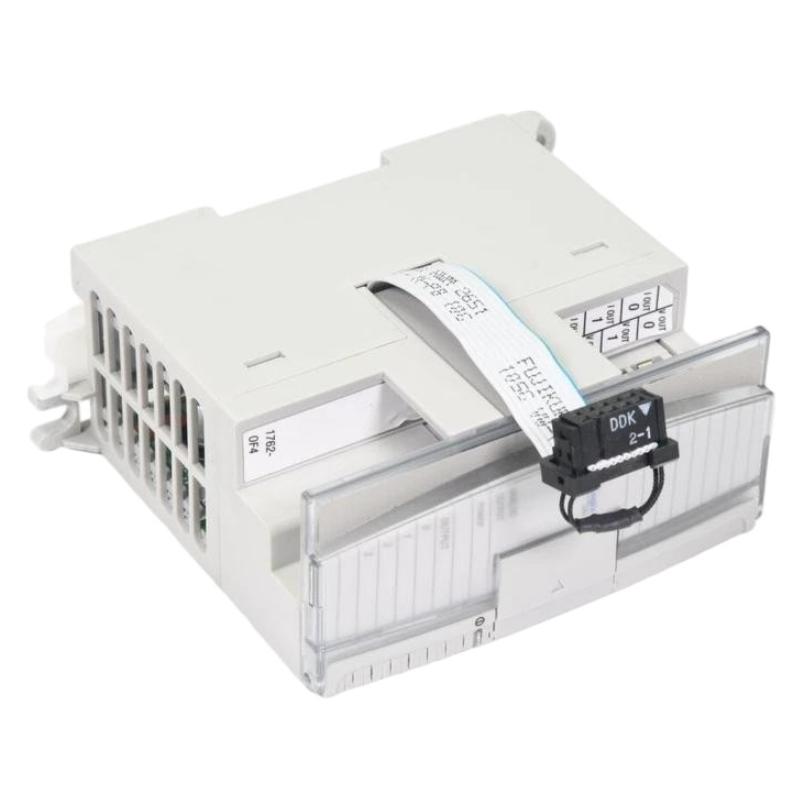

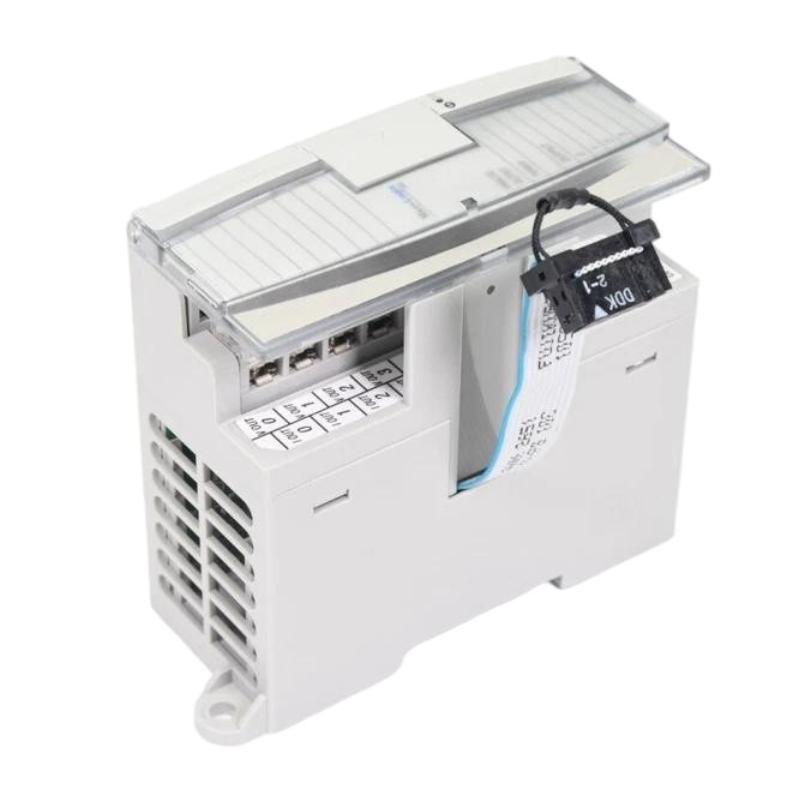

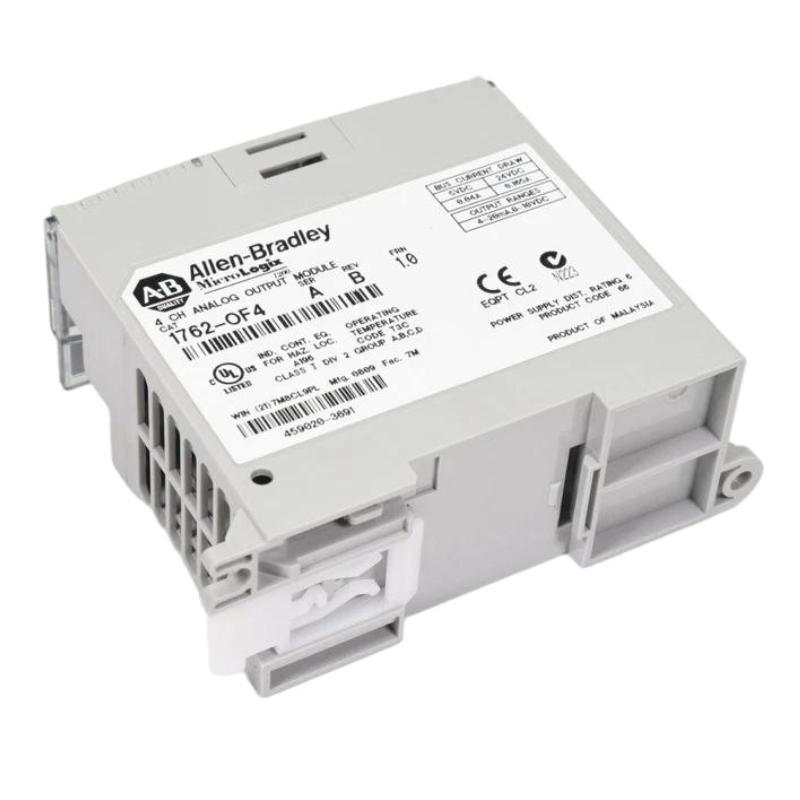

Allen Bradley 1762-OF4 MicroLogix 4-Channel Analog Output Module

Overview
The Allen-Bradley 1762-OF4 is a compact 4-channel analog output module designed for MicroLogix 1200 and MicroLogix 1500 systems. It provides precise analog signal output for controlling industrial devices such as valves, drives, and process instrumentation in automation applications.

General Information
Part Number: 1762-OF4

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: Analog Output Module

Output Channels: 4 channels

Output Signals: Voltage/current analog outputs (process control signals)

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 24 V DC (system backplane powered)

Backplane Power: Supplied via MicroLogix controller

Power Consumption: Low module-level consumption

Protection: Over-voltage and transient protection

Isolation: Channel-to-channel and logic isolation for signal stability

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Output Control: PLC-generated analog signal scaling

Signal Processing: High-resolution digital-to-analog conversion

Diagnostics: Channel fault and status indication

Programming Interface: RSLogix 500 / MicroLogix configuration software

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet-mounted industrial module

Dimensions & Weight
Dimensions (L × W × H): 90 × 40.4 × 87 mm

Weight: 0.235 kg

Precision Analog Control, Stable Industrial Performance
