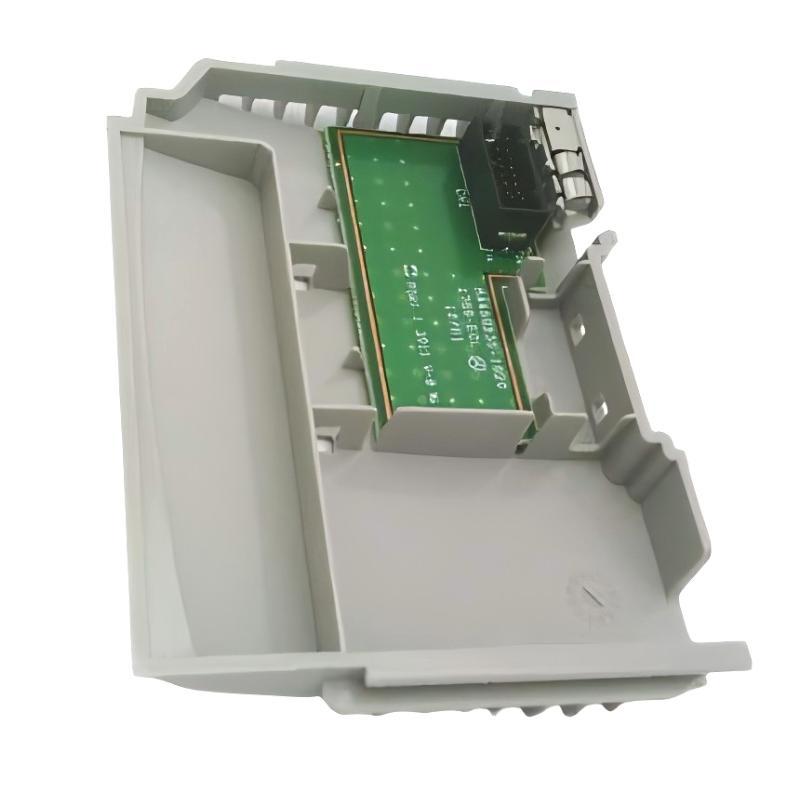

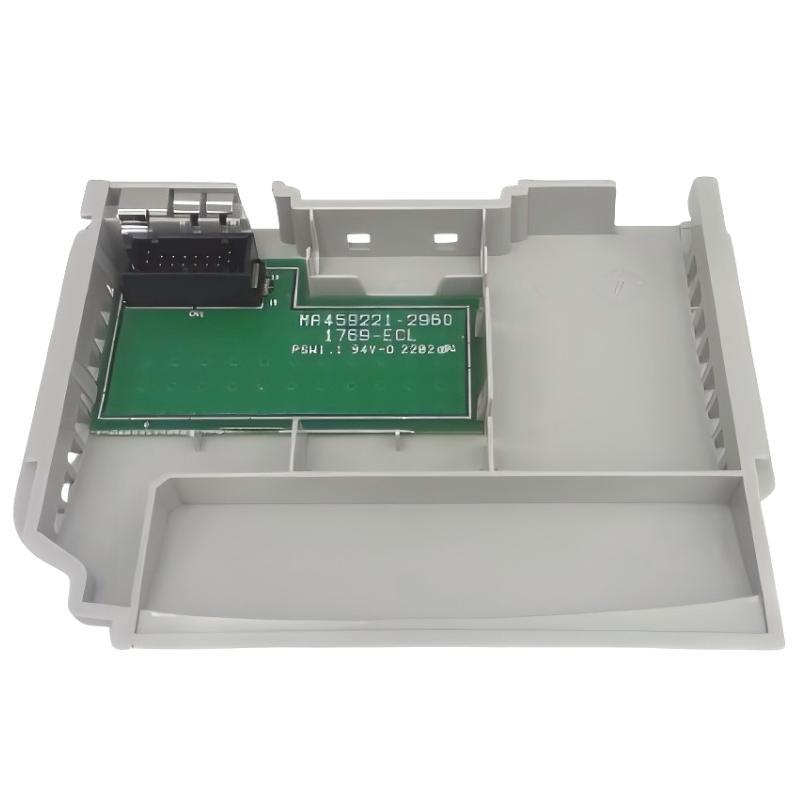

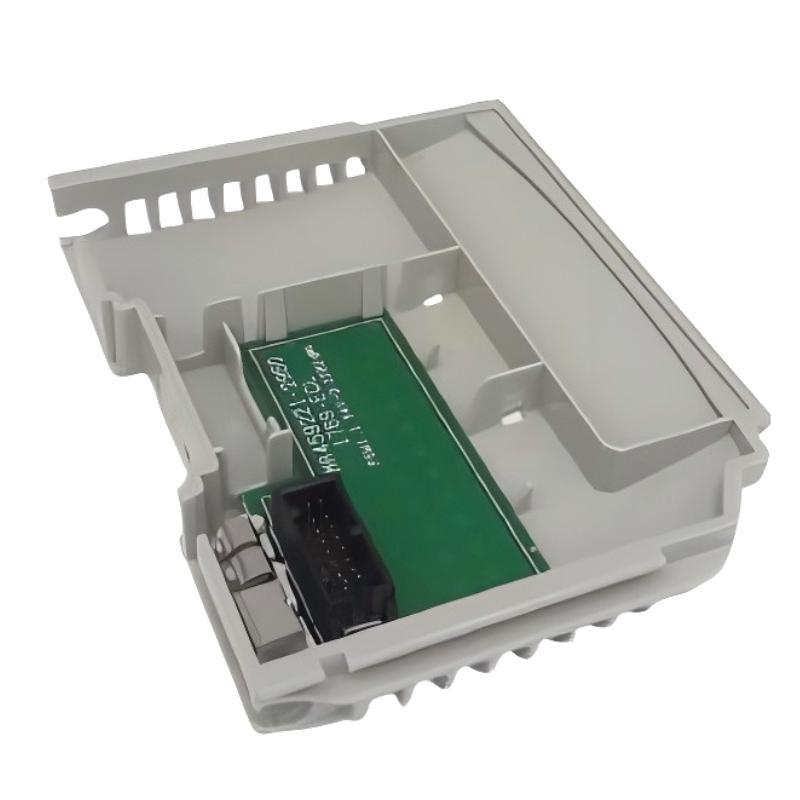

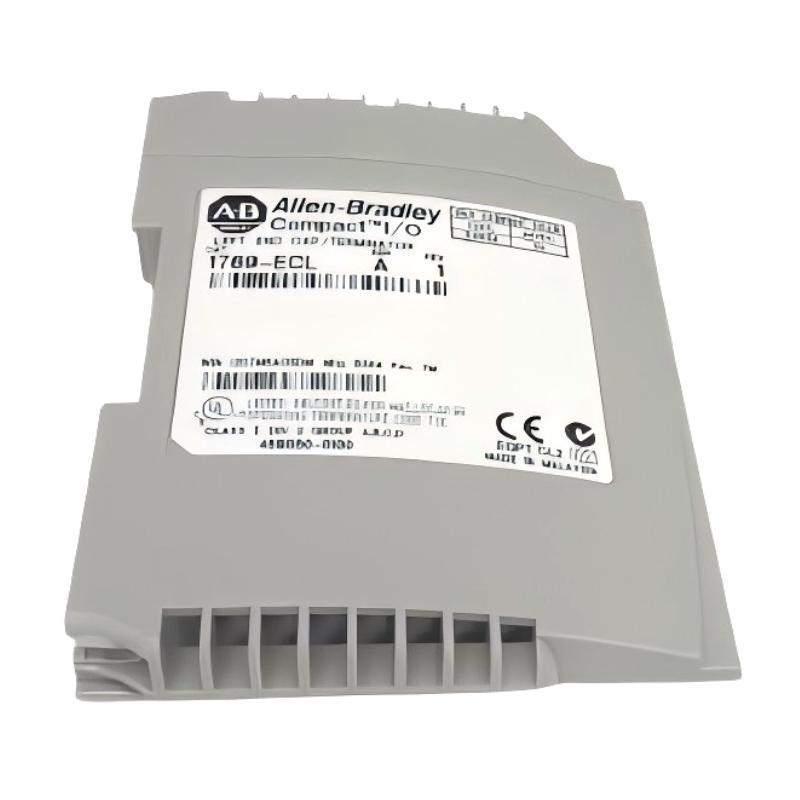

Allen Bradley 1769-ECL CompactLogix Left End Cap/Terminal

Overview

The Allen-Bradley 1769-ECL is a CompactLogix left end cap designed to terminate and protect the left side of a Compact I/O system. It ensures proper electrical termination of the backplane communication bus and maintains system integrity in modular PLC configurations.

General Information

Part Number: 1769-ECL

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: CompactLogix 1769 Series

Type: Left End Cap / Terminal Module

Installation: Mounted at the left end of 1769 CompactLogix I/O assembly

Function: Provides electrical termination and protection for I/O backplane

Application: CompactLogix system termination, modular PLC assembly protection

Power Specifications

Supply Method: Passive module (no external power required)

Input Voltage: Not applicable (termination device)

Power Consumption: None

Protection: Ensures stable backplane signal termination and system stability

Status Indication: No indicators or active electronics

Communication & Interface

Interface Type: CompactLogix backplane termination interface

Functionality: Terminates left-side I/O communication bus

Compatibility: 1769 Compact I/O system

Diagnostics: System-level detection via controller (no onboard diagnostics)

Role: Ensures correct electrical impedance and stable communication flow

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95% non-condensing

Shock & Vibration: Industrial control cabinet installation

Protection Rating: Industrial-grade passive hardware component

Dimensions & Weight

Dimensions (L × W × H): 118 × 15 × 87 mm

Weight: 0.05 kg
