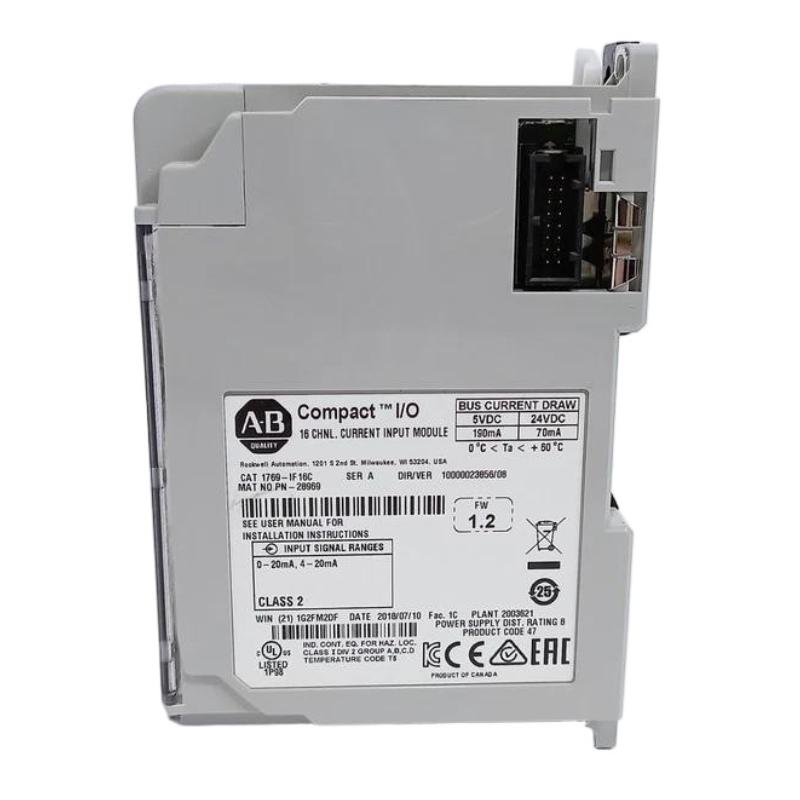

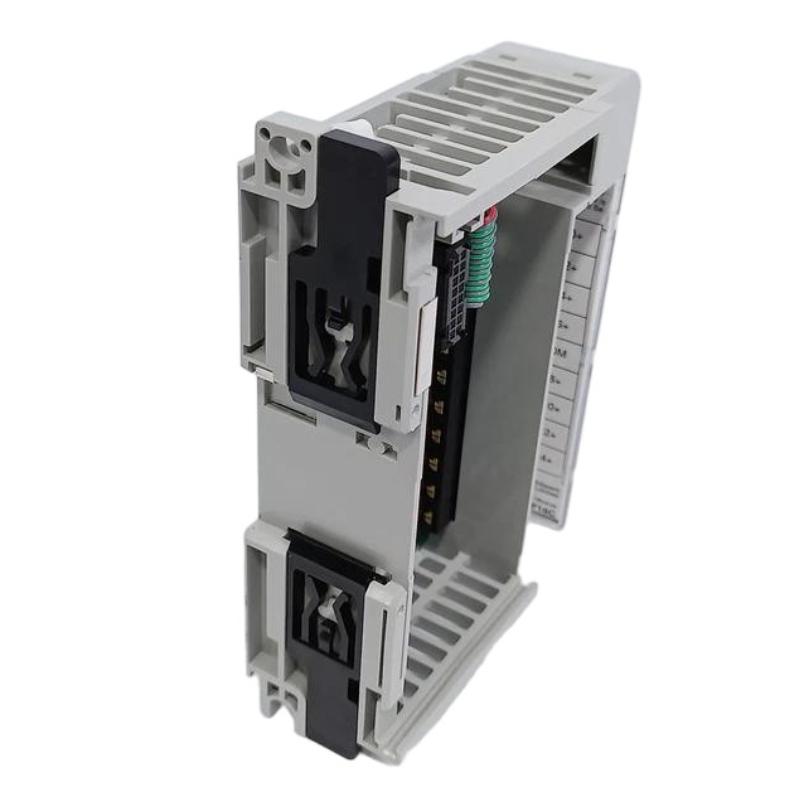

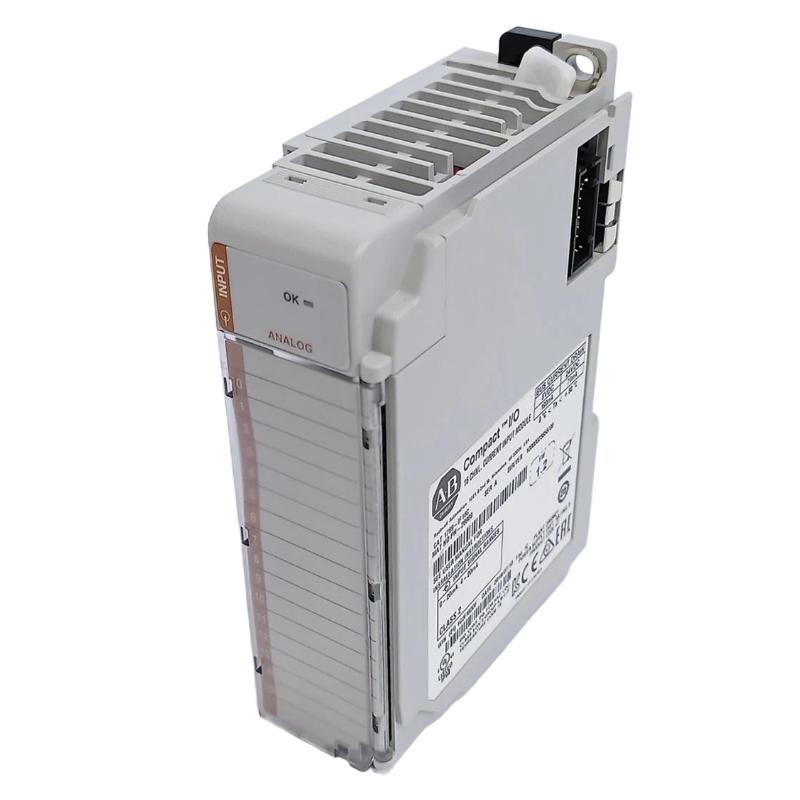

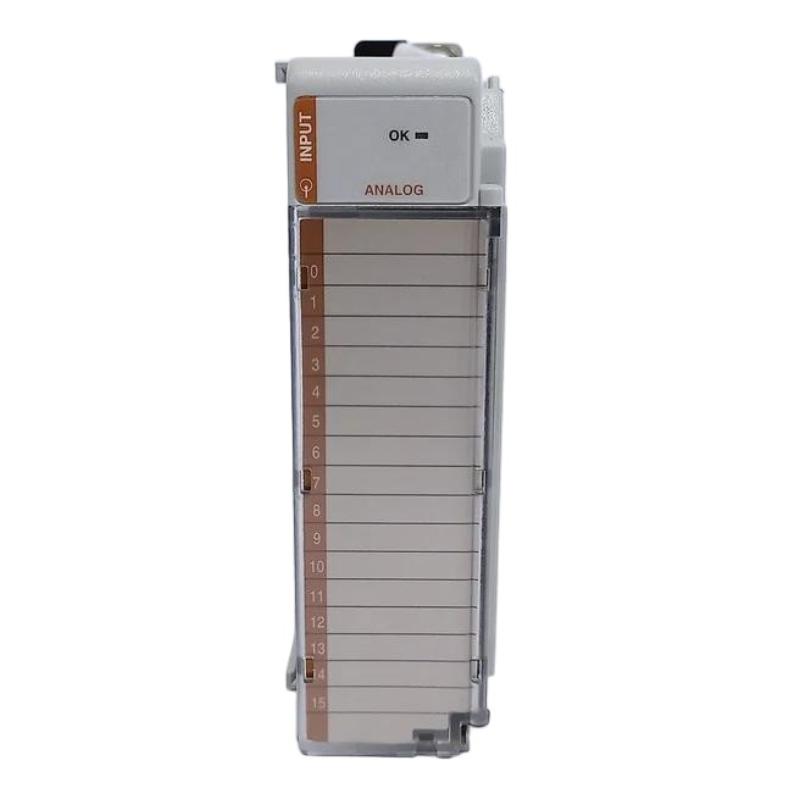

Allen Bradley 1769-IF16C CompactLogix Compact High-Density Analog Current Input Module

Overview

The Allen Bradley 1769-IF16C is a CompactLogix high-density analog current input module designed for precise measurement of multiple analog current signals in industrial automation systems. It is commonly used for process control applications where accurate monitoring of 4–20 mA signals from sensors, transmitters, and field instruments is required. The module delivers stable and high-resolution analog data acquisition for CompactLogix controllers.

General Information

Part Number: 1769-IF16C

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: High-Density Analog Current Input Module

Function: Converts analog current signals into digital data for PLC processing

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: High-resolution A/D conversion with channel multiplexing architecture

Power Specifications

Operating Voltage: 24 V DC (system backplane supply)

Power Consumption: Low power industrial analog module

Input Signal Range: Typically 4–20 mA current inputs

Protection: Overcurrent protection and input signal isolation

Indicators: LED status indicators for module health and channel activity

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 16 high-density analog current input channels

Signal Type: Industrial standard current loop signals (4–20 mA)

Data Transfer: Real-time analog-to-digital data conversion and transmission

Diagnostics: Built-in channel diagnostics and module fault detection

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.281 kg

High-Density Control Solutions – Ready for Industrial Integration!
