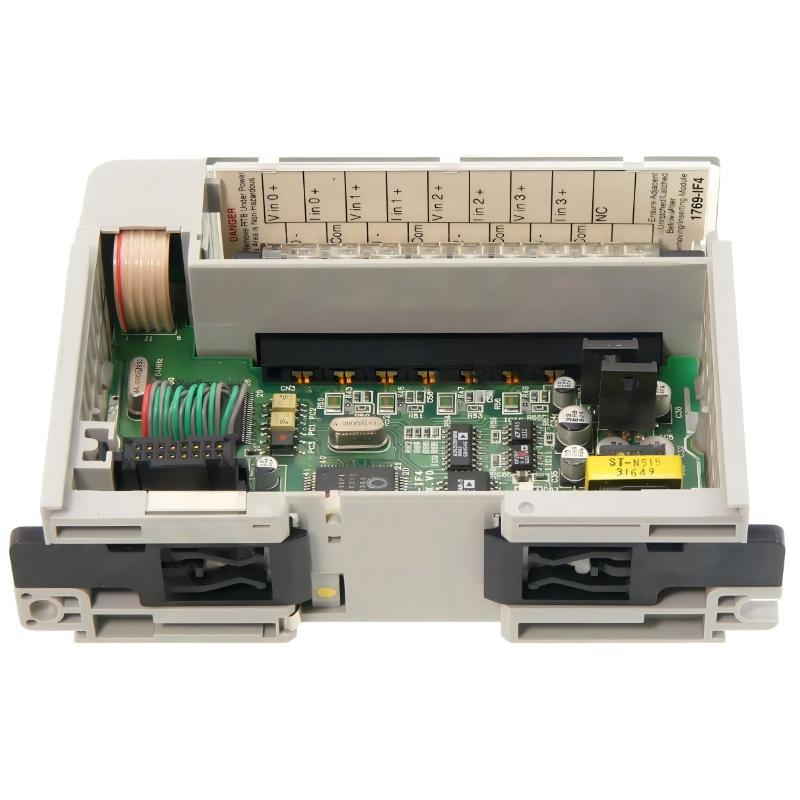

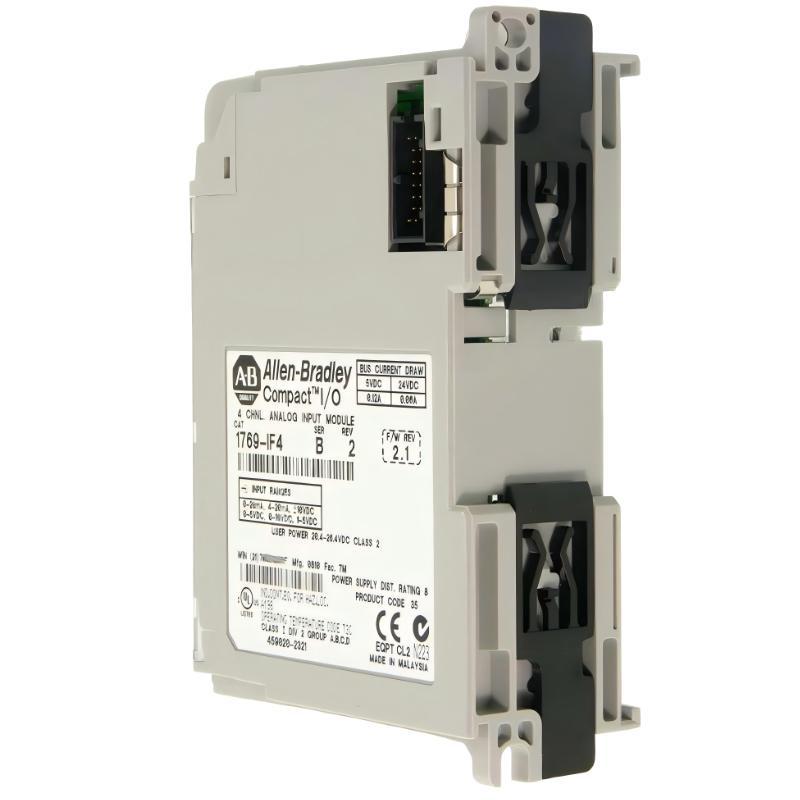

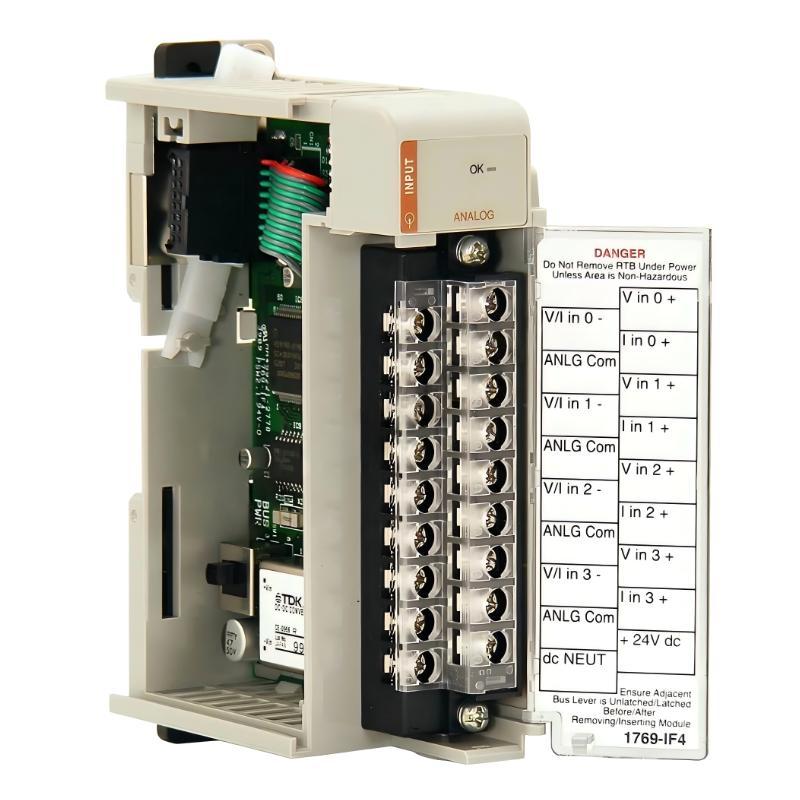

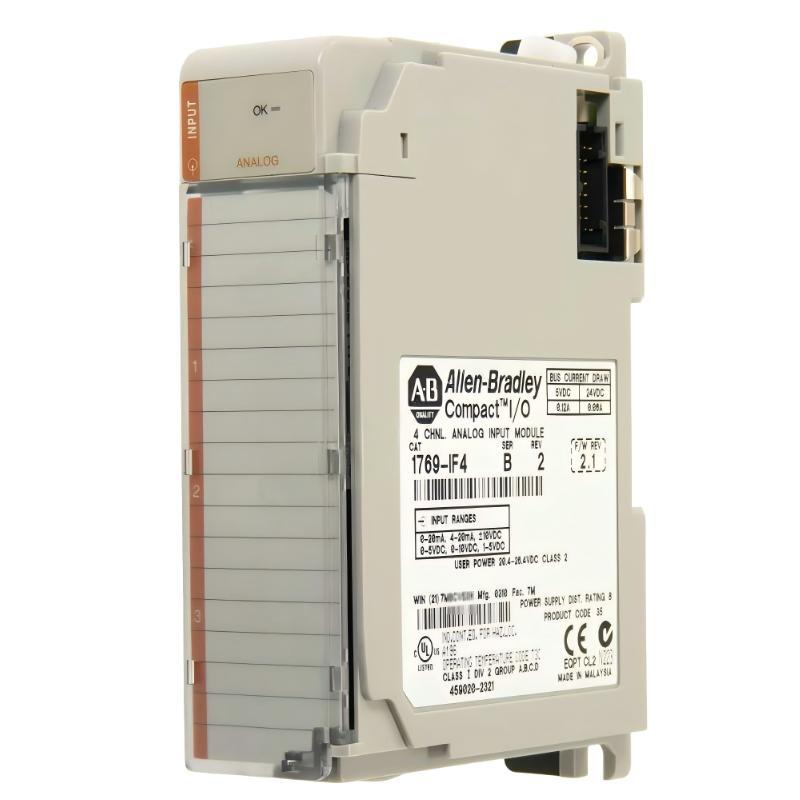

Allen Bradley 1769-IF4 CompactLogix 4-Channel Analog Current/Voltage Input Module
| Release time | Jun 23, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1769-IF4 |
| Country Of Origin | USA |
| Dimensions | 118 x 35 x 87 mm |
| Weight | 0.3 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 1769-IF4 is a CompactLogix analog input module designed to process both current and voltage signals from field devices in industrial automation systems. With 4 high-precision input channels, it is suitable for applications requiring flexible signal acquisition, including process control, machine monitoring, and instrumentation systems. The module ensures accurate analog-to-digital conversion for reliable PLC data processing.
General Information
Part Number: 1769-IF4
Manufacturer: Allen-Bradley (Rockwell Automation)
Brand: Allen-Bradley
Country of Origin: USA
Series: CompactLogix 1769
Type: Analog Current/Voltage Input Module
Function: Converts analog current and voltage signals into digital values for PLC processing
Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system
Technology: Multi-channel analog signal conditioning with A/D conversion
Power Specifications
Operating Voltage: 24 V DC (system backplane supply)
Power Consumption: Low power industrial analog module
Input Signal Types: Supports both current (e.g., 4–20 mA) and voltage signals (e.g., ±10 V DC)
Protection: Overvoltage protection and channel isolation
Indicators: LED status indicators for module and channel diagnostics
Communication & Interface
Bus System: CompactLogix 1769 backplane communication
Input Channels: 4 analog input channels (current/voltage configurable)
Signal Type: Industrial analog signals (current and voltage)
Data Transfer: Real-time signal conversion and transmission to PLC processor
Diagnostics: Built-in channel-level diagnostics and fault detection
Environmental
Operating Temperature: 0 to 60 °C
Storage Temperature: −40 to 85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial control cabinet rated
Protection Rating: IP20 for enclosed panel installation use
Dimensions & Weight
Dimensions (H × W × D): 118 × 35 × 87 mm
Weight: 0.3 kg
Reliable Input Flexibility — Built for Industrial Precision Control!
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
