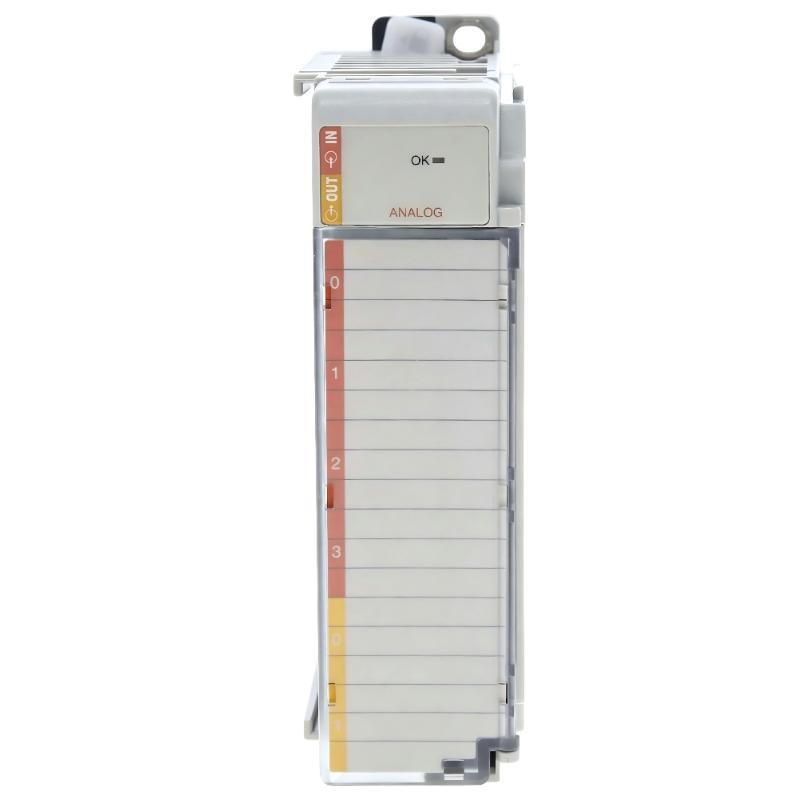

Allen Bradley 1769-IF4FXOF2F CompactLogix High-Speed ​​Analog Combination Module

Overview

The Allen Bradley 1769-IF4FXOF2F is a CompactLogix high-performance analog combination module designed for both input and output signal processing in advanced industrial automation systems. It integrates high-speed analog input and output functionality within a single module, making it suitable for compact control architectures requiring fast response and flexible signal handling.

General Information

Part Number: 1769-IF4FXOF2F

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: High-Speed Analog Combination Module (Input/Output)

Function: Processes analog input and output signals for real-time industrial control applications

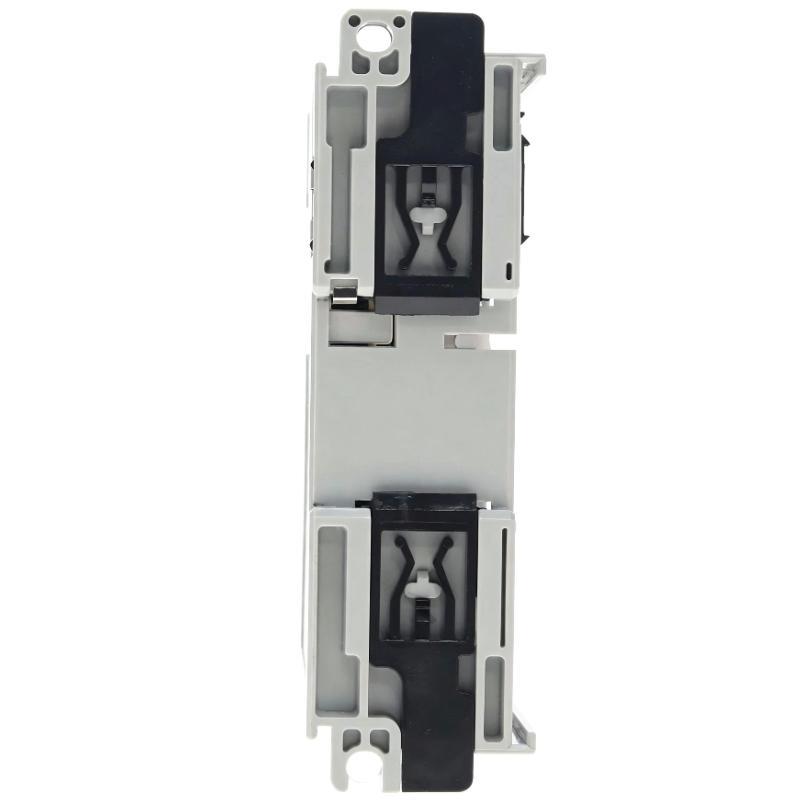

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: High-speed analog conversion with combined I/O architecture

Power Specifications

Operating Voltage: 24 V DC (system backplane supply)

Power Consumption: Low power industrial analog module

Input/Output Signal Types: Industrial analog current and voltage signals

Protection: Overvoltage protection and channel isolation for stable operation

Indicators: LED status indicators for module health and channel activity

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 4 analog input channels (high-speed)

Output Channels: 2 analog output channels (high-speed control signals)

Signal Type: Industrial analog current and voltage signals

Data Transfer: Real-time high-speed analog data exchange with PLC processor

Diagnostics: Built-in module diagnostics and channel fault detection

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.29 kg
