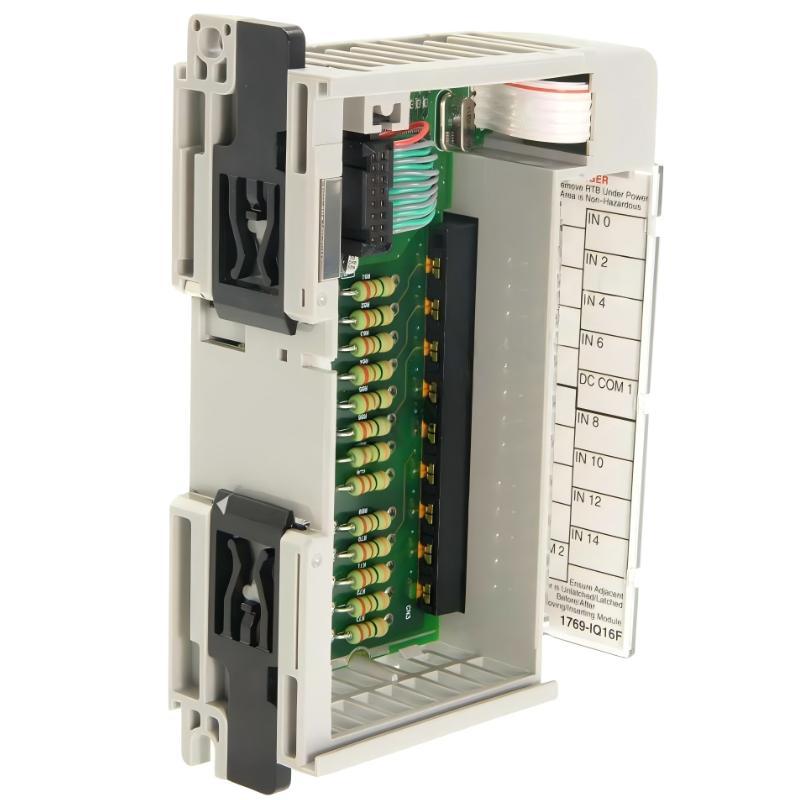

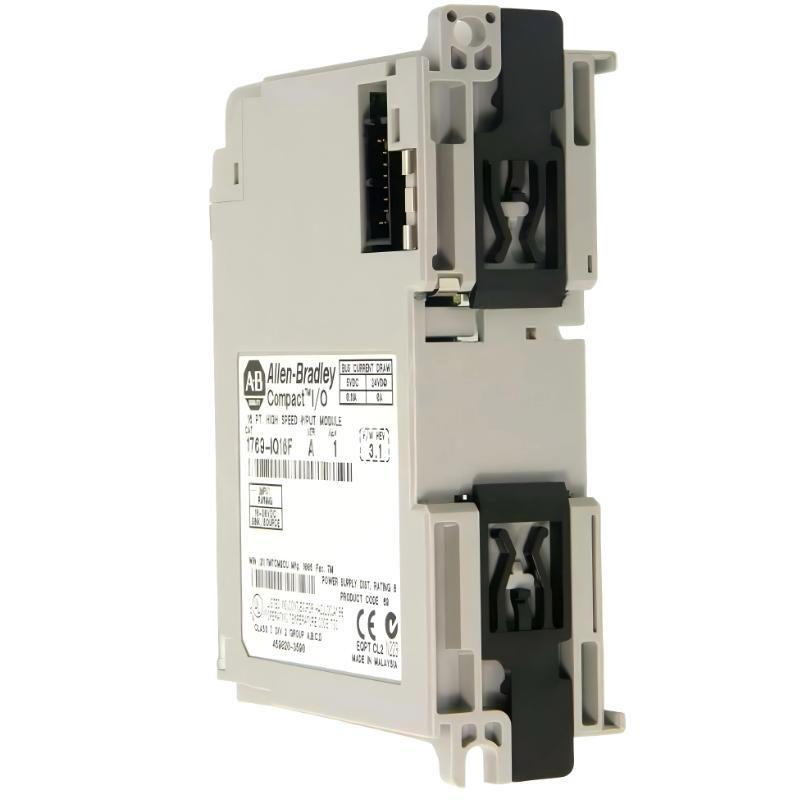

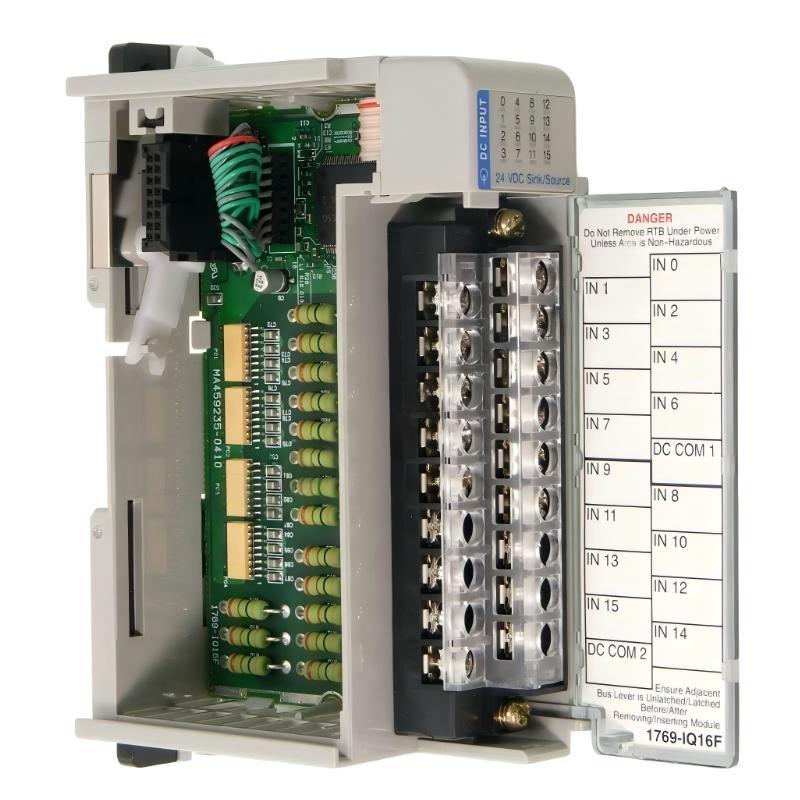

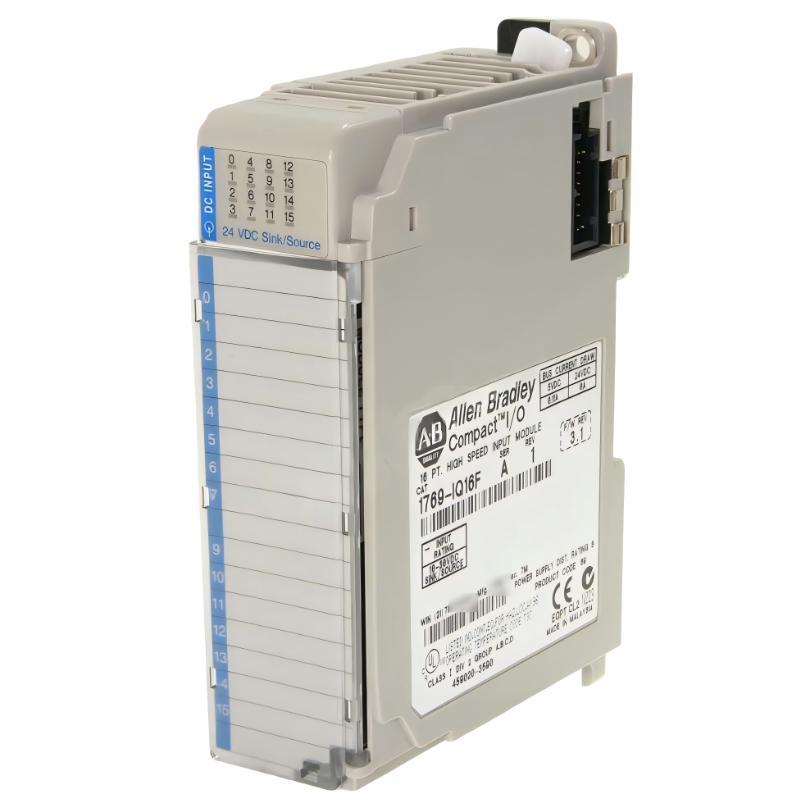

Allen Bradley 1769-IQ16F CompactLogix High-Speed ​​Input Module

Overview

The Allen Bradley 1769-IQ16F is a CompactLogix high-speed DC digital input module designed for fast and reliable signal acquisition in industrial automation systems. It is optimized for applications requiring rapid response to discrete 24V DC signals, such as motion detection, counting tasks, and high-speed sensor monitoring. The module ensures precise and stable input processing for CompactLogix PLC platforms.

General Information

Part Number: 1769-IQ16F

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix 1769

Type: High-Speed DC Digital Input Module

Function: Captures fast-changing 24V DC input signals for PLC processing

Mounting: Installed on CompactLogix 1769 I/O chassis or DIN rail system

Technology: High-speed opto-isolated input detection circuitry

Power Specifications

Operating Voltage: 24V DC input signals

Backplane Power: Supplied via CompactLogix 1769 backplane

Power Consumption: Low power industrial I/O module

Input Protection: Surge protection and electrical isolation per channel

Indicators: LED status indicators for module and channel activity

Communication & Interface

Bus System: CompactLogix 1769 backplane communication

Input Channels: 16 high-speed DC digital inputs

Signal Type: Fast-switching 24V DC signals from field devices

Data Transfer: Real-time high-speed input state transmission to PLC processor

Diagnostics: Built-in module and channel-level diagnostics

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet rated

Protection Rating: IP20 for enclosed panel installation use

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.27 kg

High-Speed Signal Accuracy — Built for Demanding Automation Tasks!
