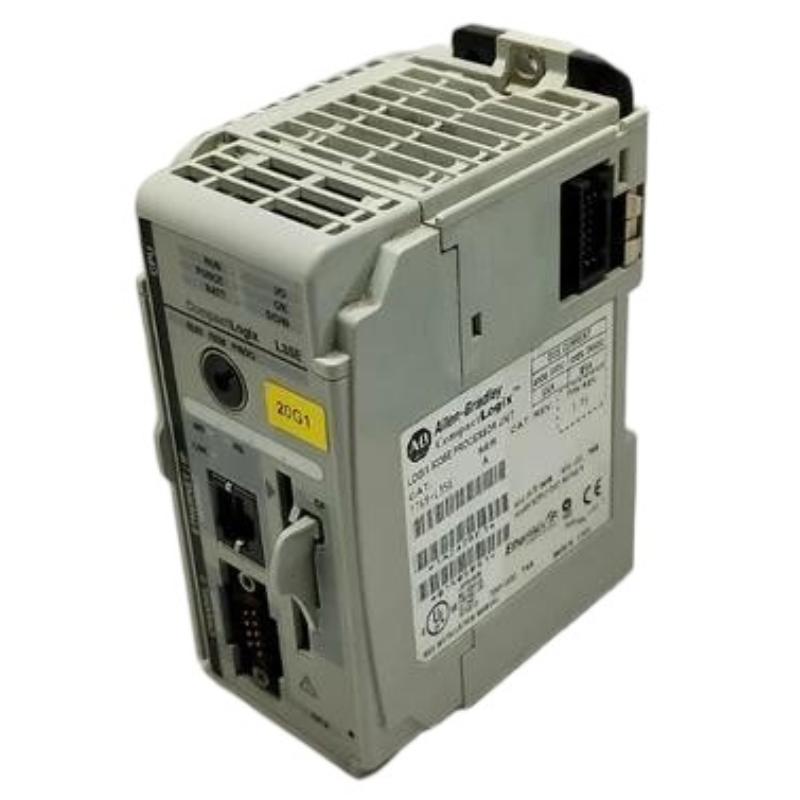

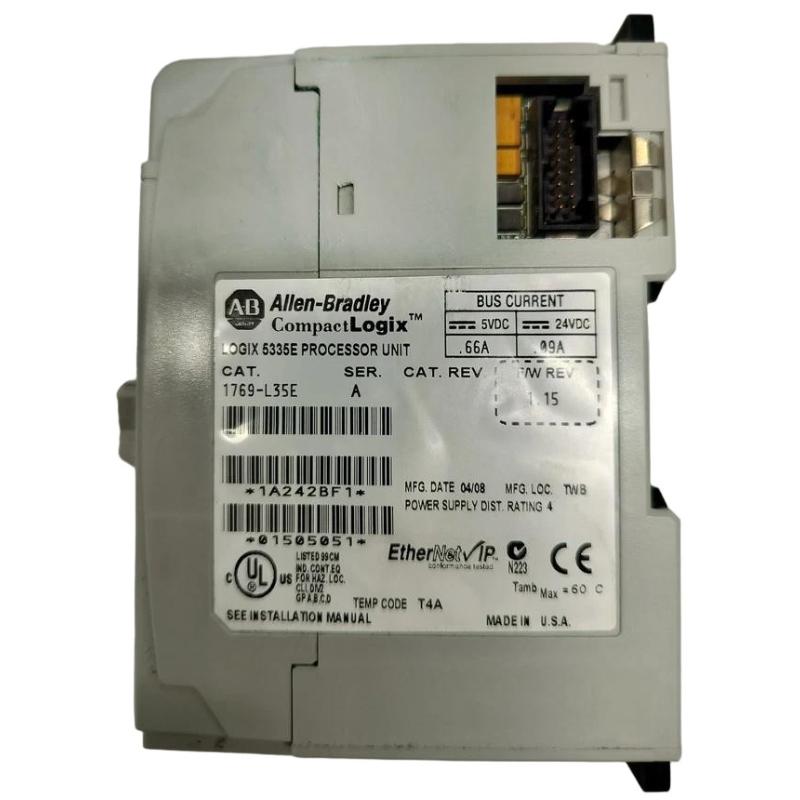

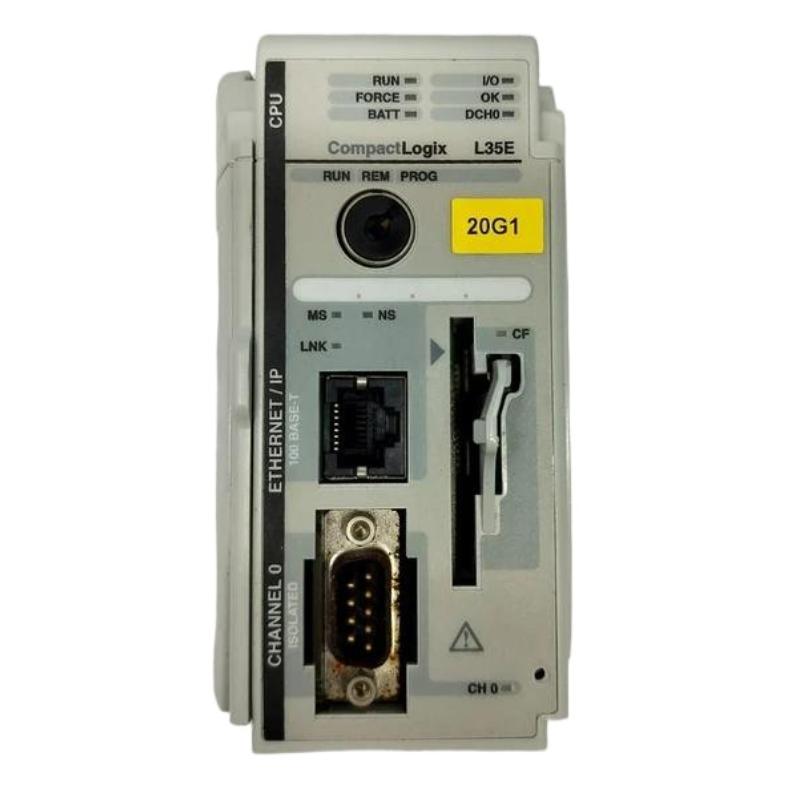

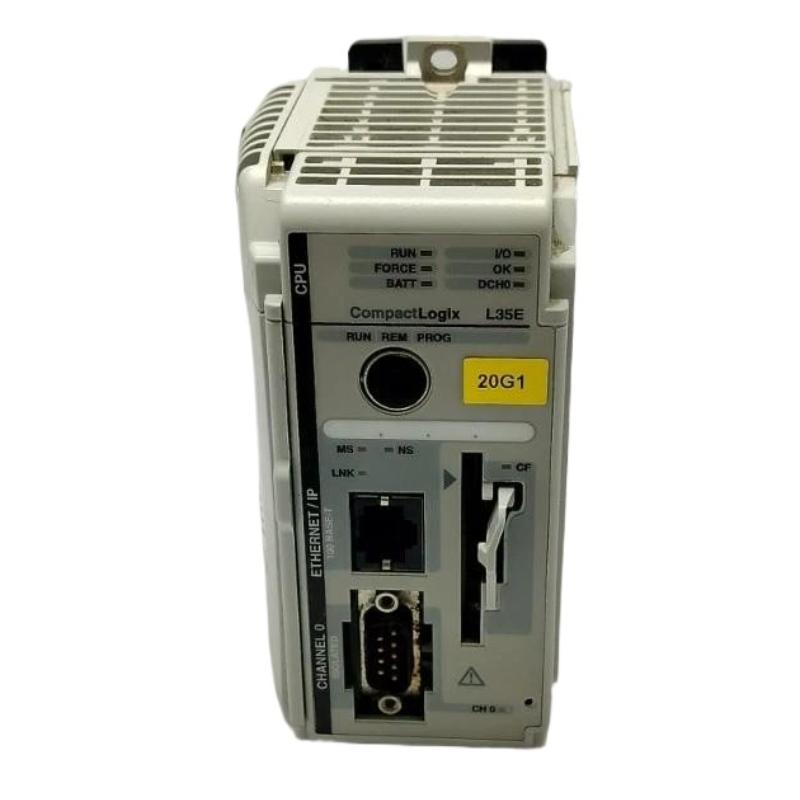

Allen Bradley 1769-L35E CompactLogix Ethernet Processor

Overview
The Rockwell Automation Allen-Bradley 1769-L35E is a CompactLogix Ethernet processor designed for compact industrial automation systems requiring reliable EtherNet/IP communication and scalable control performance. It is widely used in machine control, packaging, and general manufacturing applications where flexible I/O expansion and networked control are required.

General Information
Part Number: 1769-L35E

Manufacturer: Rockwell Automation (Allen-Bradley)

Series: CompactLogix ControlNet / Ethernet Platform

Product Type: Programmable Automation Controller (PAC)

Country of Origin: United States

Integrated I/O: Supports 1769 Compact I/O expansion modules

Programming Software: RSLogix 5000 / Studio 5000 Logix Designer

Primary Application: Machine control and EtherNet/IP industrial automation

Mounting Type: DIN rail installation

Power Specifications
Input Voltage: 24 V DC nominal

Operating Power: Low-power embedded controller architecture

Power Source: External 24 V DC supply

Protection: Reverse polarity and transient voltage protection

Efficiency: Optimized for stable control cabinet performance

Communication & Interface
EtherNet/IP Ports: Integrated Ethernet communication interface

Industrial Protocol: EtherNet/IP real-time control and data exchange

Configuration Access: Ethernet-based programming, diagnostics, and firmware management

System Integration: Supports distributed I/O, drives, and HMI systems

Diagnostics: LED indicators for link status, activity, and fault monitoring

Environmental
Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade machine environment durability

Protection Rating: IP20 (requires enclosure installation)

Pollution Degree: 2 (industrial indoor environments)

Dimensions & Weight
Dimensions (H × W): 132 × 67.5 mm

Weight: 0.3 kg

Efficient control performance — built for reliable industrial automation!
