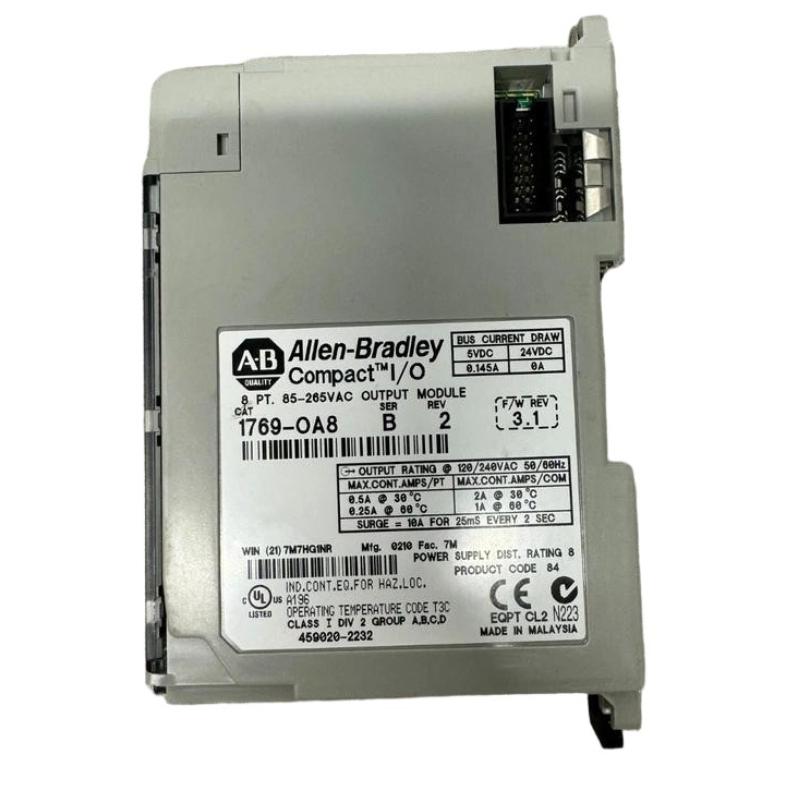

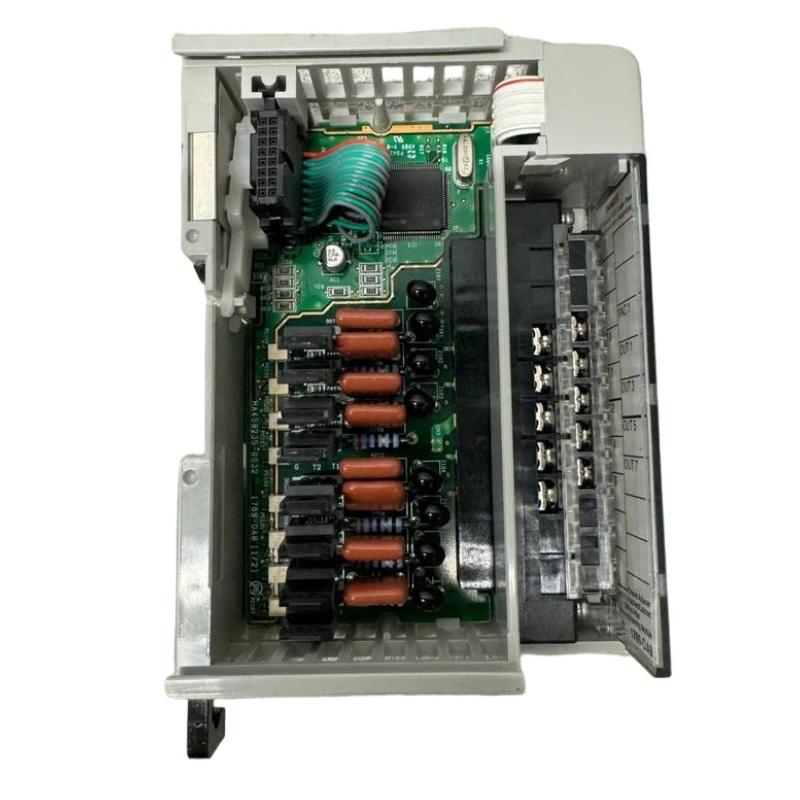

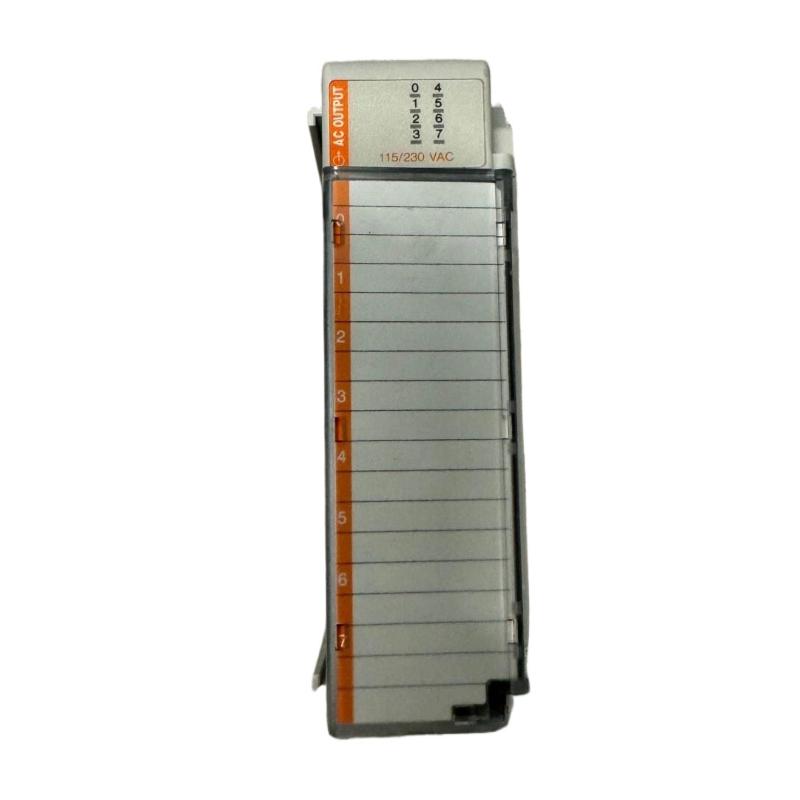

Allen Bradley 1769-OA8 CompactLogix AC Solid-State Output Module

Overview

The Allen Bradley 1769-OA8 is a CompactLogix AC solid-state output module designed for fast and reliable switching of AC loads in industrial automation systems. It provides compact, high-speed output control for relays, contactors, and field devices within CompactLogix architectures.

General Information

Part Number: 1769-OA8

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: CompactLogix 1769 I/O

Product Type: AC Solid-State Output Module

Output Channels: 8-point AC outputs

Mounting Type: 1769 Compact I/O system rack

Application: Industrial automation output control

Power Specifications

Operating Voltage: 85–265 V AC

Output Current: Up to 0.5 A per channel (load dependent)

Backplane Power: Supplied via CompactLogix system backplane

Power Dissipation: Low thermal output design

Isolation Voltage: Channel-to-backplane isolation protection

Protection Features: Surge protection and short-circuit protection

Status Indicators: LED indicators per channel and module status

Communication & Interface

System Integration: CompactLogix 1769 backplane communication

Control Method: PLC-controlled digital switching

Diagnostics: Module health monitoring and channel fault detection

Response Time: High-speed switching via backplane

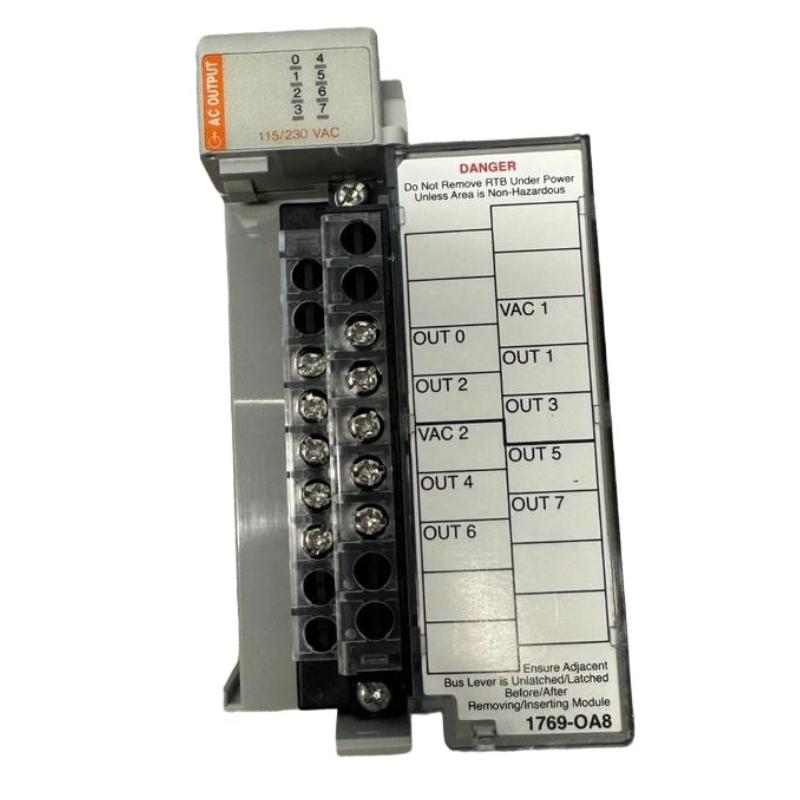

Wiring Interface: Removable terminal block for easy installation

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade vibration tolerance

Shock Resistance: Suitable for harsh industrial environments

Protection Rating: Installed inside industrial control enclosure

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.2 kg

Compact power, instant control, built for performance!
