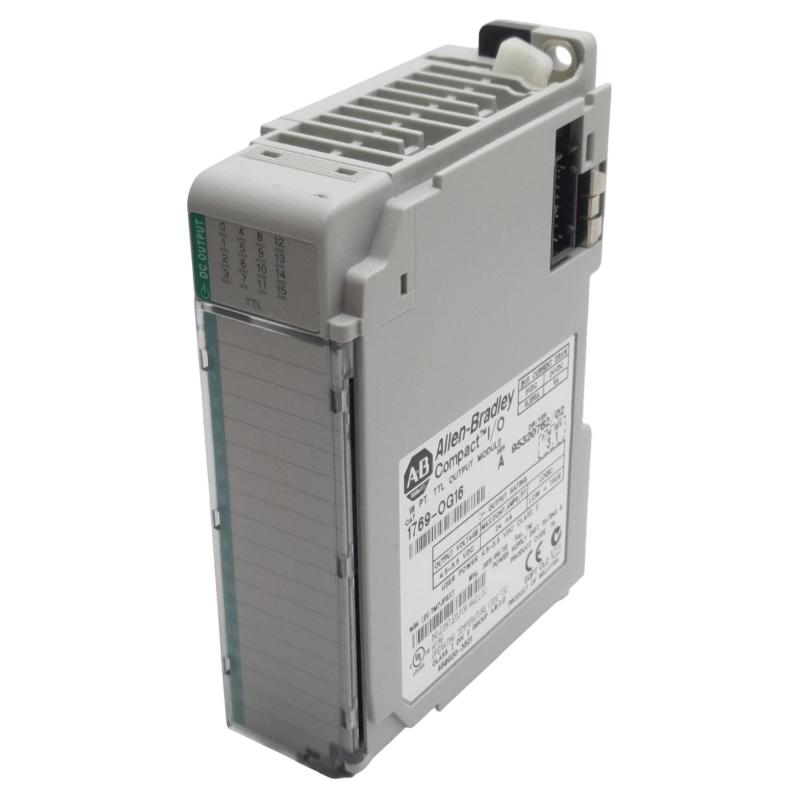

Allen Bradley 1769-OG16 CompactLogix 16-Point Compact TTL Output Module

Overview

The Allen Bradley 1769-OG16 is a CompactLogix 16-point TTL output module designed for high-speed low-voltage digital signal switching. It is commonly used in applications requiring fast logic-level control and precise signal timing within CompactLogix automation systems.

General Information

Part Number: 1769-OG16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: CompactLogix 1769 I/O

Product Type: TTL Digital Output Module

Output Channels: 16-point TTL outputs

Mounting Type: 1769 Compact I/O rack system

Application: High-speed logic signal control in automation systems

Power Specifications

Operating Voltage: TTL logic level (low-voltage digital signals)

Output Level: Standard TTL-compatible logic signals

Backplane Power: Supplied via CompactLogix system backplane

Power Dissipation: Very low power consumption design

Isolation Voltage: Channel-to-backplane isolation protection

Protection Features: Signal conditioning and overload protection

Status Indicators: LED indicators per channel and module status

Communication & Interface

System Integration: CompactLogix 1769 backplane communication

Control Method: PLC-based high-speed digital logic output

Response Time: Ultra-fast switching for timing-sensitive applications

Diagnostics: Channel status monitoring and fault detection

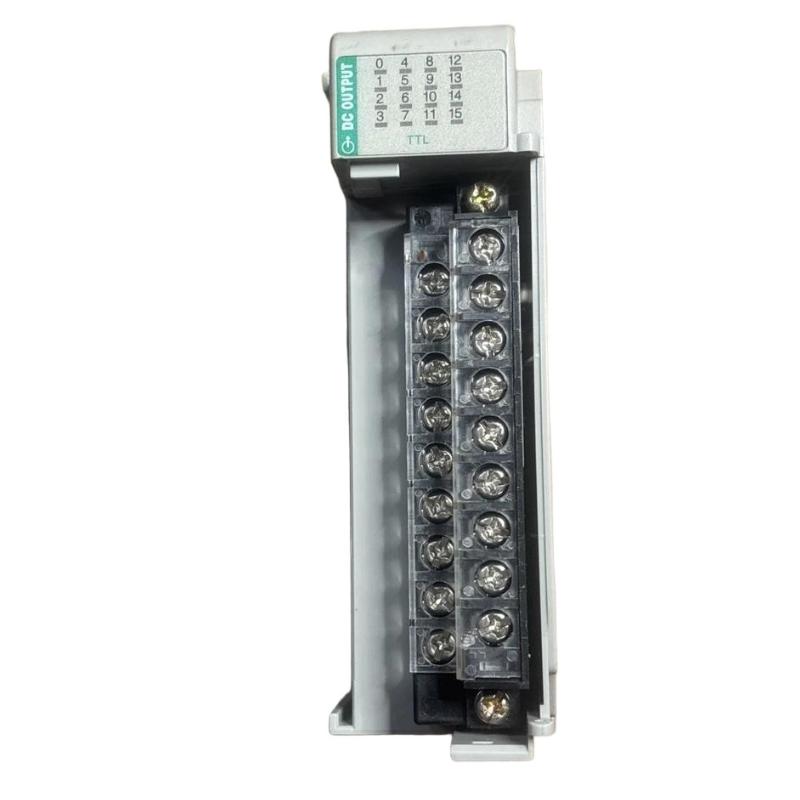

Wiring Interface: Compact terminal connection system

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade vibration tolerance

Shock Resistance: Suitable for control cabinet environments

Protection Rating: Installed inside industrial enclosure

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.25 kg

High-speed logic output, built for precision automation control!
