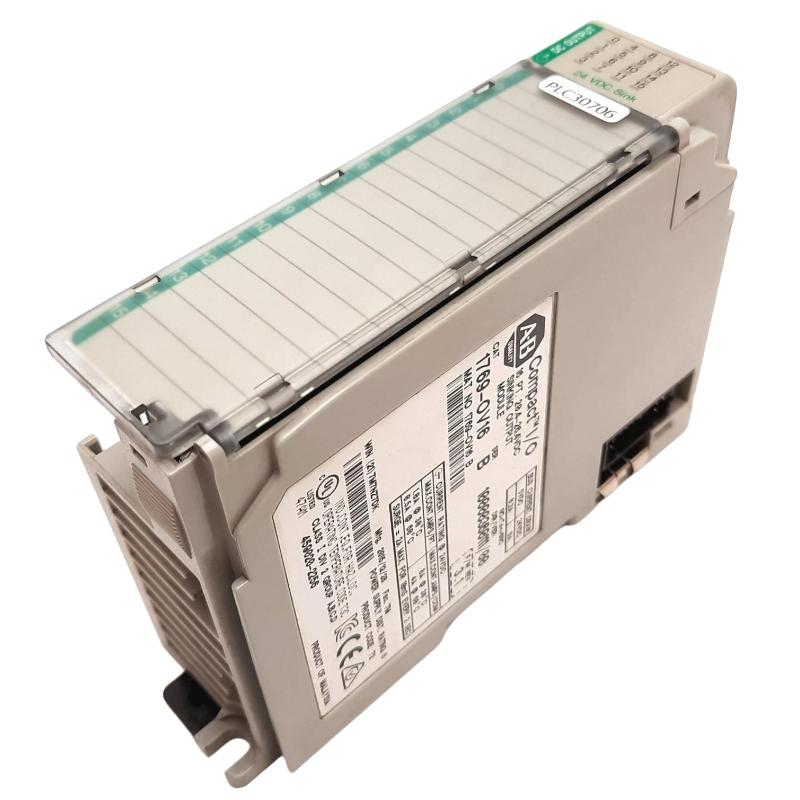

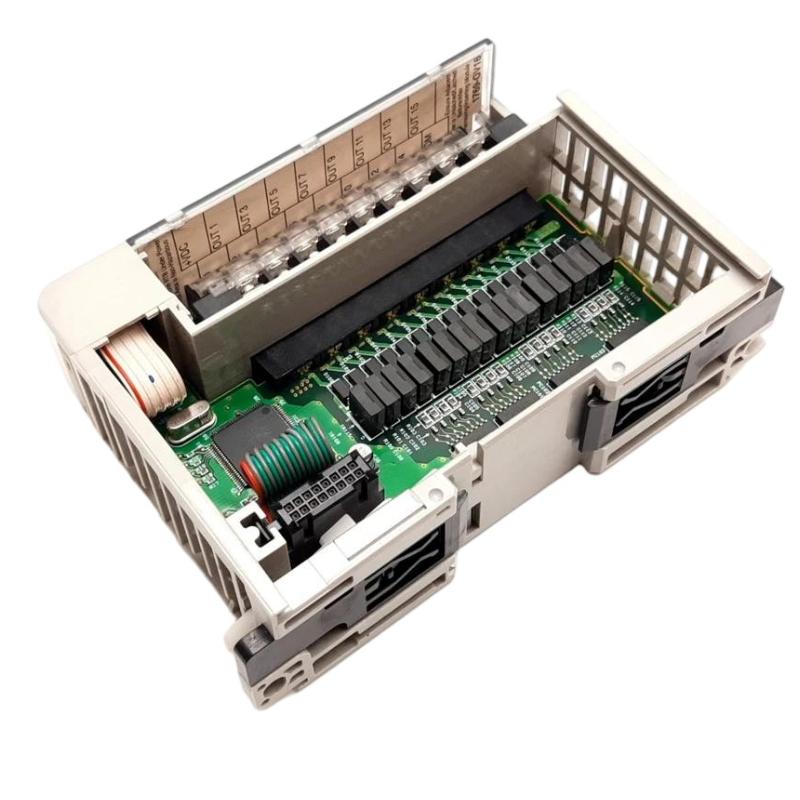

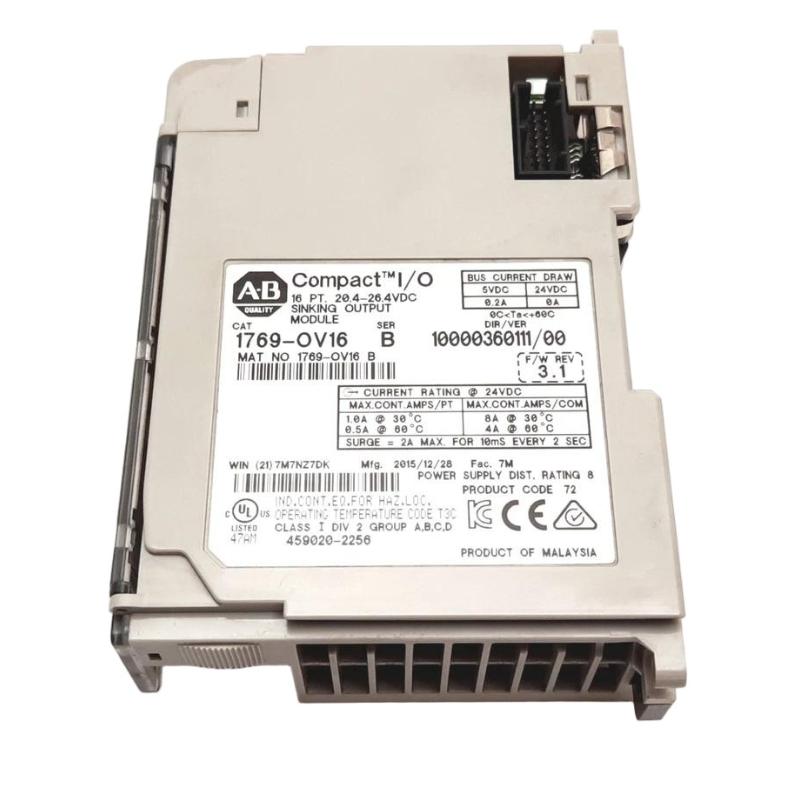

Allen Bradley 1769-OV16 CompactLogix 16-Point DC Sinking Output Module

Overview

The Allen Bradley 1769-OV16 is a CompactLogix 16-point DC sinking output module designed for reliable low-side switching in industrial automation systems. It provides stable control of DC loads such as relays, solenoids, and indicator devices within CompactLogix architectures.

General Information

Part Number: 1769-OV16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: CompactLogix 1769 I/O

Product Type: DC Sinking Digital Output Module

Output Channels: 16-point sinking outputs

Mounting Type: 1769 Compact I/O rack system

Application: Industrial DC load control and automation output switching

Power Specifications

Operating Voltage: 24 V DC nominal

Output Current: Up to 0.5 A per channel (load dependent)

Backplane Power: Supplied via CompactLogix system backplane

Power Dissipation: Low thermal design for control cabinet use

Isolation Voltage: Channel-to-backplane isolation protection

Protection Features: Short-circuit and overload protection

Status Indicators: LED indicators per channel and module status

Communication & Interface

System Integration: CompactLogix 1769 backplane communication

Control Method: PLC-controlled discrete output switching

Diagnostics: Channel fault detection and module health monitoring

Response Time: Fast backplane update cycle

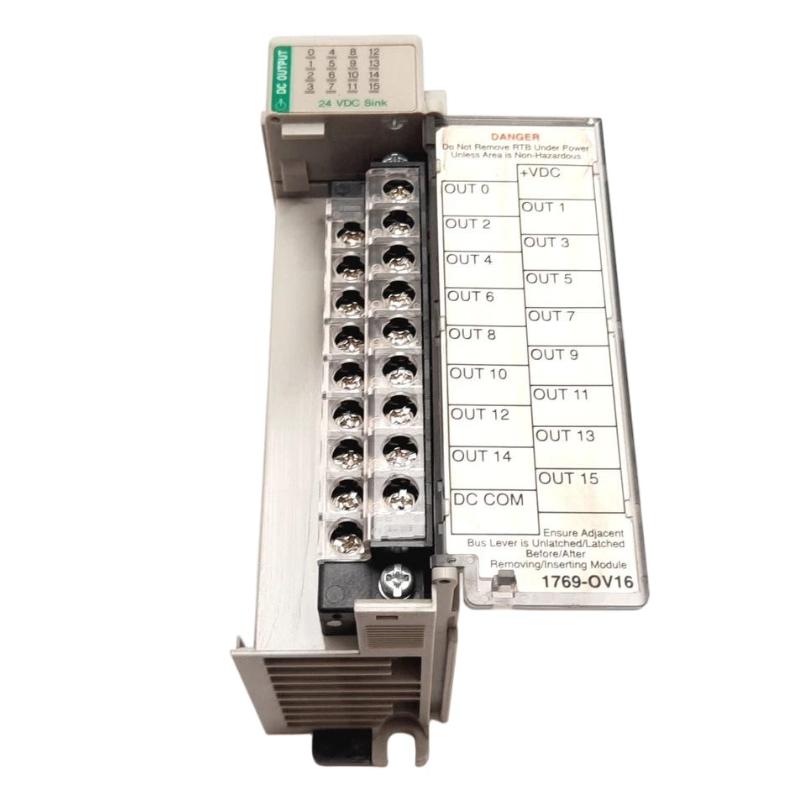

Wiring Interface: Removable terminal block for simplified wiring

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade vibration tolerance

Shock Resistance: Suitable for harsh industrial environments

Protection Rating: Installed inside industrial control enclosure

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.28 kg

Reliable sinking output, engineered for consistent industrial performance!
