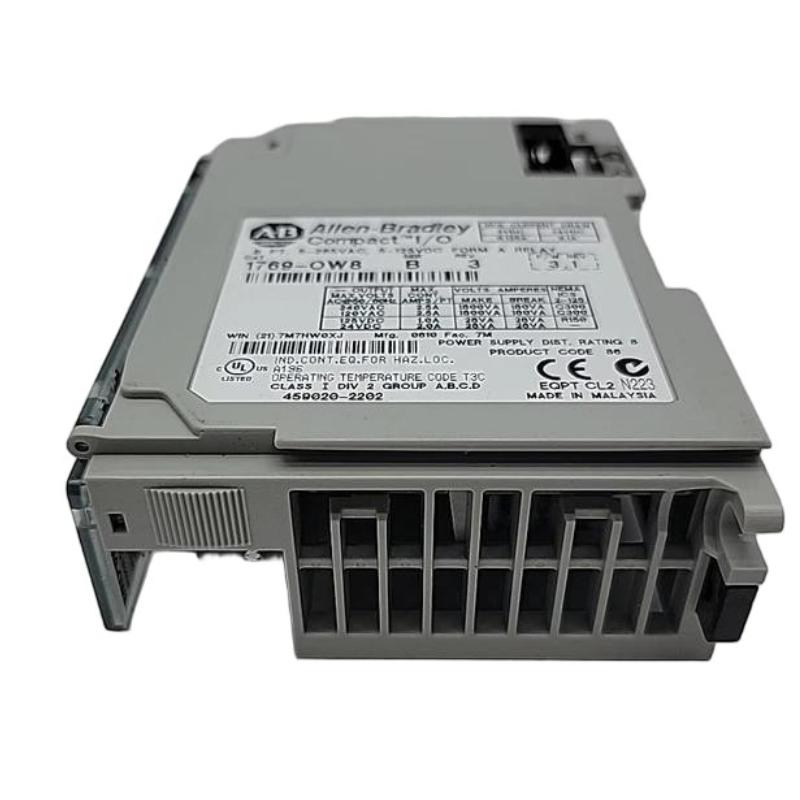

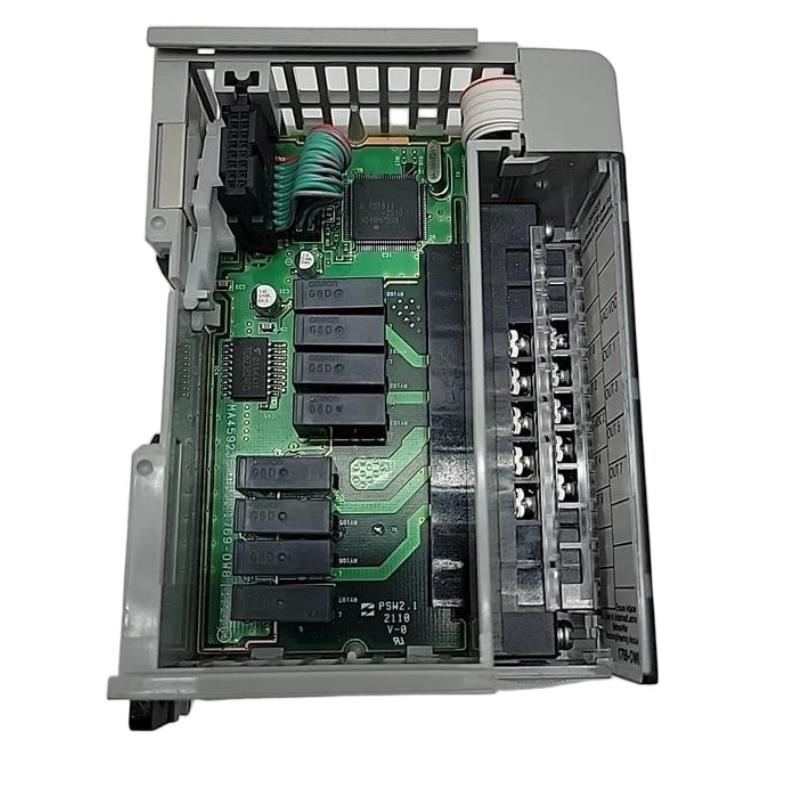

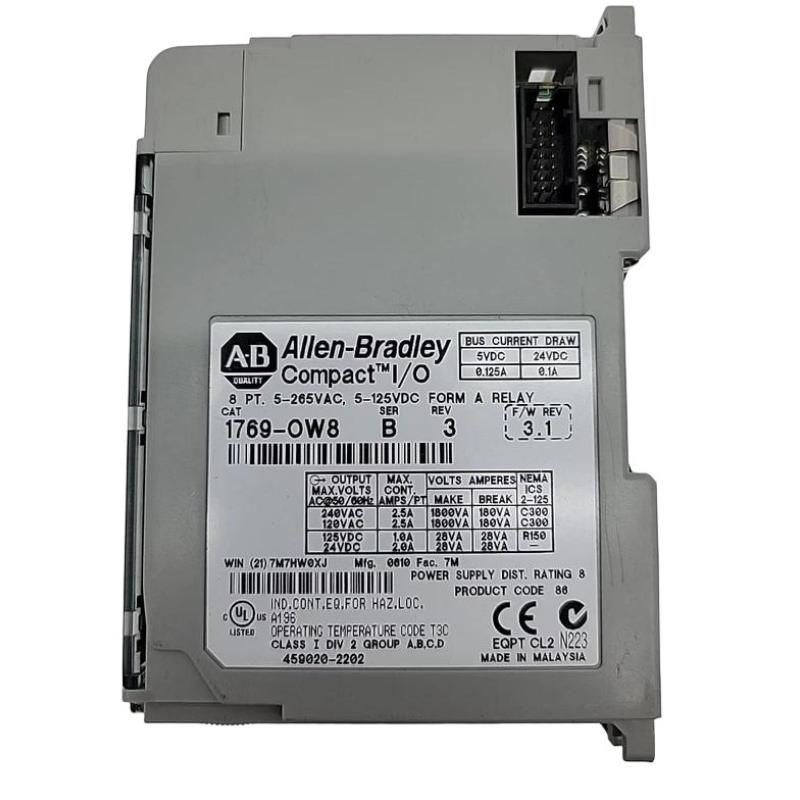

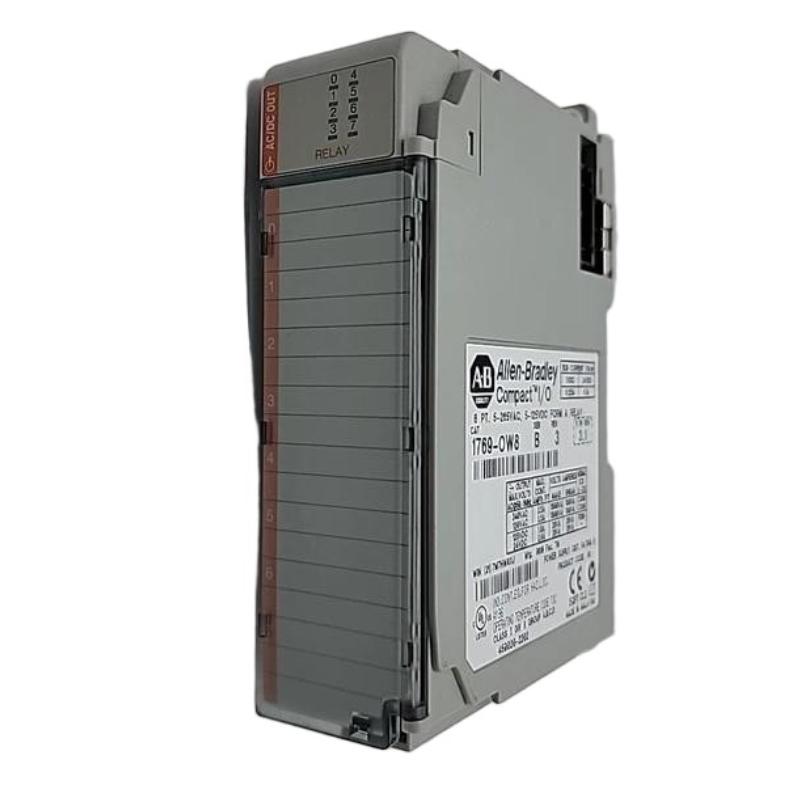

Allen Bradley 1769-OW8 CompactLogix 8-Point Relay Output Module

Overview

The Allen Bradley 1769-OW8 is a CompactLogix 8-point relay output module designed for flexible AC and DC load switching in industrial automation systems. It uses mechanical relay contacts to provide galvanic isolation and universal output compatibility for field devices.

General Information

Part Number: 1769-OW8

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: CompactLogix 1769 I/O

Product Type: Relay Output Module

Output Channels: 8-point relay outputs

Contact Type: AC/DC relay switching

Mounting Type: 1769 Compact I/O rack system

Application: General-purpose industrial output control

Power Specifications

Operating Voltage: Supports AC/DC load switching via relay contacts

Contact Rating: Suitable for industrial AC and DC loads (within relay limits)

Backplane Power: Supplied via CompactLogix system backplane

Power Dissipation: Low internal consumption, relay-driven output

Isolation Voltage: High isolation provided by relay contacts

Protection Features: Arc suppression and contact protection

Status Indicators: LED indicators per channel and module status

Communication & Interface

System Integration: CompactLogix 1769 backplane communication

Control Method: PLC-controlled relay actuation

Response Time: Mechanical relay switching response

Diagnostics: Channel status monitoring and module health feedback

Wiring Interface: Removable terminal block for simplified installation

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade tolerance

Shock Resistance: Suitable for control cabinet environments

Protection Rating: Installed inside industrial enclosure

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.28 kg
