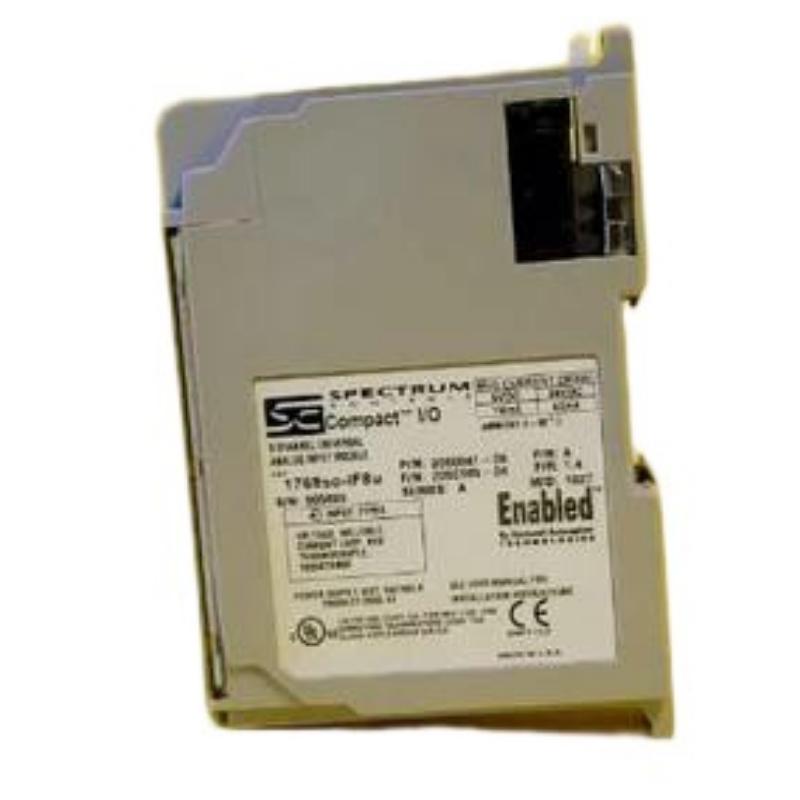

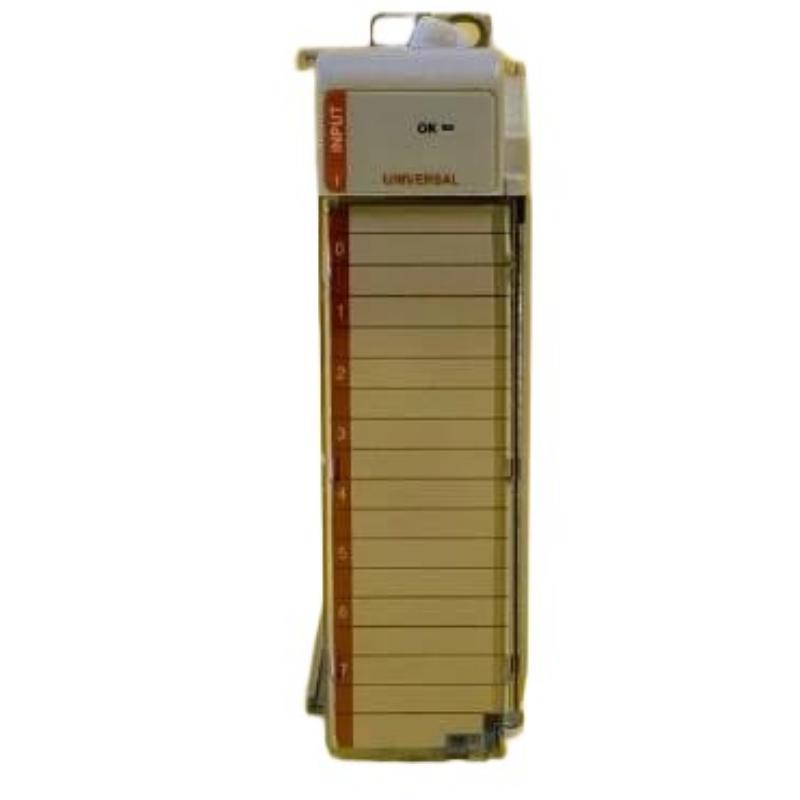

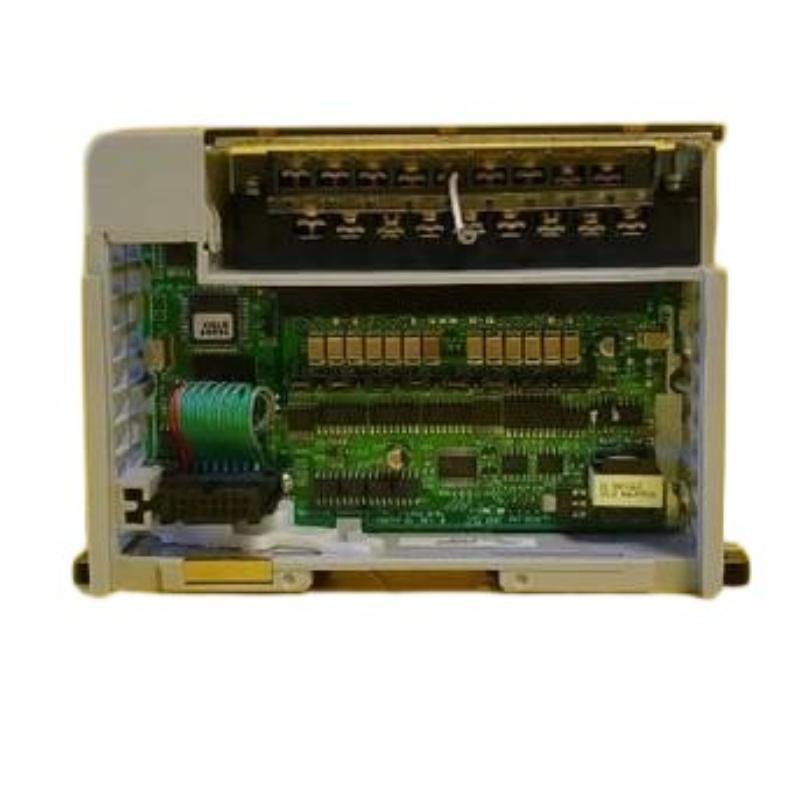

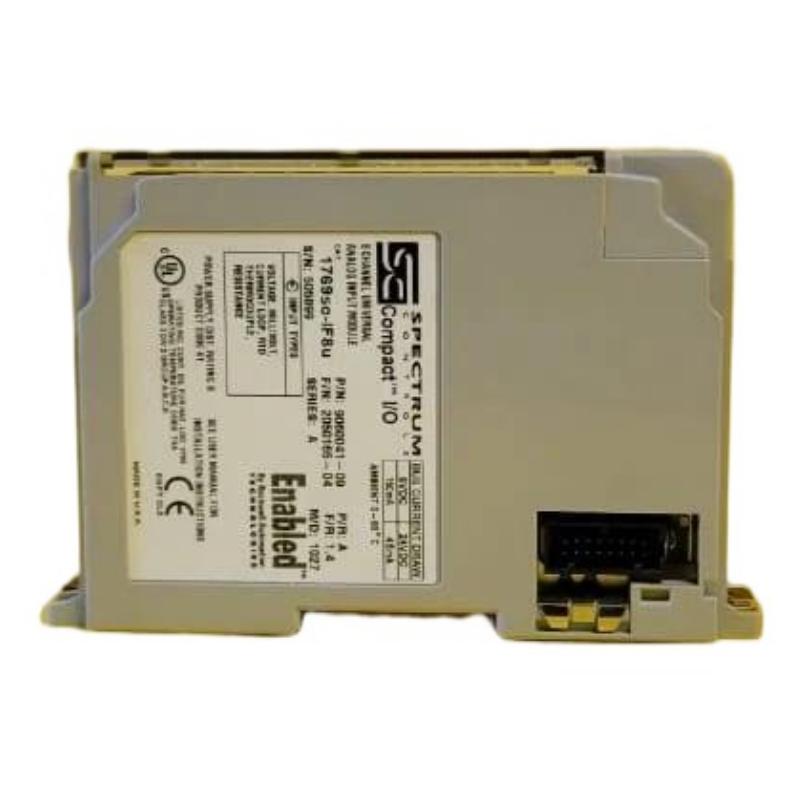

Allen Bradley 1769SC-IF8U CompactLogix 8-Channel Universal Analog Input Module

Overview

The Allen Bradley 1769SC-IF8U is an 8-channel universal analog input module designed for CompactLogix and Compact I/O systems. It supports multiple analog signal types in a single module, helping simplify system design and reduce hardware complexity in industrial automation applications. It is widely used in process control, machine monitoring, and data acquisition systems.

General Information

Part Number: 1769SC-IF8U

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: CompactLogix / Compact I/O

Product Type: Universal Analog Input Module

Mounting Type: DIN rail installation within Compact I/O chassis

Function: Collects and converts analog signals into digital data for PLC processing

Design: Multi-signal compatible industrial I/O module

Power Specifications

Supply Voltage: 24 V DC (via backplane)

Power Consumption: Low-power modular design

Input Isolation: Channel-to-channel electrical isolation

Protection: Overvoltage and signal conditioning protection

Start-Up: Automatic initialization with system backplane

Communication & Interface

Interface Type: Backplane communication via CompactLogix system bus

Input Channels: 8 universal analog input channels

Signal Types Supported: Voltage and current signals (configurable per channel)

Resolution: High-resolution analog-to-digital conversion

Diagnostics: Channel diagnostics, open-wire detection, fault status reporting

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: IEC industrial standard vibration tolerance

Protection Rating: IP20 suitable for control cabinet installation

Installation Environment: Industrial enclosure required

Dimensions & Weight

Dimensions (H × W × D): 118 × 35 × 87 mm

Weight: 0.45 kg
