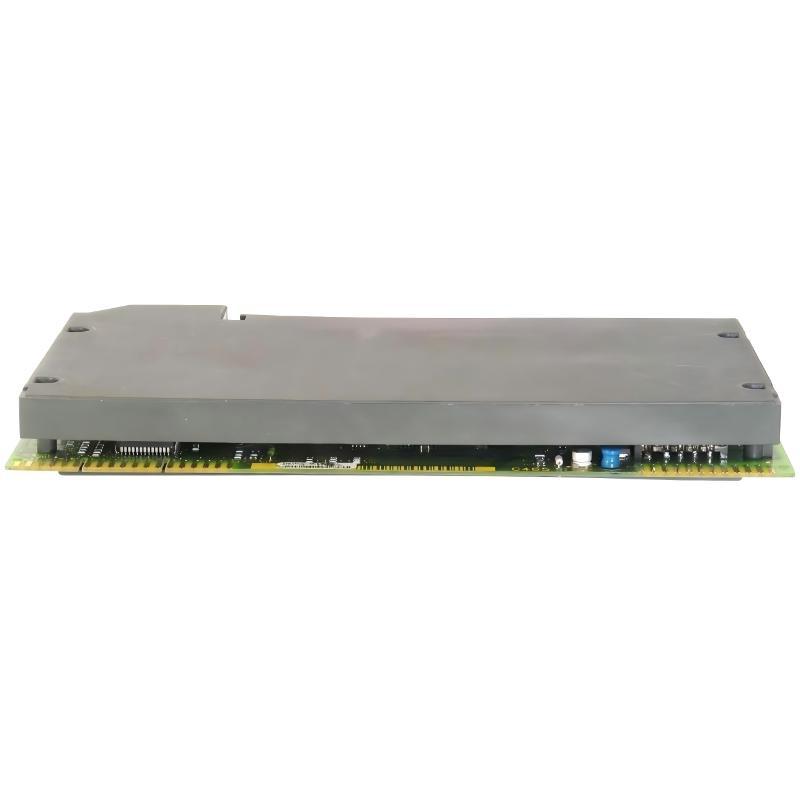

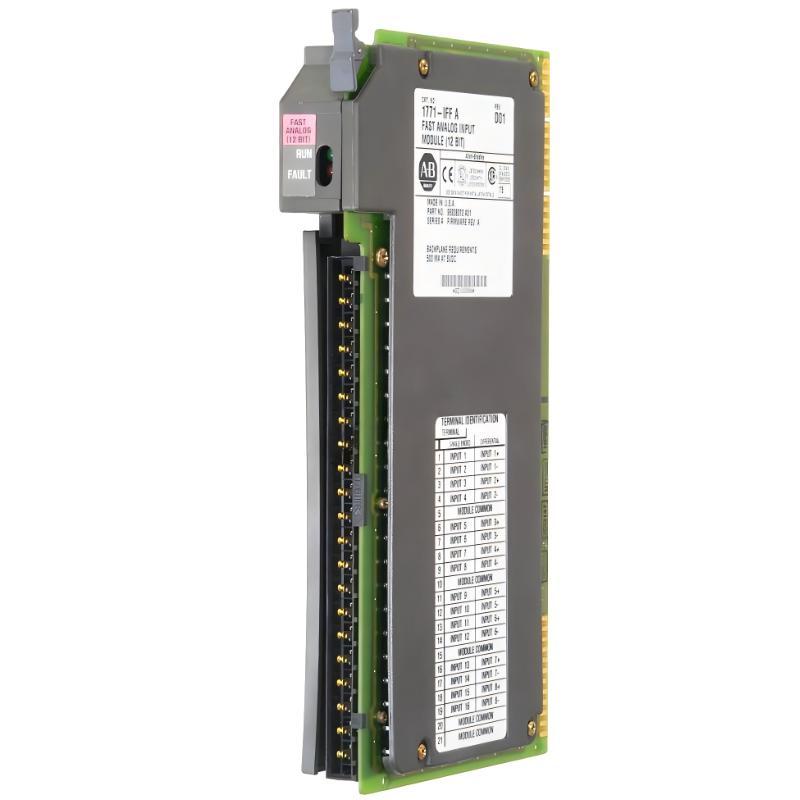

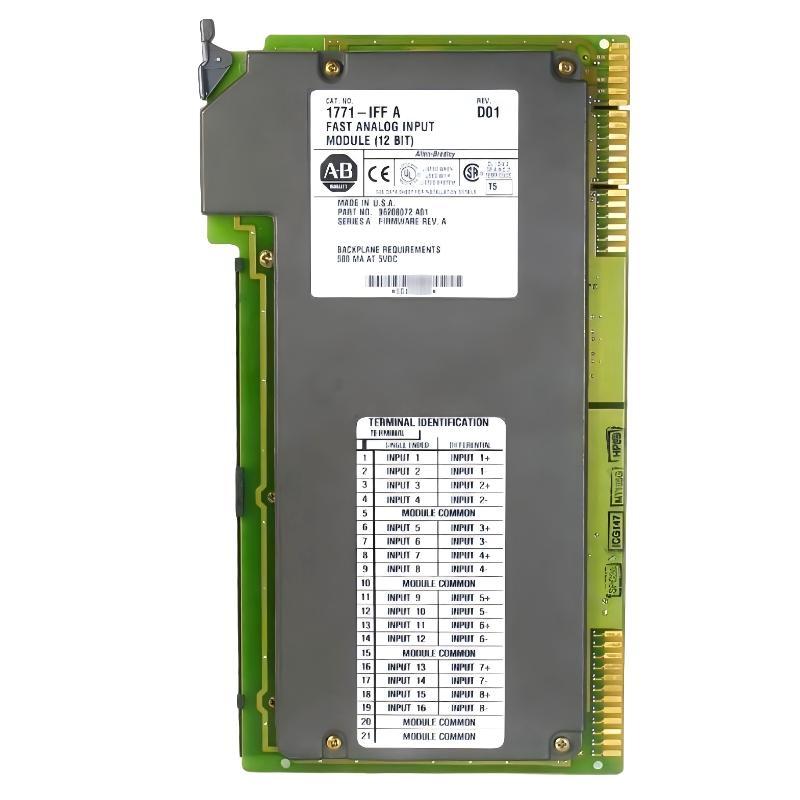

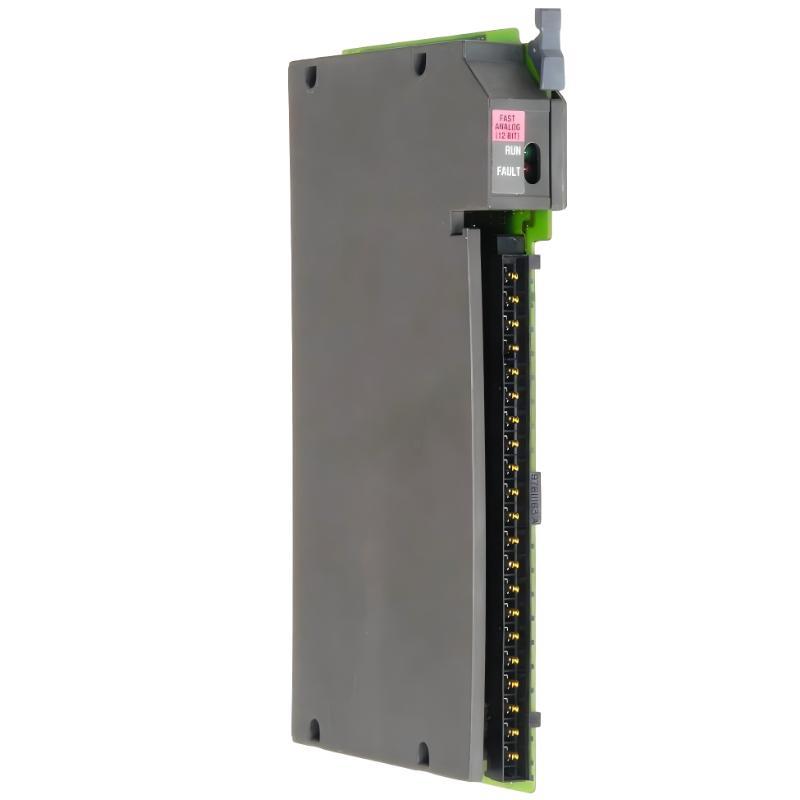

Allen Bradley 1771-IFF High-Speed Analog Input Module

Overview

The Allen Bradley 1771-IFF is a high-speed analog input module designed for the 1771 PLC I/O platform. It delivers fast and accurate acquisition of analog signals, making it ideal for high-performance industrial automation, process control, and real-time monitoring applications that require rapid data processing.

General Information

Part Number: 1771-IFF

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: 1771 I/O

Type: High-Speed Analog Input Module

Input Type: High-Speed Analog Voltage and Current Inputs

Application: High-speed data acquisition and industrial process control

Power Specifications

Power Supply: Backplane powered

Backplane Current: Approx. 650 mA at 5 V DC

Power Dissipation: Approx. 3.5 W

Input Signal Ranges: Configurable voltage and current inputs

Resolution: High-resolution analog-to-digital conversion

Status Indicators: Front-panel status LED

Communication & Interface

System Interface: 1771 PLC backplane

Input Channels: High-speed analog input channels

Supported Signal Types: Voltage and current analog signals

Configuration: Software-configurable input parameters

Data Processing: High-speed signal sampling

Diagnostics: Integrated status and fault monitoring

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Relative Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (for installation inside an industrial control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 165 × 51 × 89 mm

Weight: 0.522 kg

In Stock. Ships Fast.
