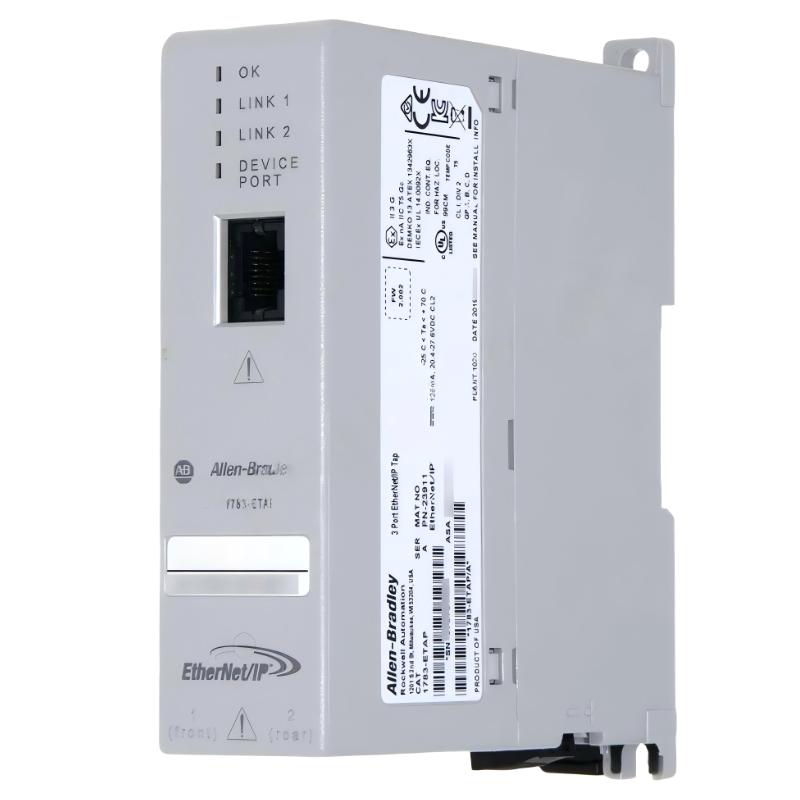

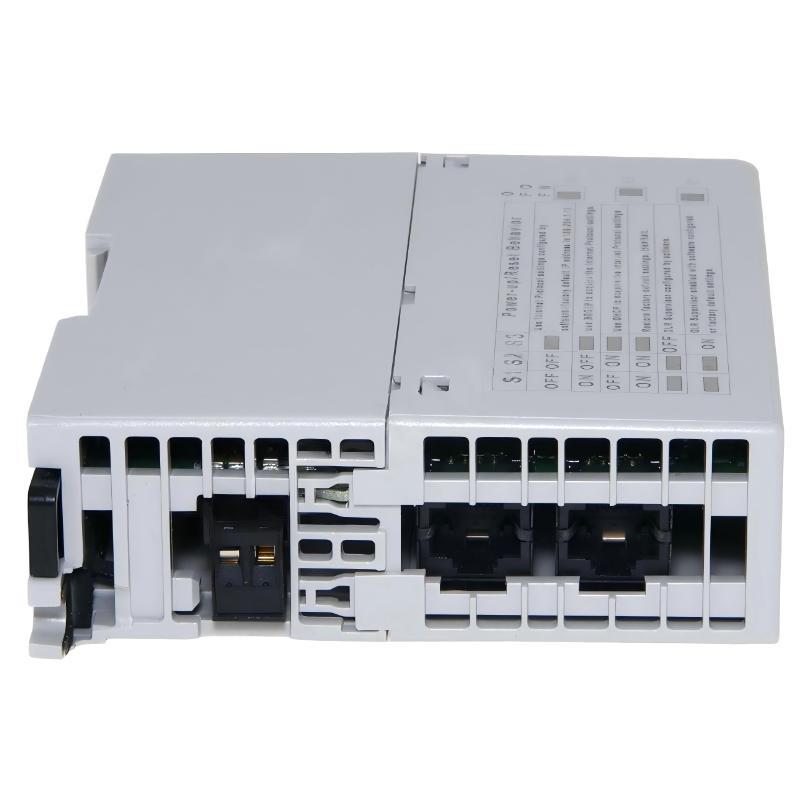

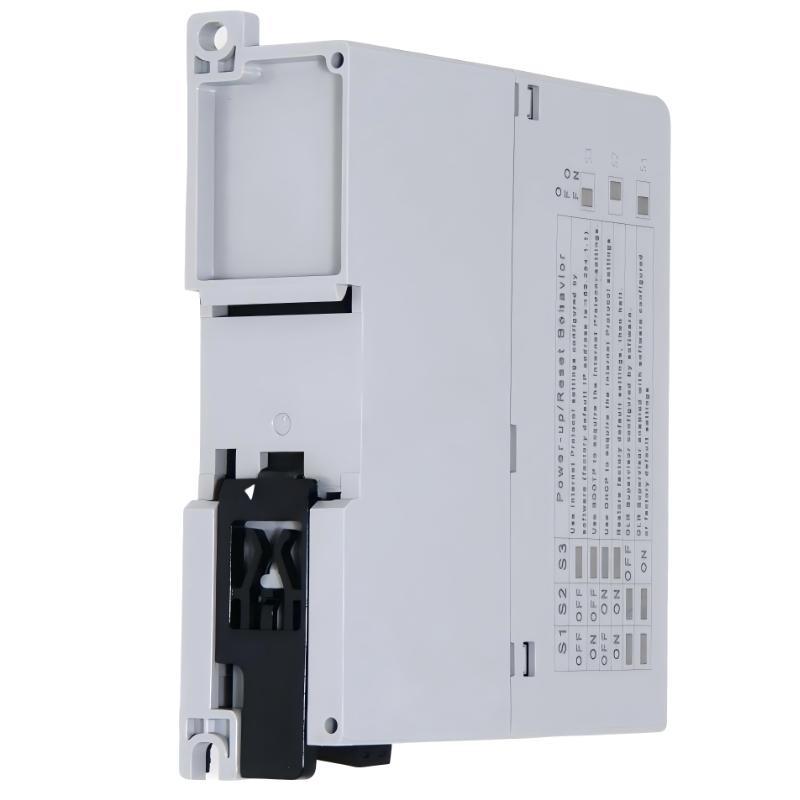

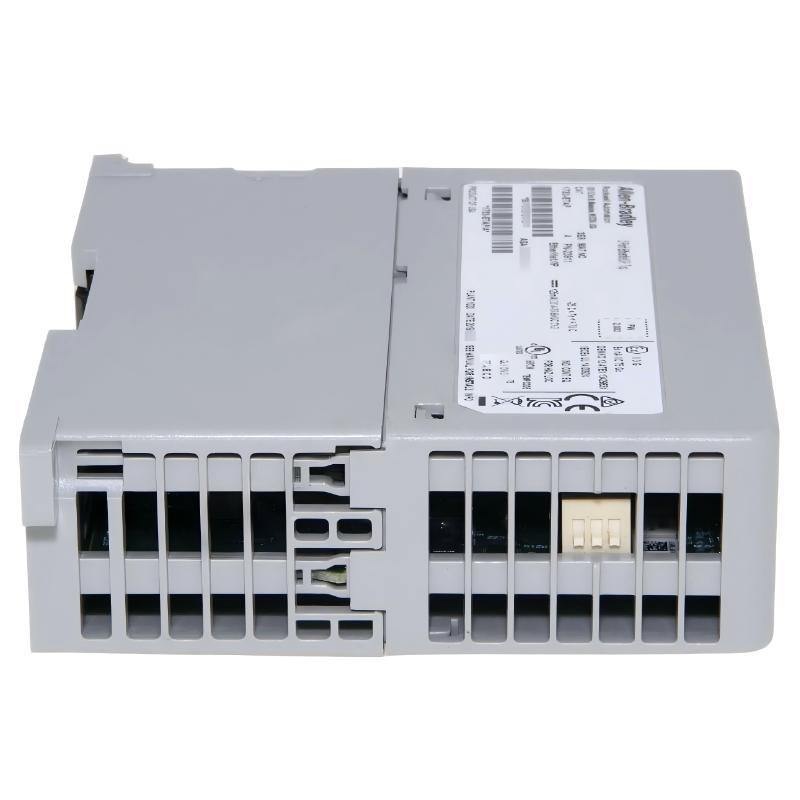

Allen Bradley 1783-ETAP EtherNet/IP Splitter

Overview

The Allen Bradley 1783-ETAP is an EtherNet/IP splitter designed for industrial automation networks. It provides flexible network tap and expansion capability, allowing devices to be added to existing Ethernet/IP networks without disrupting communication, ensuring stable and efficient data flow in control systems.

General Information

Part Number: 1783-ETAP

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: EtherNet/IP Connectivity Devices

Type: Ethernet/IP Splitter / Network Tap

Mounting: DIN rail or industrial cabinet installation

Application: EtherNet/IP network expansion, device connection, and signal distribution

Power Specifications

Input Voltage: 24 V DC

Power Consumption: Low-power network device

Protection Features: Surge protection and network isolation

Status Indicators: LED indicators for link status and network activity

Communication & Interface

Interface Type: EtherNet/IP (Industrial Ethernet)

Ports: Multiple Ethernet ports for network splitting and expansion

Function: Enables network branching without disrupting existing communication

Diagnostics: Network status monitoring and link diagnostics

Connection Type: RJ45 Ethernet connectors

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Protection Rating: Industrial cabinet environment (IP20)

Dimensions & Weight

Dimensions (L × W × H): 131.57 × 35.05 × 104.9 mm

Weight: 0.18 kg

Flexible EtherNet/IP expansion for reliable and scalable industrial networking.
