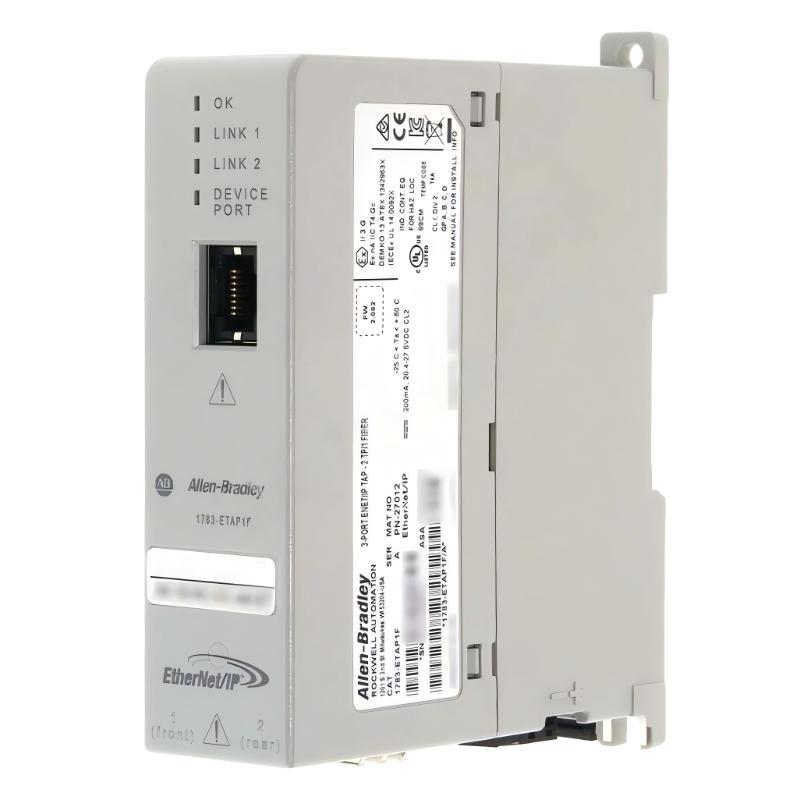

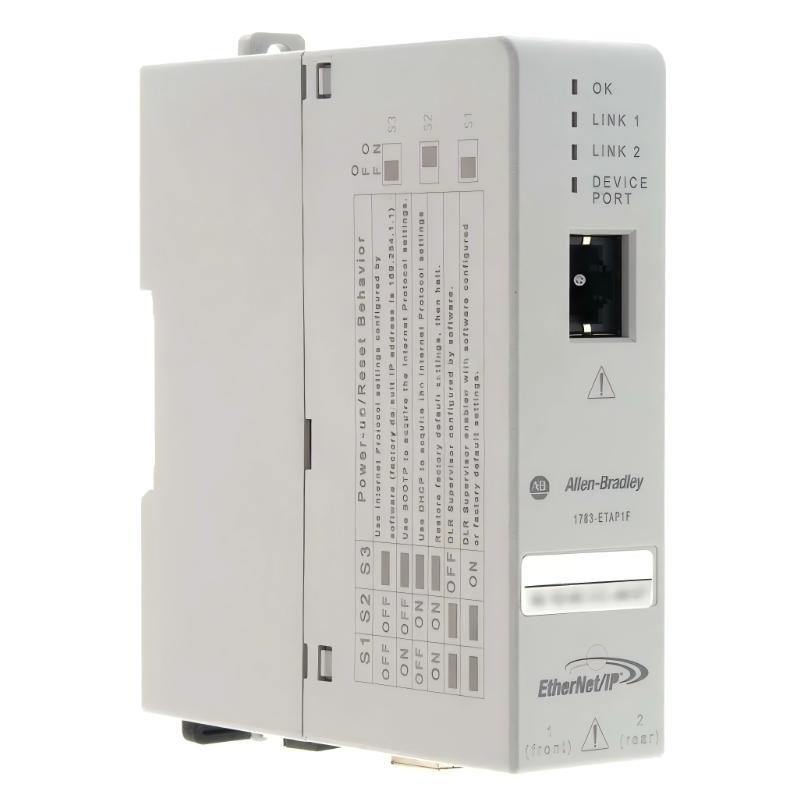

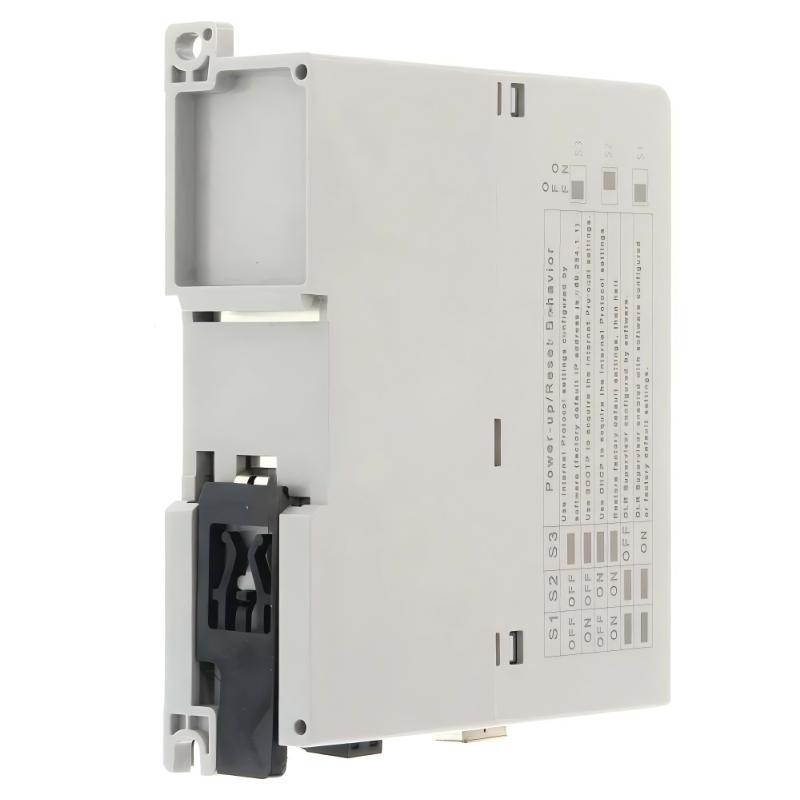

Allen Bradley 1783-ETAP1F EtherNet/IP Splitter

Release time	Jul 1, 2026
Brand	Allen Bradley PLC
Product Numbe	1783-ETAP1F
Country Of Origin	USA
Dimensions	131.57 × 35.05 × 104.9 mm
Weight	0.18 kg
Condition	New & In Stock
Payment Methods	T/T, PayPal, Western Union
Lead Time	1-3 Working Days
Warranty	One Year
Courier partners	DHL, UPS, TNT, FedEx and EMS.

Request For Quotation [email protected]

Product Details
Frequently FAQ
Contact Us
Argument
Score

Overview

The Allen Bradley 1783-ETAP1F is an EtherNet/IP network tap and splitter module designed to provide reliable access to industrial Ethernet communication lines. It enables non-intrusive network monitoring, diagnostics, and traffic duplication without interrupting live industrial communication. It is widely used in automation systems requiring stable Ethernet visibility and maintenance support.

General Information

Part Number: 1783-ETAP1F

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix / EtherNet/IP Access Products

Type: EtherNet/IP Tap / Network Splitter Module

Installation: DIN rail or industrial cabinet mounting

Function: Passive Ethernet signal tapping and network monitoring access

Technology: Industrial Ethernet (IEEE 802.3), EtherNet/IP protocol support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Typically ≤ 3 W

Input Type: External auxiliary power supply

Protection: Reverse polarity and surge protection

Status Indicators: Power and Ethernet link LEDs for system status

Communication & Interface

EtherNet/IP Port: Dual-channel Ethernet access (primary and mirrored signal output)

Interface Type: RJ45 industrial Ethernet connectors

Data Function: Real-time traffic duplication and non-intrusive monitoring

Network Support: EtherNet/IP industrial communication networks

Diagnostics: Link activity, port status, and communication monitoring indicators

Isolation: Electrical isolation between ports for stable signal integrity

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (industrial control cabinet environment)

Vibration Resistance: Designed for standard industrial operating conditions

Dimensions & Weight

Dimensions (H × W × D): 131.57 × 35.05 × 104.9 mm

Weight: 0.18 kg
