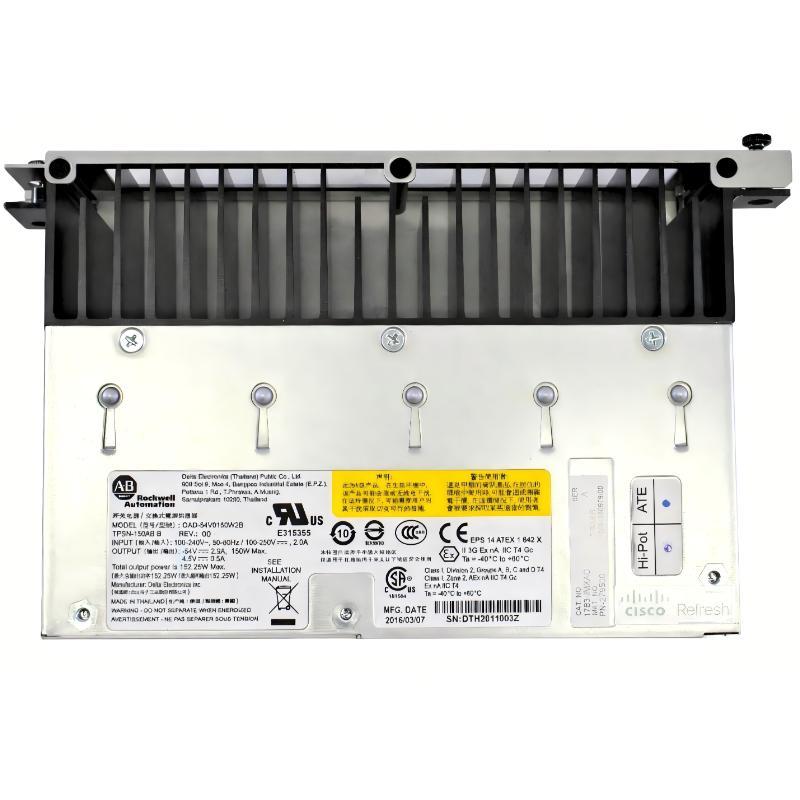

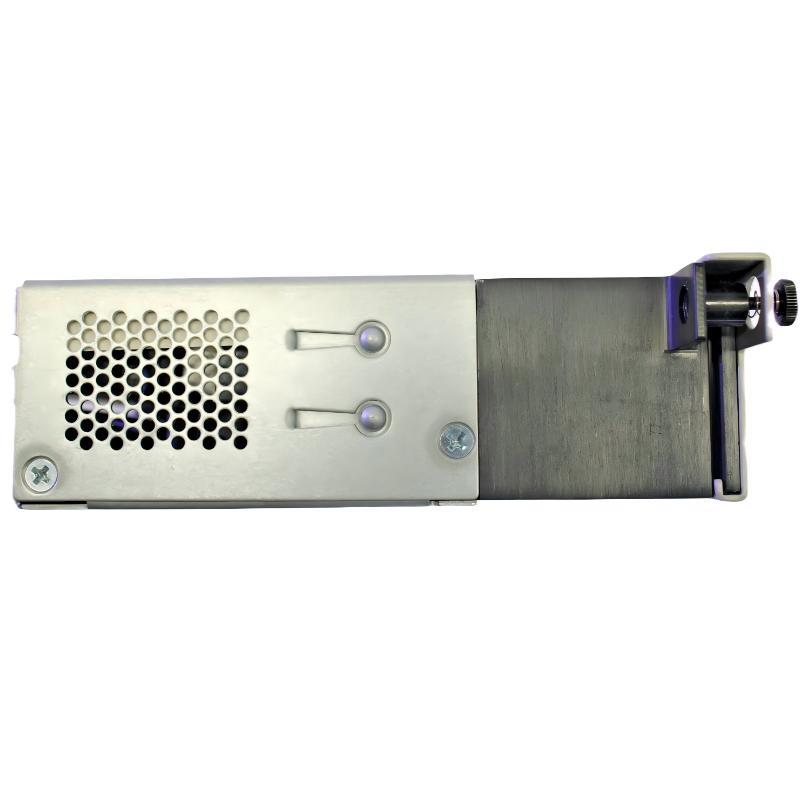

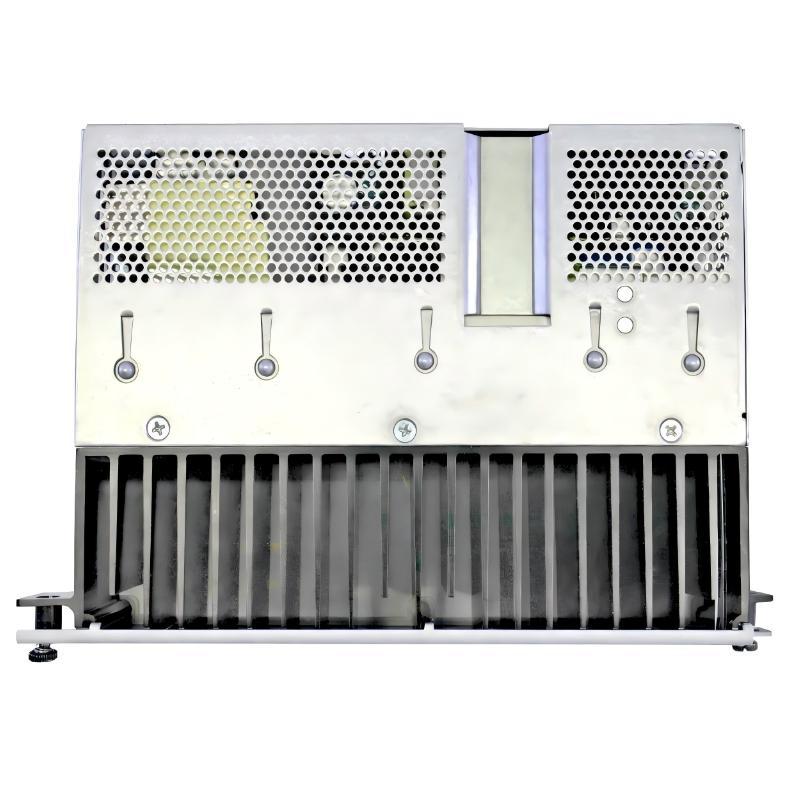

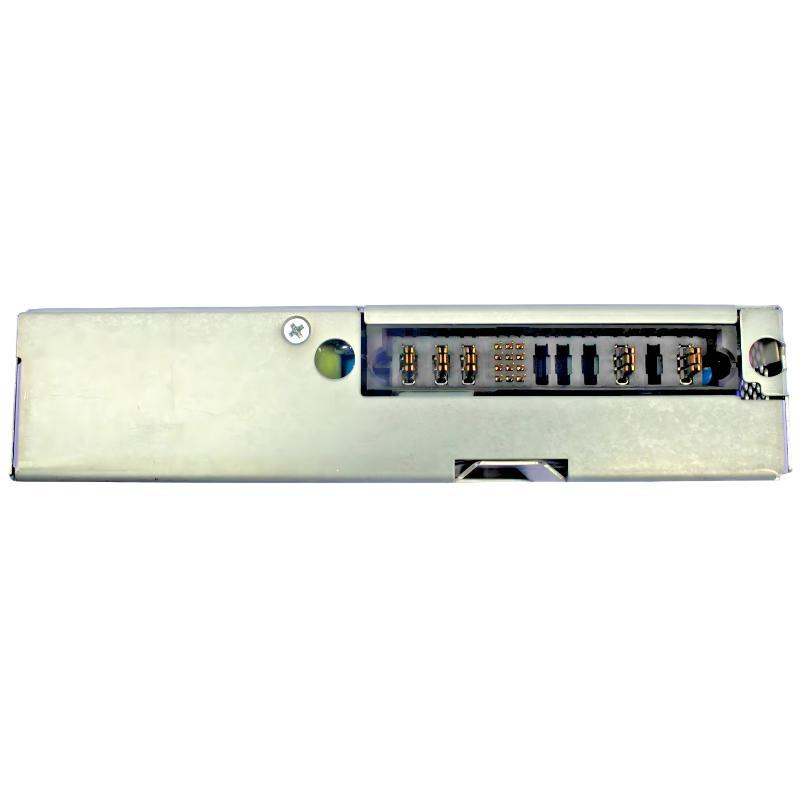

Allen Bradley 1783-IMXAC AC Power Supply

Overview

The Allen Bradley 1783-IMXAC is an industrial AC power supply module designed to provide stable and reliable power conversion for automation and control systems. It is typically used in industrial network and control environments where consistent AC-to-DC power delivery is required for connected devices and modules.

General Information

Part Number: 1783-IMXAC

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Industrial Power / Stratix Accessories

Type: AC Power Supply Module

Installation: DIN rail or industrial cabinet mounting

Function: AC power conversion and distribution support for industrial systems

Technology: Industrial-grade power regulation and protection circuitry

Power Specifications

Input Voltage: 100–240 V AC

Output Voltage: 24 V DC (regulated)

Power Rating: Industrial-grade supply capacity (module-dependent)

Efficiency: High-efficiency power conversion design

Protection: Overvoltage, overload, and short-circuit protection

Status Indicators: Power and fault LED indicators

Communication & Interface

AC Input Terminal: Industrial screw or plug-in terminal connection

DC Output Interface: Standard industrial control power output terminals

System Integration: Designed for control cabinet power distribution systems

Monitoring: Built-in status indication for operational diagnostics

Isolation: Electrical isolation between AC input and DC output stages

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (industrial enclosure use)

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (H × W × D): 135 × 35 × 100 mm

Weight: 1.36 kg
