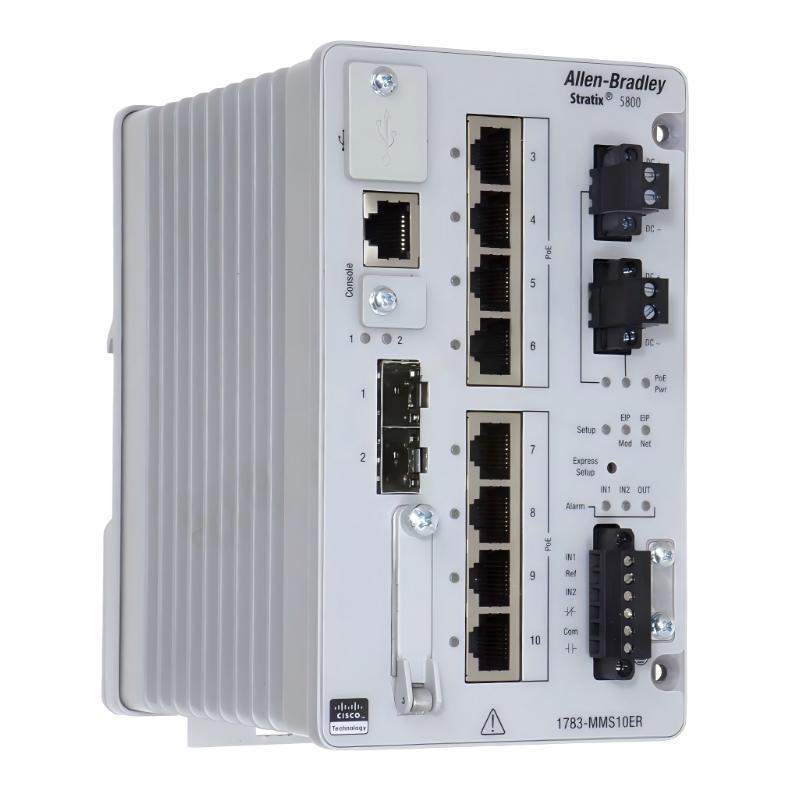

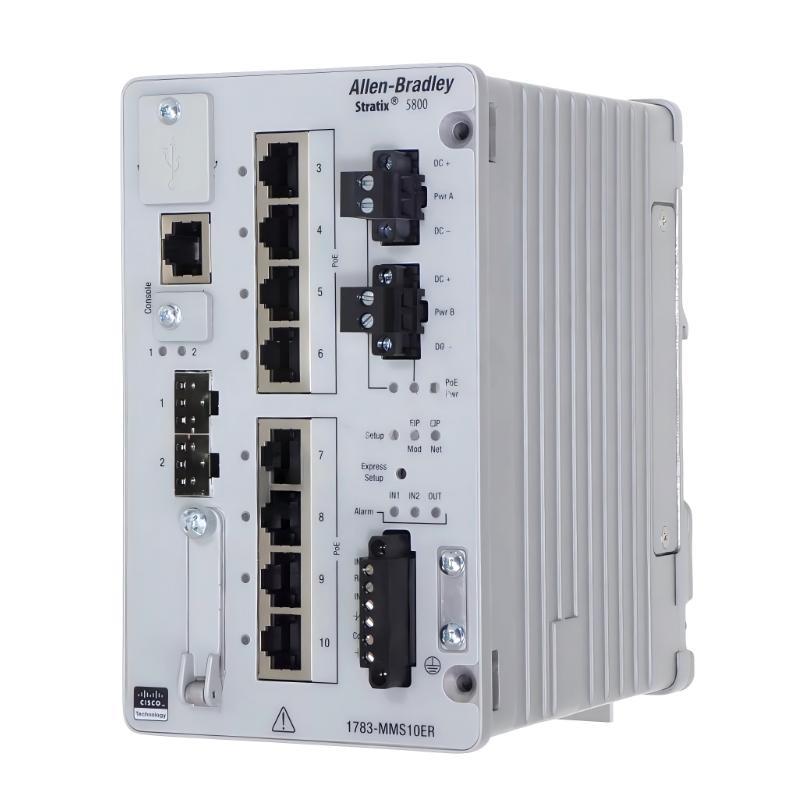

Allen Bradley 1783-MMS10ER Stratix 5800 Managed Ethernet Switch

Overview

The Allen Bradley 1783-MMS10ER is a Stratix 5800 managed industrial Ethernet switch designed for high-performance network control in demanding automation environments. It provides advanced switching capabilities, enhanced security functions, and full network management features to support reliable and scalable industrial Ethernet communication.

General Information

Part Number: 1783-MMS10ER

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix 5800

Type: Managed Industrial Ethernet Switch

Installation: DIN rail or control cabinet mounting

Function: Advanced Ethernet switching with full network management

Technology: Industrial Ethernet (IEEE 802.3), EtherNet/IP compatible architecture

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Industrial low-power design (typically ≤ 15 W)

Input Type: External DC power input

Protection: Surge protection, overload protection, reverse polarity protection

Status Indicators: System, port link, and activity LEDs

Communication & Interface

Ethernet Ports: Multiple Gigabit/fast Ethernet RJ45 ports (model dependent configuration)

SFP Slots: Fiber uplink support for extended network topology

Network Protocols: EtherNet/IP, TCP/IP, VLAN support

Switching Capability: Managed switching with QoS, VLAN segmentation, and redundancy features

Diagnostics: Real-time traffic monitoring, port statistics, and fault detection

Security Features: Access control, network segmentation, and management authentication

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 industrial enclosure use

Vibration Resistance: Designed for harsh industrial environments

Dimensions & Weight

Dimensions (H × W × D): 153.23 × 91.4 × 151.6 mm

Weight: 0.95 kg

High-performance switching engineered for secure and scalable industrial networks.
