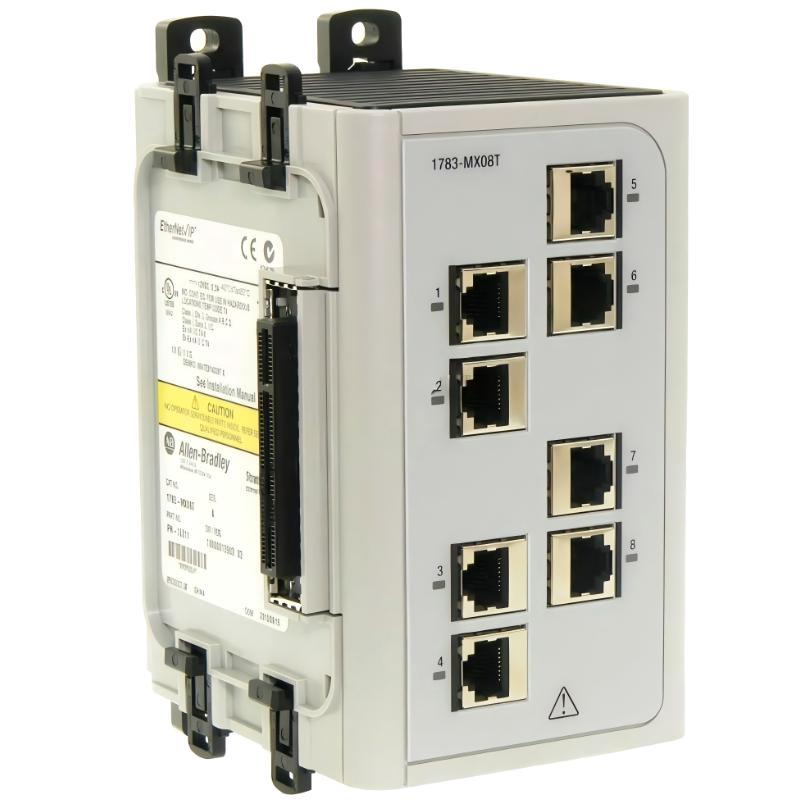

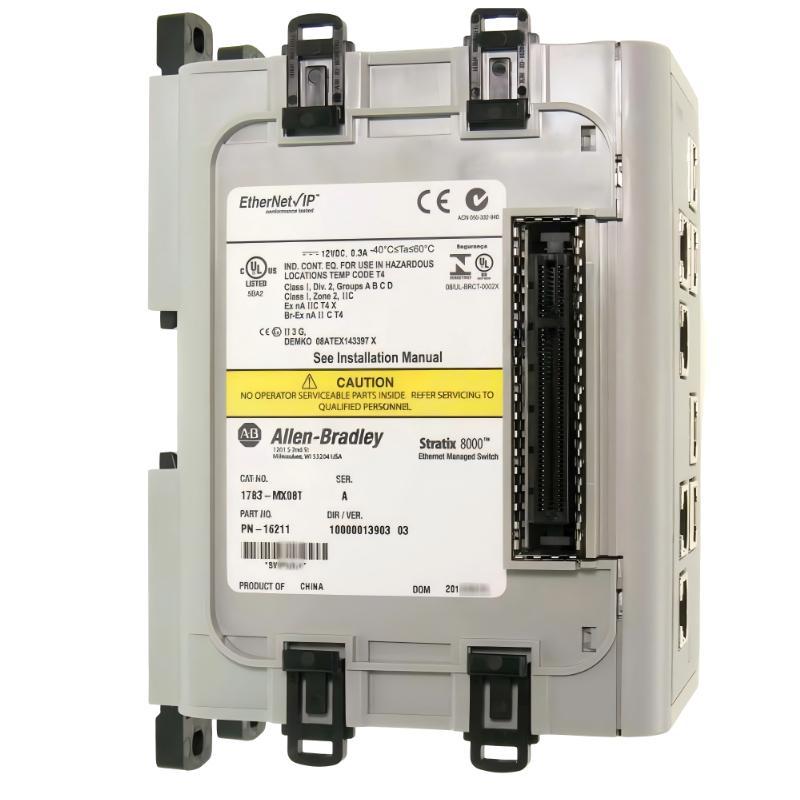

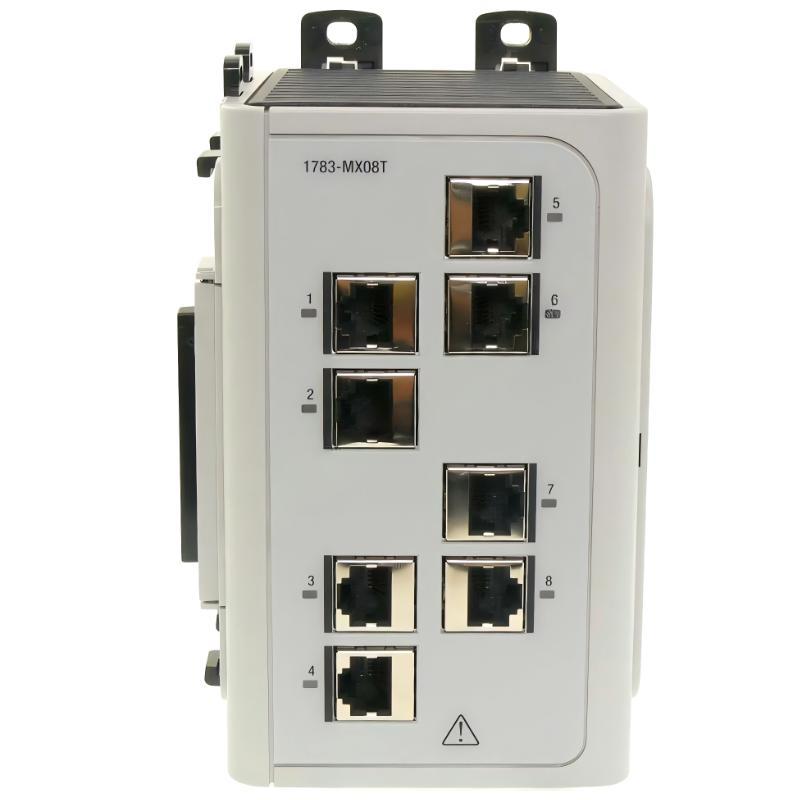

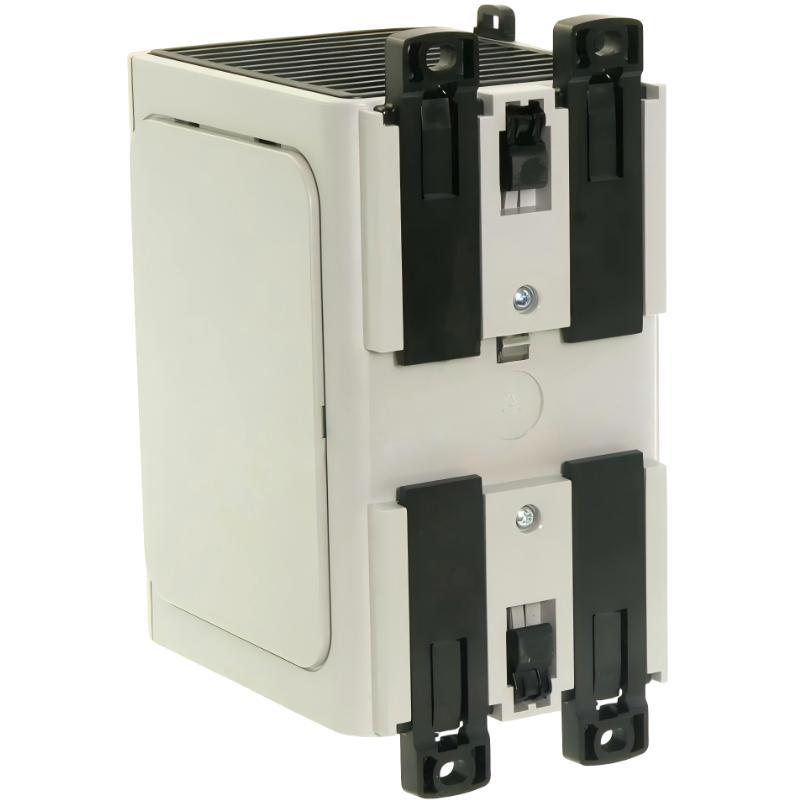

Allen Bradley 1783-MX08T Stratix 8000 Managed Ethernet Switch

Overview

The Allen Bradley 1783-MX08T is a Stratix 8000 managed industrial Ethernet switch designed to deliver reliable, high-speed network performance in demanding automation environments. It supports advanced switching functions, network segmentation, and diagnostic visibility to ensure stable EtherNet/IP communication across industrial systems.

General Information

Part Number: 1783-MX08T

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix 8000

Type: Managed Industrial Ethernet Switch

Installation: DIN rail or industrial cabinet mounting

Function: Industrial Ethernet switching with advanced network management

Technology: Ethernet IEEE 802.3, EtherNet/IP compatible architecture

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Industrial low-power design (typically ≤ 15 W)

Input Type: External DC power supply

Protection: Overvoltage, surge protection, and reverse polarity protection

Status Indicators: Power, link, and activity LED indicators

Communication & Interface

Ethernet Ports: Multiple 10/100 Mbps and/or Gigabit Ethernet ports (model dependent)

Network Protocols: EtherNet/IP, TCP/IP, VLAN support

Switching Mode: Managed store-and-forward switching architecture

Management Features: QoS prioritization, port configuration, and network segmentation

Diagnostics: Real-time traffic monitoring, link status, and fault detection

Redundancy Support: Network redundancy and failover capability

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 industrial enclosure use

Vibration Resistance: Designed for standard industrial environments

Dimensions & Weight

Dimensions (H × W × D): 148 × 98.1 × 117.5 mm

Weight: 0.93 kg

Advanced switching performance for dependable industrial connectivity and uninterrupted operations.
