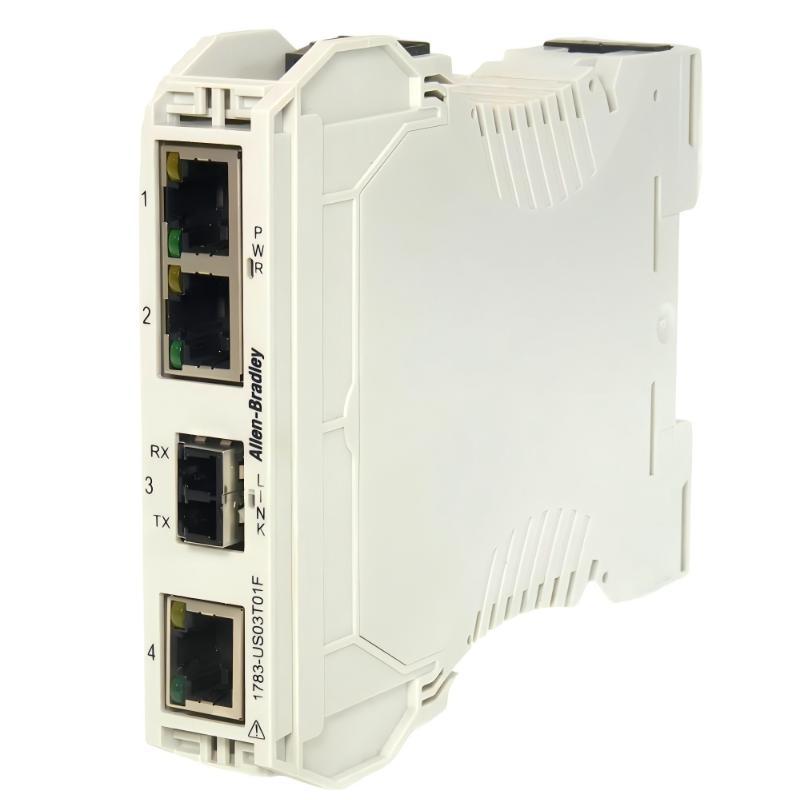

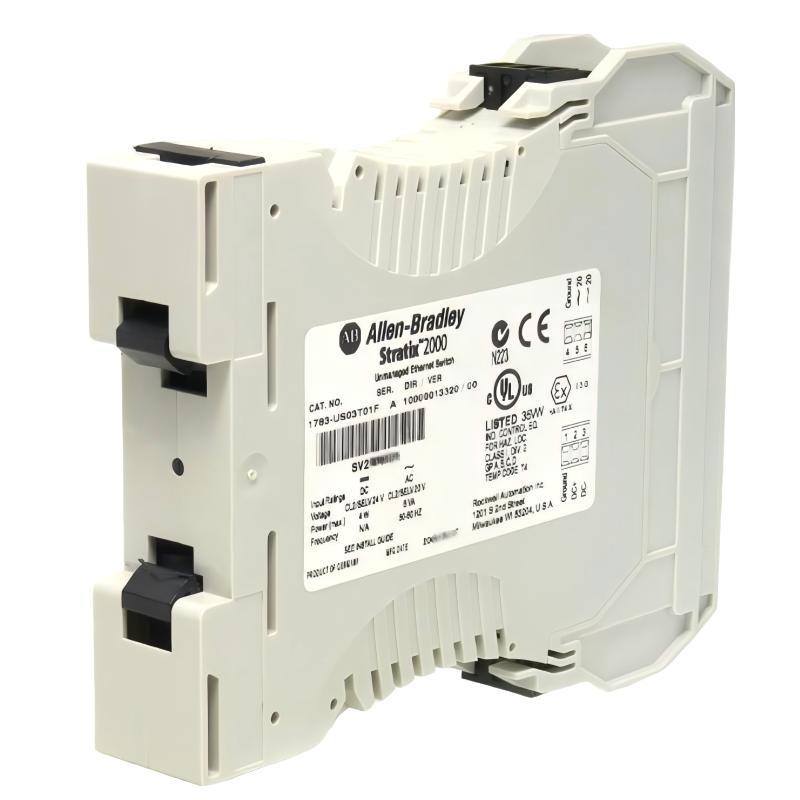

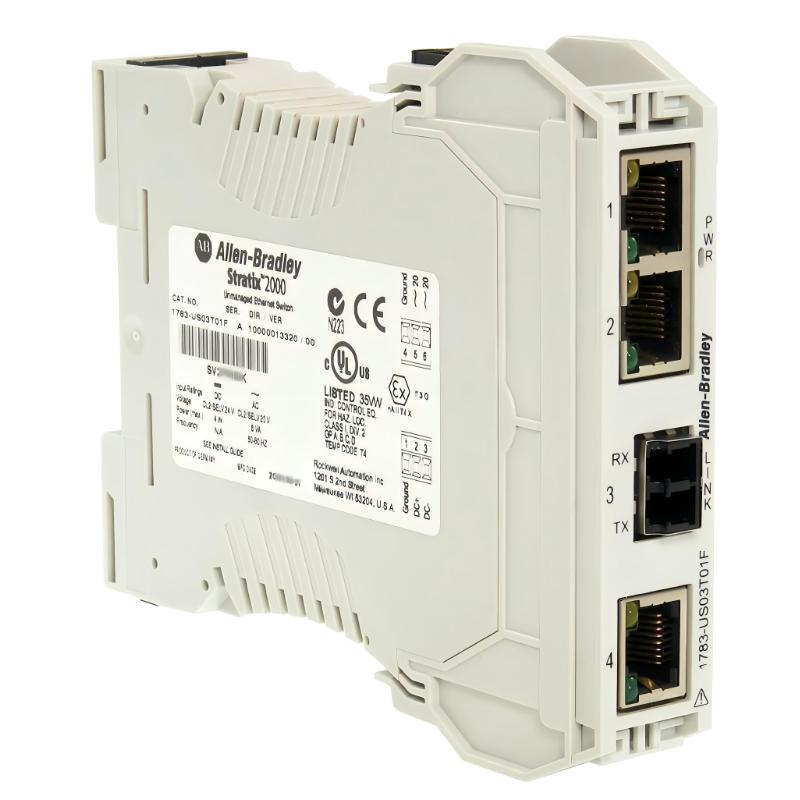

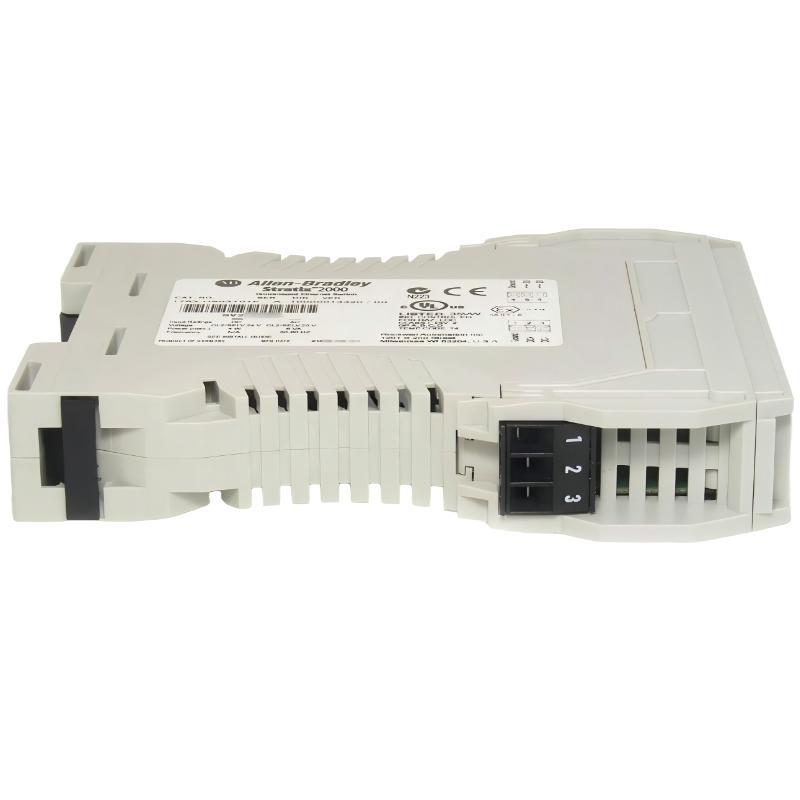

Allen Bradley 1783-US03T01F Stratix 2000 Unmanaged Ethernet Switches

Overview

The Allen Bradley 1783-US03T01F is a Stratix 2000 unmanaged industrial Ethernet switch designed for simple and reliable network connectivity in automation environments. It provides plug-and-play Ethernet switching with minimal configuration, making it suitable for small-scale industrial networks requiring stable and cost-effective communication.

General Information

Part Number: 1783-US03T01F

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix 2000

Type: Unmanaged Industrial Ethernet Switch

Installation: DIN rail or control cabinet mounting

Function: Basic Ethernet switching for industrial networks

Technology: Industrial Ethernet (IEEE 802.3), EtherNet/IP compatible

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power design (typically ≤ 5 W)

Input Type: External DC power input

Protection: Overvoltage and reverse polarity protection

Status Indicators: Power and link/activity LED indicators

Communication & Interface

Ethernet Ports: 3 × 10/100 Mbps RJ45 ports

Switching Mode: Unmanaged plug-and-play switching

Network Support: EtherNet/IP and standard industrial Ethernet communication

Data Handling: Automatic negotiation and store-and-forward switching

Diagnostics: Basic link and activity status indicators

Isolation: Built-in port isolation for stable signal transmission

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 industrial enclosure use

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (H × W × D): 127.8 × 22.5 × 108 mm

Weight: 0.46 kg

Simple setup. Reliable connectivity. Built for industrial uptime.
