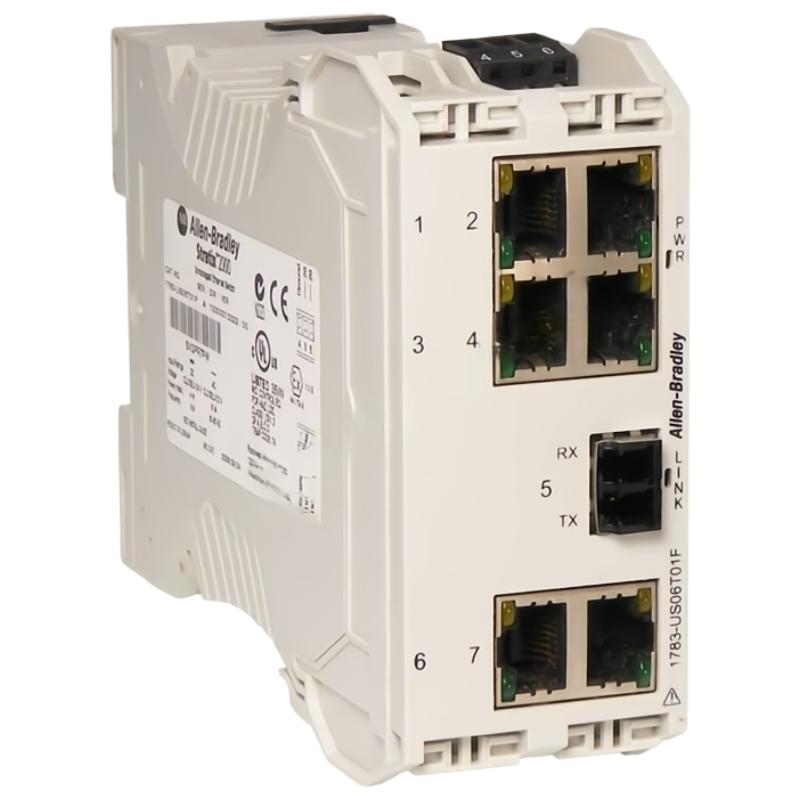

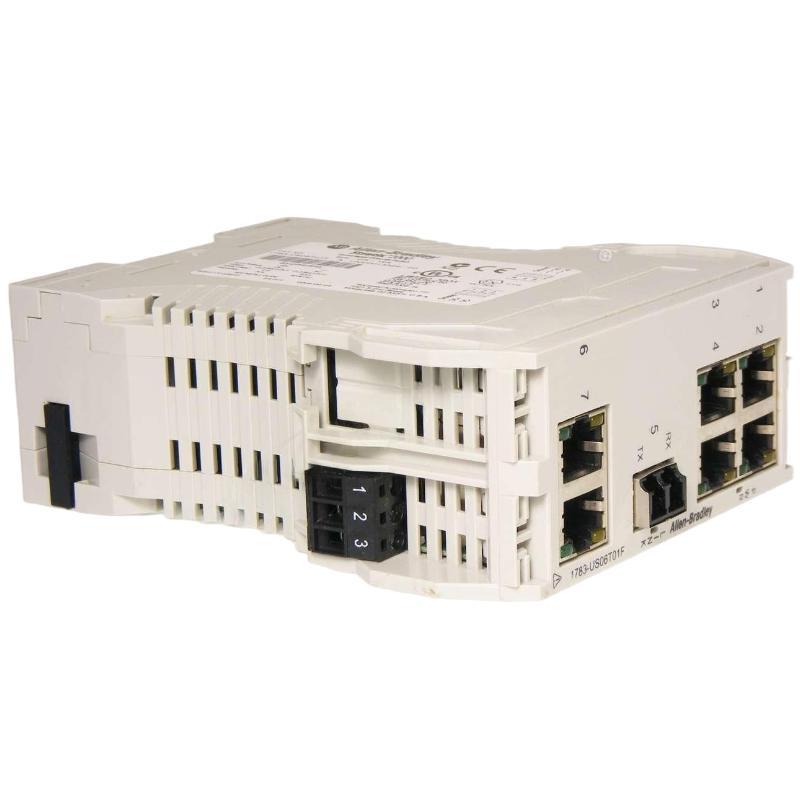

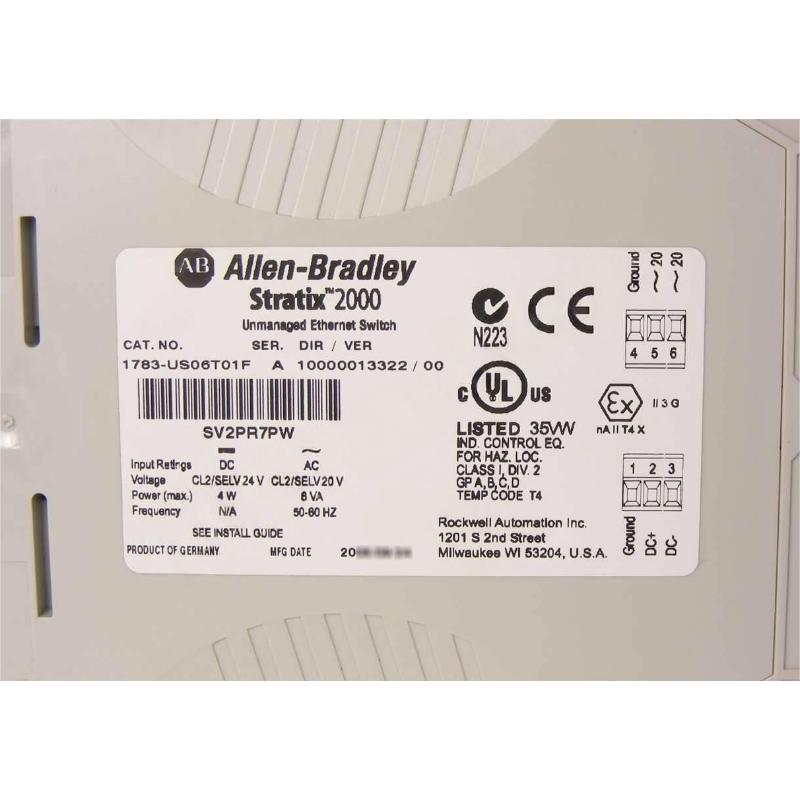

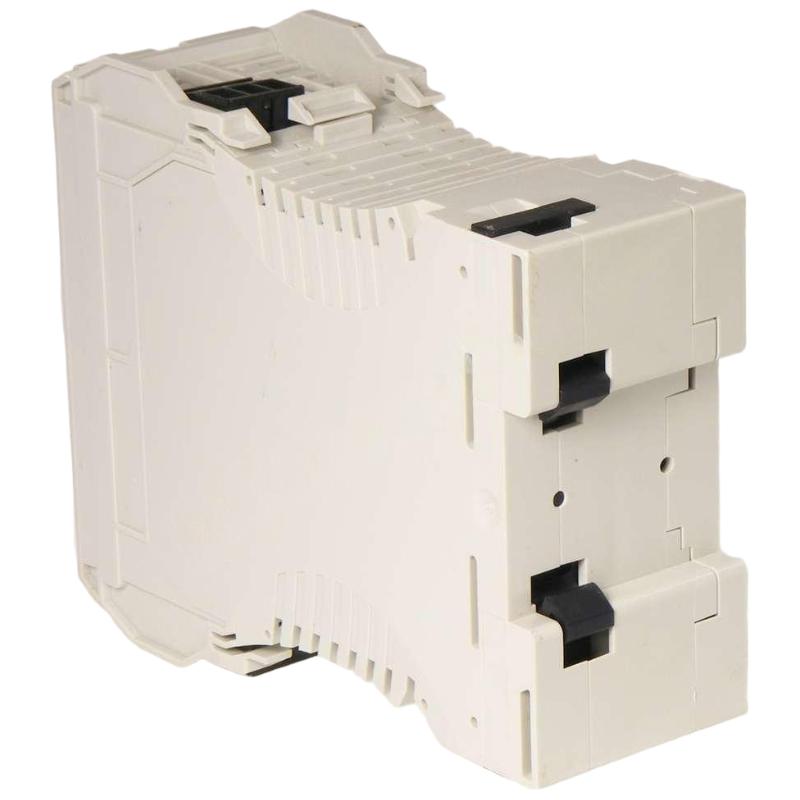

Allen Bradley 1783-US06T01F Stratix 2000 Unmanaged Ethernet Switches

Overview

The Allen Bradley 1783-US06T01F is a Stratix 2000 unmanaged industrial Ethernet switch designed for simple and reliable plug-and-play network connectivity in automation environments. It provides stable Ethernet communication without configuration requirements, making it suitable for compact industrial systems that require dependable and low-maintenance networking.

General Information

Part Number: 1783-US06T01F

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix 2000

Type: Unmanaged Industrial Ethernet Switch

Installation: DIN rail or industrial cabinet mounting

Function: Basic Ethernet switching for industrial communication networks

Technology: Industrial Ethernet (IEEE 802.3), EtherNet/IP compatible architecture

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power industrial design (typically ≤ 5 W)

Input Type: External DC power supply

Protection: Overvoltage and reverse polarity protection

Status Indicators: Power and link/activity LED indicators

Communication & Interface

Ethernet Ports: 6 × 10/100 Mbps RJ45 ports

Switching Mode: Unmanaged plug-and-play switching architecture

Network Support: EtherNet/IP and standard industrial Ethernet protocols

Data Handling: Automatic speed and duplex negotiation with store-and-forward switching

Diagnostics: Basic port link and activity status indication

Isolation: Integrated port isolation for stable industrial operation

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 industrial enclosure use

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (H × W × D): 127.8 × 45 × 108 mm

Weight: 0.22 kg

Simple deployment. Stable performance. Built for continuous industrial connectivity.
