Allen Bradley 1783-US7T1F/B Stratix 2000 Unmanaged Ethernet Switches

Overview

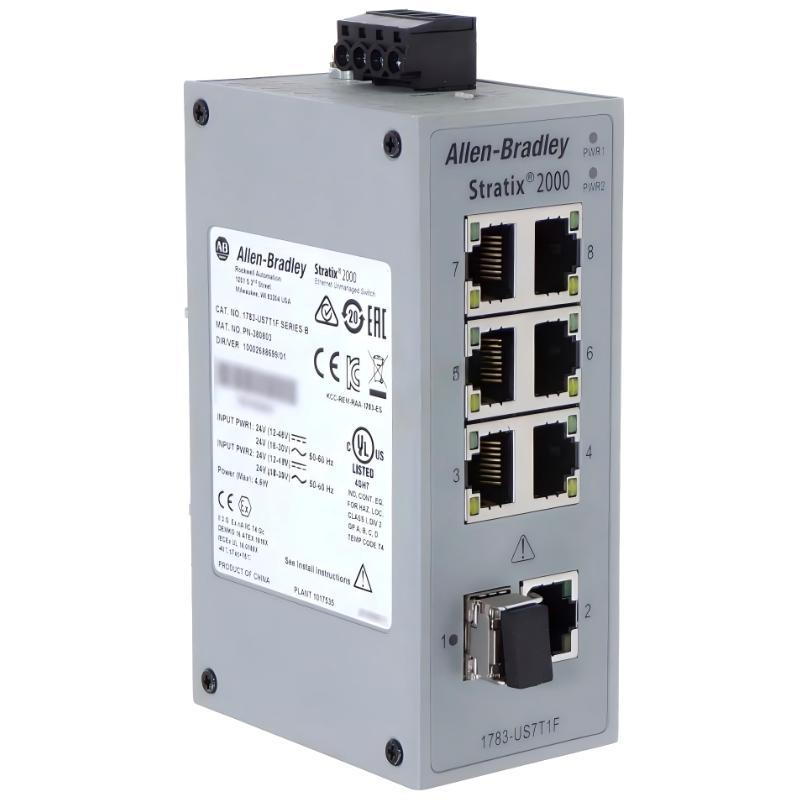

The Allen Bradley 1783-US7T1F/B is a Stratix 2000 unmanaged industrial Ethernet switch designed for simple plug-and-play network connectivity in automation systems. It delivers reliable Ethernet communication without configuration requirements, making it suitable for compact industrial environments that require stable performance, fast deployment, and low maintenance operation.

General Information

Part Number: 1783-US7T1F/B

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Stratix 2000

Type: Unmanaged Industrial Ethernet Switch

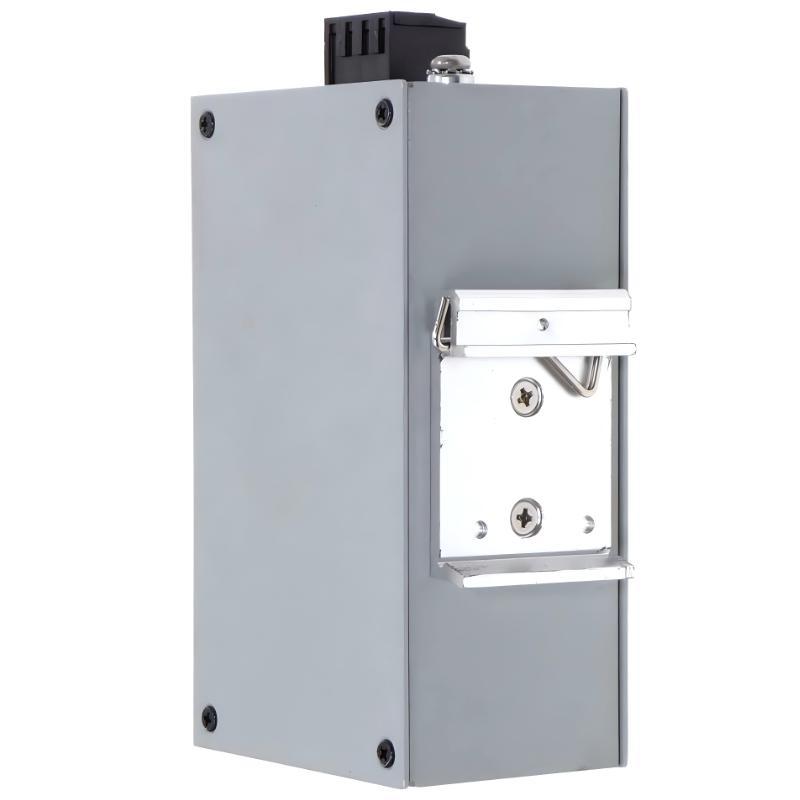

Installation: DIN rail or industrial cabinet mounting

Function: Basic Ethernet switching for industrial communication networks

Technology: Industrial Ethernet (IEEE 802.3), EtherNet/IP compatible architecture

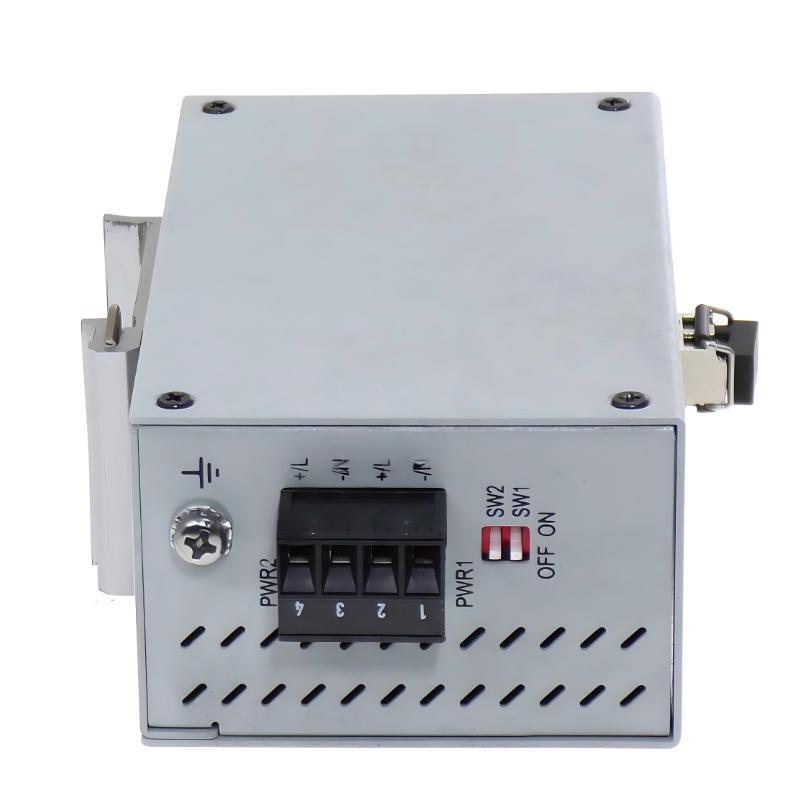

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low-power industrial design (typically ≤ 8 W)

Input Type: External DC power supply

Protection: Overvoltage and reverse polarity protection

Status Indicators: Power and link/activity LED indicators

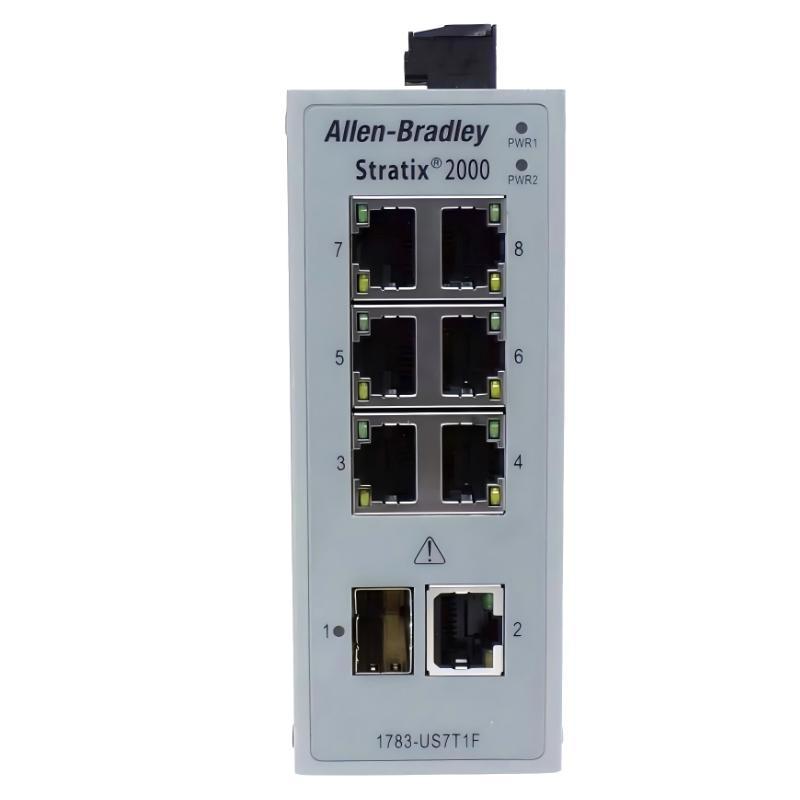

Communication & Interface

Ethernet Ports: 7 × 10/100 Mbps RJ45 ports

Switching Mode: Unmanaged plug-and-play switching architecture

Network Support: EtherNet/IP and standard industrial Ethernet protocols

Data Handling: Automatic speed and duplex negotiation with store-and-forward switching

Diagnostics: Basic port link and activity status indication

Isolation: Integrated port isolation for stable industrial operation

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 industrial enclosure use

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (H × W × D): 114.5 × 45.6 × 76.8 mm

Weight: 0.76 kg

Reliable connectivity. Simple deployment. Built for continuous industrial performance.
