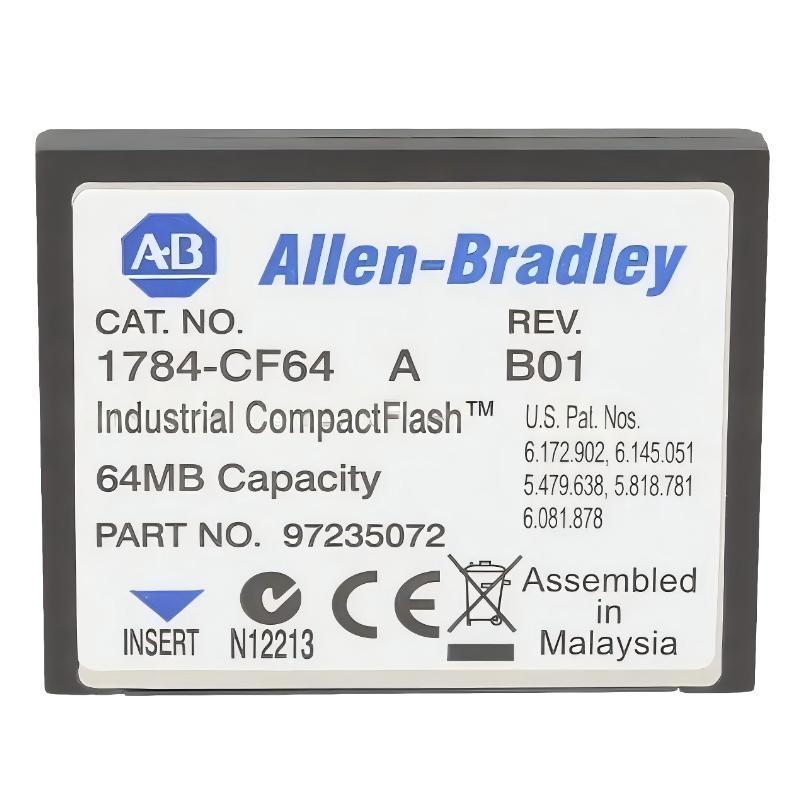

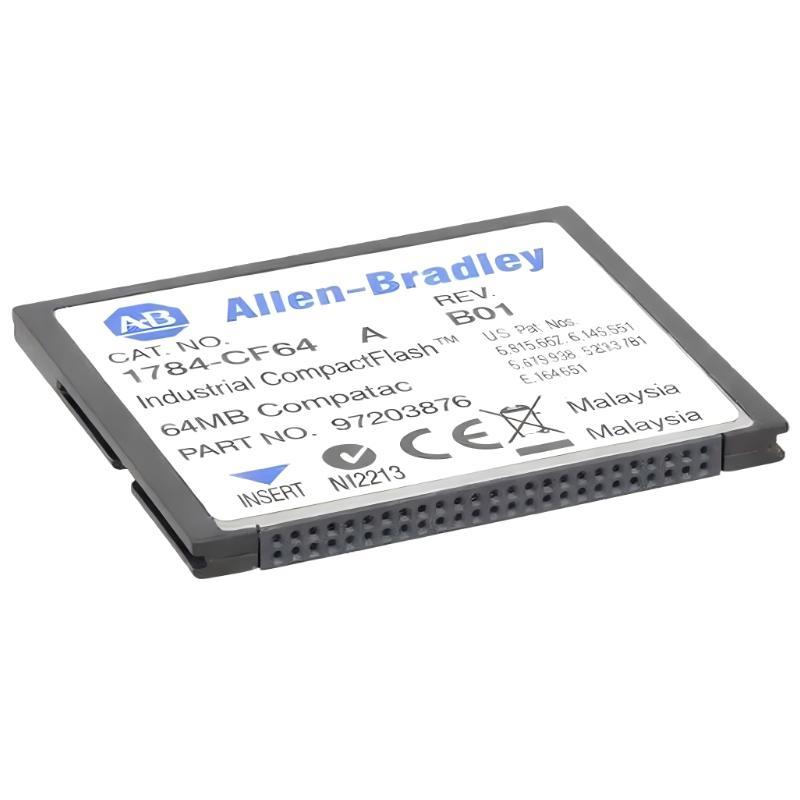

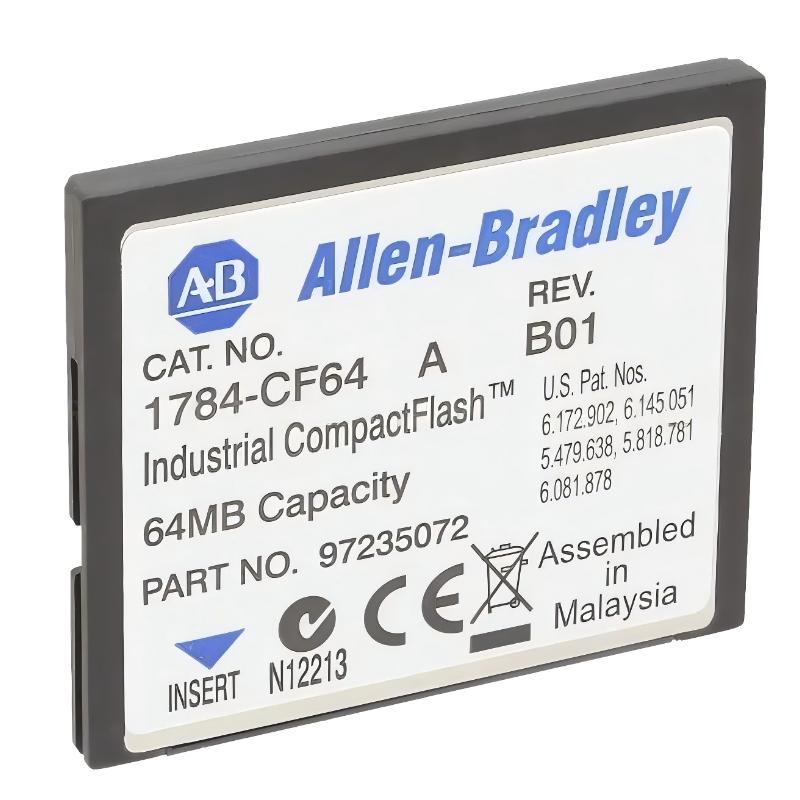

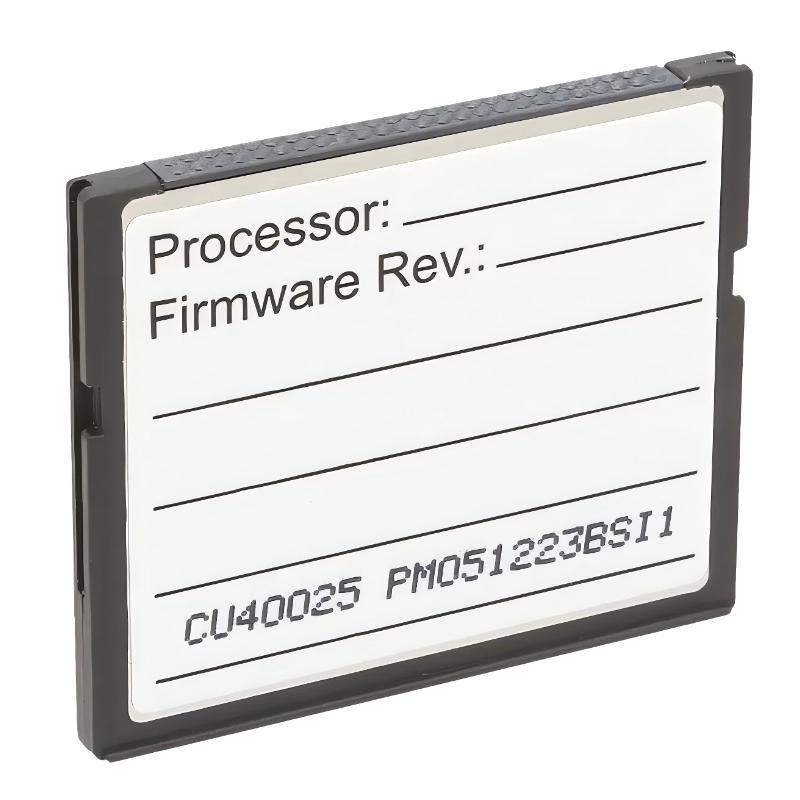

Allen Bradley 1784-CF64 CompactFlash Memory Card

Overview

The Allen Bradley 1784-CF64 is an industrial CompactFlash memory card designed for use in automation controllers and industrial computing systems. It provides reliable non-volatile storage for firmware, application programs, configuration data, and system backups in industrial control environments where data integrity and durability are essential.

General Information

Part Number: 1784-CF64

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: Industrial Memory / CompactFlash Storage

Type: Industrial CompactFlash Memory Card

Installation: Standard CompactFlash slot (controller or industrial device)

Function: Data storage, program backup, and system configuration support

Technology: Non-volatile flash memory storage

Power Specifications

Supply Voltage: Powered via host device (3.3 V / 5 V compatible CF interface)

Power Consumption: Low-power memory operation

Input Type: Host-driven power supply through CompactFlash interface

Protection: Industrial-grade data retention and write endurance protection

Status Indicators: Status depends on host device (no onboard LEDs)

Communication & Interface

Interface Type: CompactFlash (CF Type I/II compatible)

Data Access: High-speed read/write via industrial controller interface

Compatibility: PLCs, industrial PCs, and automation control systems

Functionality: Firmware storage, system image backup, and parameter retention

Data Integrity: Industrial-grade error correction and wear leveling

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Solid-state storage, no external enclosure required

Vibration Resistance: Suitable for continuous industrial operation

Dimensions & Weight

Dimensions (H × W × D): 60 × 20 × 50 mm

Weight: 0.1 kg

Secure storage designed for dependable industrial control system performance.
