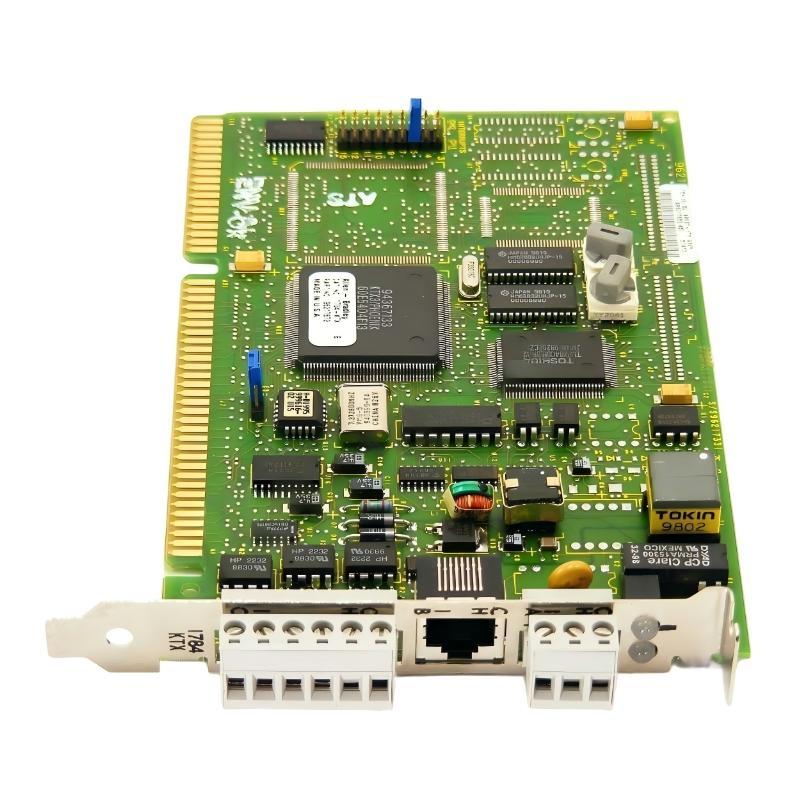

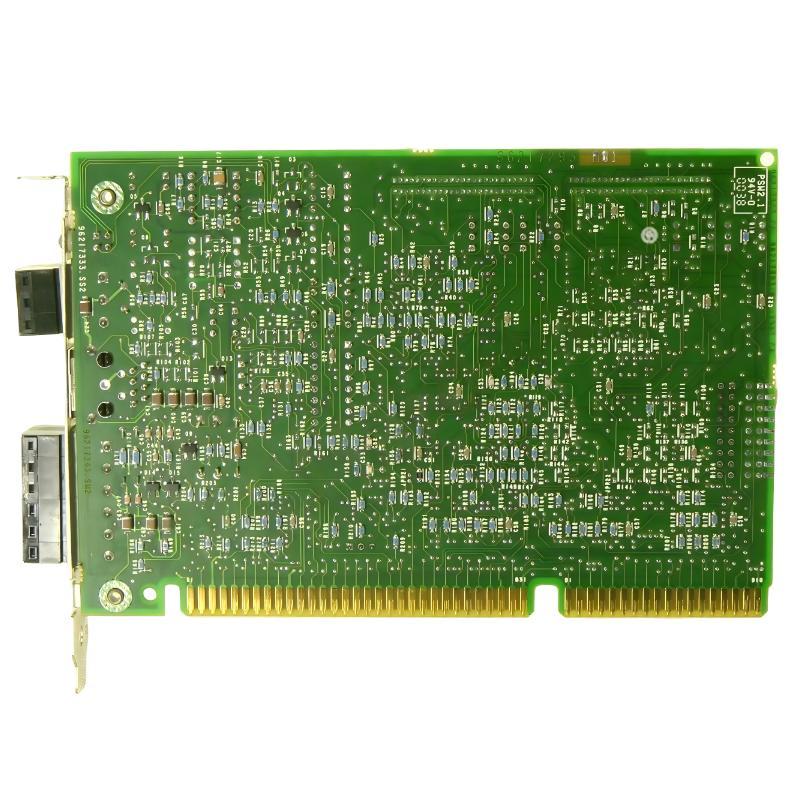

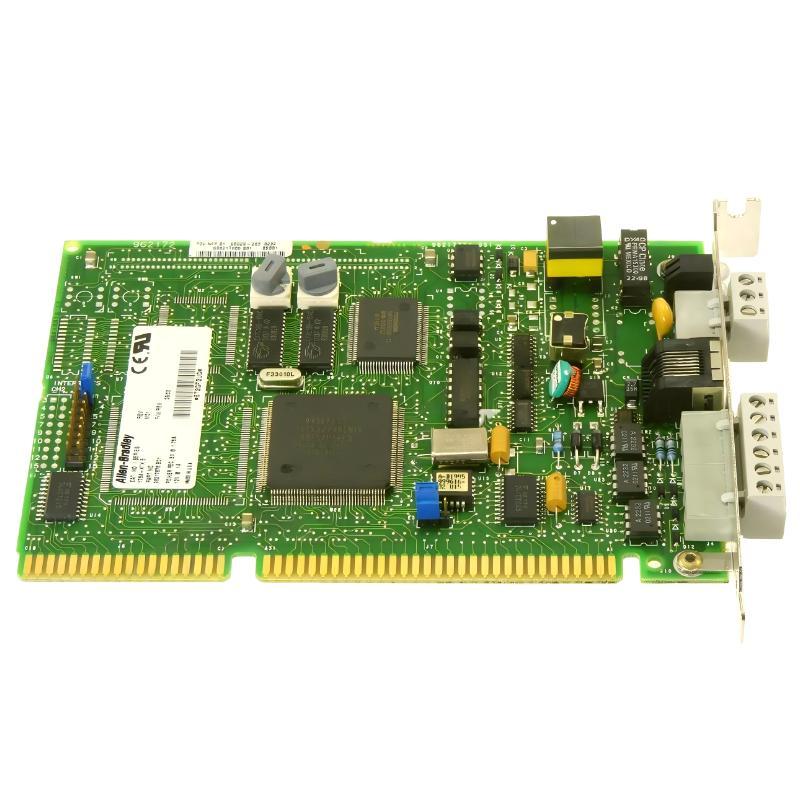

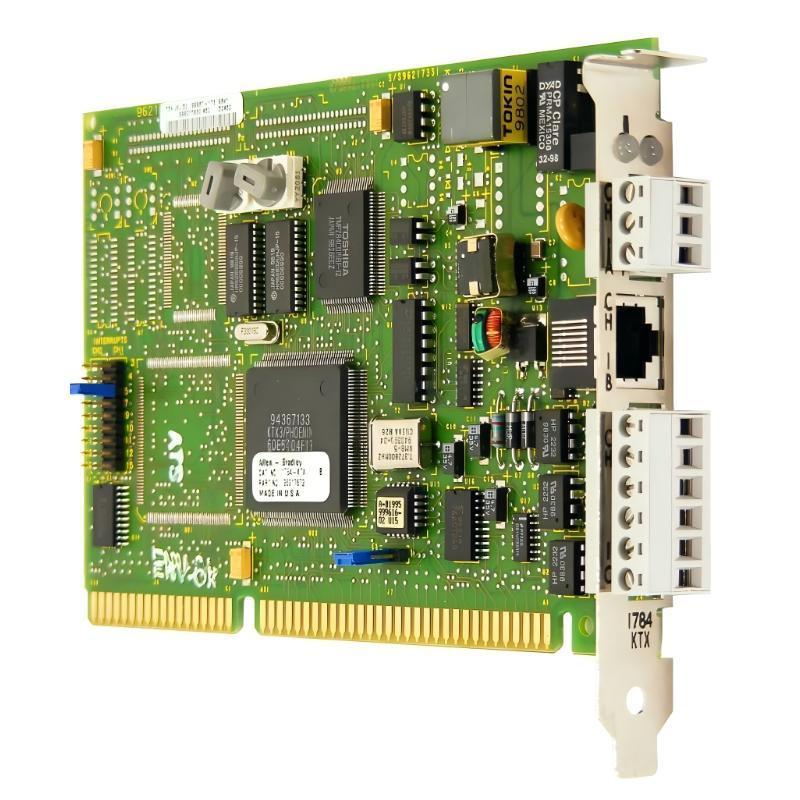

Allen Bradley 1784-KTX Communication Interface Card
| Release time | Jul 2, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1784-KTX |
| Country Of Origin | USA |
| Dimensions | 165 × 20 × 107 mm |
| Weight | 0.45 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen-Bradley 1784-KTX is a communication interface card designed for industrial PC-based ControlNet applications. It enables fast and reliable data exchange between a host computer and industrial control networks, supporting real-time automation tasks in PLC systems, motion control, and distributed I/O architectures. The card is widely used in industrial environments requiring stable deterministic communication performance.
General Information
Part Number: 1784-KTX
Manufacturer: Allen-Bradley (Rockwell Automation)
Brand: Allen-Bradley
Country of Origin: USA
Series: 1784 ControlNet Communication Cards
Type: PC-based ControlNet Communication Interface Card
Installation: Internal PC expansion slot (ISA/PCI depending on system version)
Function: Provides ControlNet network communication for industrial PC and PLC systems
Technology: Deterministic ControlNet protocol with high-speed network synchronization
Power Specifications
Supply Source: Powered directly from host PC backplane
Operating Voltage: +5 V DC (typical PC bus supply)
Power Consumption: Low power consumption (< 5 W typical)
Protection: Electrical isolation and surge protection on network interface
Status Indicators: LED indicators for network status and module activity
Communication & Interface
Network Protocol: ControlNet industrial network
Network Connection: Dual coaxial BNC connectors
Data Rate: 5 Mbps
Topology: Supports trunk-line and drop-line network architecture
Functionality: Real-time messaging, peer-to-peer communication, scheduled data exchange
Diagnostics: Network diagnostics, node monitoring, and fault detection
Configuration: Software-based configuration via industrial automation tools
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial-grade vibration tolerance
Protection Level: Designed for enclosed industrial control environments
Dimensions & Weight
Dimensions: 165 × 20 × 107 mm
Weight: 0.45 kg
In Stock – Ready for Immediate Dispatch
