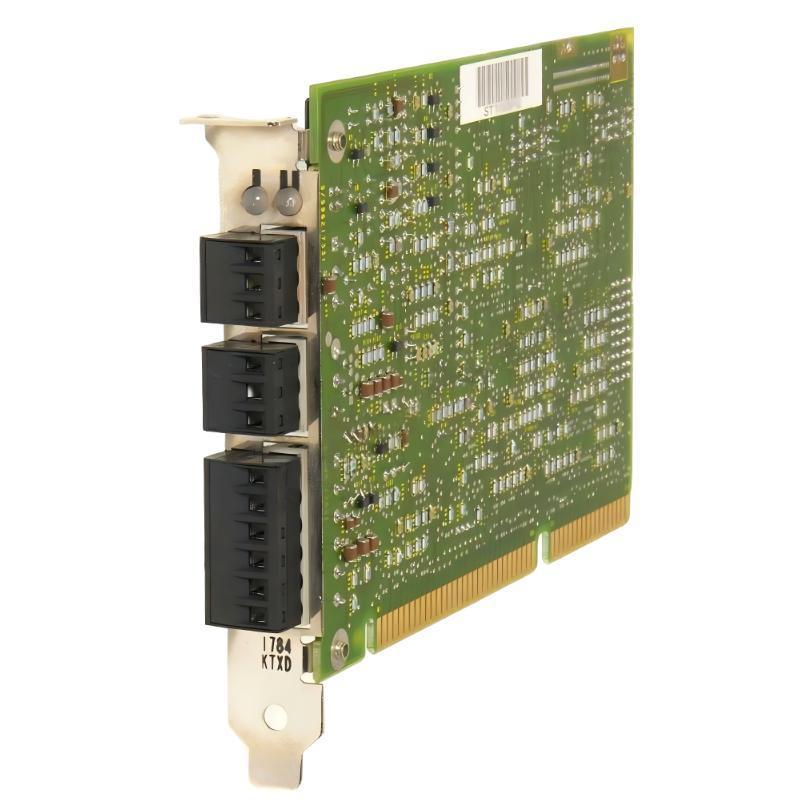

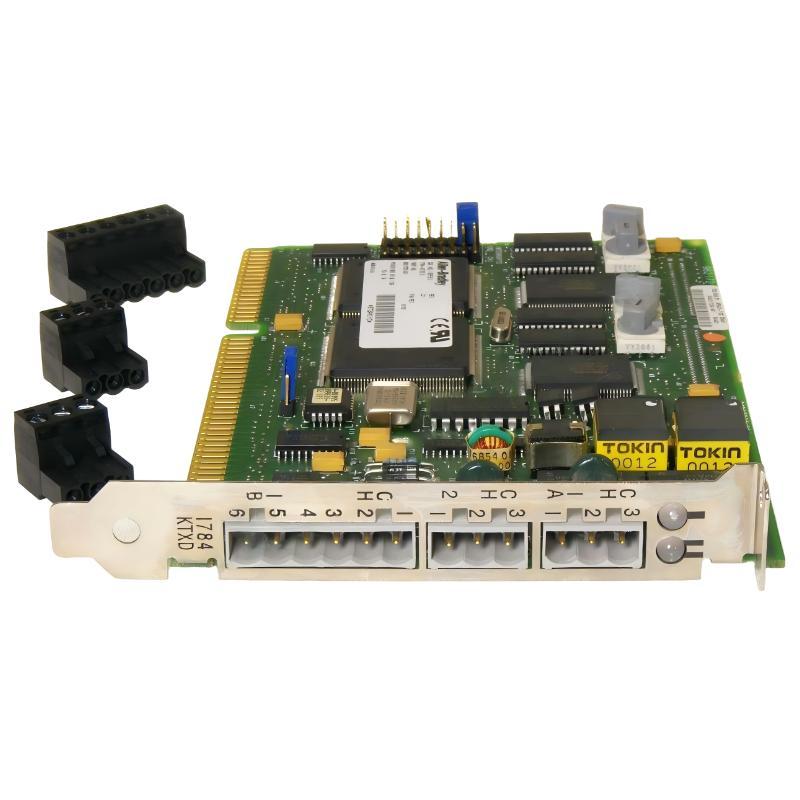

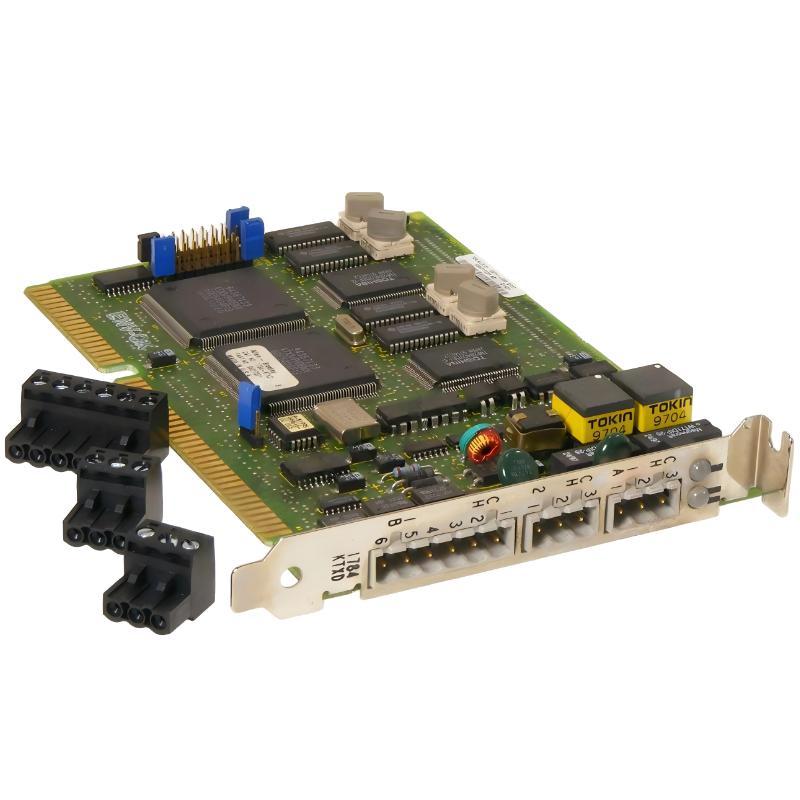

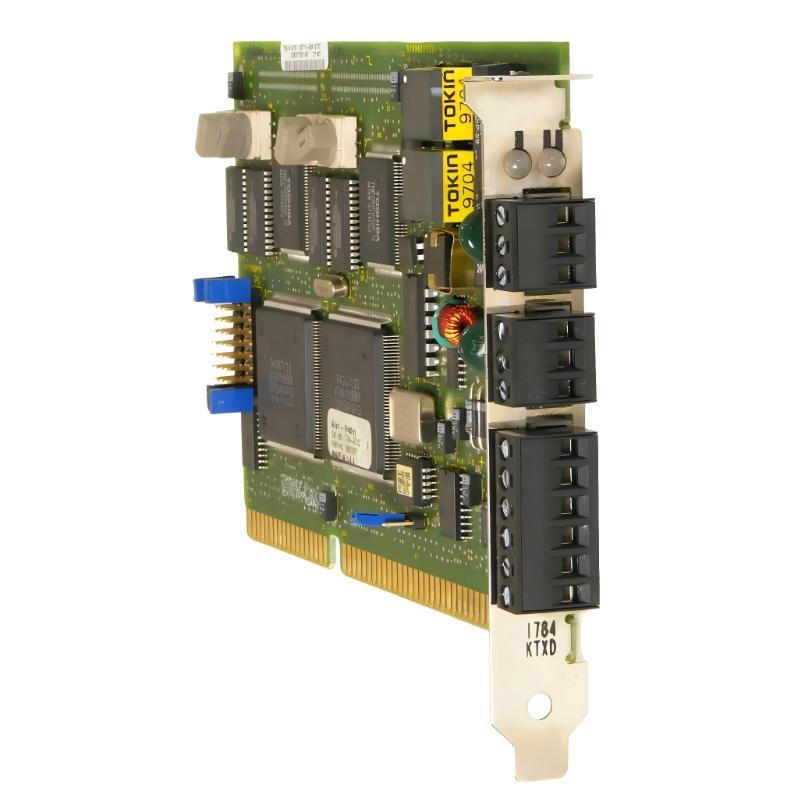

Allen Bradley 1784-KTXD Communication Interface Card
| Release time | Jul 2, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1784-KTXD |
| Country Of Origin | USA |
| Dimensions | 165 × 20 × 107 mm |
| Weight | 0.14 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen-Bradley 1784-KTXD is a ControlNet communication interface card designed for industrial PC systems, providing reliable and deterministic data exchange between a host computer and ControlNet networks. It is commonly used in automation environments requiring stable high-speed communication for PLC control, distributed I/O, and real-time industrial applications.
General Information
Part Number: 1784-KTXD
Manufacturer: Allen-Bradley (Rockwell Automation)
Brand: Allen-Bradley
Country of Origin: USA
Series: 1784 ControlNet Communication Cards
Type: PC-based ControlNet Communication Interface Card
Installation: Internal PC expansion slot (ISA/PCI depending on system configuration)
Function: Enables ControlNet network connectivity for industrial PC and automation systems
Technology: Deterministic ControlNet protocol with synchronized data transfer capability
Power Specifications
Supply Source: Powered directly from host PC backplane
Operating Voltage: +5 V DC (typical PC bus supply)
Power Consumption: Ultra-low power consumption (< 5 W typical)
Protection: Built-in electrical isolation and surge protection
Status Indicators: LED indicators for network status and communication activity
Communication & Interface
Network Protocol: ControlNet industrial communication protocol
Network Connection: Dual BNC coaxial connectors
Data Rate: 5 Mbps
Topology: Supports trunk-line and drop-line architecture
Functionality: Real-time data exchange, peer-to-peer communication, scheduled messaging
Diagnostics: Network diagnostics and fault detection capabilities
Configuration: Software-based configuration through industrial control tools
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial-grade vibration tolerance
Protection Level: Designed for use in enclosed industrial control cabinets
Dimensions & Weight
Dimensions: 165 × 20 × 107 mm
Weight: 0.14 kg
Fast Dispatch – Limited Stock Available
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
