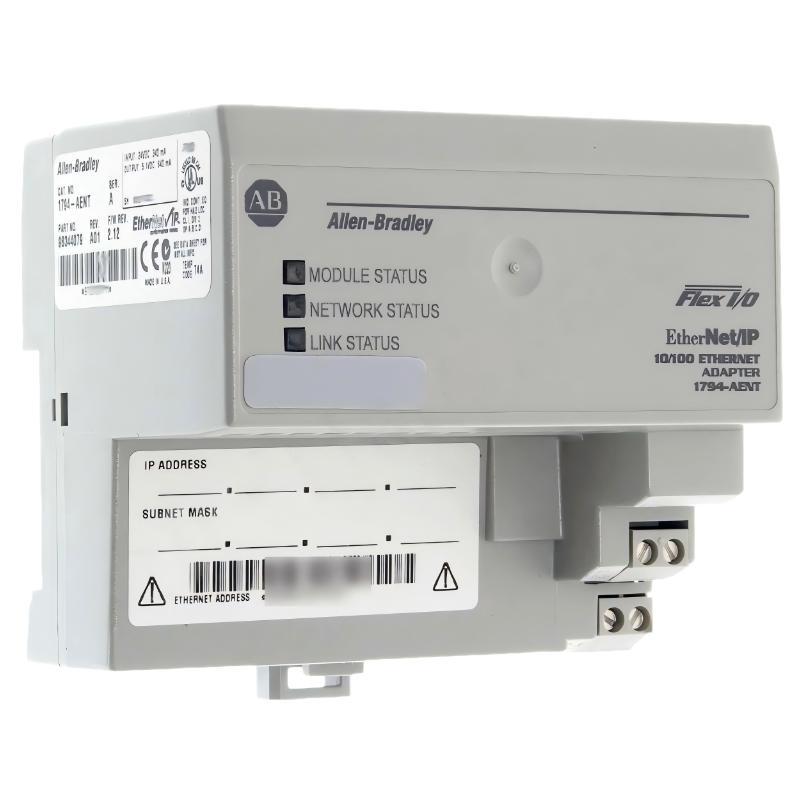

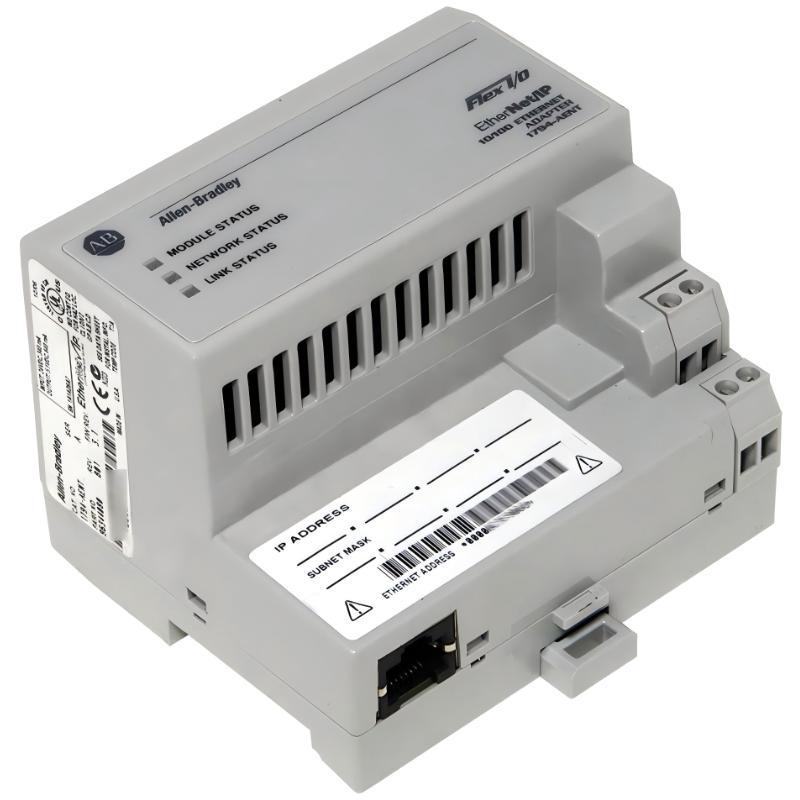

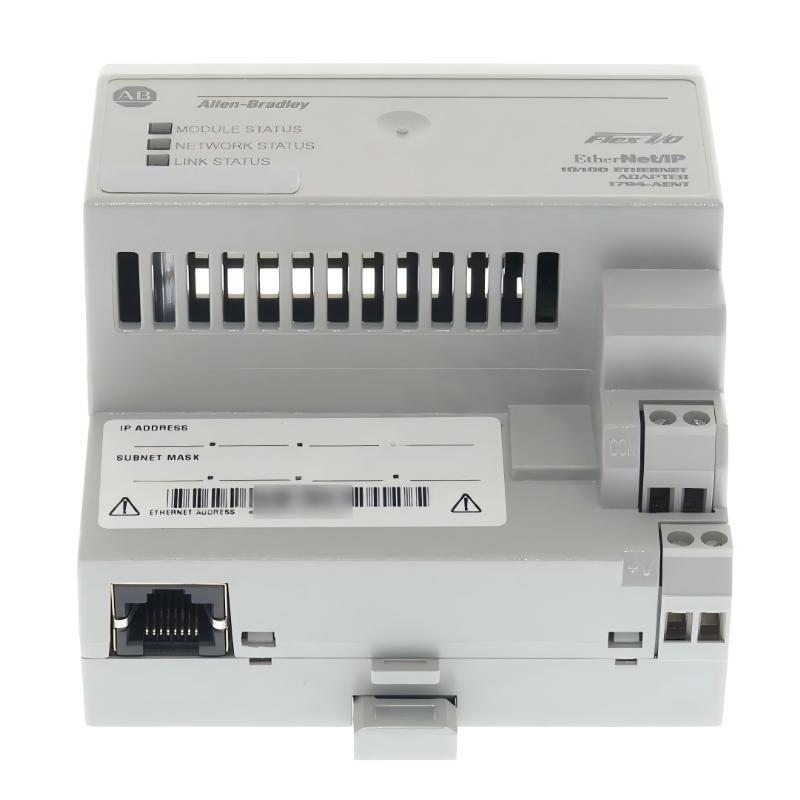

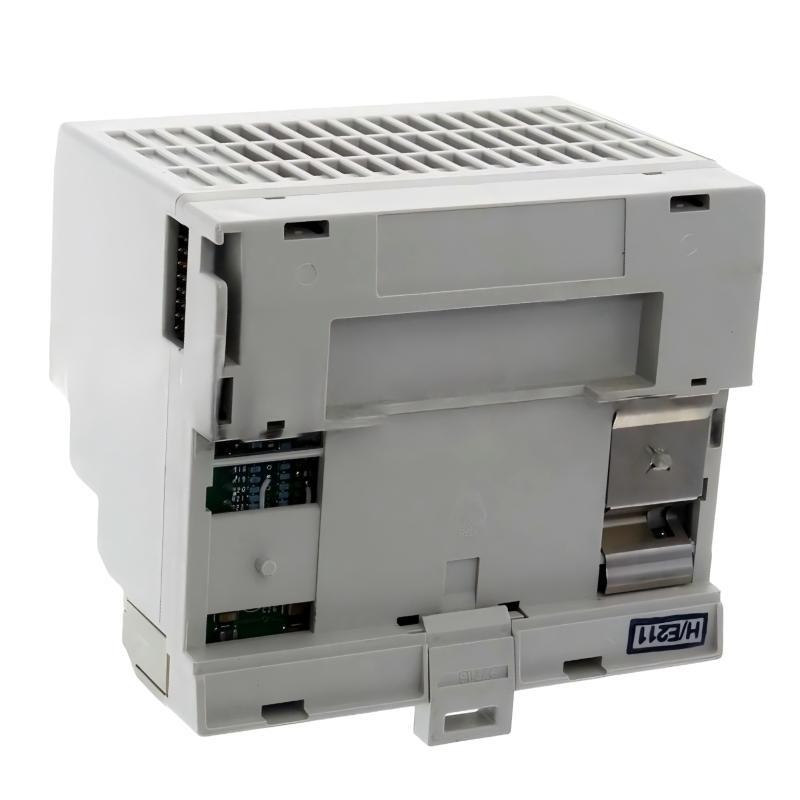

Allen Bradley 1794-AENT Flex I/O EtherNet/IP Adapter Module

Overview

The Allen Bradley 1794-AENT is a Flex I/O EtherNet/IP adapter module designed to integrate distributed Flex I/O systems into EtherNet/IP networks. It provides fast and reliable Ethernet-based communication between remote I/O modules and PLC controllers, supporting scalable and efficient industrial automation architectures.

General Information

Part Number: 1794-AENT

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: United States

Series: 1794 Flex I/O

Type: EtherNet/IP Adapter Module

Mounting: DIN rail mounted Flex I/O adapter

Application: Industrial automation, remote I/O networking, distributed control systems

Power Specifications

Supply Voltage: 24 V DC nominal

Operating Power: Supplied via Flex I/O backplane

Field Power Requirement: External 24 V DC for module and network operation

Protection: Overvoltage and reverse polarity protection

Status Indication: LED indicators for power, network, and module status

Communication & Interface

Network Interface: EtherNet/IP communication protocol

Control Integration: PLC-based distributed I/O system compatibility

Data Exchange: High-speed cyclic I/O data exchange over Ethernet network

Diagnostics: Network status monitoring, node diagnostics, fault detection and reporting

Wiring Interface: RJ45 Ethernet communication port

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control cabinet environment rated

Protection Class: Industrial enclosure suitable for panel installation

Dimensions & Weight

Dimensions: 94 x 69 x 87 mm

Weight: 0.18 kg

Smart Connectivity — Faster, Simpler Industrial Integration!
