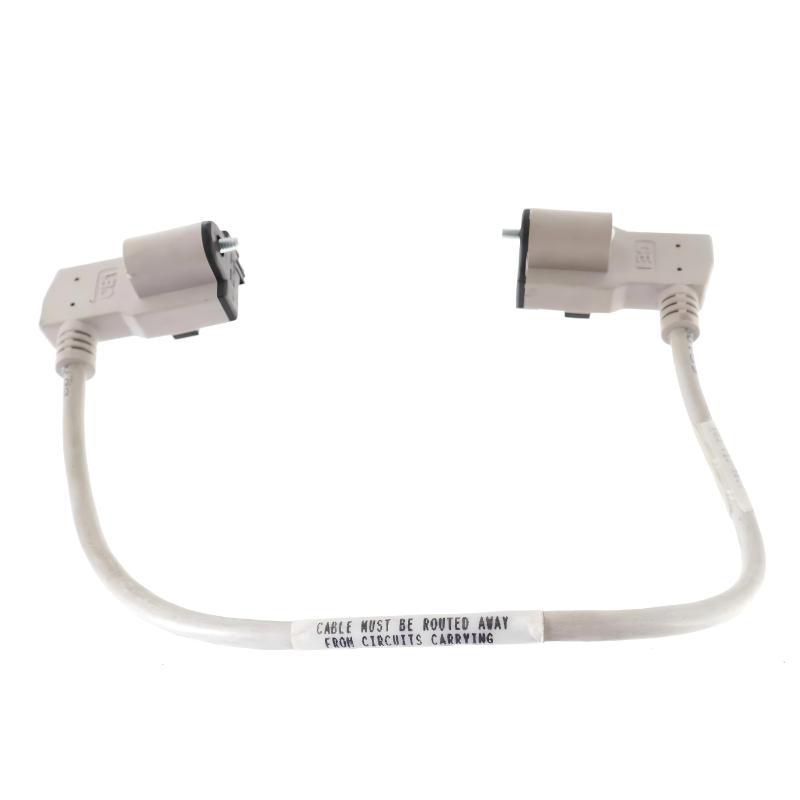

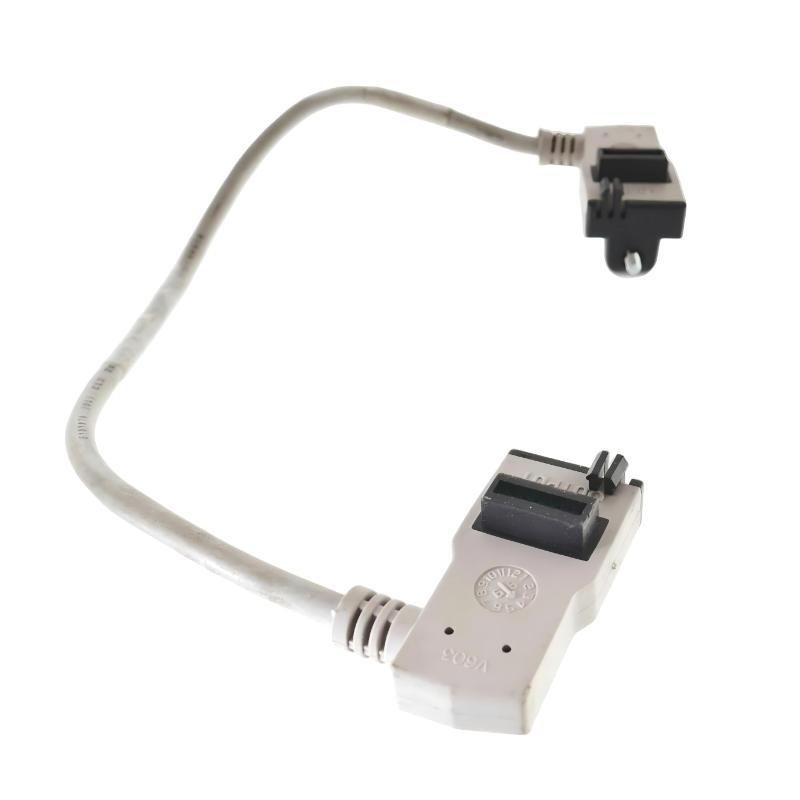

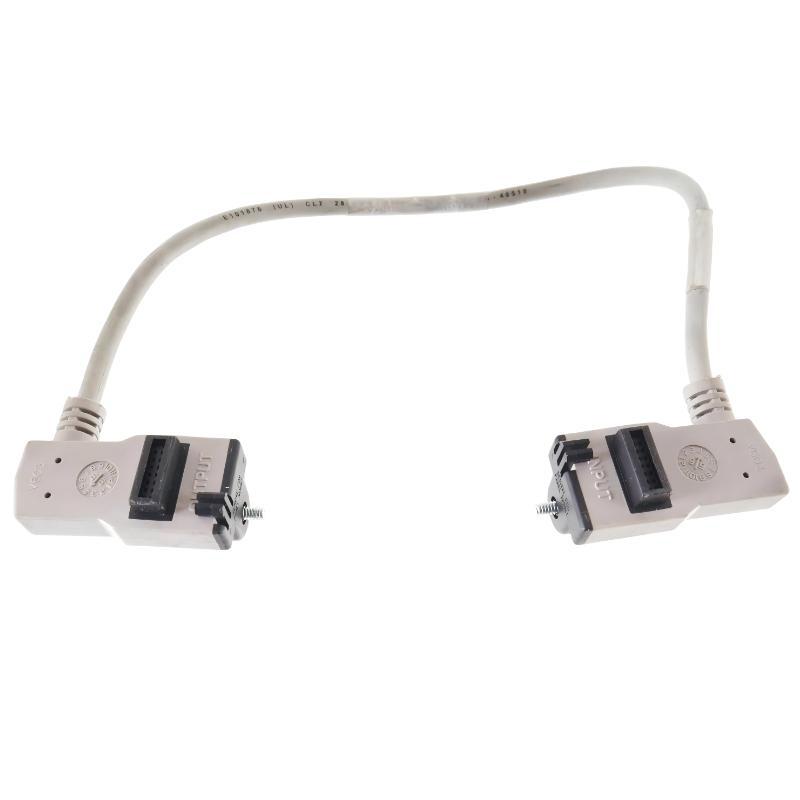

Allen Bradley 1794-CE1 Flex I/O Extension Cable

Overview

The Allen Bradley 1794-CE1 is a Flex I/O extension cable designed to interconnect Flex I/O modules within distributed industrial automation systems. It provides reliable physical linkage between I/O adapters and remote terminal bases, enabling flexible system expansion and stable signal transmission across modular installations.

General Information

Part Number: 1794-CE1

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: United States

Series: 1794 Flex I/O

Type: I/O Extension Cable

Mounting: Flexible inter-module connection within Flex I/O system

Application: Industrial automation, Flex I/O system expansion, remote module interconnection

Power Specifications

Supply Voltage: Not applicable (passive cable)

Operating Power: No external power required

Field Power Requirement: None

Protection: Shielded construction for signal integrity

Status Indication: None (passive component)

Communication & Interface

Network Interface: Flex I/O backplane connection

Control Integration: Connects Flex I/O adapters and terminal bases

Data Transfer: High-integrity internal signal and power distribution

Diagnostics: None (non-electronic passive component)

Wiring Interface: Proprietary Flex I/O connector system

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial cabinet installation rated

Protection Class: Industrial enclosure dependent on system installation

Dimensions & Weight

Dimensions: Cable length 0.3 m (Form Factor Dependent)

Weight: 3 kg (Shipping Weight)

Flexible Expansion — Built to Keep Your System Connected and Scalable!
