Allen Bradley 1794-IB10XOB6XT Flex I/O-XT Combination Modules

Overview

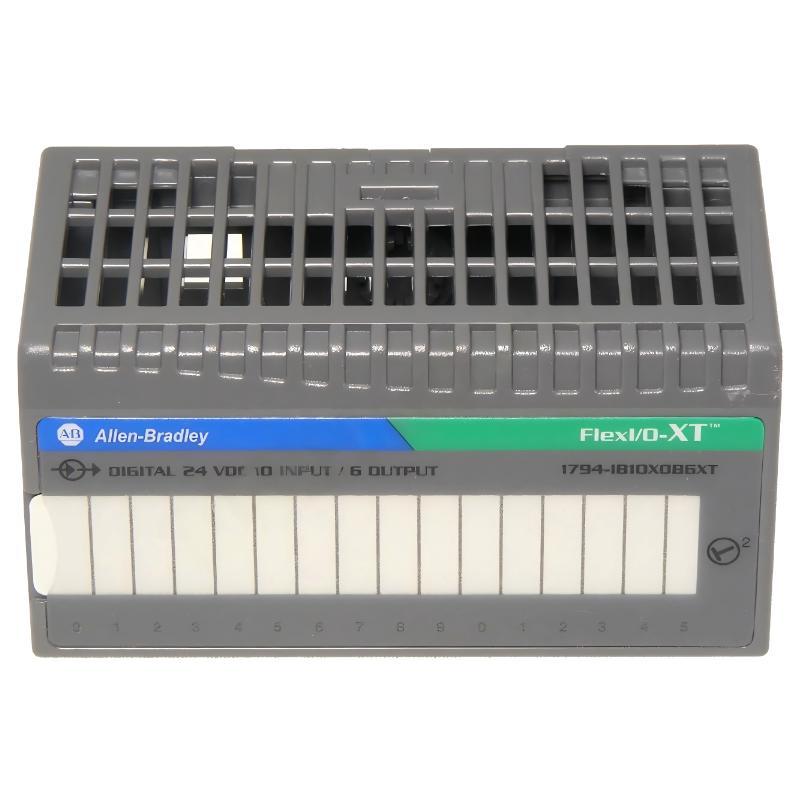

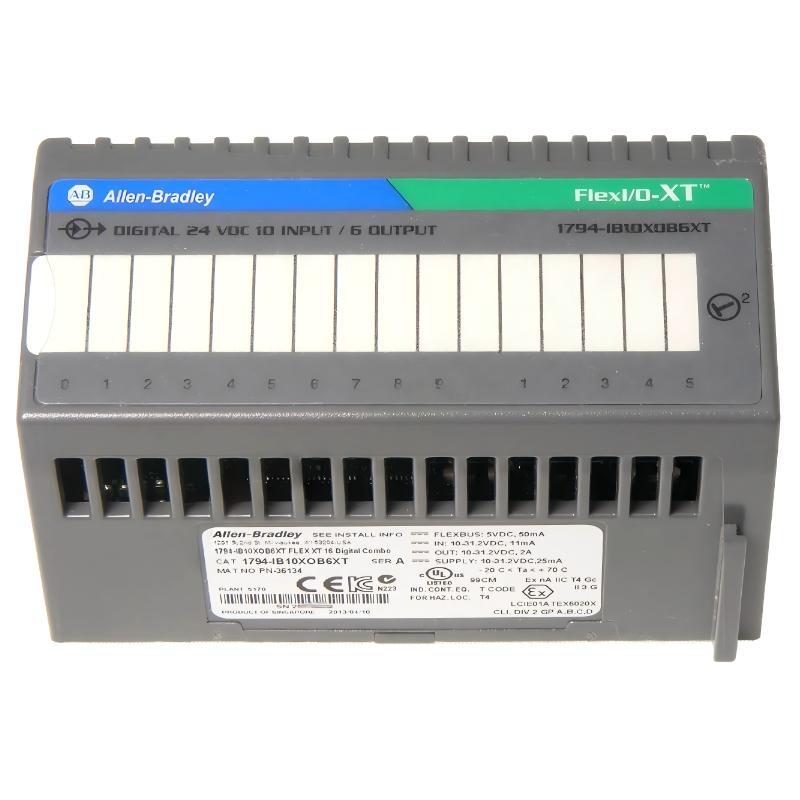

The Allen-Bradley 1794-IB10XOB6XT is a FLEX I/O-XT combination module designed for extreme temperature environments. It integrates both DC digital inputs and outputs in a single compact unit, supporting reliable signal processing in harsh industrial conditions where standard modules may not operate effectively.

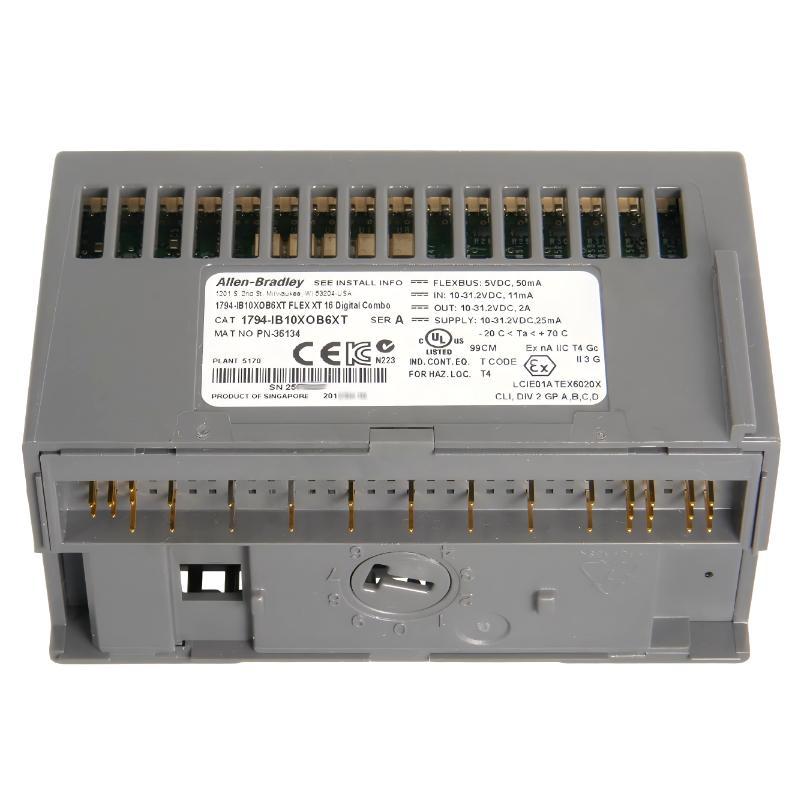

General Information

Part Number: 1794-IB10XOB6XT

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: FLEX I/O-XT

Type: DC Digital Combination Module (Extended Temperature)

Mounting: DIN rail / FLEX I/O terminal base installation

Function: Combined DC input and output module for harsh environments

Technology: Ruggedized isolated digital channel design with backplane communication

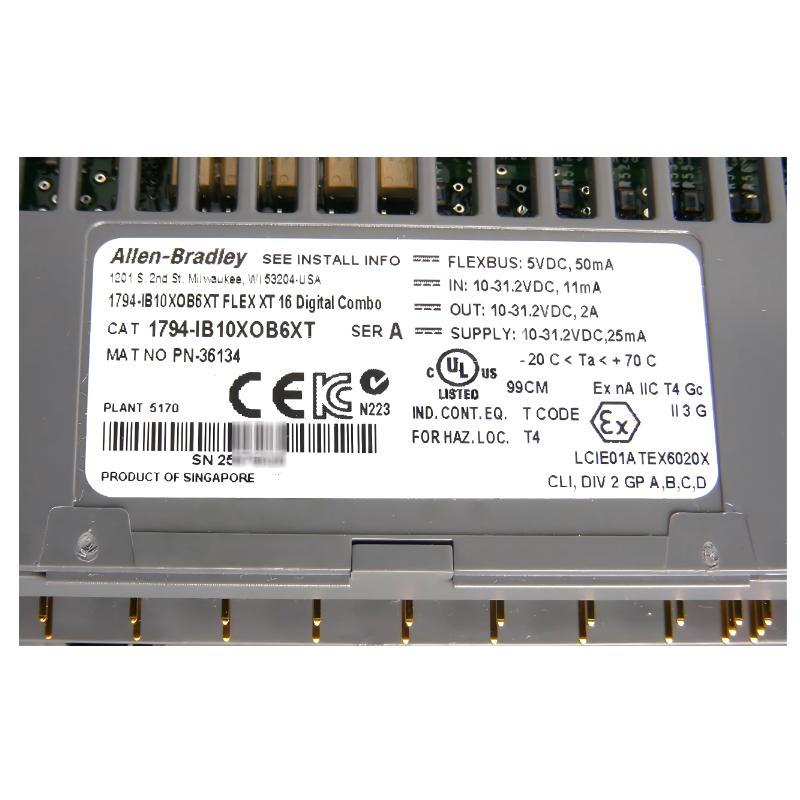

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Low power consumption, typically under 5 W

Input Type: DC digital input signals

Output Type: DC digital transistor outputs

Protection: Over-current, short-circuit, and reverse polarity protection

Indicators: LED status indicators for input, output, and module diagnostics

Communication & Interface

Input Channels: 10-point DC digital inputs

Output Channels: 6-point DC digital outputs

System Integration: Compatible with FLEX I/O-XT adapters for controller communication

Signal Processing: High-speed ON/OFF digital signal handling

Diagnostics: Channel-level monitoring and fault detection

Response Time: Fast response suitable for real-time control applications

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for harsh industrial and outdoor installations

Protection Rating: IP20 (installed within protective enclosure)

Dimensions & Weight

Dimensions (H × W × D): 94 × 46 × 53 mm

Weight: 0.1 kg

Built for extreme environments — performance that holds under pressure!
