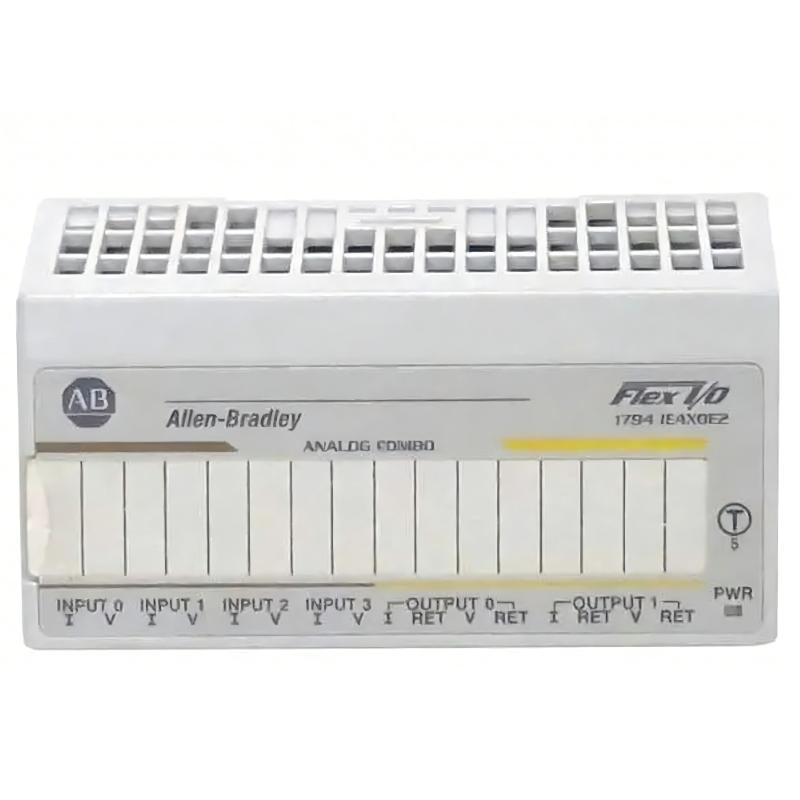

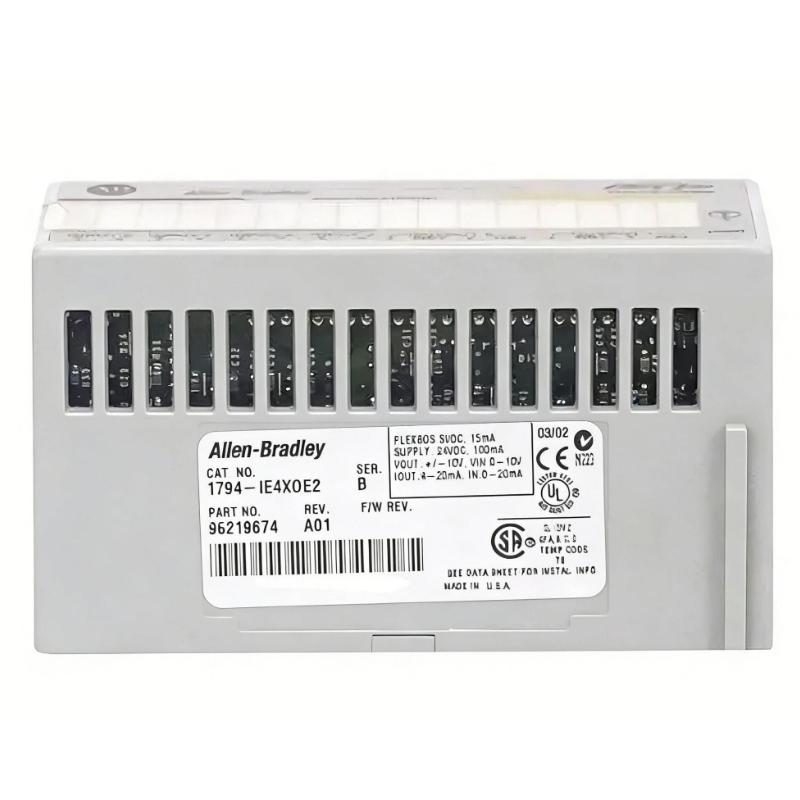

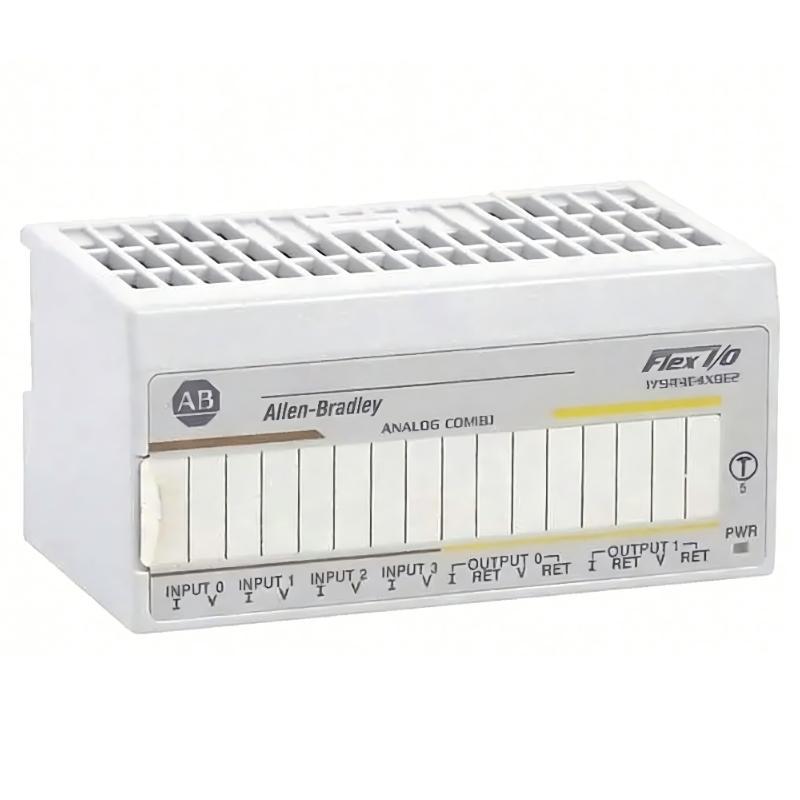

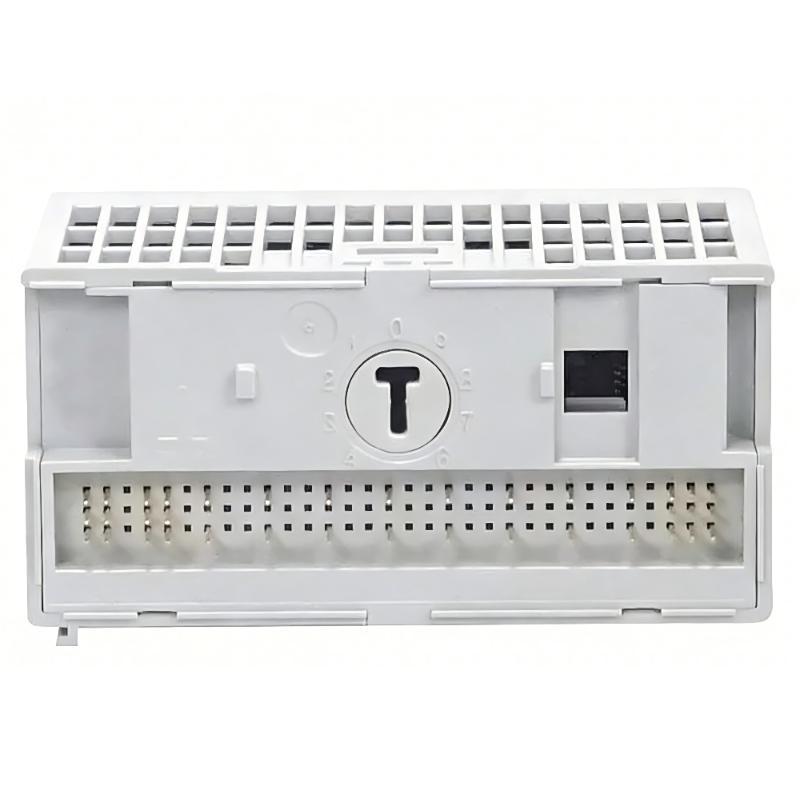

Allen Bradley 1794-IE4XOE2 Flex I/O Analog Combination Module

Overview

The Allen-Bradley 1794-IE4XOE2 is a FLEX I/O analog combination module designed to provide both analog input and analog output functions in a single compact unit. It is used in industrial automation systems to streamline signal handling, reduce wiring complexity, and support efficient process control applications.

General Information

Part Number: 1794-IE4XOE2

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: FLEX I/O

Type: Analog Combination Module (Input/Output)

Mounting: DIN rail / FLEX I/O terminal base installation

Function: Combined analog signal acquisition and control output

Technology: High-resolution A/D and D/A conversion with backplane communication

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Low power consumption, typically under 5 W

Input Type: Analog voltage/current inputs

Output Type: Analog voltage/current outputs

Protection: Electrical isolation, surge protection, and signal filtering

Indicators: LED status indicators for module and channel diagnostics

Communication & Interface

Input Channels: 4 analog inputs

Output Channels: 2 analog outputs

Signal Types: Voltage and current process signals

System Integration: Interfaces with FLEX I/O adapters for controller communication

Diagnostics: Channel-level monitoring and fault detection

Response Time: Suitable for real-time process control applications

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial control cabinet environments

Protection Rating: IP20 (installed inside enclosure)

Dimensions & Weight

Dimensions (H × W × D): 94 × 46 × 53 mm

Weight: 0.1 kg
