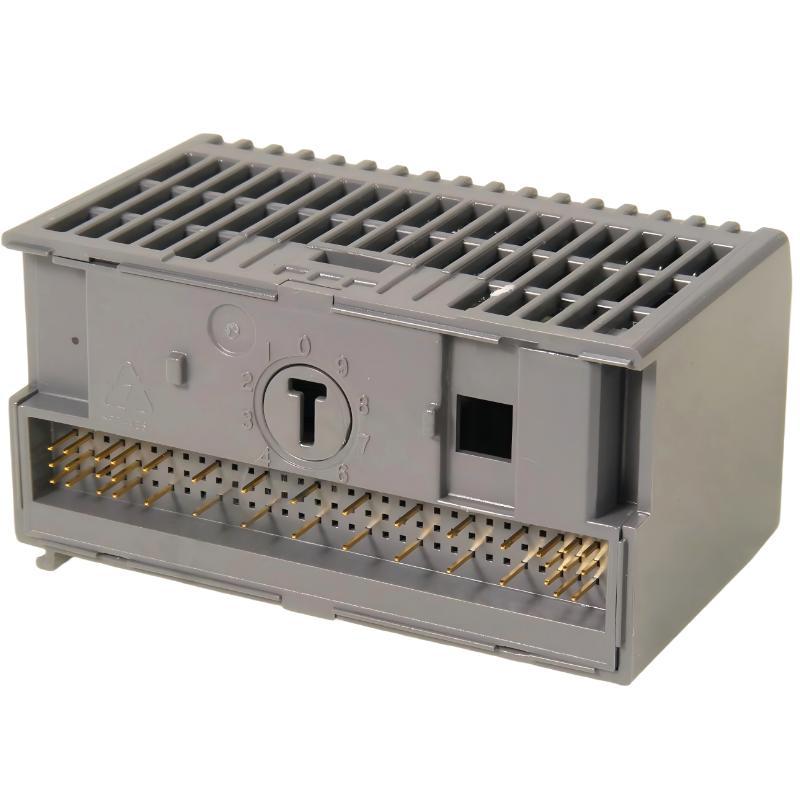

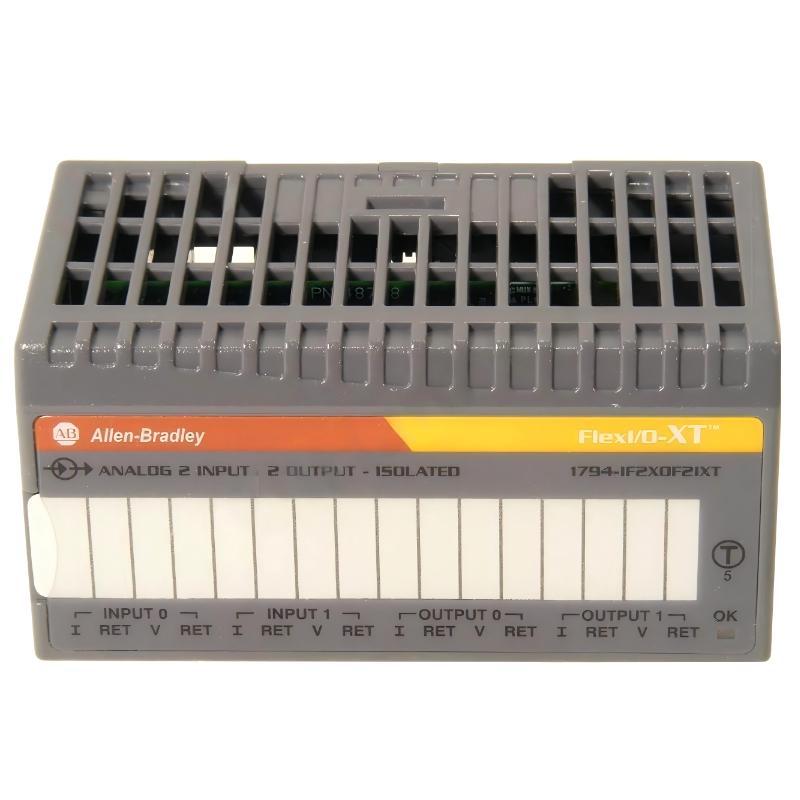

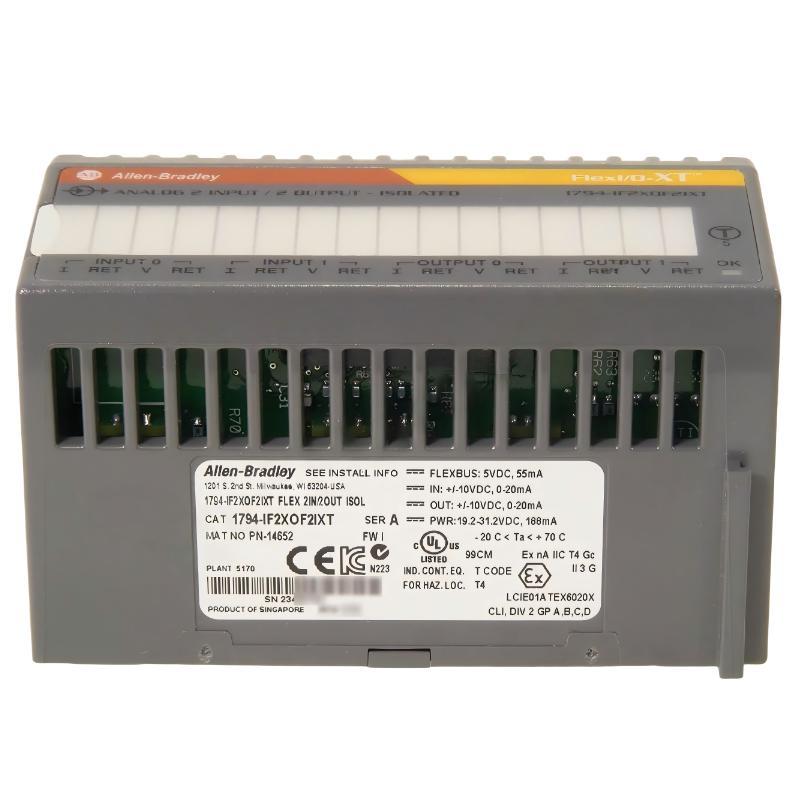

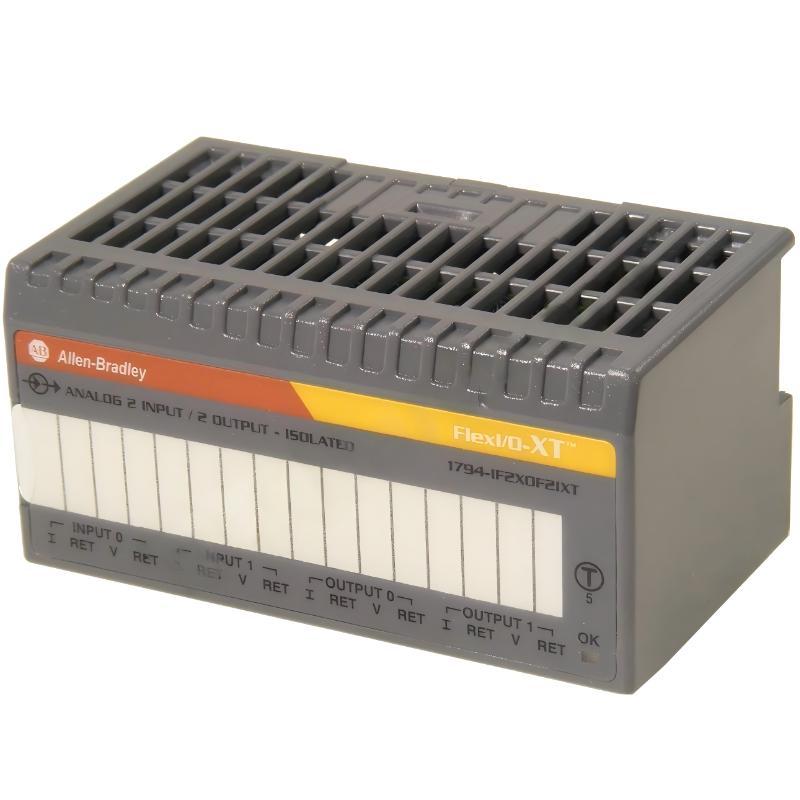

Allen Bradley 1794-IF2XOF2IXT Flex I/O-XT Analog Combination Module

Overview

The Allen-Bradley 1794-IF2XOF2IXT is a FLEX I/O-XT analog combination module designed for harsh and extreme temperature environments. It provides both analog input and analog output functions in a single unit, enabling efficient process control and signal integration in demanding industrial automation applications.

General Information

Part Number: 1794-IF2XOF2IXT

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: FLEX I/O-XT

Type: Analog Combination Module (Input/Output, Extended Temperature)

Mounting: DIN rail / FLEX I/O terminal base installation

Function: Combined analog signal acquisition and control output for harsh environments

Technology: Ruggedized high-resolution A/D and D/A conversion with backplane communication

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Low power consumption, typically under 5 W

Input Type: Analog voltage/current inputs

Output Type: Analog current outputs

Protection: Electrical isolation, surge protection, and enhanced noise immunity

Indicators: LED status indicators for module and channel diagnostics

Communication & Interface

Input Channels: 2 analog inputs

Output Channels: 2 analog outputs

Signal Types: Voltage and current process signals

System Integration: Compatible with FLEX I/O-XT adapters for controller communication

Diagnostics: Channel-level signal monitoring and fault detection

Response Time: Suitable for industrial process control applications

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for harsh industrial and outdoor installations

Protection Rating: IP20 (installed within protective enclosure)

Dimensions & Weight

Dimensions (H × W × D): 94 × 46 × 75 mm

Weight: 0.15 kg
