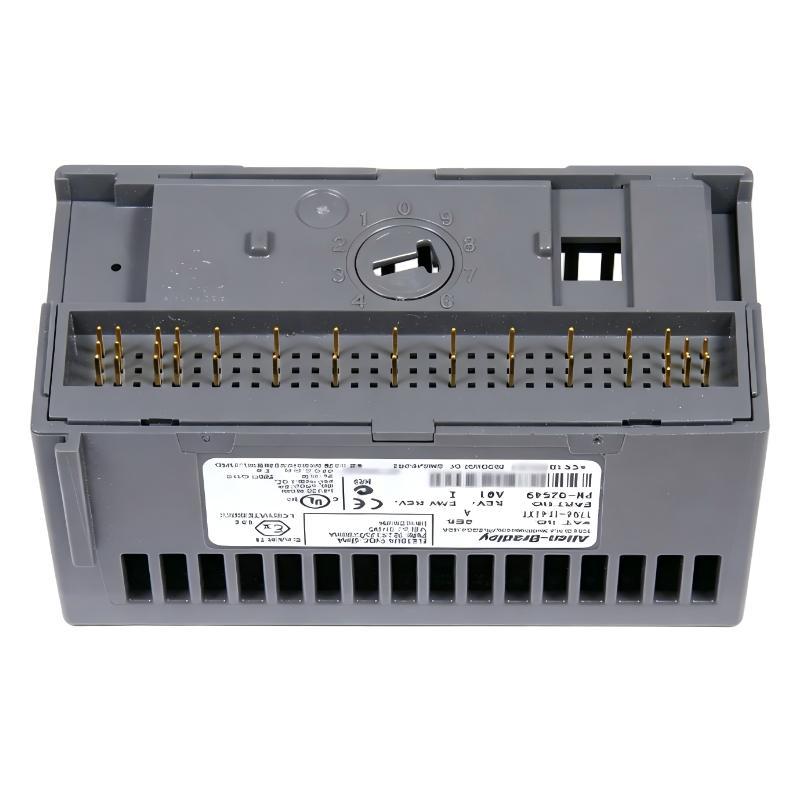

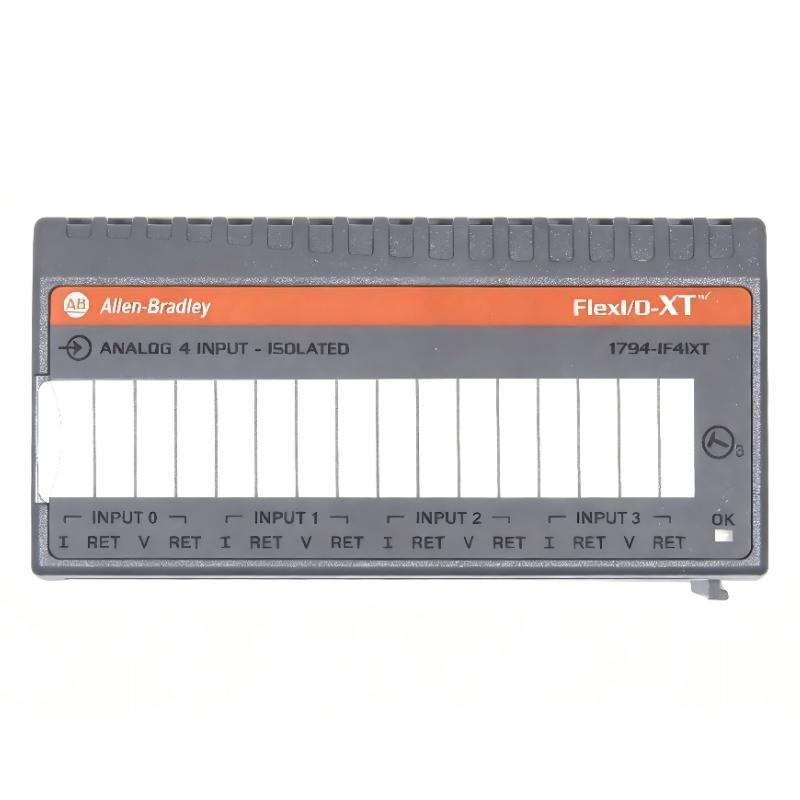

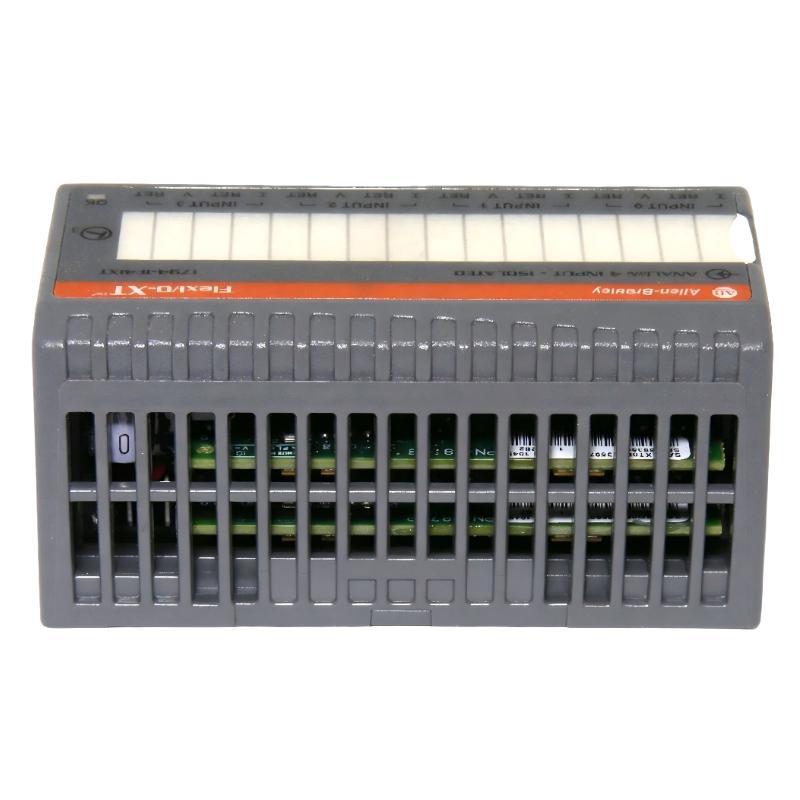

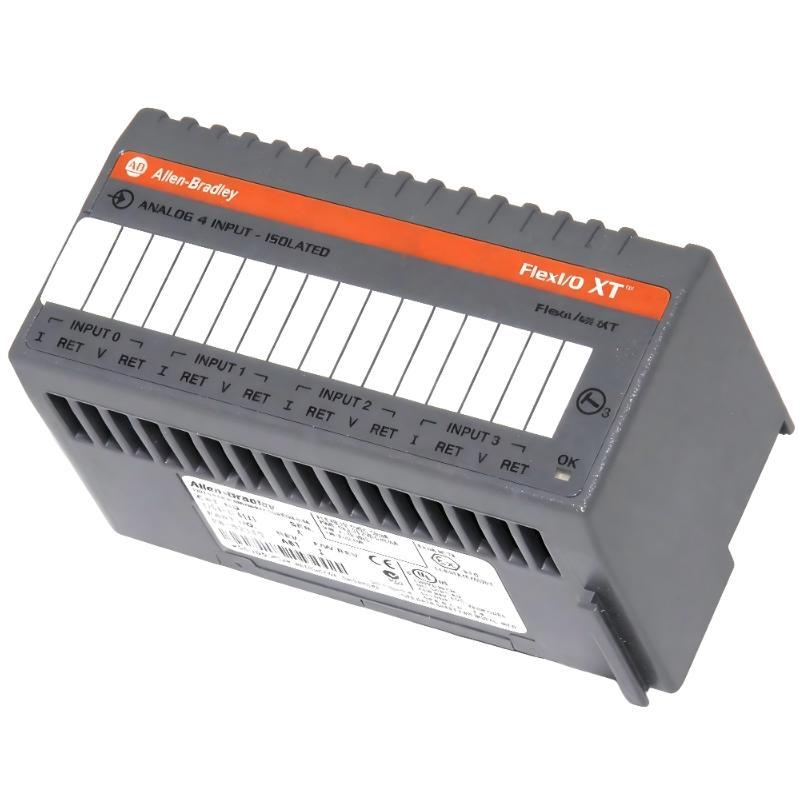

Allen Bradley 1794-IF4IXT Flex I/O-XT Analog Input Module

Overview

The Allen-Bradley 1794-IF4IXT is a FLEX I/O-XT analog input module designed for harsh and extreme temperature environments. It provides accurate acquisition of industrial analog signals from field devices such as transmitters and sensors, ensuring stable performance in demanding automation applications.

General Information

Part Number: 1794-IF4IXT

Brand: Allen-Bradley (Rockwell Automation)

Country of Origin: USA

Series: FLEX I/O-XT

Type: Analog Input Module (Extended Temperature)

Mounting: DIN rail / FLEX I/O terminal base installation

Function: Analog signal acquisition for harsh environment process control

Technology: High-resolution A/D conversion with ruggedized design

Power Specifications

Supply Voltage: 24 V DC (nominal)

Power Consumption: Low power consumption, typically under 5 W

Input Type: Analog voltage/current signals (configurable channels)

Protection: Electrical isolation, surge protection, and noise immunity

Indicators: LED status indicators for module and channel diagnostics

Communication & Interface

Input Channels: 4-point analog inputs

Signal Types: Voltage and current process signals

System Integration: Compatible with FLEX I/O-XT adapters for controller communication

Diagnostics: Channel-level signal monitoring and fault detection

Response Time: Suitable for industrial process control applications

Environmental

Operating Temperature: −40 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for harsh industrial and outdoor environments

Protection Rating: IP20 (installed within protective enclosure)

Dimensions & Weight

Dimensions (H × W × D): 94 × 46 × 53 mm

Weight: 0.1 kg

Built for extreme reliability in demanding industrial environments – ready for global supply!
