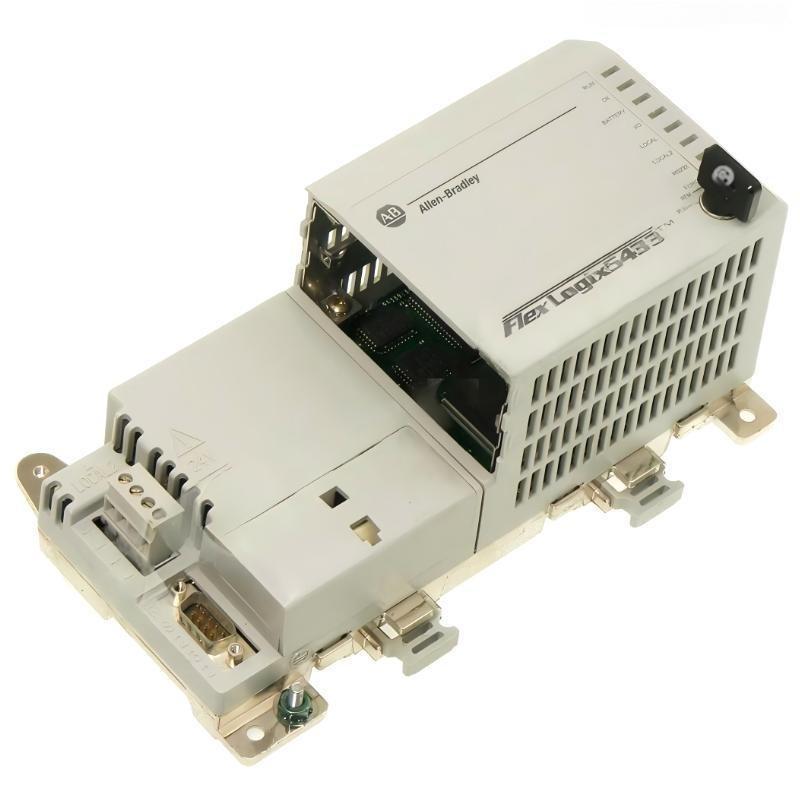

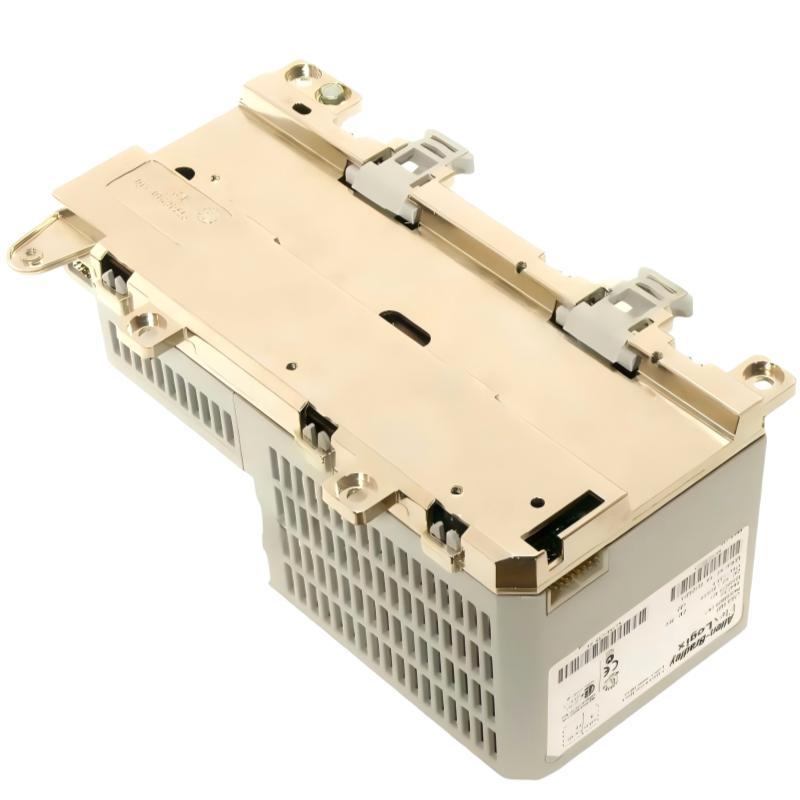

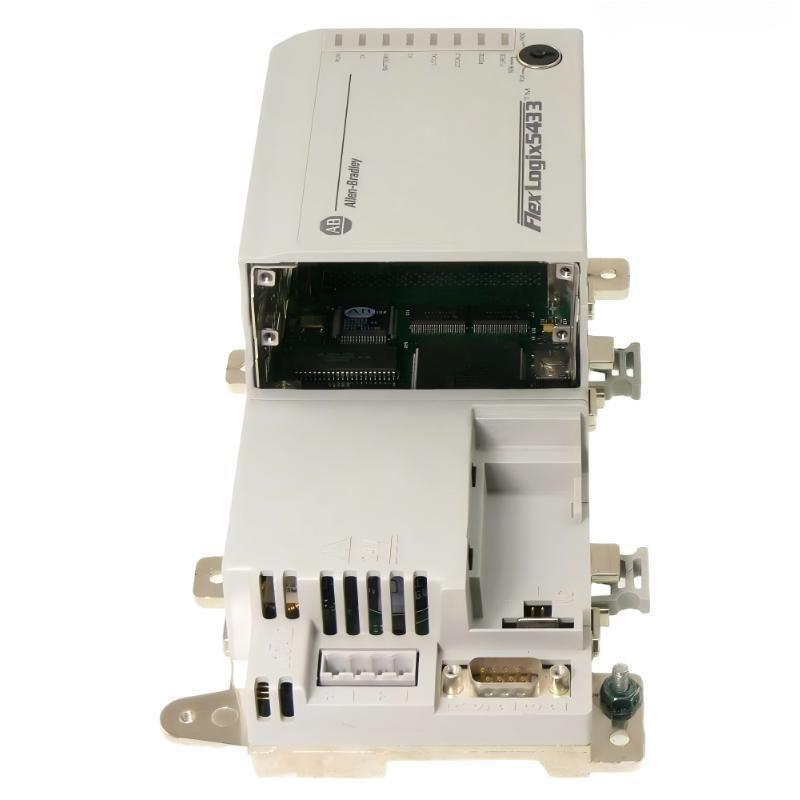

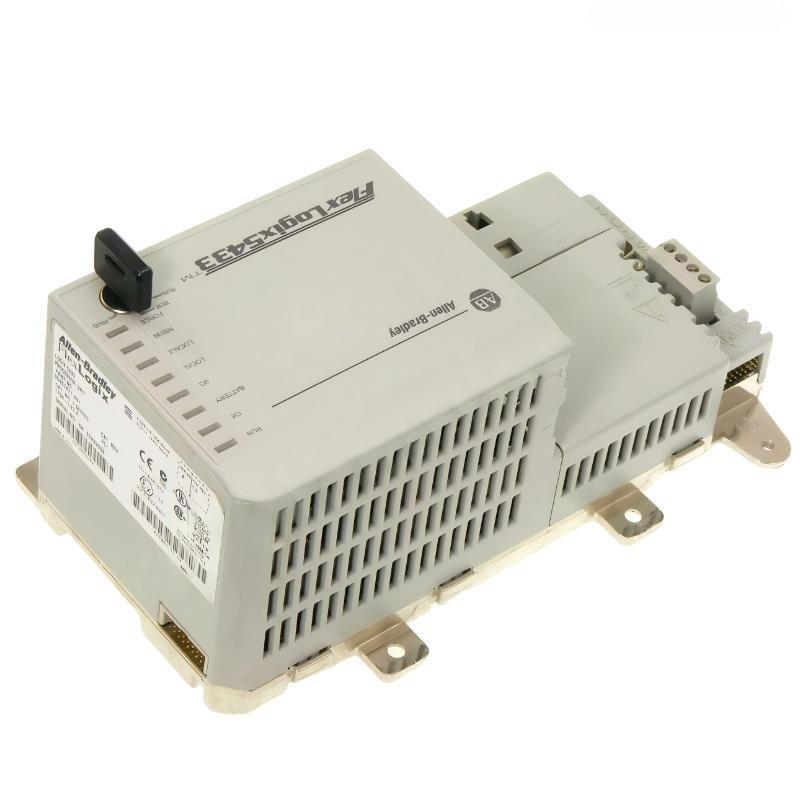

Allen Bradley 1794-L33 FlexLogix Processor

Overview
Allen Bradley 1794-L33 FlexLogix Processor is a FlexLogix processor module designed for distributed control applications within Flex I/O-based automation systems. It provides processing capability for modular control architectures, enabling coordination of remote I/O, logic execution, and system-level communication in industrial environments.

General Information
Part Number: 1794-L33
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Country of Origin: USA
Series: FlexLogix
Module Type: Programmable Logic Processor
Function: Control processor for distributed Flex I/O systems
System Role: Executes control logic and manages I/O communication
Application: Industrial automation and machine/process control

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 5–7 W
Input Power Source: Backplane / system power supply
Isolation: Industrial-grade electrical isolation
Protection: Over-voltage and surge protection
Status Indicators: System, run, fault, and communication LEDs

Communication & Interface
Backplane Communication: FlexLogix system backplane
Network Compatibility: EtherNet/IP, ControlNet (via system configuration)
Programming Interface: Studio 5000 / RSLogix environment
Data Handling: Real-time I/O scanning and logic execution
Diagnostics: System fault monitoring and module health status
Expansion Capability: Supports distributed Flex I/O modules

Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial IEC standard compliant
Protection Rating: IP20 (panel installation required)
Pollution Degree: 2

Dimensions & Weight
Dimensions: 199.49 × 87.24 × 121.97 mm
Weight: 0.71 kg

Reliable processing power for scalable distributed automation control systems.
