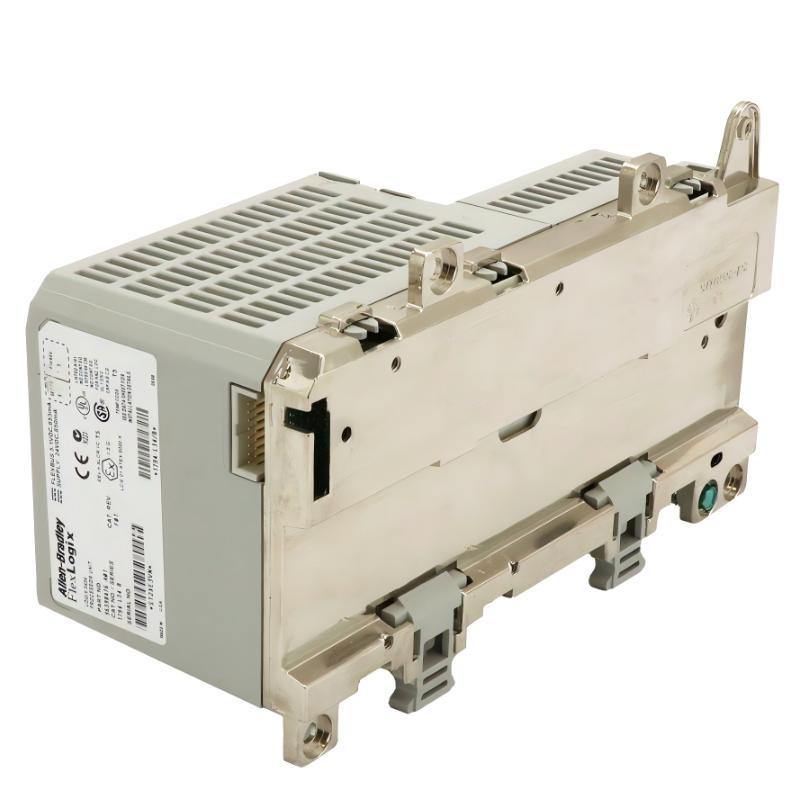

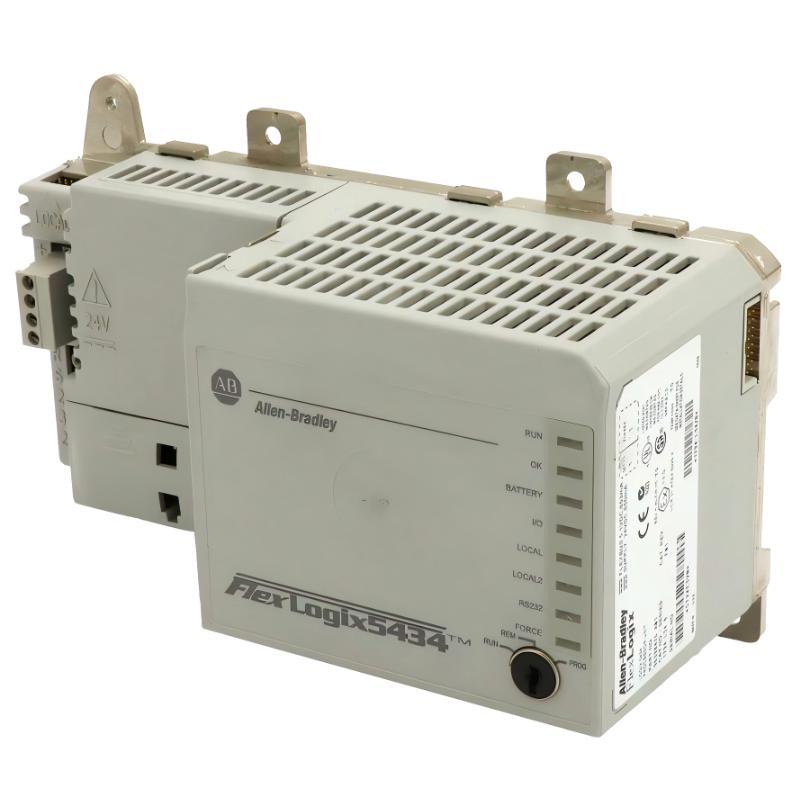

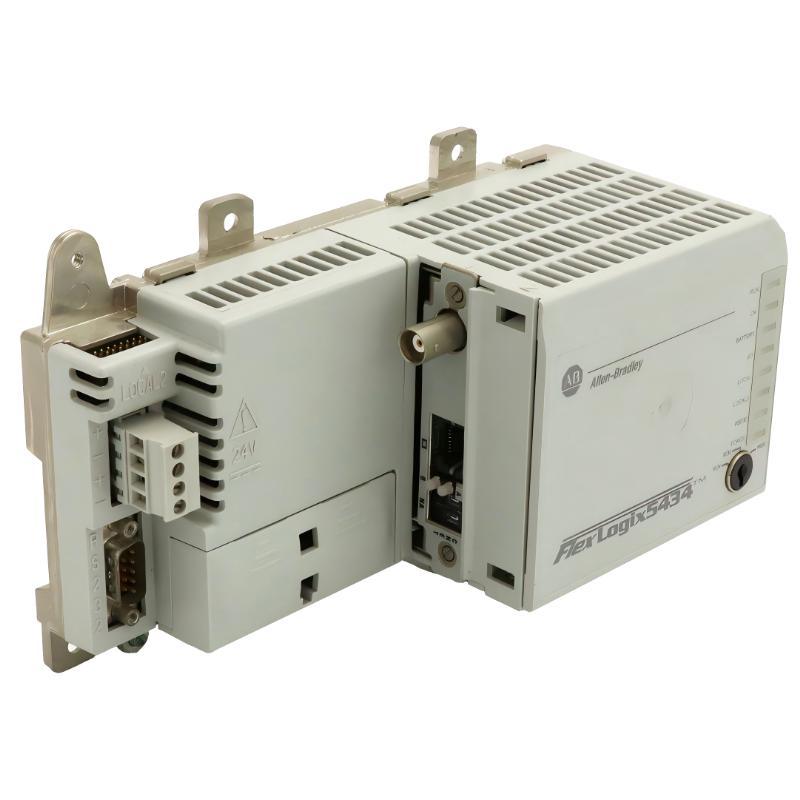

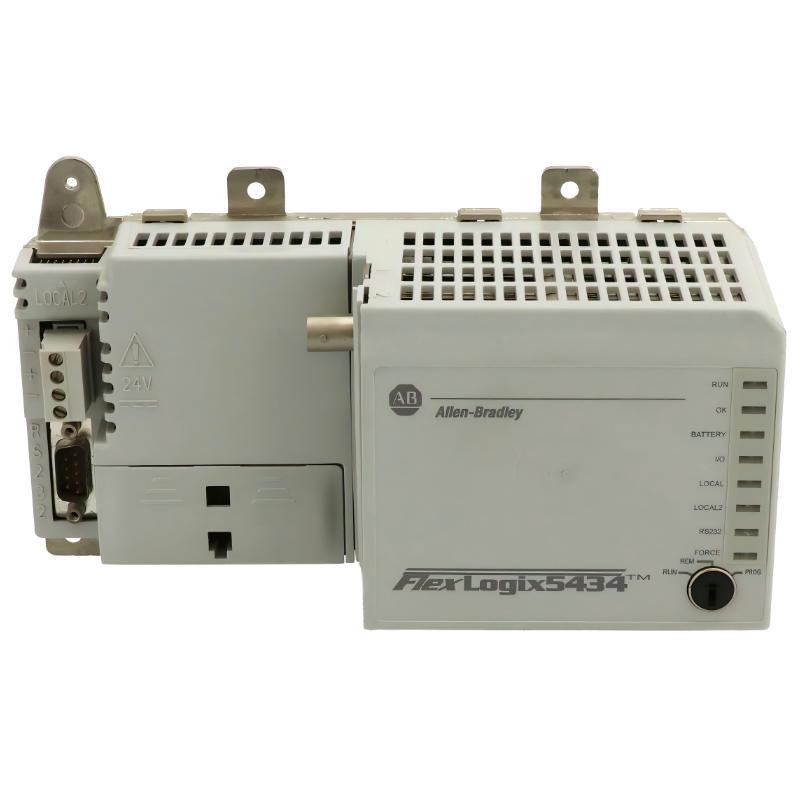

Allen Bradley 1794-L34 FlexLogix Processor

Overview
Allen Bradley 1794-L34 FlexLogix Processor is a FlexLogix processor module designed for distributed automation and control applications using the Flex I/O system. It provides enhanced processing capability for executing control logic, coordinating remote I/O modules, and managing industrial communication in modular control architectures.

General Information
Part Number: 1794-L34
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Country of Origin: USA
Series: FlexLogix
Module Type: Programmable Logic Processor
Function: Central processing unit for FlexLogix control systems
System Role: Executes logic and manages distributed I/O communication
Application: Industrial automation, process control, machine control systems

Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 5–7 W
Input Power Source: System backplane power supply
Isolation: Industrial-grade electrical isolation
Protection: Over-voltage, surge, and transient protection
Status Indicators: Run, fault, and system communication LEDs

Communication & Interface
Backplane Communication: FlexLogix system architecture
Network Support: EtherNet/IP, ControlNet (system dependent configuration)
Programming Software: Studio 5000 / RSLogix environment
Data Processing: Real-time logic execution and I/O scanning
Diagnostics: Module health monitoring and fault detection
System Expansion: Supports distributed Flex I/O modules

Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Industrial IEC compliant standards
Protection Rating: IP20 (enclosure required)
Pollution Degree: 2

Dimensions & Weight
Dimensions: 199.49 × 87.24 × 121.97 mm
Weight: 0.75 kg

Engineered for dependable control performance in scalable industrial automation systems.
