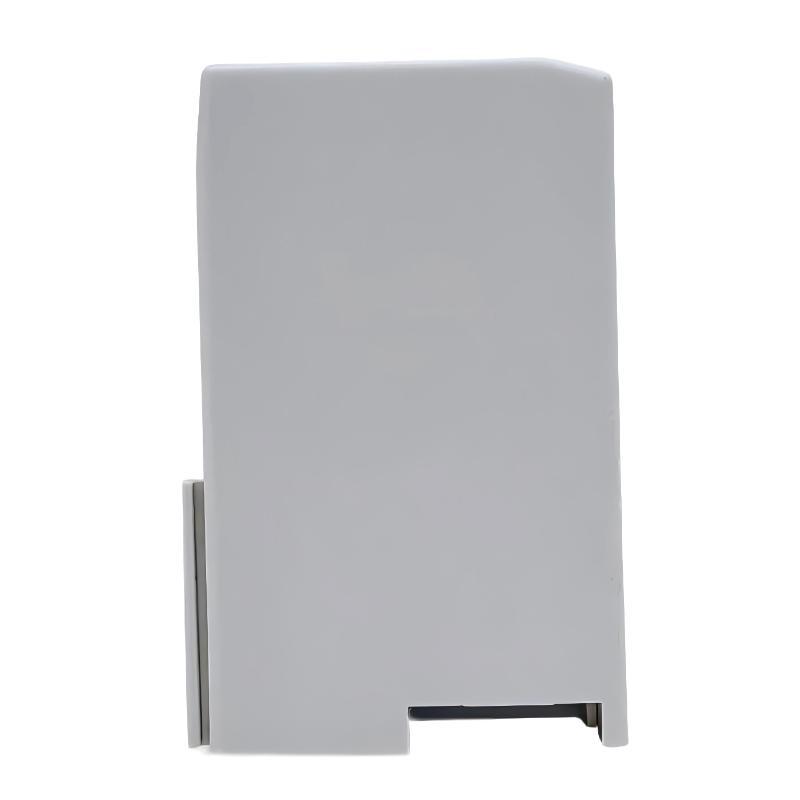

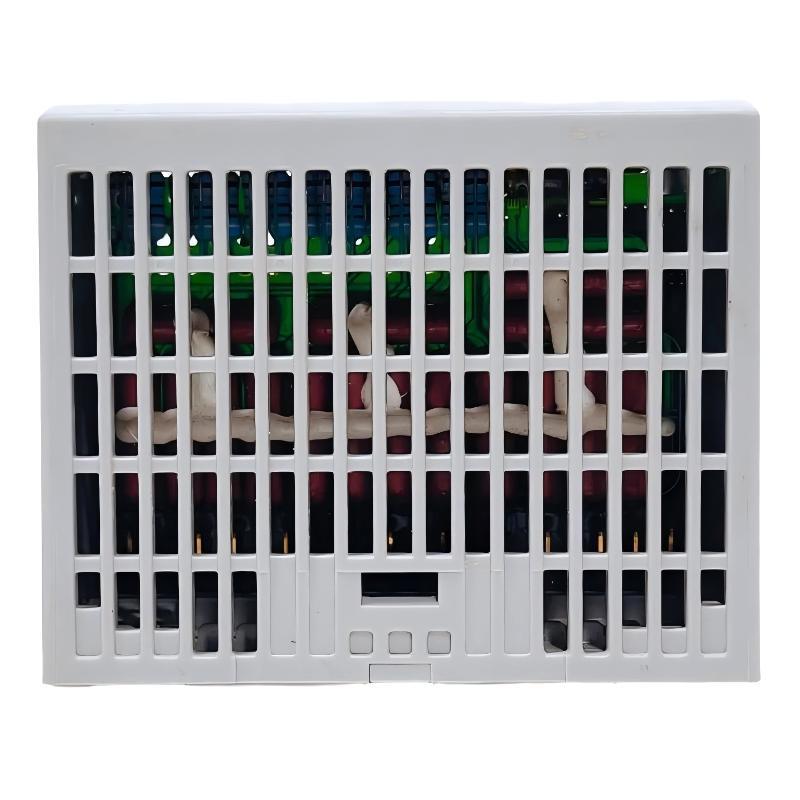

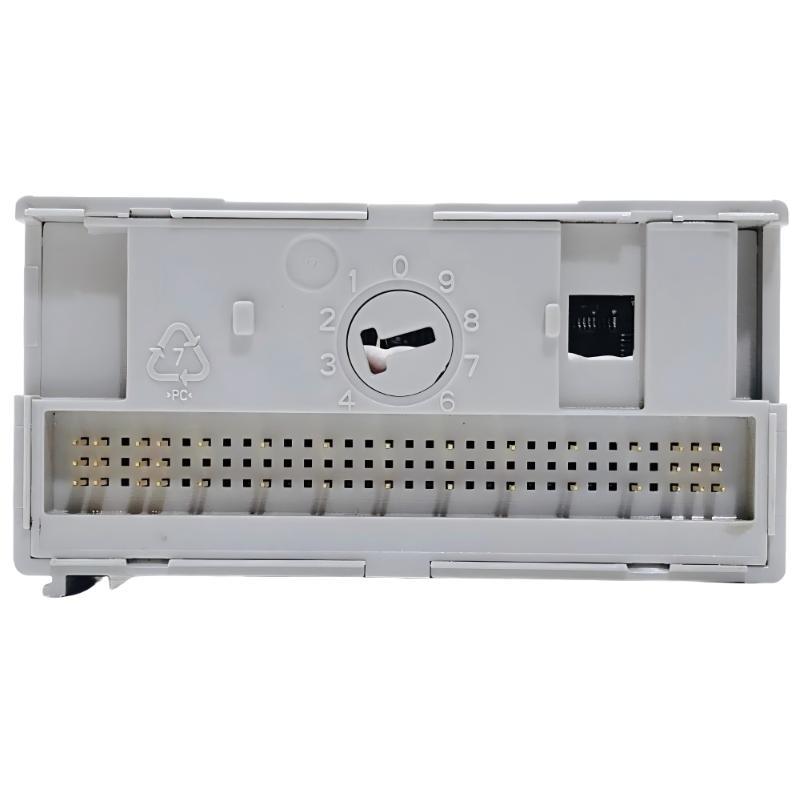

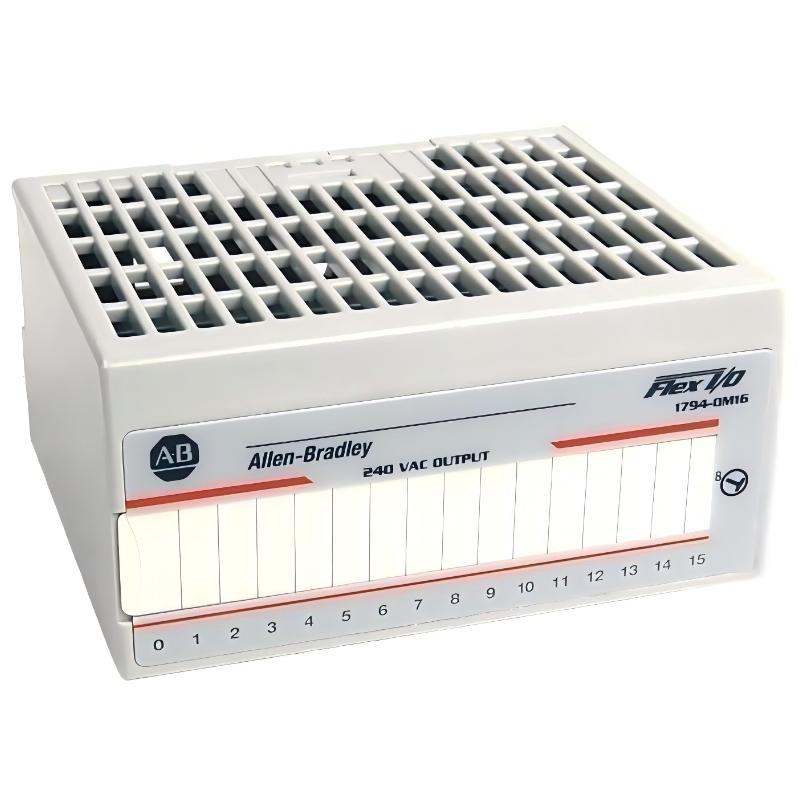

Allen Bradley 1794-OM16 Flex I/O AC Digital Output Module

Overview
Allen Bradley 1794-OM16 Flex I/O AC Digital Output Module is a Flex I/O AC digital output module designed for switching and controlling industrial AC loads such as relays, contactors, and solenoid-driven devices. It is used in distributed automation systems requiring reliable multi-channel AC output control within PLC-based architectures.

General Information
Part Number: 1794-OM16
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Country of Origin: USA
Series: Flex I/O (1794 Series)
Module Type: AC Digital Output Module
Output Type: 16-channel AC output
Installation: DIN rail mounted via Flex I/O terminal base
Function: Industrial AC load switching and control

Power Specifications
Supply Voltage: 120/240 V AC (output side, application dependent)
Control Voltage: 24 V DC (backplane logic supply)
Power Consumption: 3–5 W typical
Input Power Source: Backplane-powered system
Isolation: Channel-to-backplane isolation
Protection: Surge and transient protection
Status Indicators: LED channel and module status indicators

Communication & Interface
Backplane Communication: Flex I/O distributed I/O system
Compatible Networks: EtherNet/IP, ControlNet, DeviceNet (via adapters)
Configuration Platform: Studio 5000 / RSLogix
Signal Control: Digital ON/OFF output switching
Diagnostics: Channel fault detection and load monitoring
System Integration: Modular PLC-based distributed control architecture

Environmental
Operating Temperature: -20 to +60 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: IEC industrial standard compliant
Protection Rating: IP20
Pollution Degree: 2

Dimensions & Weight
Dimensions: 94 × 94 × 91 mm
Weight: 0.108 kg

Reliable AC output control engineered for efficient and scalable industrial automation performance.
