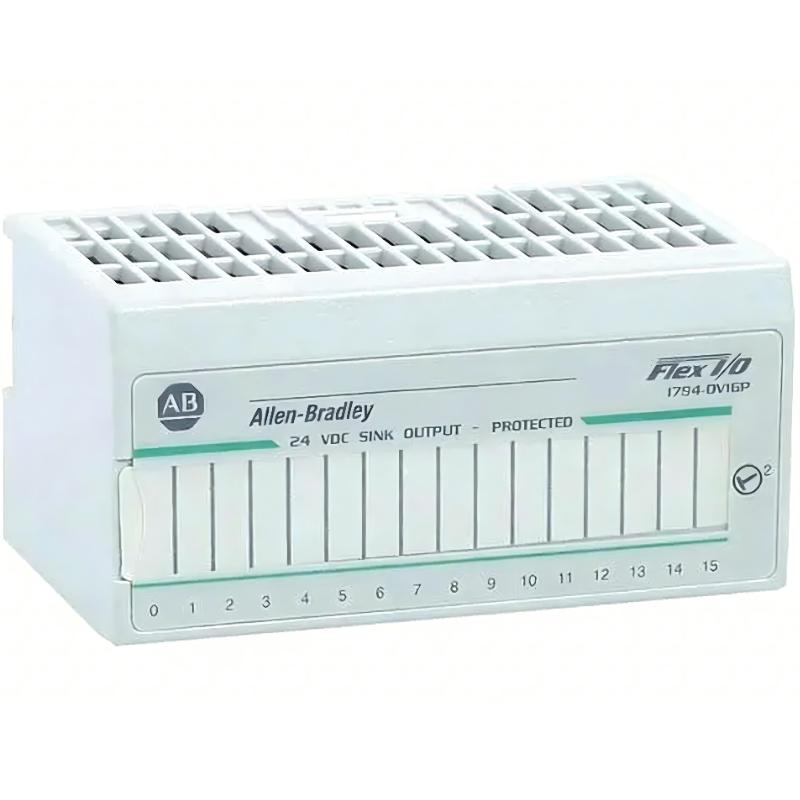

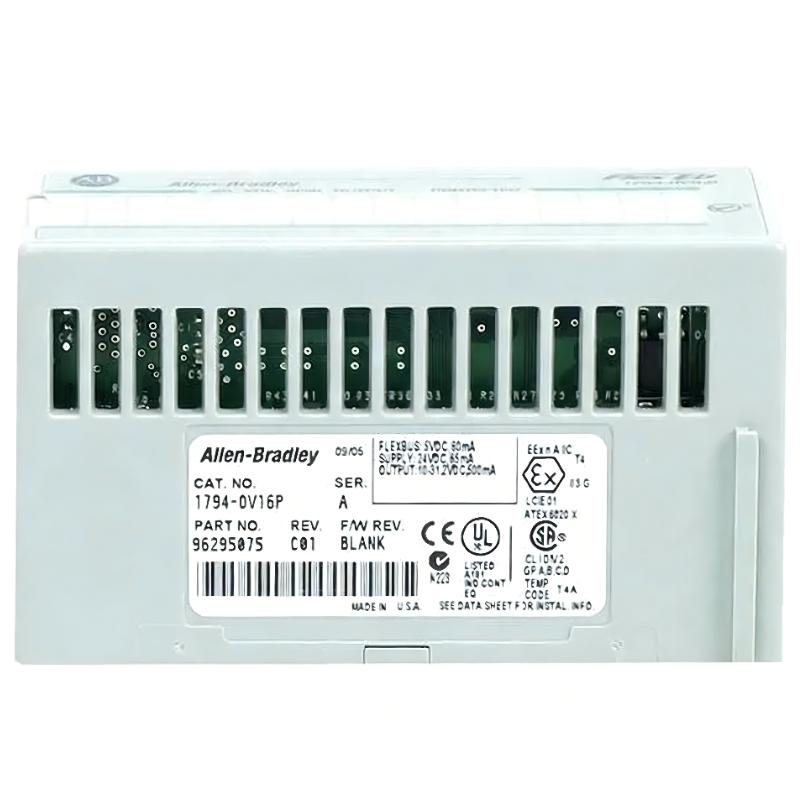

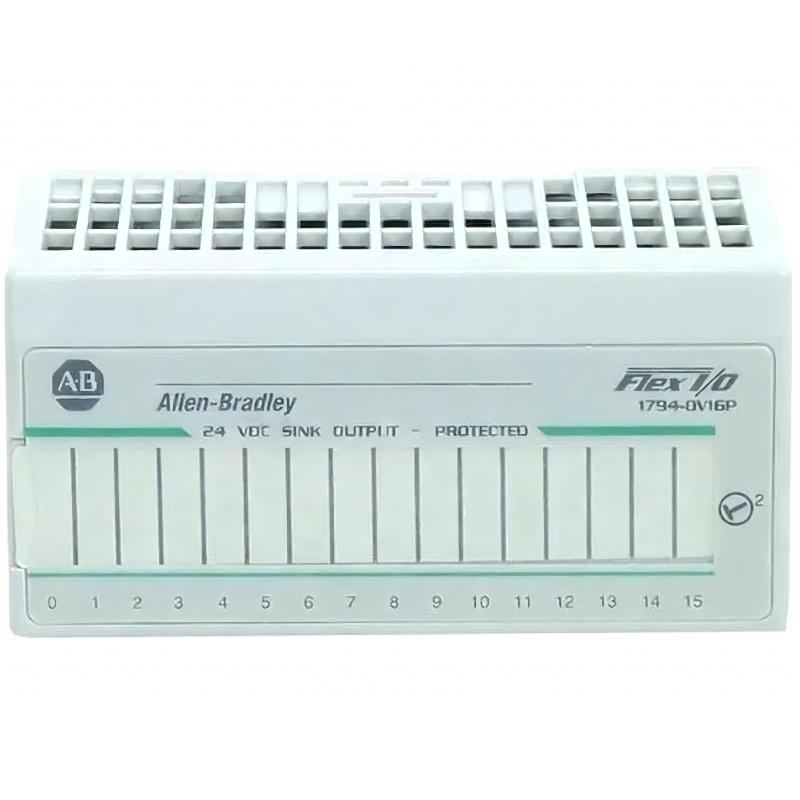

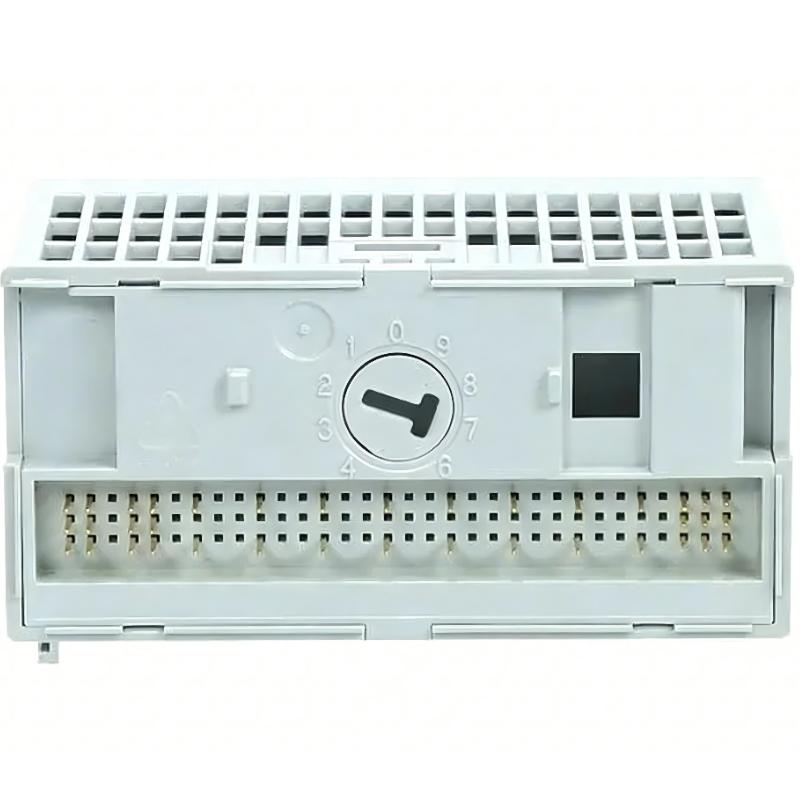

Allen Bradley 1794-OV16P Flex I/O Protected Sinking Output Module

Overview
Allen Bradley 1794-OV16P Flex I/O Protected Sinking Output Module is a Flex I/O protected sinking digital output module designed for safe and reliable control of industrial field devices such as solenoids, relays, and indicator loads. It is widely used in distributed automation systems where output protection and stable switching performance are required.

General Information
Part Number: 1794-OV16P
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Country of Origin: USA
Series: Flex I/O (1794 Series)
Module Type: Protected Sinking Digital Output Module
Output Type: 16-channel DC output
Installation: DIN rail mounted via Flex I/O terminal base
Function: Protected DC output control for industrial automation systems

Power Specifications
Supply Voltage: 24 V DC (load side dependent)
Control Voltage: 24 V DC (backplane logic supply)
Power Consumption: 2–4 W typical
Input Power Source: Backplane-powered system
Protection: Electronic short-circuit, overload, and thermal protection
Isolation: Channel-to-backplane isolation
Status Indicators: LED channel and module status indicators

Communication & Interface
Backplane Communication: Flex I/O distributed I/O system
Compatible Networks: EtherNet/IP, ControlNet, DeviceNet (via adapters)
Configuration Platform: Studio 5000 / RSLogix
Signal Control: Digital ON/OFF sinking output switching
Diagnostics: Channel-level fault detection and load monitoring
System Integration: Modular PLC-based distributed control architecture

Environmental
Operating Temperature: -20 to +60 °C
Storage Temperature: -40 to +85 °C
Humidity: 5% to 95% non-condensing
Vibration Resistance: IEC industrial standard compliant
Protection Rating: IP20
Pollution Degree: 2

Dimensions & Weight
Dimensions: 97 × 46 × 53 mm
Weight: 0.1 kg

Protected output design built for dependable performance and enhanced safety in industrial automation systems.
