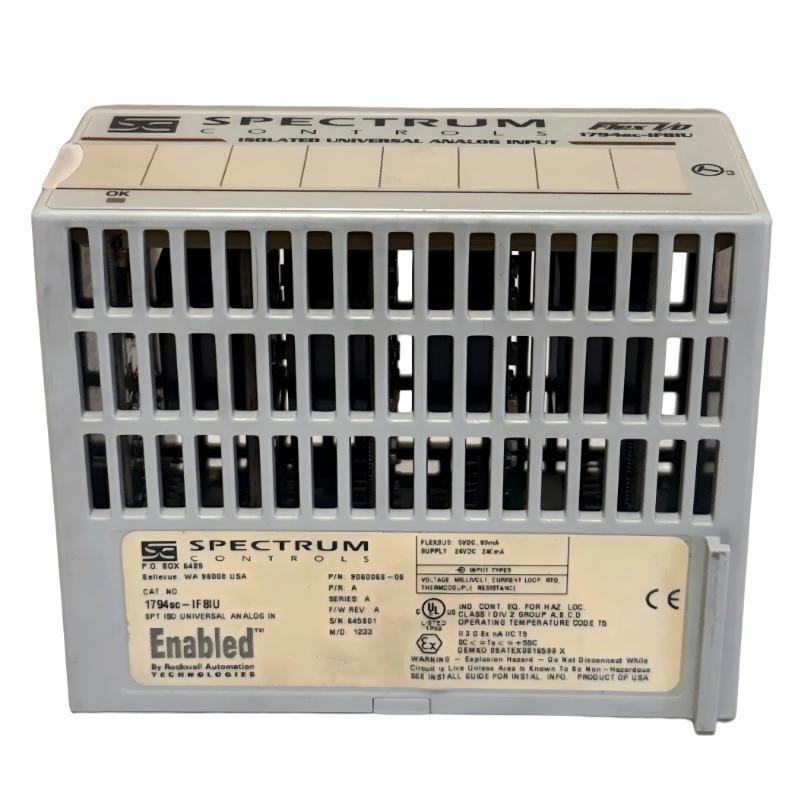

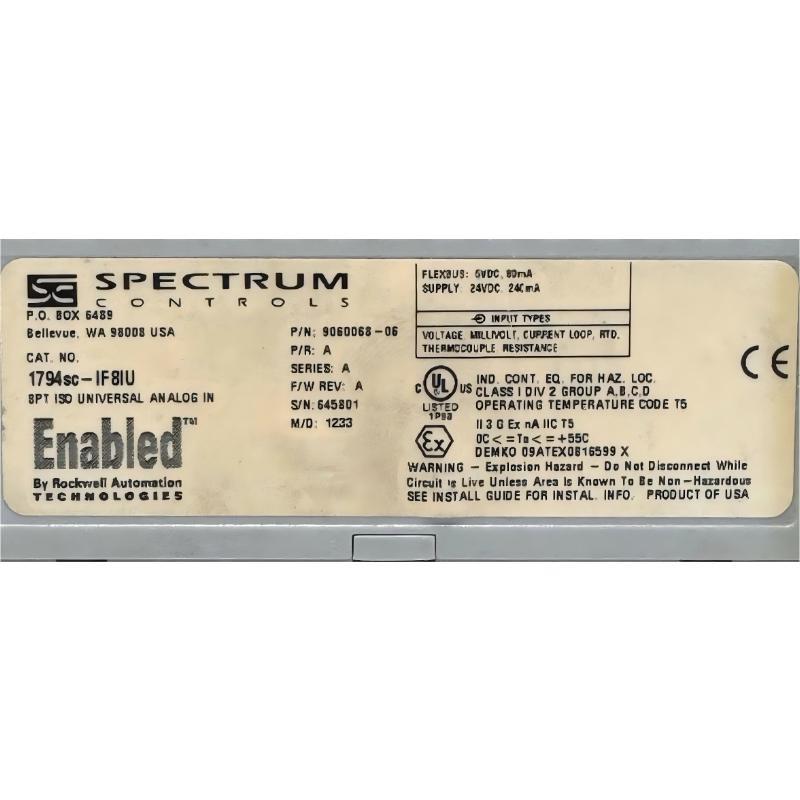

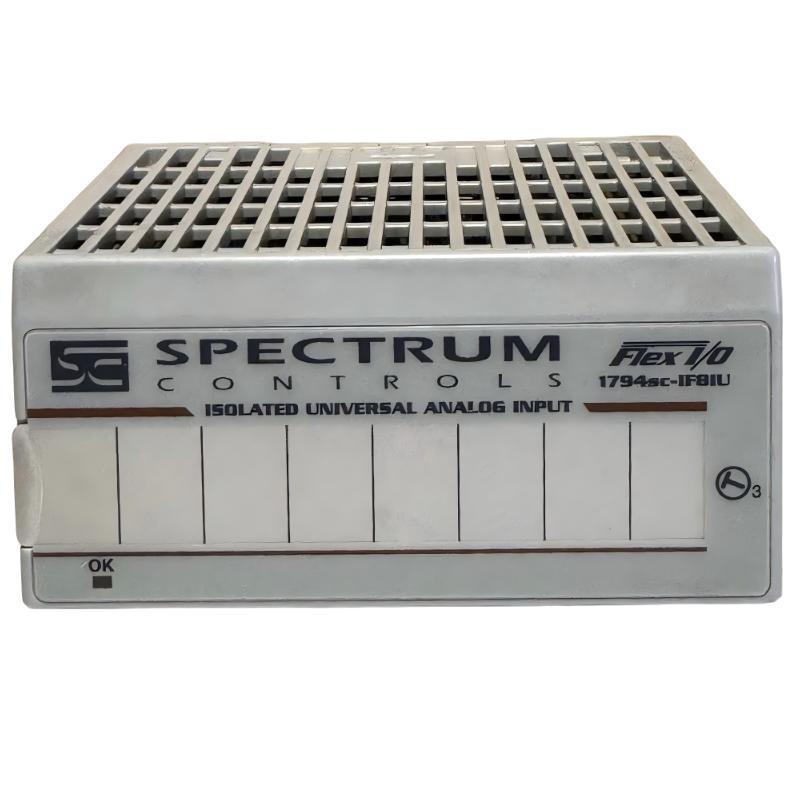

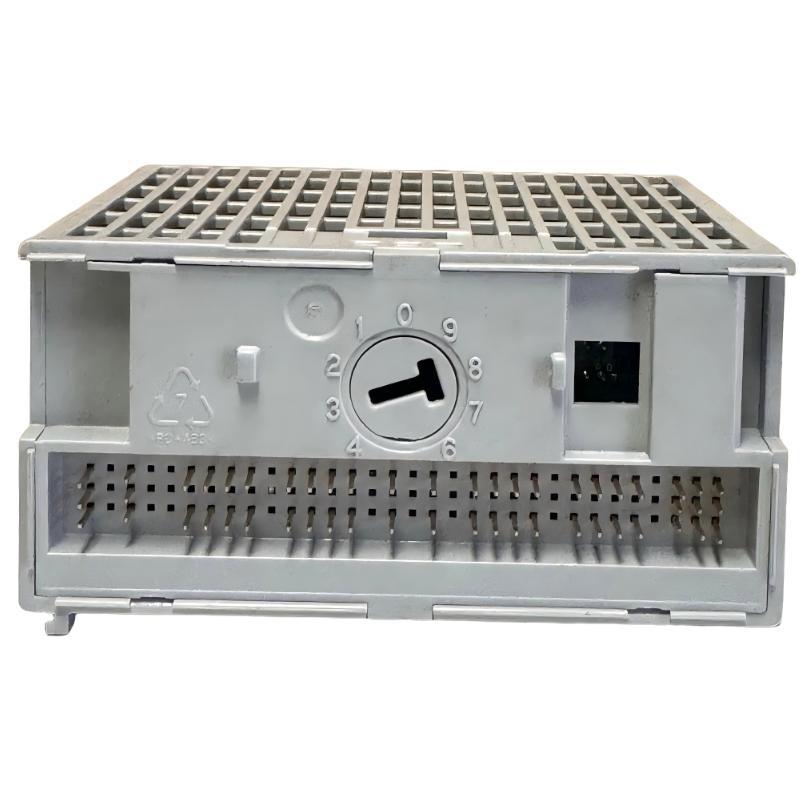

Allen Bradley 1794SC-IF8IU 8-Channel Universal Isolated Analog Input Module

Overview

The Allen Bradley 1794SC-IF8IU 8-Channel Universal Isolated Analog Input Module is designed for Flex I/O systems to provide accurate analog signal acquisition. It supports multiple input types with channel-to-channel isolation, making it suitable for industrial measurement, monitoring, and control applications.

General Information

Brand: Allen Bradley

Country of Origin: United States

Manufacturer: Rockwell Automation

Part Number: 1794SC-IF8IU

Series: Flex I/O

Type: Universal Isolated Analog Input Module

Channels: 8 Analog Input Channels

Application: Industrial signal monitoring and data acquisition

Function: Converts field analog signals into digital values for control system processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approximately 3 W

Input Range: Voltage, current, RTD, and thermocouple signal support

Protection: Channel isolation and overvoltage protection

Indicators: LED status indicators for module operation and diagnostics

Communication & Interface

Communication Type: Flex I/O backplane communication

Input Channels: 8 isolated universal analog input channels

Supported Signals: Voltage, current, RTD, and thermocouple inputs

Resolution: 16-bit analog-to-digital conversion

Configuration: Software-based parameter setup

Diagnostics: Channel fault detection and status monitoring

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 94 × 94 × 69 mm

Weight: 0.3 kg
