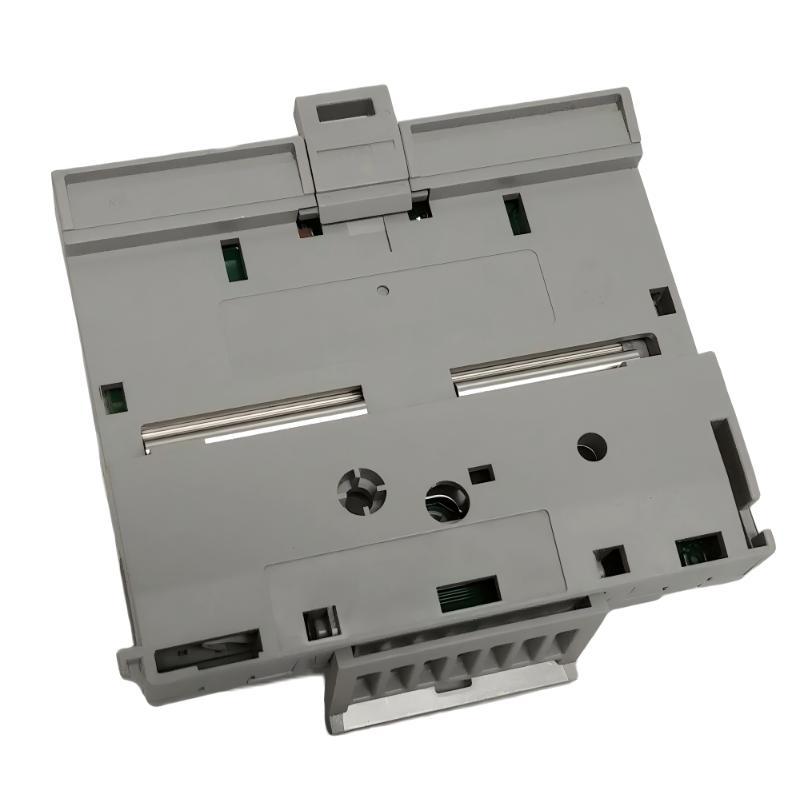

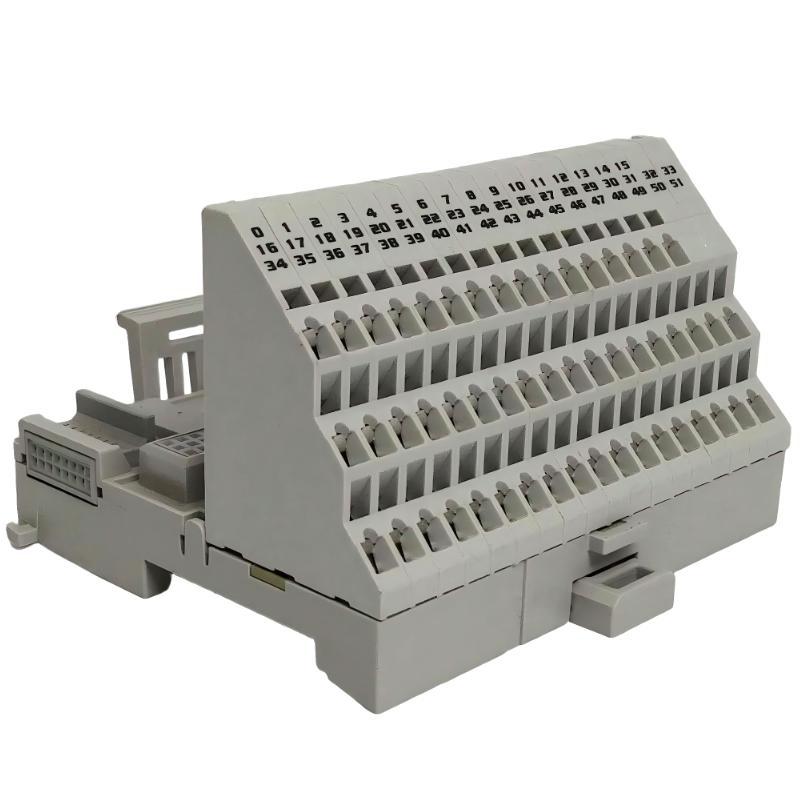

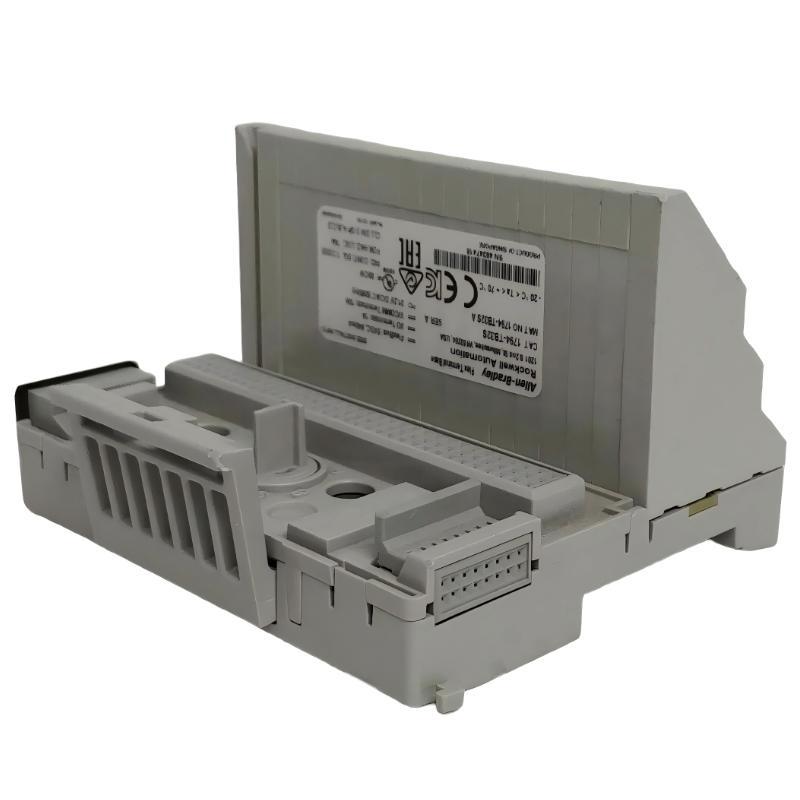

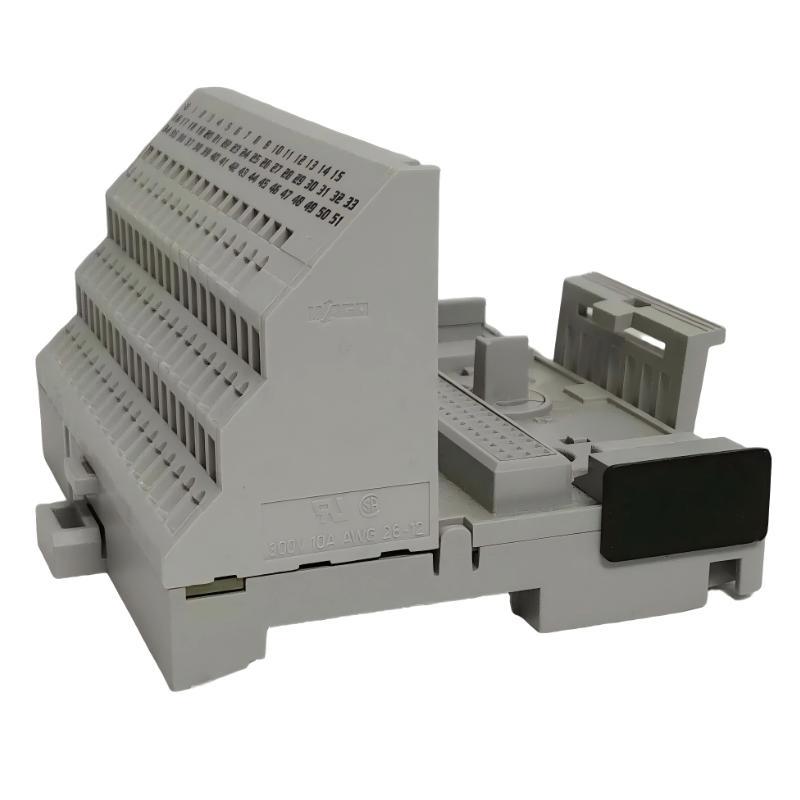

Allen Bradley 1794-TB32S Flex I/O Terminal Base Unit

Overview

The Allen Bradley 1794-TB32S Flex I/O Terminal Base Unit is a modular terminal base designed for Flex I/O systems. It provides a reliable wiring interface between field devices and I/O modules, enabling efficient signal connection and simplified maintenance in industrial automation applications.

General Information

Brand: Allen Bradley

Country of Origin: United States

Manufacturer: Rockwell Automation

Part Number: 1794-TB32S

Series: Flex I/O

Type: Terminal Base Unit

Application: Flex I/O module mounting and field wiring connection

Function: Provides electrical connections between field devices and I/O modules

Terminal Type: Screw terminal connection

Power Specifications

Supply Voltage: Determined by installed I/O module

Power Distribution: Supports module power and signal connections

Current Capacity: Suitable for Flex I/O module requirements

Protection: Designed for reliable industrial signal connections

Indicators: No dedicated status indicators

Communication & Interface

Communication Type: No direct communication interface

System Connection: Flex I/O backplane connection

Terminal Points: 32-point screw terminal block

Module Compatibility: Supports various Flex I/O digital and analog modules

Wiring Connection: Field device signal and power wiring interface

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinet

Vibration Resistance: Suitable for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 94 × 94 × 69 mm

Weight: 0.2 kg
