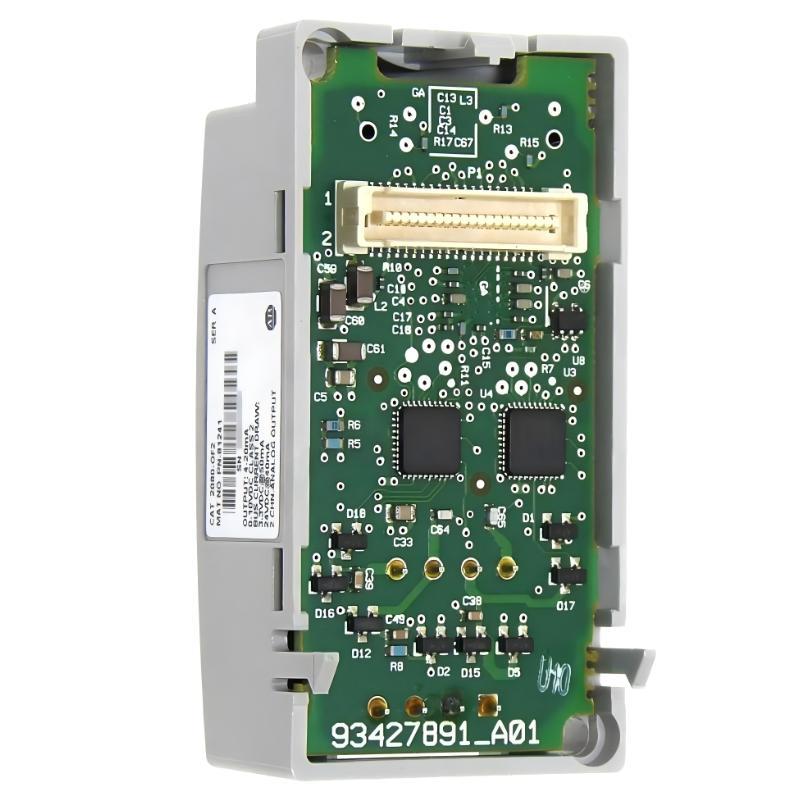

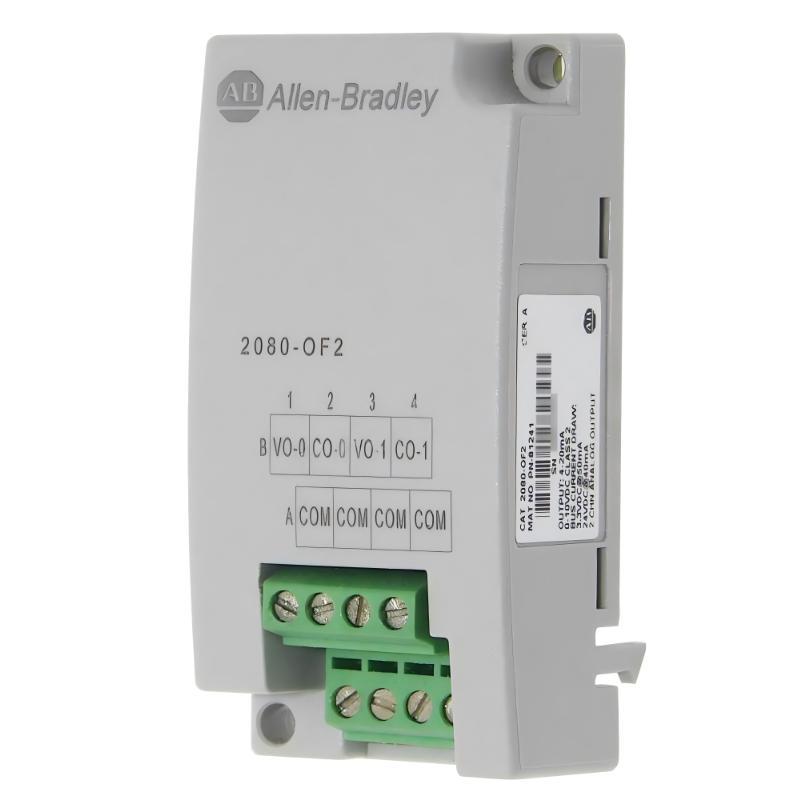

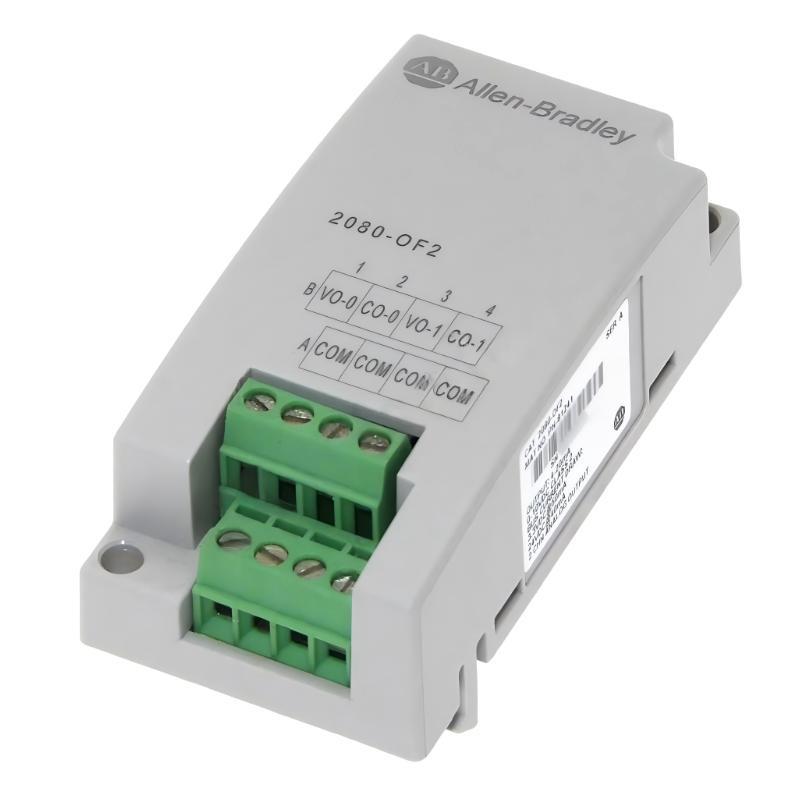

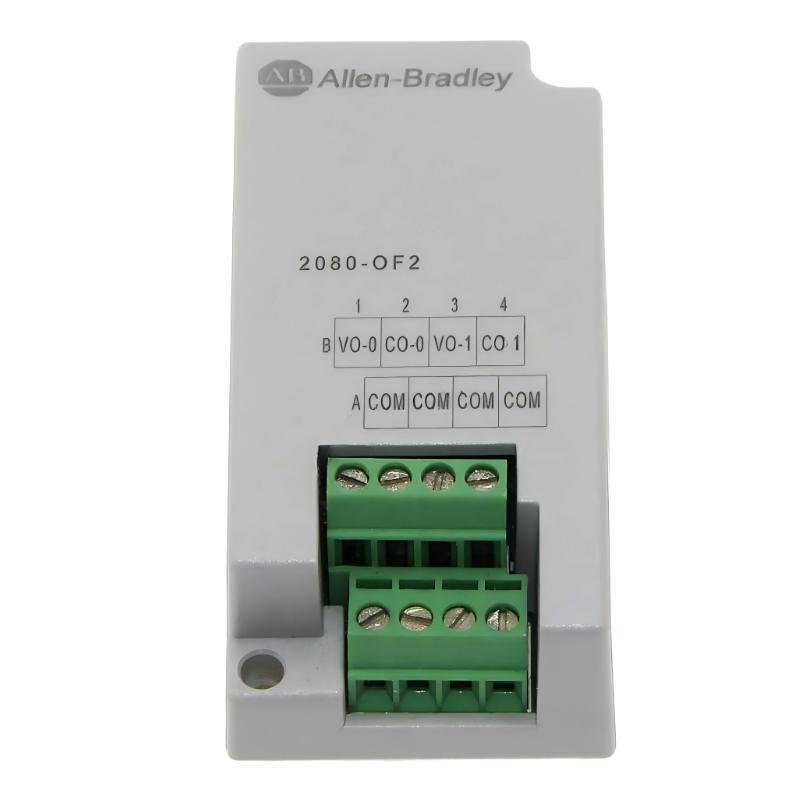

Allen Bradley 2080-OF2 Micro800 2-Point Analog Output Module

Overview

The Allen Bradley 2080-OF2 is a 2-point analog output module designed for Micro800 controller systems. It provides accurate analog signal output capabilities for controlling industrial devices such as actuators, valves, drives, and other field equipment.

This module expands Micro800 system functionality by enabling precise analog control in machine automation and process applications where variable output signals are required.

General Information

Part Number: 2080-OF2

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Micro800 Series

Type: Analog Output Expansion Module

Application: Industrial analog signal control and automation output management

Installation: Mounted on compatible Micro800 controllers

Function: Provides two analog output channels for voltage and current signal control

Compatibility: Micro800 programmable controllers

Technology: Compact analog output expansion with digital-to-analog signal conversion

Power Specifications

Supply Voltage: 24 V DC

Power Source: Supplied from the Micro800 controller system

Power Consumption: Low-power operation for compact automation applications

Output Range: Supports standard industrial voltage and current analog signals

Protection: Designed with electrical protection features for reliable field operation

Indicators: LED status indicators for module operation and diagnostics

Communication & Interface

Output Channels: 2 analog output channels

Signal Types: Voltage and current outputs

Conversion Function: Digital-to-analog signal conversion for external device control

Connection Method: Removable terminal block connection

Communication Interface: Direct connection with Micro800 controller backplane

Control Function: Supports analog control of drives, valves, actuators, and process equipment

Diagnostics: Provides module status monitoring and fault detection through controller software

Environmental

Operating Temperature: −20 to +65 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control panels and automation equipment

Protection Rating: Suitable for standard industrial enclosure environments

Resistance: Designed to withstand industrial electrical noise, vibration, and continuous operation conditions

Dimensions & Weight

Dimensions (L × W × H): 62 × 20 × 31.5 mm

Weight: 0.021 kg
