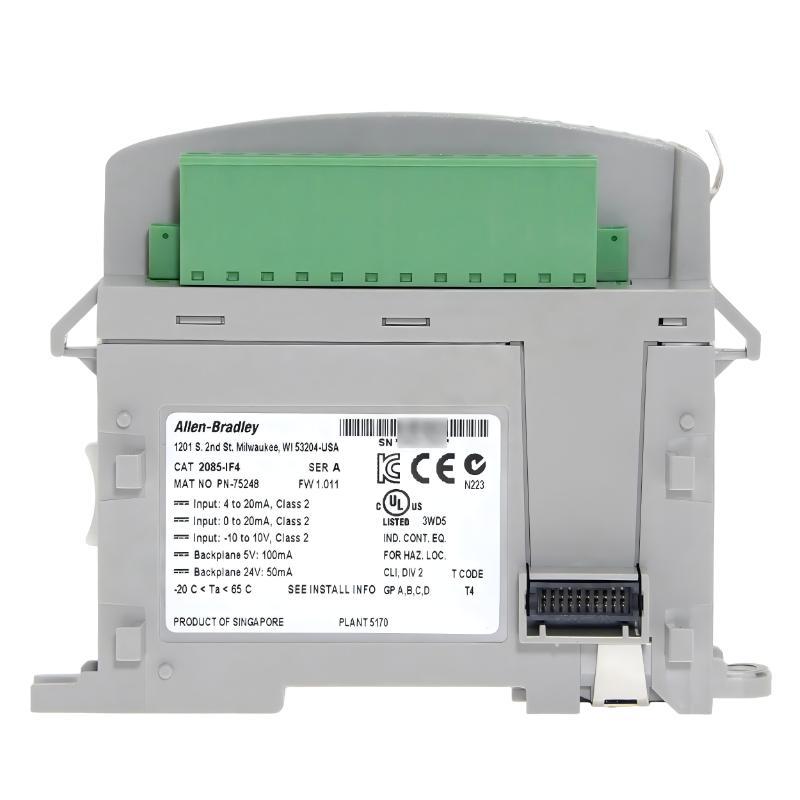

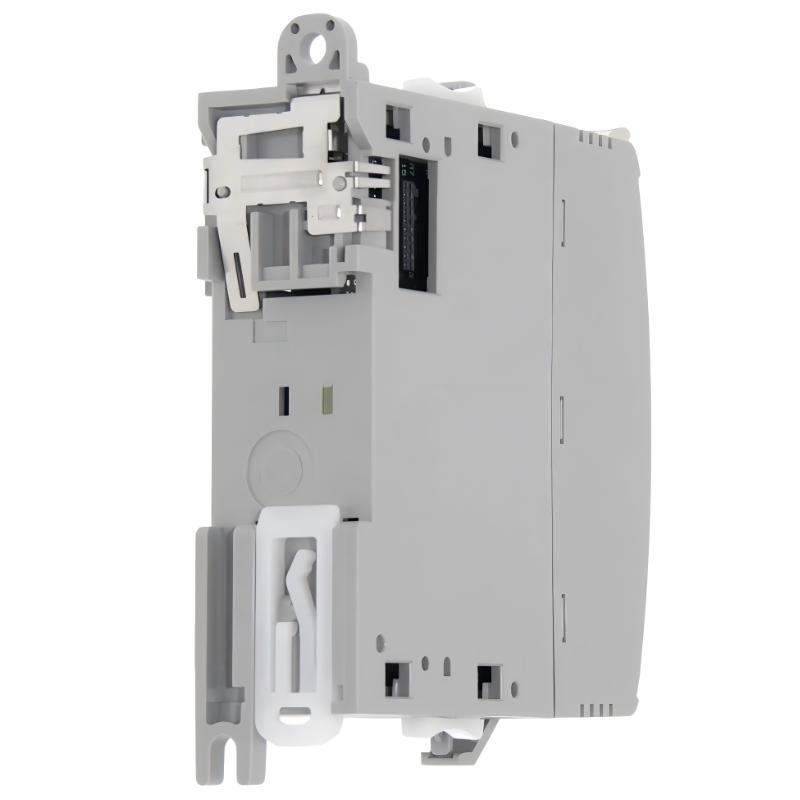

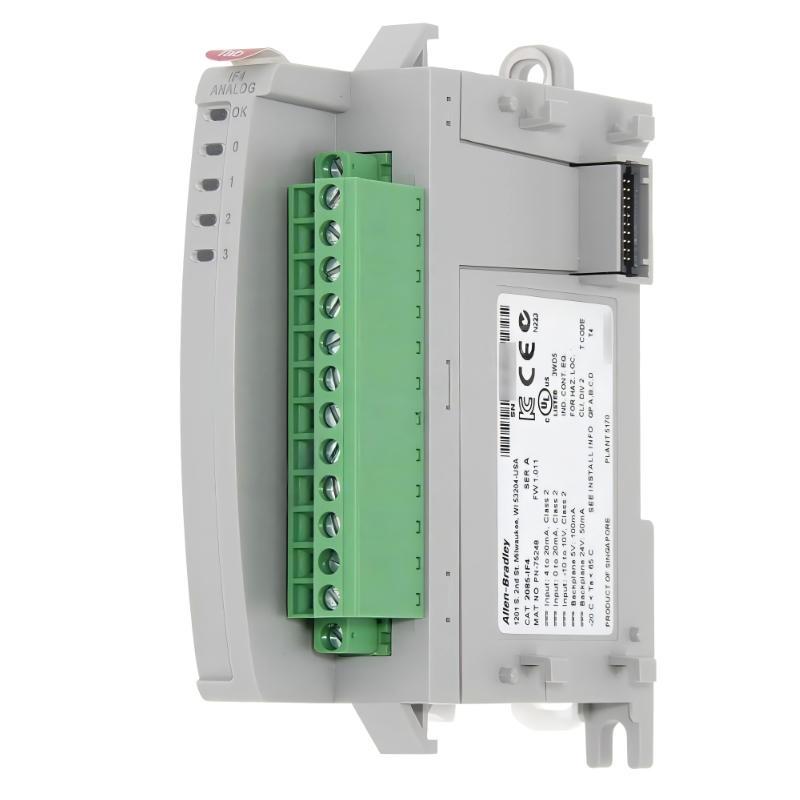

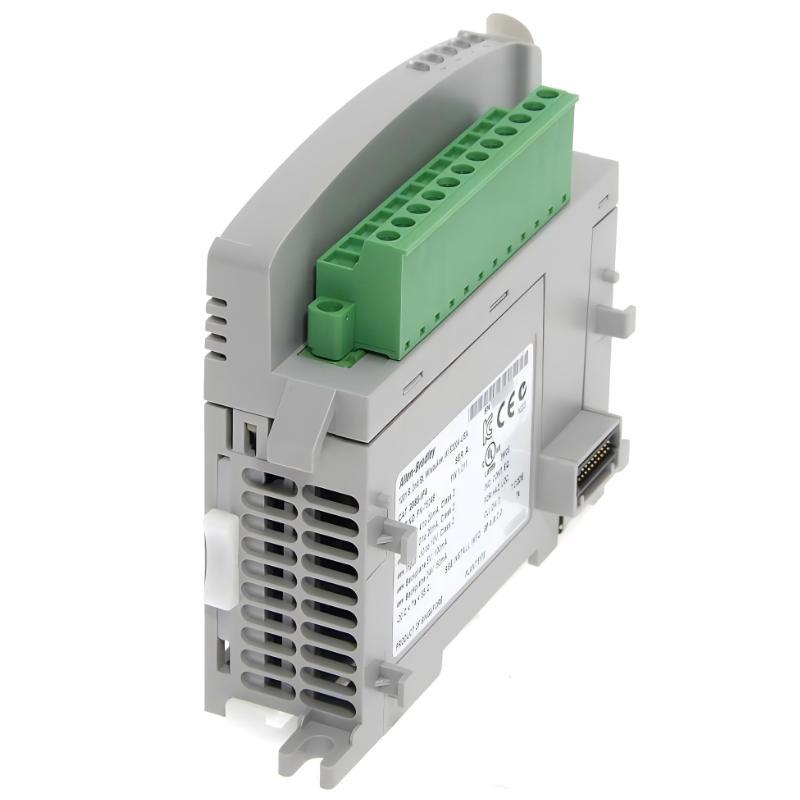

Allen Bradley 2085-IF4 Micro800 Analog Input Module

Overview

The Allen Bradley 2085-IF4 is a Micro800 analog input module designed to expand the signal processing capability of Micro850 and Micro870 programmable controllers. It provides four analog input channels for monitoring voltage and current signals from industrial sensors and field devices.

This module is suitable for machine automation, process monitoring, and control applications that require accurate analog data acquisition and flexible system expansion.

General Information

Part Number: 2085-IF4

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: Micro800 Series

Type: Analog Input Expansion Module

Application: Industrial signal monitoring and analog data acquisition

Installation: Mounted with compatible Micro800 controller expansion systems

Function: Provides four analog input channels for voltage and current signal measurement

Compatibility: Micro850 and Micro870 programmable controllers

Technology: Compact analog I/O expansion with high-accuracy signal conversion

Power Specifications

Supply Voltage: 24 V DC

Power Source: Supplied through the Micro800 expansion system

Power Consumption: Low-power operation for compact automation applications

Input Signal Range: Supports standard industrial voltage and current analog signals

Protection: Designed with electrical protection features for reliable field operation

Indicators: LED status indicators for module power and operating condition

Communication & Interface

Input Channels: 4 analog input channels

Signal Types: Voltage and current inputs

Conversion Function: Analog-to-digital signal conversion for controller processing

Connection Method: Removable terminal block connection

Communication Interface: Micro800 expansion bus connection

Control Function: Supports sensor monitoring, process measurement, and analog feedback applications

Diagnostics: Provides module status monitoring and fault indication through controller software

Environmental

Operating Temperature: −20 to +65 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control panels and automation equipment

Protection Rating: Suitable for standard industrial enclosure environments

Resistance: Designed to withstand industrial vibration, electrical noise, and continuous operation conditions

Dimensions & Weight

Dimensions (L × W × H): 90 × 28 × 87 mm

Weight: 0.14 kg
