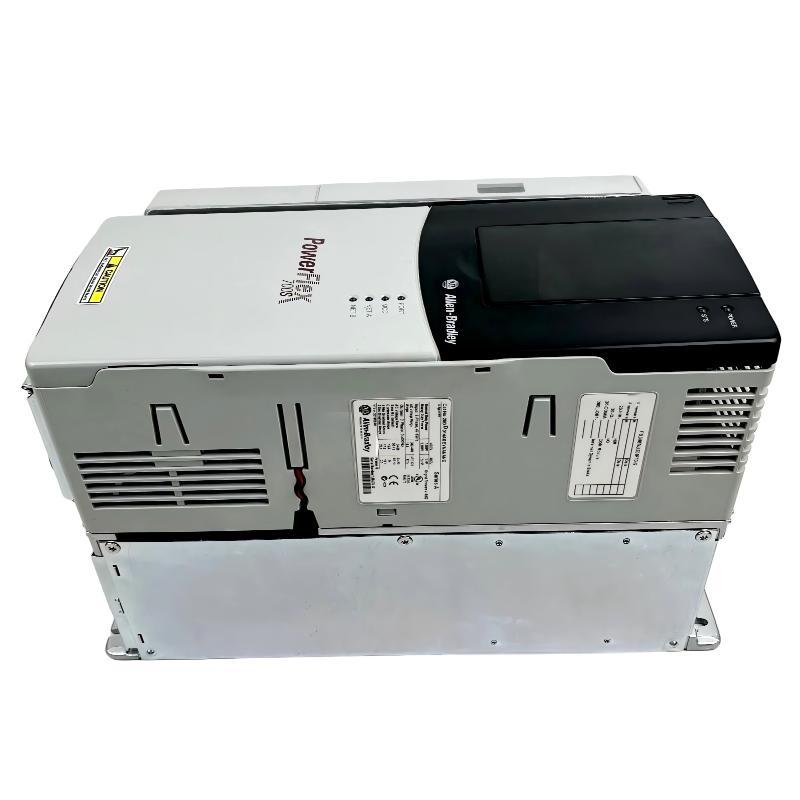

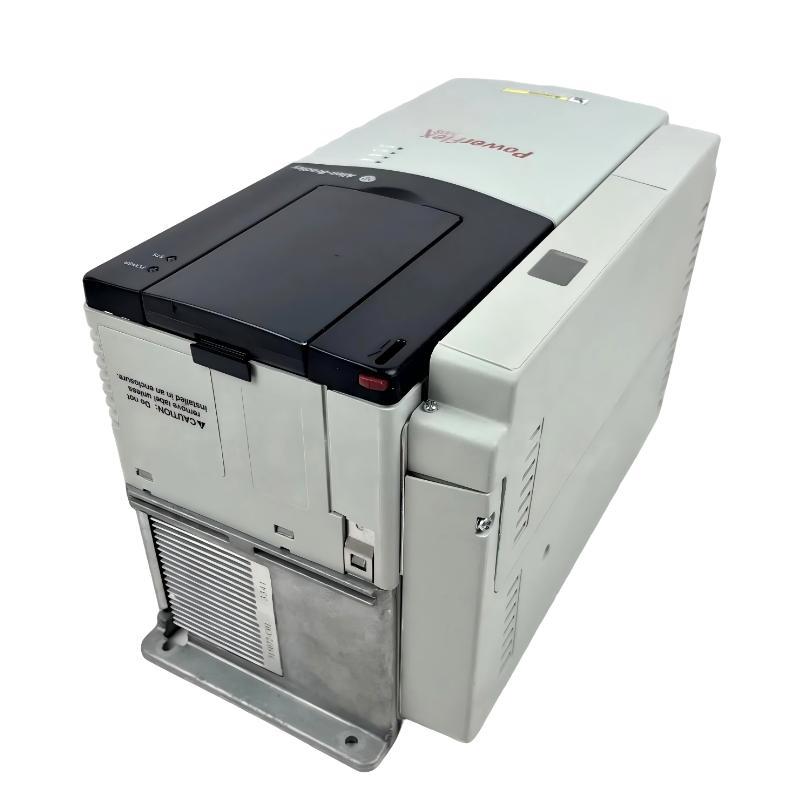

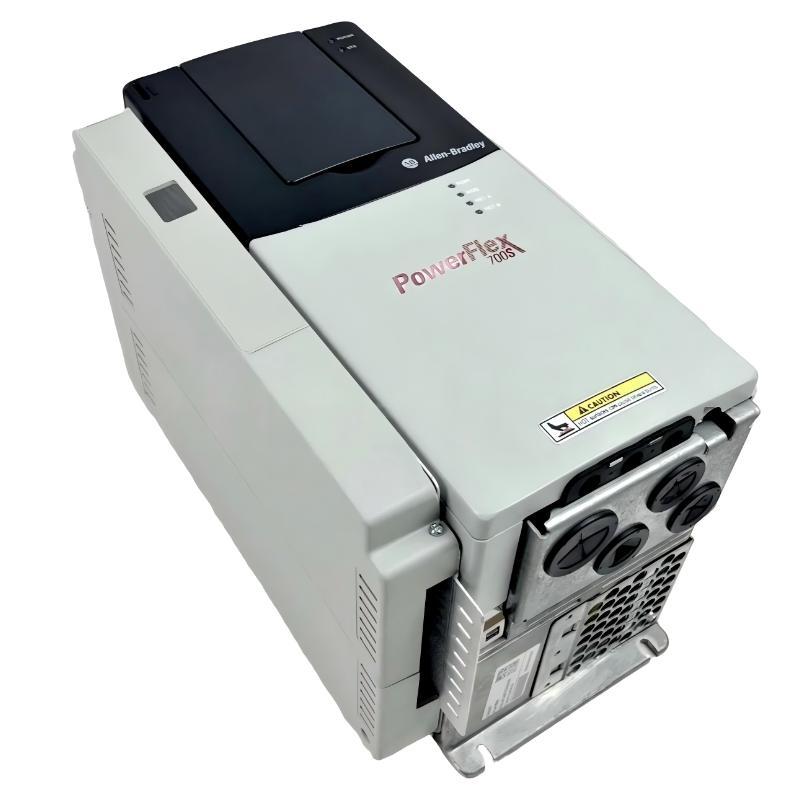

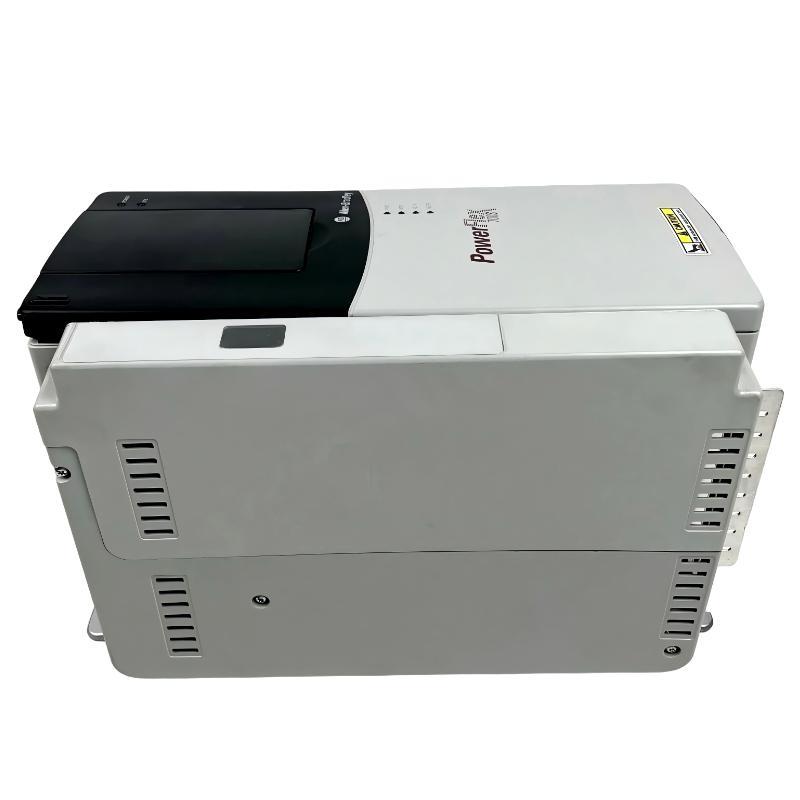

Allen Bradley 20DD014A0EYNANANE PowerFlex 700S AC Drive

Overview

The Allen Bradley 20DD014A0EYNANANE PowerFlex 700S AC Drive is a high-performance adjustable frequency drive designed for advanced motor control and demanding industrial automation applications. It provides precise speed and torque regulation, flexible configuration options, and integrated protection functions for complex motion and drive systems.

This drive is suitable for applications including conveyors, machine tools, material handling equipment, and industrial processes requiring accurate motor control and reliable operation.

General Information

Part Number: 20DD014A0EYNANANE

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 700S

Type: AC Variable Frequency Drive (VFD)

Input Voltage Class: 480 VAC

Rated Output Current: 14 A

Motor Control: Vector Control and Volts/Hertz Control

Mounting: Panel mounting inside industrial control cabinets

Application: Advanced industrial motor control and automation systems

Protection Features: Overvoltage, undervoltage, overload, short circuit, and thermal protection

Power Specifications

Input Voltage: 480 VAC three-phase

Input Frequency: 50/60 Hz

Output Voltage: 0 to rated input voltage

Output Frequency Range: 0 to 400 Hz

Rated Output Power: Approximately 7.5 kW / 10 HP class

Overload Capacity: Supports high torque starting and temporary overload operation

Cooling Method: Internal fan cooling

Protection Functions: Integrated monitoring for current, voltage, temperature, and drive faults

Communication & Interface

Communication Ports: Supports optional communication modules

Network Options: EtherNet/IP, ControlNet, DeviceNet, and other industrial networks

Control Inputs: Digital and analog inputs for start, stop, speed reference, and feedback signals

Control Outputs: Relay and analog outputs for drive status monitoring

Operator Interface: Supports HIM keypad for setup, programming, and diagnostics

Programming: Parameter configuration through keypad or network connection

Diagnostic Functions: Provides fault alarms, status monitoring, and system diagnostics

Environmental

Operating Temperature: 0 to 50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Installation Environment: Indoor industrial control cabinet

Protection Rating: IP20 / NEMA open type

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (H × W × D): 336 × 166.9 × 200 mm

Weight: 7.03 kg

Reliable Drive Performance for Industrial Applications!
