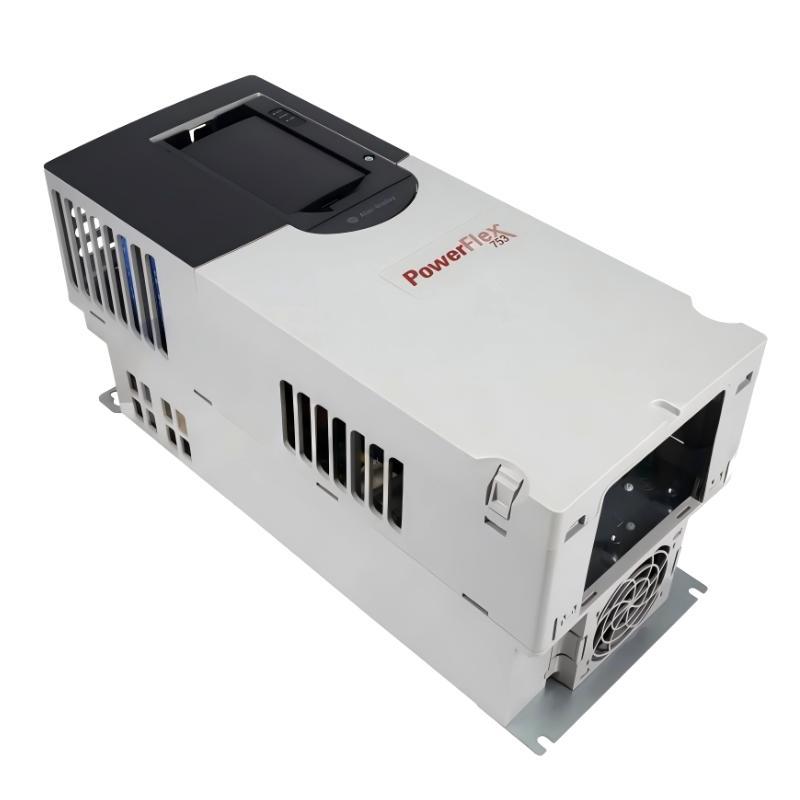

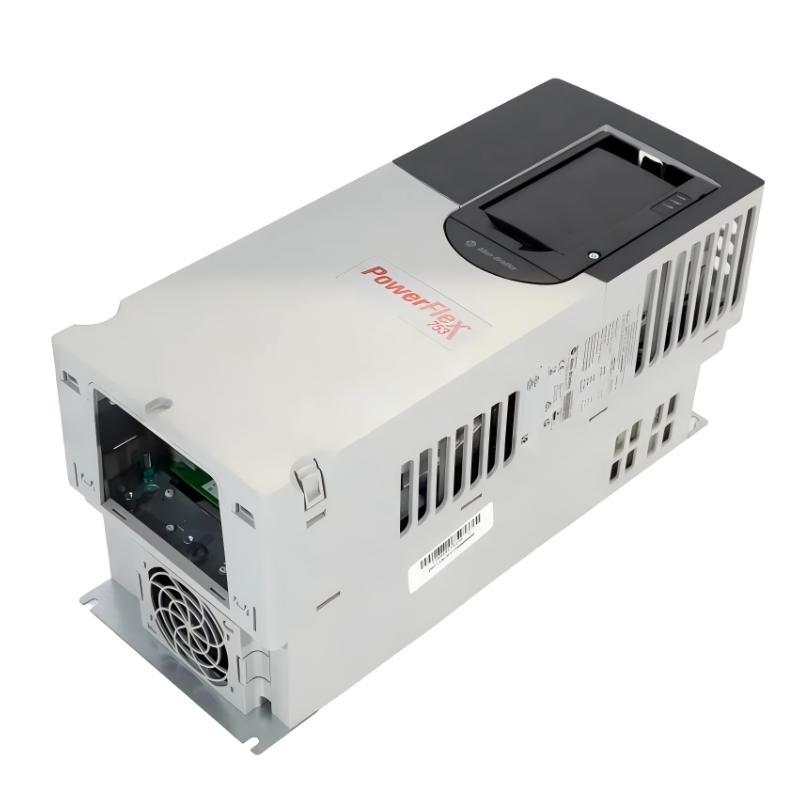

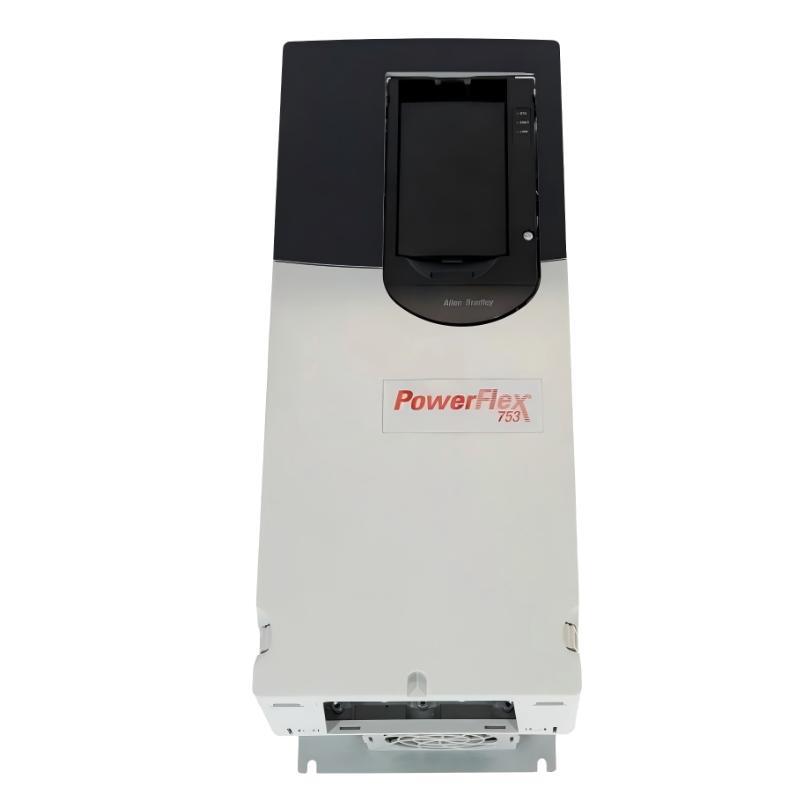

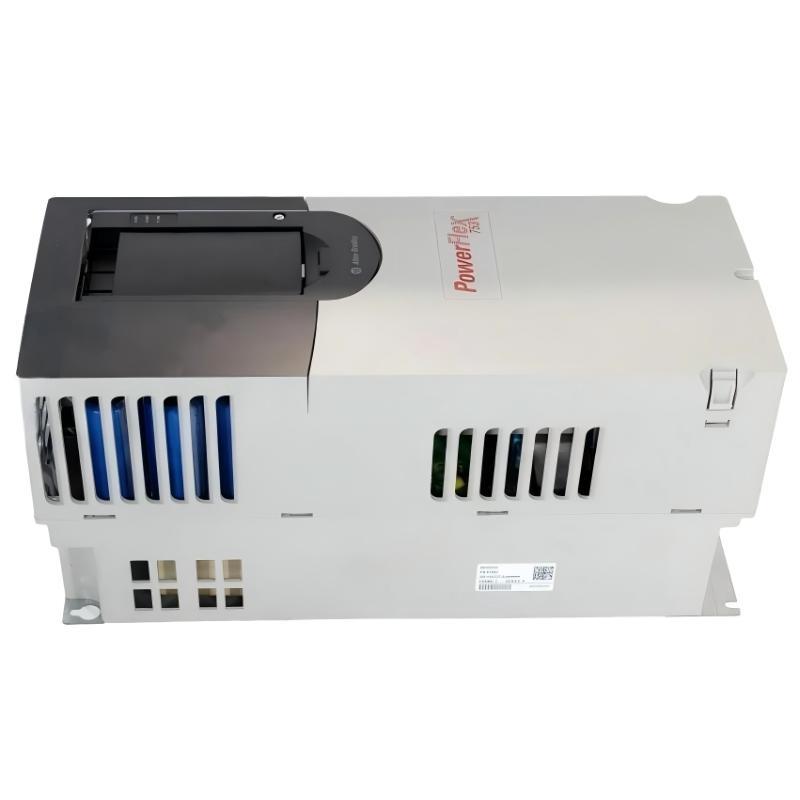

Allen Bradley 20F11NC037JA0NNNNN PowerFlex 753 AC Drive

Overview

The Allen Bradley 20F11NC037JA0NNNNN PowerFlex 753 AC Drive is an industrial variable frequency drive designed to provide reliable motor control, flexible configuration, and efficient operation in automation systems. It delivers precise speed regulation, advanced control functions, and integrated protection features for a wide range of industrial applications.

This drive is suitable for conveyors, pumps, fans, machine tools, and production equipment requiring dependable AC motor control and optimized system performance.

General Information

Part Number: 20F11NC037JA0NNNNN

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 753

Type: AC Variable Frequency Drive (VFD)

Input Voltage Class: 480 VAC

Rated Output Current: 37 A

Motor Control: Sensorless Vector Control, Vector Control, and Volts/Hertz Control

Mounting: Panel mounting inside industrial control cabinets

Application: Industrial motor speed regulation and automation control

Protection Features: Overvoltage, undervoltage, overload, short circuit, and thermal protection

Power Specifications

Input Voltage: 480 VAC three-phase

Input Frequency: 50/60 Hz

Output Voltage: 0 to rated input voltage

Output Frequency Range: 0 to 590 Hz

Rated Output Power: Approximately 30 kW / 40 HP class

Overload Capacity: Supports normal duty and heavy-duty overload operation

Cooling Method: Internal fan cooling

Protection Functions: Integrated monitoring for current, voltage, temperature, and drive faults

Communication & Interface

Communication Ports: Supports optional communication modules

Network Options: EtherNet/IP and other industrial communication networks

Control Inputs: Digital and analog inputs for start, stop, speed reference, and feedback signals

Control Outputs: Relay and analog outputs for drive status monitoring

Operator Interface: Supports HIM keypad for setup, programming, and diagnostics

Programming: Parameter configuration through keypad, software tools, or network connection

Diagnostic Functions: Provides fault alarms, event logs, and real-time drive status monitoring

Environmental

Operating Temperature: 0 to 50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Installation Environment: Indoor industrial control cabinet

Protection Rating: IP20 / NEMA open type

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (H × W × D): 454 × 190 × 212 mm

Weight: 11.8 kg

Reliable Automation Performance at Competitive Value!
