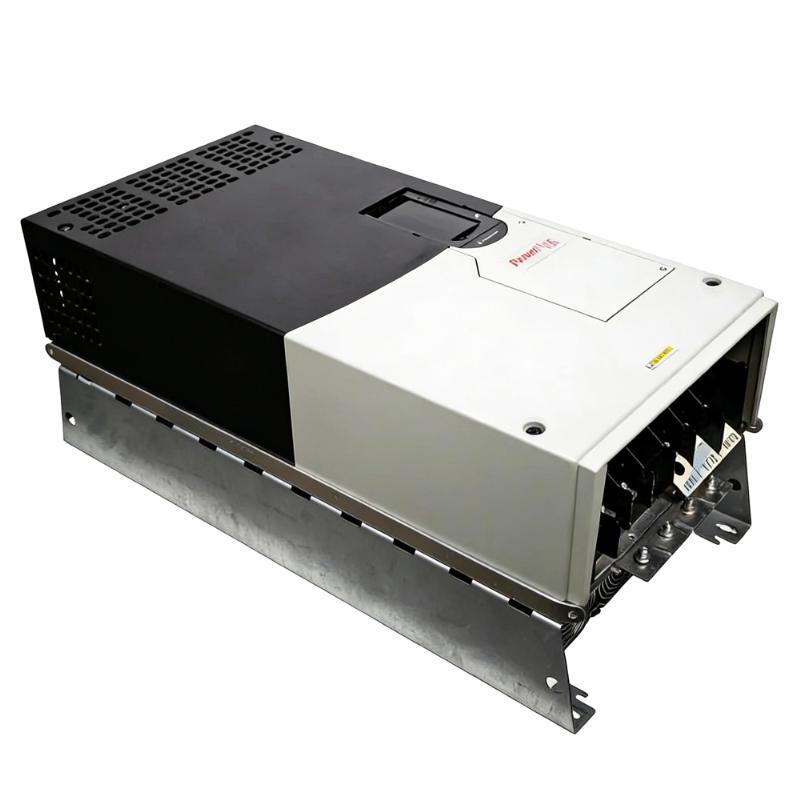

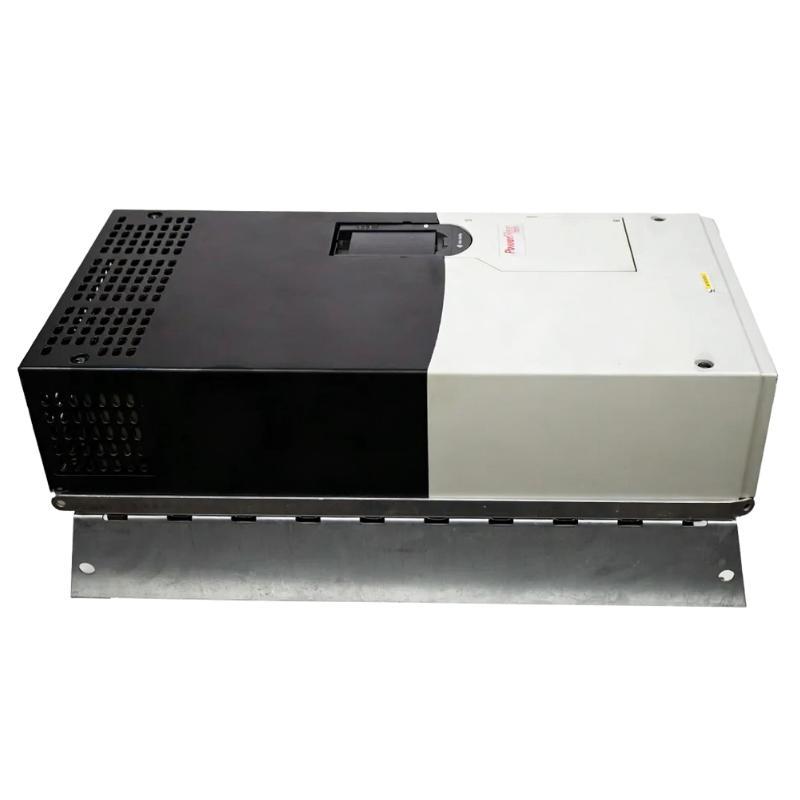

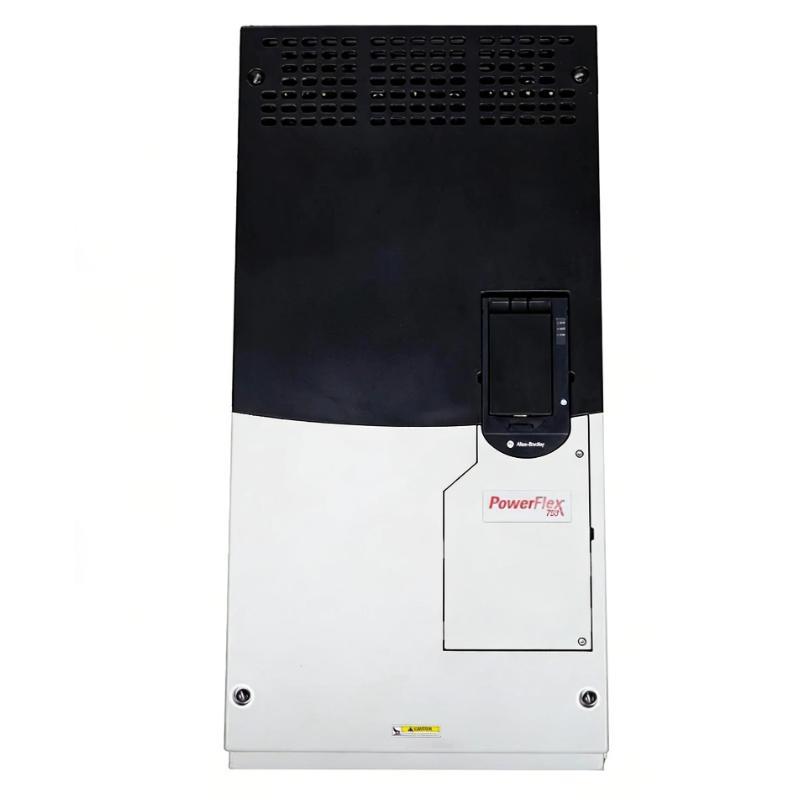

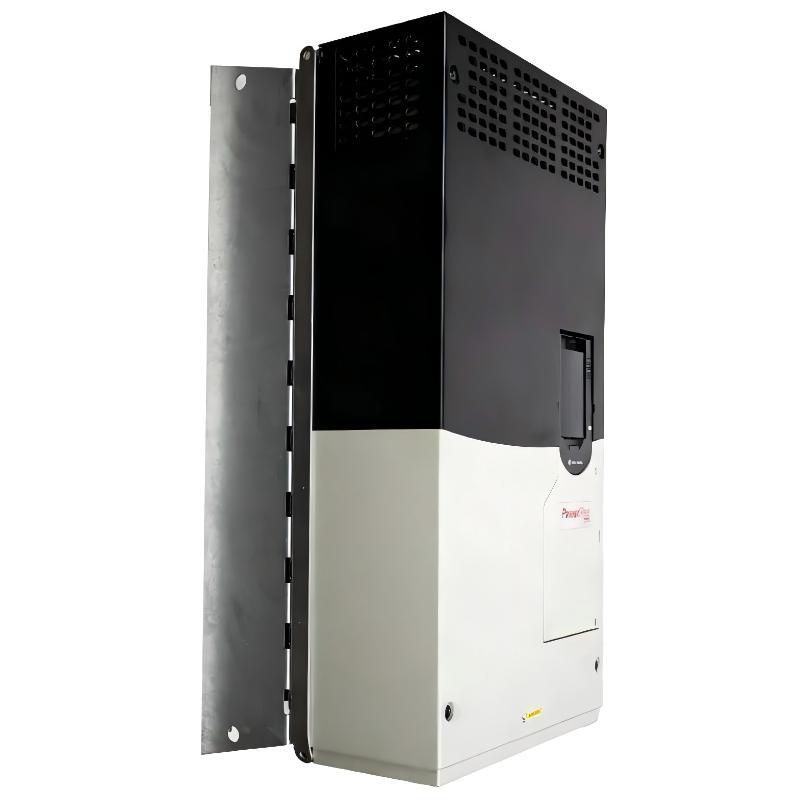

Allen Bradley 20F1AGC302JN0NNNNN PowerFlex 753 AC Drive

Overview

The Allen Bradley 20F1AGC302JN0NNNNN PowerFlex 753 AC Drive is a high-performance industrial variable frequency drive designed for large motor control applications requiring reliable operation, advanced functionality, and efficient system integration. It provides precise motor speed control, flexible configuration options, and comprehensive protection features for demanding industrial environments.

This drive is suitable for heavy-duty applications such as large conveyors, pumps, fans, compressors, and industrial processing equipment requiring high-power AC motor control.

General Information

Part Number: 20F1AGC302JN0NNNNN

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: USA

Series: PowerFlex 753

Type: AC Variable Frequency Drive (VFD)

Input Voltage Class: 480 VAC

Rated Output Current: 302 A

Motor Control: Sensorless Vector Control, Vector Control, and Volts/Hertz Control

Mounting: Floor-mounted industrial enclosure installation

Application: Heavy-duty industrial motor control and automation systems

Protection Features: Overvoltage, undervoltage, overload, short circuit, and thermal protection

Power Specifications

Input Voltage: 480 VAC three-phase

Input Frequency: 50/60 Hz

Output Voltage: 0 to rated input voltage

Output Frequency Range: 0 to 590 Hz

Rated Output Power: Approximately 250 kW / 400 HP class

Overload Capacity: Supports normal duty and heavy-duty overload operation

Cooling Method: Forced air cooling

Protection Functions: Integrated monitoring for current, voltage, temperature, and drive faults

Communication & Interface

Communication Ports: Supports optional communication modules

Network Options: EtherNet/IP and other industrial communication networks

Control Inputs: Digital and analog inputs for start, stop, speed reference, and feedback signals

Control Outputs: Relay and analog outputs for drive status monitoring

Operator Interface: Supports HIM keypad for setup, programming, and diagnostics

Programming: Parameter configuration through keypad, software tools, or network connection

Diagnostic Functions: Provides fault alarms, event logs, and real-time drive status monitoring

Environmental

Operating Temperature: 0 to 50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Altitude: Up to 1000 m without derating

Installation Environment: Indoor industrial electrical room or control area

Protection Rating: IP20 / NEMA enclosure type

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (H × W × D): 1614 × 464.7 × 609.4 mm

Weight: 162 kg
