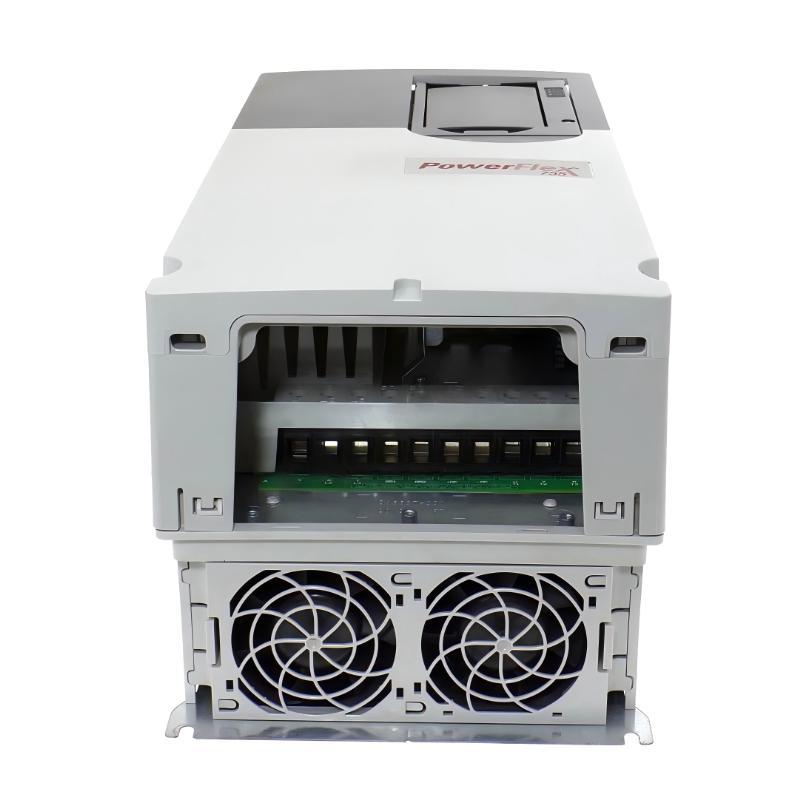

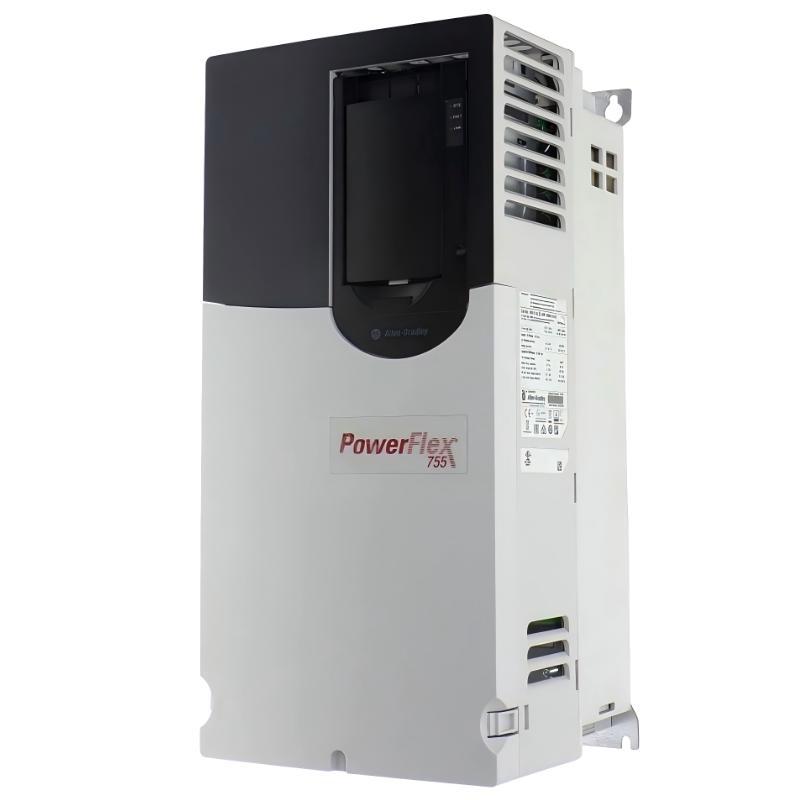

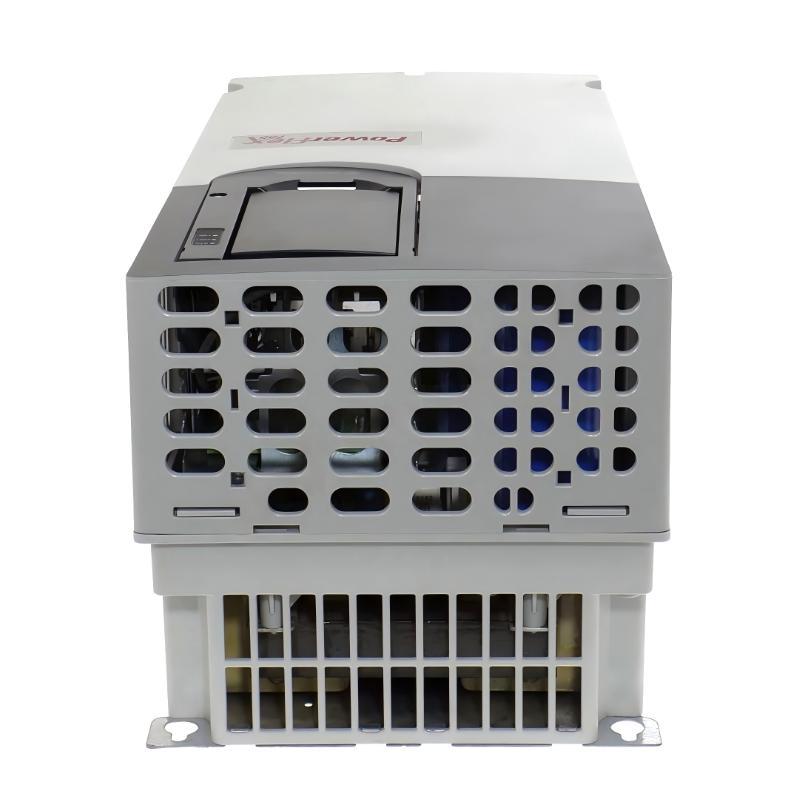

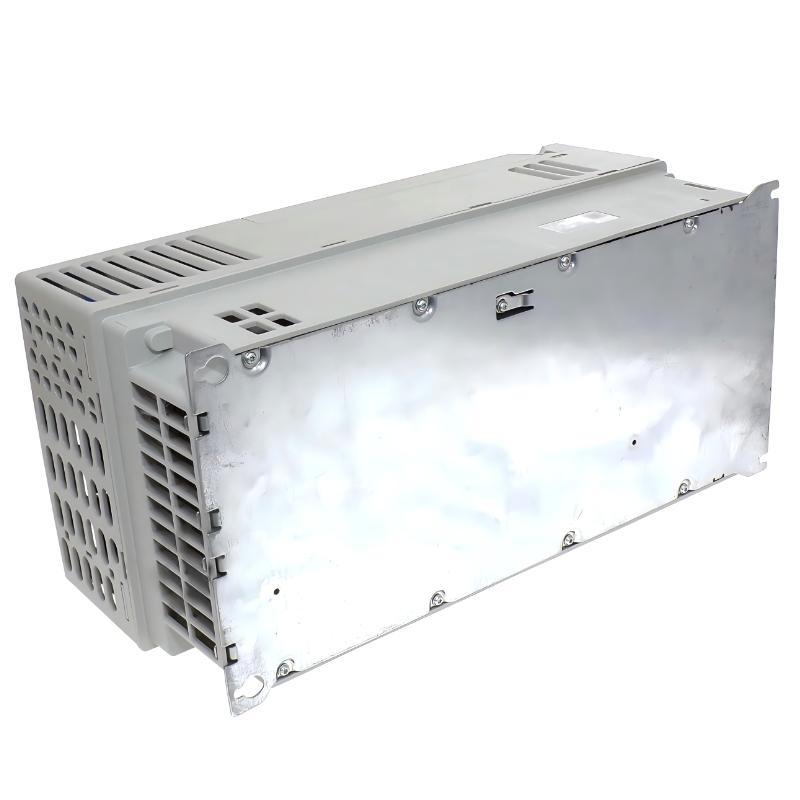

Allen Bradley 20G11ND065JA0NNNNN PowerFlex 755 AC Drive

Overview

The Allen Bradley 20G11ND065JA0NNNNN PowerFlex 755 AC Drive is a high-performance variable frequency drive designed for precise motor speed and torque control in industrial automation applications. It provides flexible configuration, reliable operation, and advanced communication capabilities for demanding motor control systems.

General Information

Part Number: 20G11ND065JA0NNNNN

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: PowerFlex 755

Type: AC Variable Frequency Drive

Input Voltage: 480 VAC Three Phase

Output Current: 65 A

Normal Duty Rating: 50 HP

Heavy Duty Rating: 40 HP

Frame Size: Frame 4

Cooling Method: Forced Air Cooling

Enclosure Type: IP20 Open Type

Dynamic Braking: Built-in Dynamic Braking Transistor

Operator Interface: No HIM Included

Power Specifications

Input Voltage: 480 VAC

Input Phase: Three Phase

Output Current: 65 A

Normal Duty Output Power: 37 kW / 50 HP

Heavy Duty Output Power: 30 kW / 40 HP

Input Frequency: 50/60 Hz

Output Frequency: Adjustable frequency control for motor speed regulation

Control Mode: Supports advanced motor control functions

Protection Functions: Overcurrent, overload, short circuit, and thermal protection

Braking Function: Integrated dynamic braking capability for controlled motor stopping

Communication & Interface

Communication Interface: Embedded EtherNet/IP

Network Capability: Supports industrial Ethernet communication with automation controllers

Controller Compatibility: Compatible with Allen Bradley ControlLogix and CompactLogix systems

Feedback Support: Supports optional encoder and feedback interface modules

Configuration Interface: Software-based parameter setup and optional HIM modules

Diagnostics: Real-time fault monitoring, status feedback, and parameter management

Environmental

Operating Temperature: -20 to 60 °C

Storage Temperature: -40 to 70 °C

Cooling Type: Forced Air Cooling

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: IP20 Open Type

Dimensions & Weight

Dimensions (H × W × D): 474 × 212 × 222 mm

Weight: Approx. 13.6 kg

New In Stock – Ready for Industrial Automation Applications
