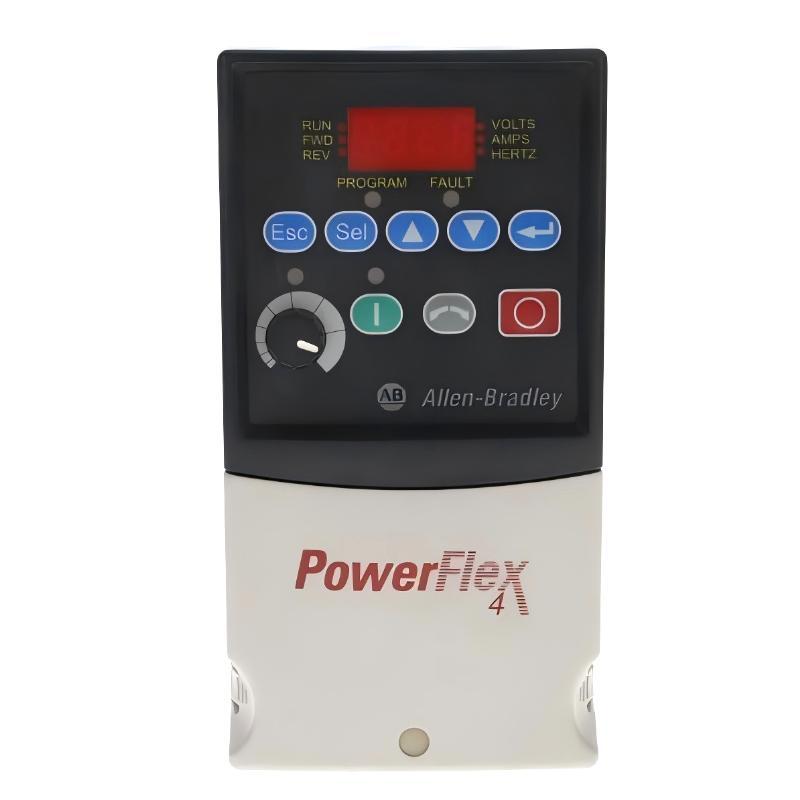

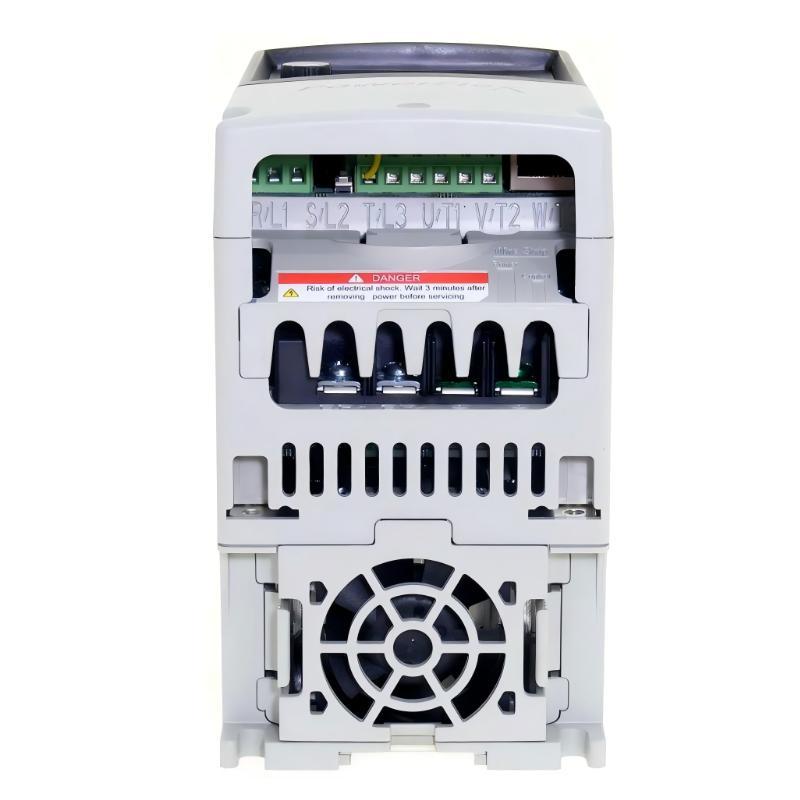

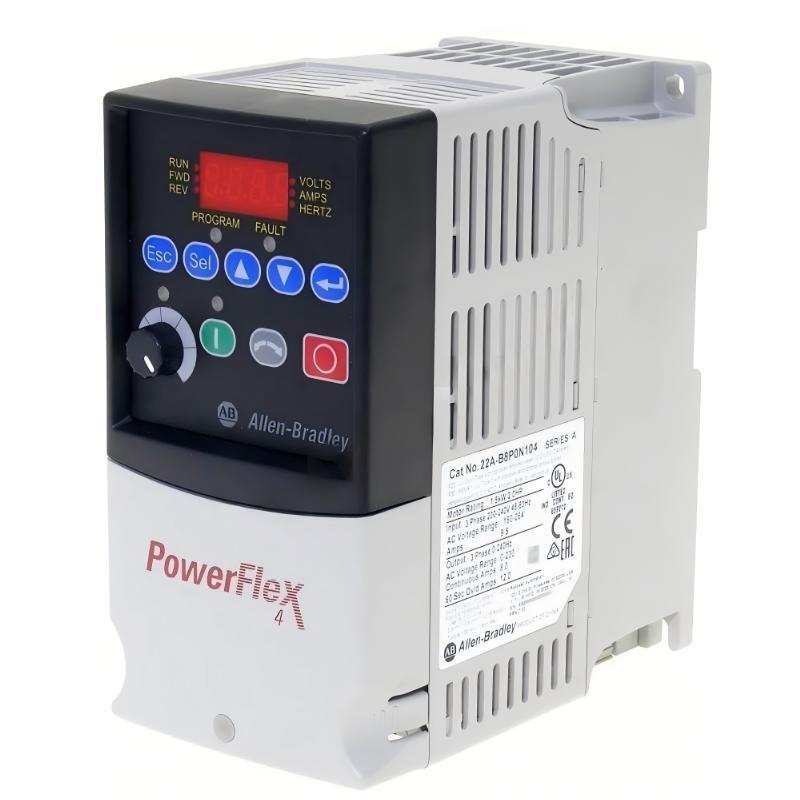

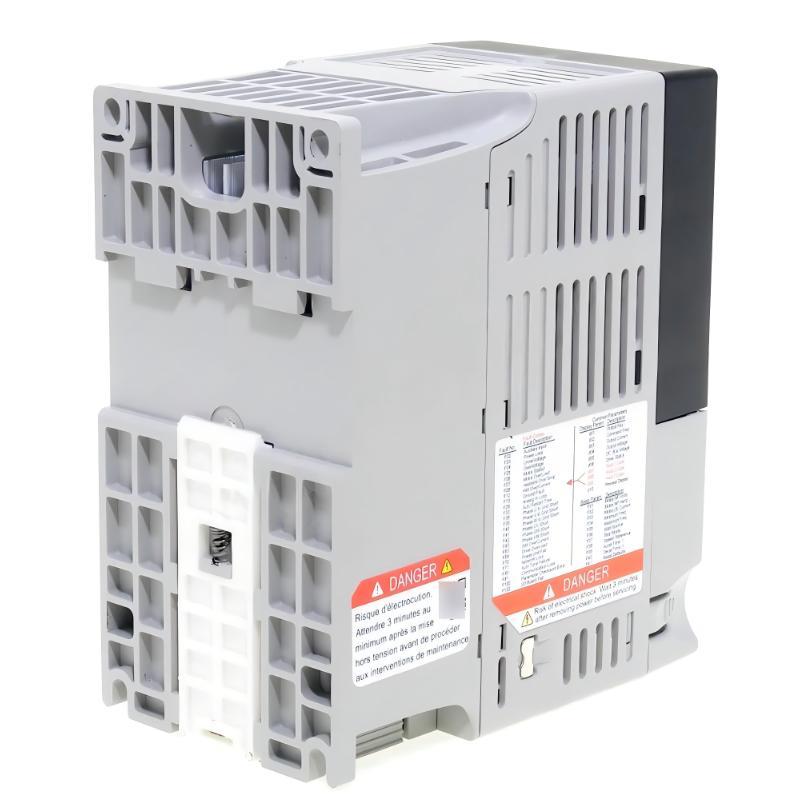

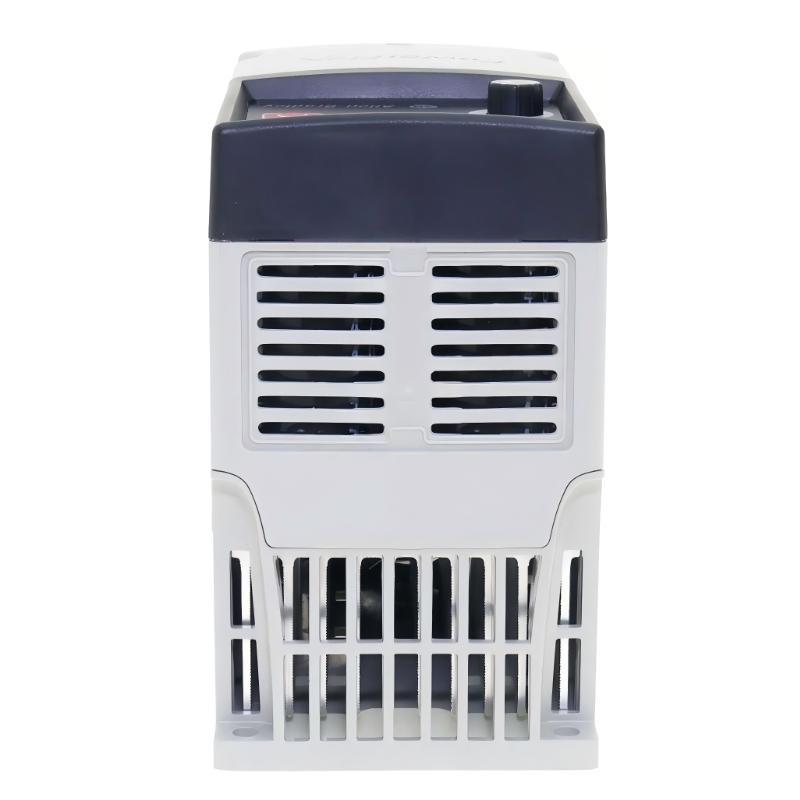

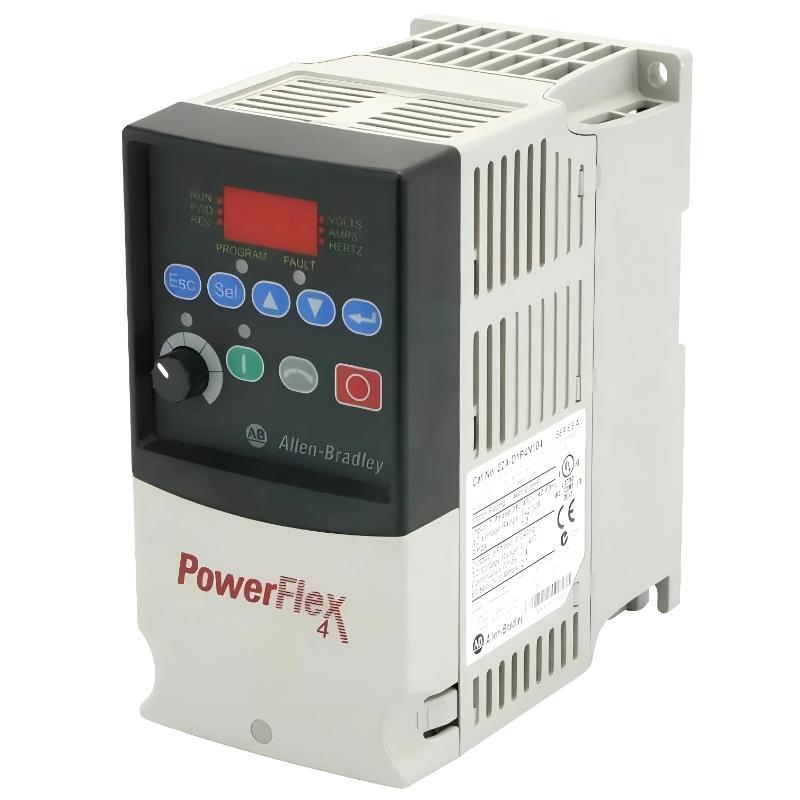

Allen Bradley 22A-B8P0N104 PowerFlex 4 AC Drive

Overview

The Allen Bradley 22A-B8P0N104 is a PowerFlex 4 AC drive designed for compact motor control applications. It provides reliable variable frequency operation, flexible speed adjustment, and efficient motor performance for industrial machines and automation systems.

General Information

Brand: Allen Bradley

Country of Origin: USA

Part Number: 22A-B8P0N104

Series: PowerFlex 4

Type: AC Drive / Variable Frequency Drive

Application: Motor speed control and industrial automation equipment

Input Phase: Three-phase

Frame Size: Frame A

Dimensions: 152 × 80 × 136 mm

Weight: 1.4 kg

Power Specifications

Input Voltage: 380 to 480V AC

Output Power: 2 HP class drive

Rated Current: Suitable for small to medium motor control applications

Motor Control Method: Adjustable frequency control with programmable operating parameters

Protection Features: Overcurrent, overload, overvoltage, undervoltage, and short-circuit protection

Cooling Method: Natural air cooling design

Communication & Interface

Control Interface: Digital and analog control terminals

Communication Type: RS-485 communication interface support

Programming Interface: Local keypad for setup and parameter adjustment

Input Signals: Start/stop commands, speed reference, and digital control inputs

Output Signals: Drive status monitoring and operating feedback

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +85 °C

Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinet and machine applications

Protection Rating: IP20 enclosure for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 152 × 80 × 136 mm

Weight: 1.4 kg
